Side 1/36

Owner’s Manual

SmartRack

Premium

Vertical Cable Managers

6" Models: SRCABLEVRT6HD, SRCABLEVRT6HDFC, SRCABLEVRT6HD2

12” Models: SRCABLEVRT12HD, SRCABLEVRT12HD2

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Español 10 • Français 19 • Русский 28

WARRANTY REGISTRATION

automatically entered to win an ISOBAR

surge protector in our monthly drawing!

tripplite.com/warranty

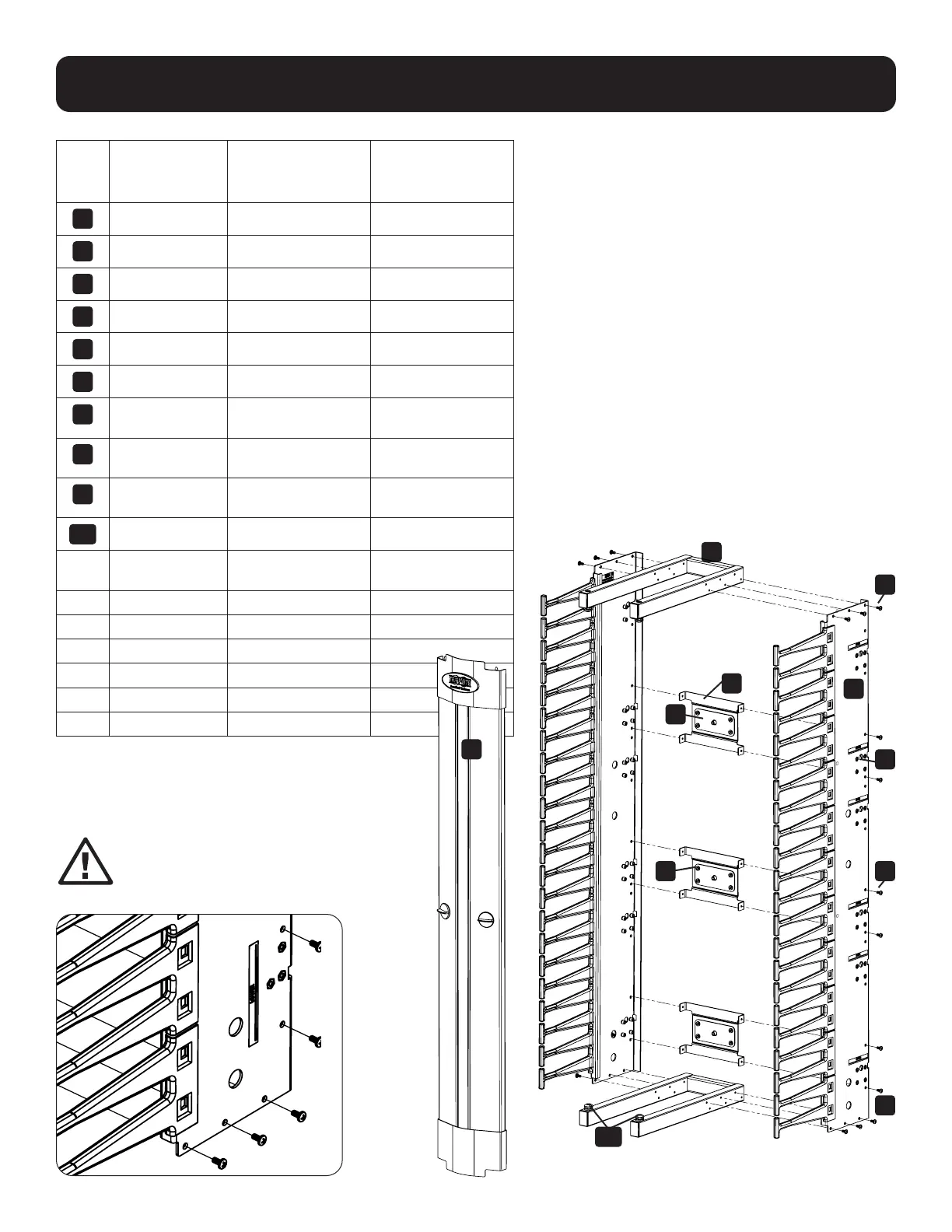

Assembly

Item

No. Description

Qty:

SRCABLEVRT6HD,

SRCABLEVRT6HDFC

Qty:

SRCABLEVRT6HD2,

SRCABLEVRT6HD2F

Door Assembly 2 4

Weldment 4 8

Tie Plate 6 12

Cross Bracket 6 12

Left Side Panel 2 4

Right Side Panel 2 4

M4 x 6 mm

Flat Head Screw

6 12

M4 x 8 mm

Tap Screw

50 100

M4 x 8 mm

Pan Head Screw

24 48

Door Bushing 8 16

11* M4 x 12 mm

Pan Head Screw

18 36

12* Mounting Button 6 12

13* Mounting Bracket 6 8

14** 1/2" Hex Bolt 4 8

15** 1/2" Hex Nut 4 8

16** Metal Spacer 4 8

17** 1/2" Washer 4 8

9 8

When assembling, note the

orientation of the side panels.

The labels “lower”

should be

orientated

on the bottom.

cable duct explode_1.AI 1 2/10/2021 1:22:48 PM

*Not shown: Refer to Single-Depth Installation for details.

**Not shown: Refer to Alternate Rack Mounting for details.

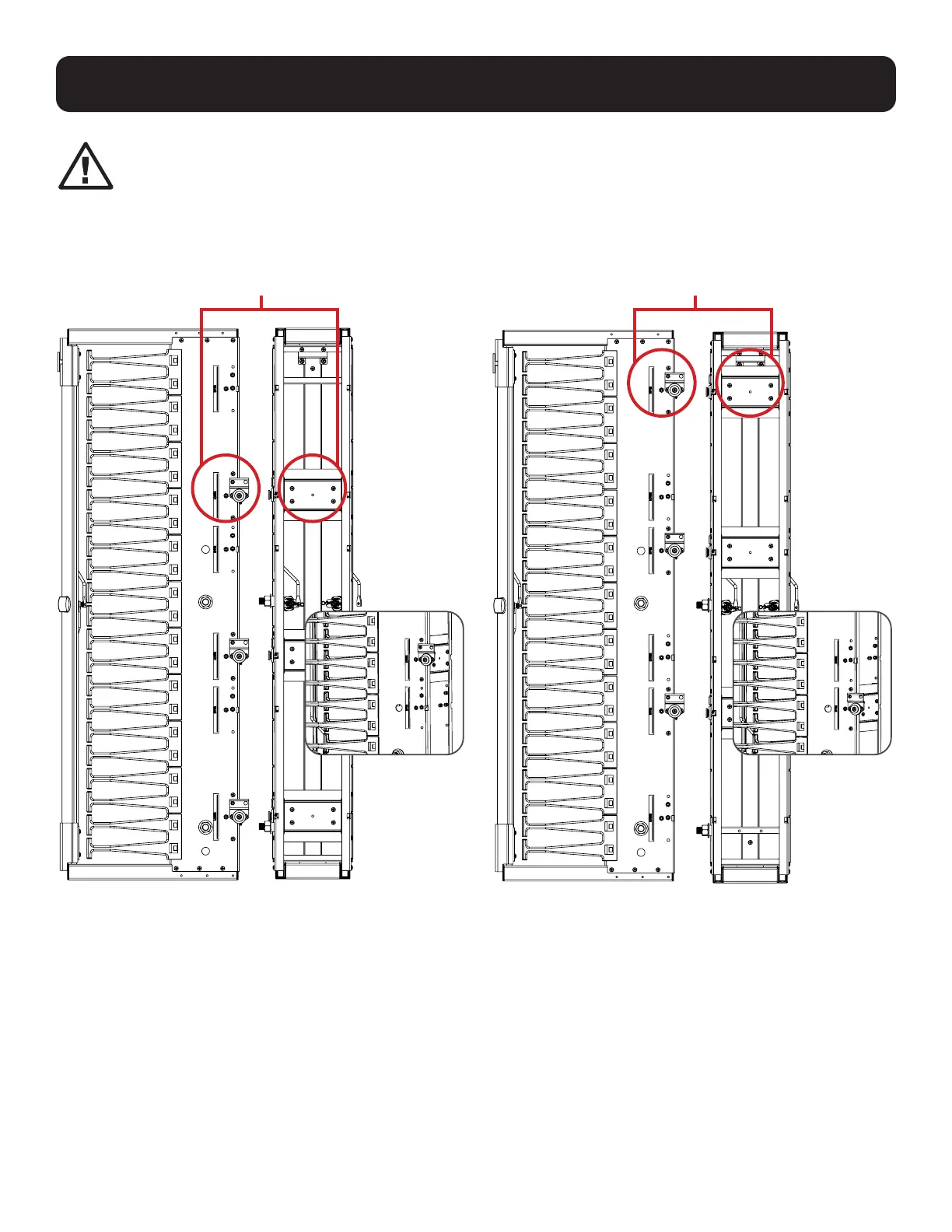

When assembling, note the orientation of the Cross Brackets.

If the units are going to be stacked vertically, the upper cable duct should have the Cross Brackets

and PDU Buttons mounted in the upper positions, matching the labels on the side brackets.

Assembly

Conﬁgured for

lower mounting

Conﬁgured for

upper mounting

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	kabler for datamaskiner og annet
Modell:	SRCABLEVRT6HD2F
Vekt:	44450 g
Bredde:	154.43 mm
Dybde:	698.5 mm
Høyde:	2103.63 mm
Antall per pakke:	1 stykker
Produktfarge:	Black, Yellow
Monteringssett:	Ja
Bærekraftsertifikater:	EAC, RoHS
Modell/Type:	Administrasjonspanel
Kroppsmateriale:	Stål
Bærekraftsamsvar:	Ja
