Side 1/12

Quick Start Guide

LC and MPO Singlemode/

Multimode TAP Cassettes

Models:

N482TAP-4SM73LC, N482TAP-4SM73M8 (Singlemode, 4x Duplex LC, 70/30)

N482TAP-4MM73M8, N482TAP-4MM73LC (Multimode, 4x Duplex LC, 70/30)

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

WARRANTY REGISTRATION

automatically entered to win an ISOBAR

surge protector in our monthly drawing!

tripplite.com/warranty

Español 3 • Français 5 • Русский 7 • Deutsch 9

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

21-02-045 • 93-3D97_RevA

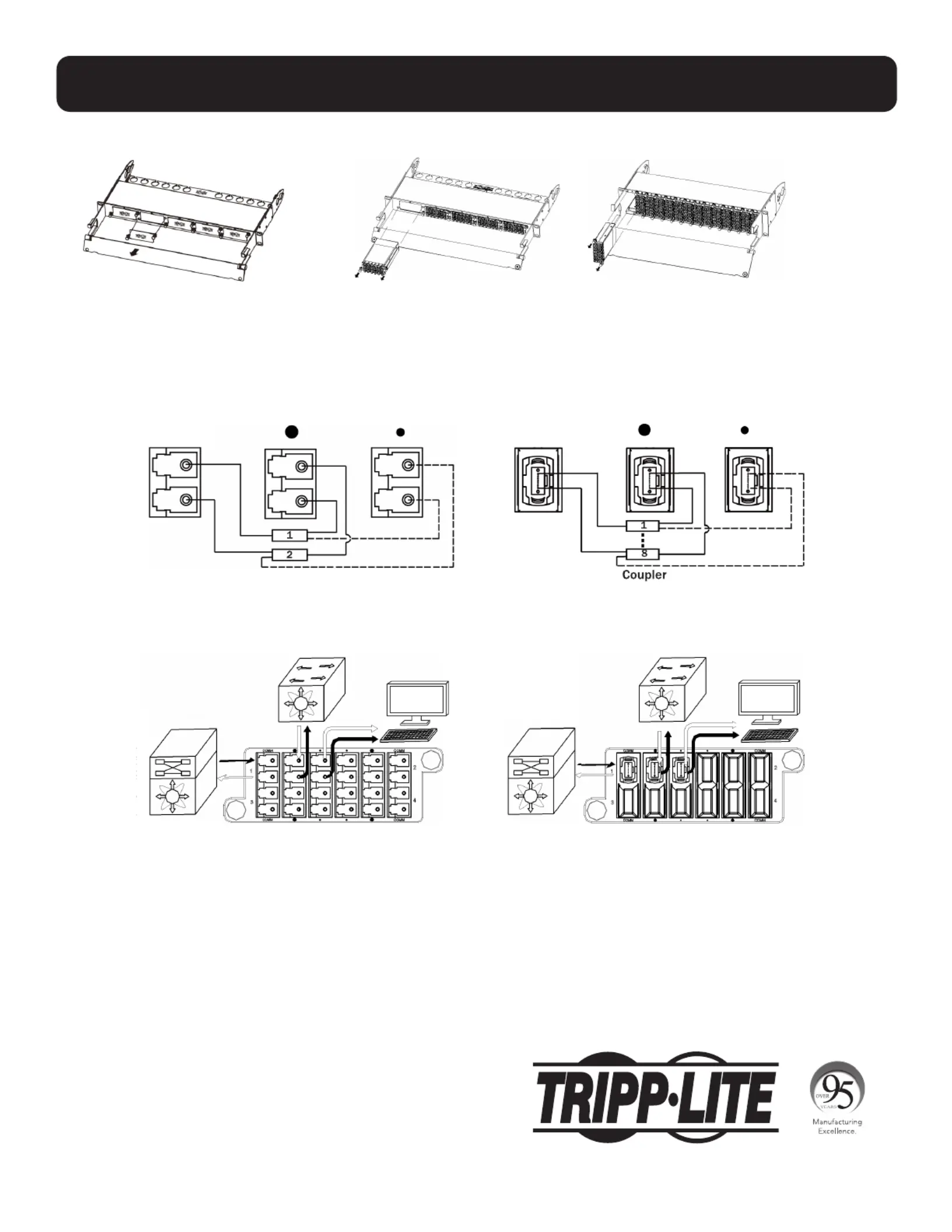

1. Installing TAP cassettes into panel.

2. TAP cassettes port mapping.

Step 1. Inserting/removing blank plate. Step 2. Inserting/removing TAP cassettes into panel.

TAP cassettes include main component (coupler) that divides the optical signal into two outputs, one for user and one for monitoring. TAP is completely

passive, extracts data via a device that can split signals from both directions between its intended recipients as well as a monitoring device.

2-TAP

1-TAP

2-IN

1-OUT

Coupler

COMMCOMM

1-IN

8-OUT

8-IN

1-OUT

8-TAP

1-TAP

MPO to MPO TAP port mappingLC to LC TAP port mapping

Access layer Access layer

Monitor

LC to LC TAP cassettes MPO to MPO TAP cassettes

Monitor

Core layer Core layer

Warranty and Product Registration

Lifetime Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship. If the product should prove defective in

material or workmanship within that period, Seller will repair or replace the product, at its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN

THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY

OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES.

(Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above

limitations or exclusions may not apply to you. This warranty gives you speciﬁc legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to

great variation, the manufacturer makes no representation or warranty as to the suitability or ﬁtness of these devices for any speciﬁc application.

Product Registration

Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically

entered into a drawing for a chance to win a FREE Tripp Lite product!*

*No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Use of this equipment in life support applications where failure of this equipment can reasonably

be expected to cause the failure of the life support equipment or to signiﬁcantly affect its safety

or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement. Speciﬁcations are subject to change without

notice. Photos and illustrations may differ slightly from actual products.

3. TAP network mapping.

TAP Cassette Installation

MÁS DE

AÑOS

Guía de Inicio Rápido

Casetes de TAP Monomodo/

Multimodo LC y MPO

Modelos:

N482TAP-4SM73LC, N482TAP-4SM73M8 (Monomodo, 4x Dúplex LC, 70/30)

N482TAP-4MM73M8, N482TAP-4MM73LC (Multimodo, 4x Dúplex LC, 70/30)

1111 W. 35th Street, Chicago, IL 60609, EE. UU. • tripplite.com/support

English 1 • Français 5 • Русский 7 • Deutsch 9

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	Ikke kategorisert
Modell:	N482TAP-4SM73M8
Opprinnelsesland:	China
Pakkevekt:	230 g
Nettverksstandard:	IEEE 802.3ae
Kompatible produkter:	Tripp Lite N482-00U, Tripp Lite N482-01U, Tripp Lite N482-02U, Tripp Lite N482-04U
Fiberoptisk kontakt:	MTP/MPO
Produktfarge:	Sort
Pakkedybde:	121.9 mm
Pakkehøyde:	50.8 mm
Pakkebredde:	190.5 mm
Driftstemperatur (T-T):	-20 - 60 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 60 °C
Bærekraftsertifikater:	REACH, RoHS
Ethernet-grensesnittype:	40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet
Relativ luftfuktighet under drift (H-H):	5 - 85
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332262612
Masterkassens (ytterkassens) bruttovekt:	6110 g
Masterkassens (ytterkassens) lengde:	325.1 mm
Produkter per masterkasse (ytterkasse):	20 stykker
Masterkassens (ytterkassens) bredde:	391.2 mm
Masterkassens (ytterkassens) høyde:	325.1 mm
Fibre Channel-porter:	12
Single-mode fiber (SMF) støttes:	Ja
