Side 1/16

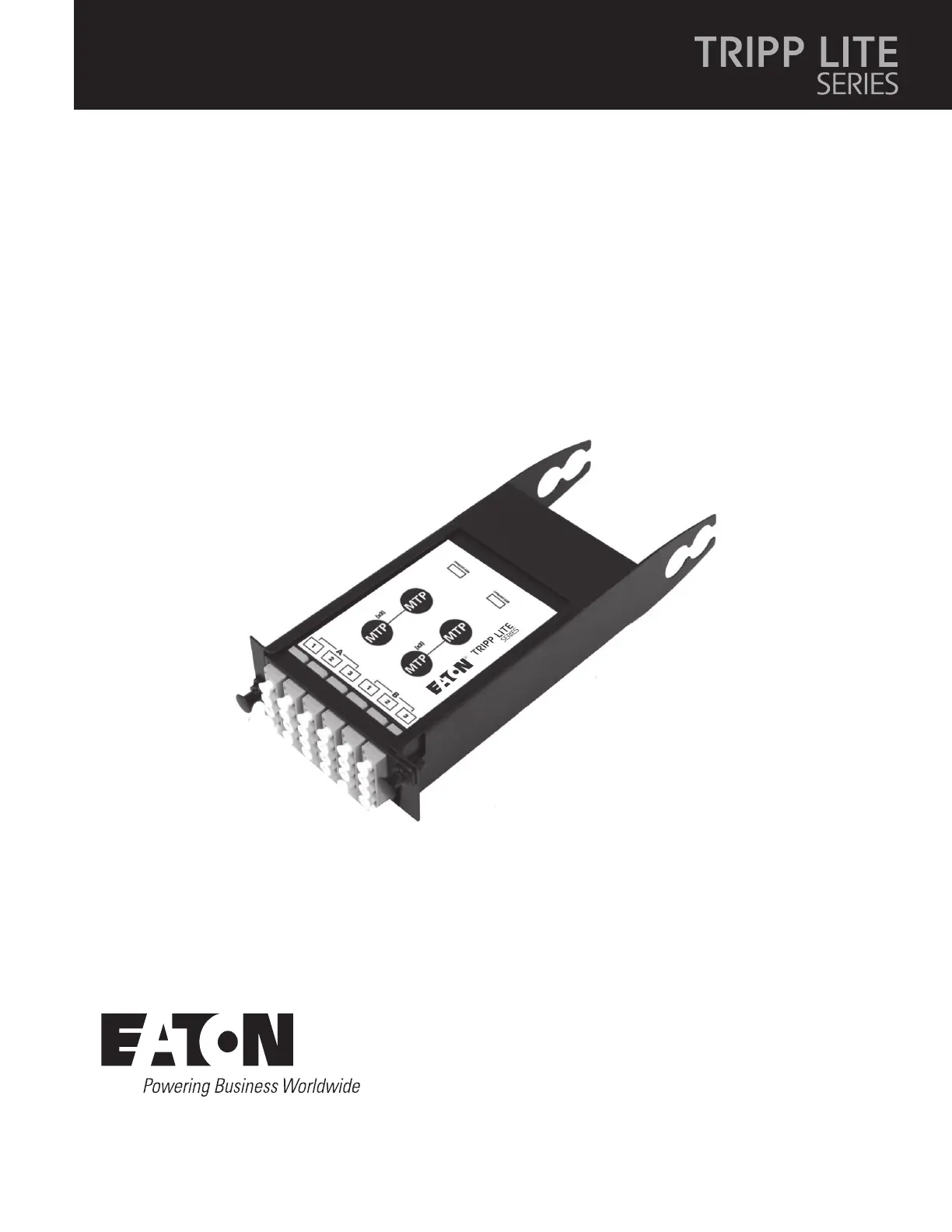

Quick Start Guide

Español 4

Français 7

Deutsch 10

Italiano 13

Purchased product

may differ from image.

Models:

N484-00U

N484-01U

N484-01U-MINI

N484-1M24-LC12

N484-2M12-LC12

N484-3M8-LC12

N484-3M8L12S

N484-2M24-6M12

N484-12LC,

N484-12M12

N484-12M24

N484-12RJ

High-Density Copper/Fiber Cassette Solutions

Modular Cassette Enclosures*

Cassettes*

* This Quick Start Guide covers installation of all N484-Series enclosures and cassettes.

Any new models, even if not listed above, will include this Quick Start Guide and can be

installed by following its instructions.

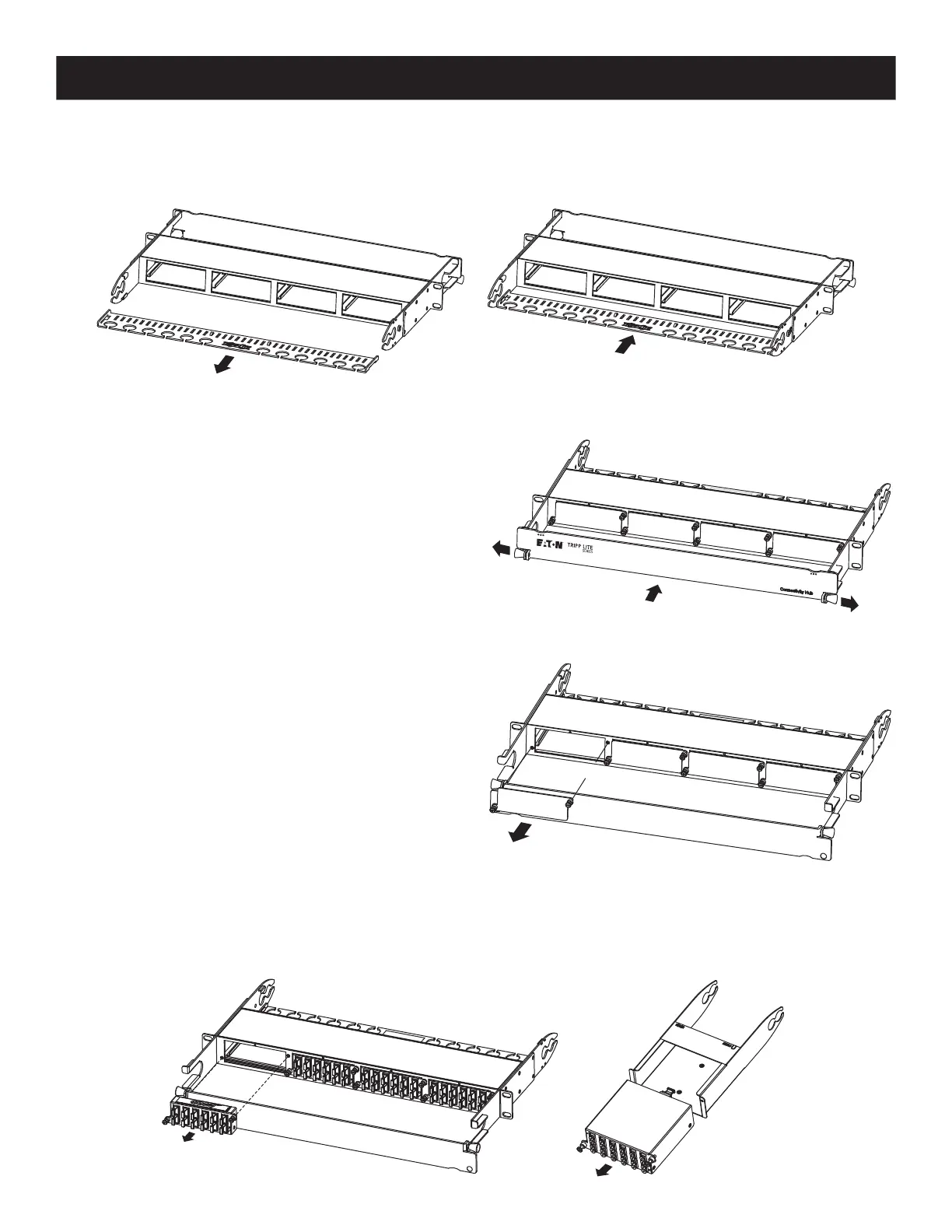

Inserting/Removing Blanking Panels:

The N482-01U comes with pre-installed blanking panels

attached to the enclosure’s cassette slots. When a slot is

needed, remove the blanking panel by unscrewing the

thumbscrews located on the opposite side of the blanking

panel. To attach a blanking panel to an empty cassette slot,

line up the blanking panel with the corresponding holes on

the enclosure. Then tighten the thumbscrews to secure the

blanking panel into place.

Inserting/Removing Cassettes:

After creating an open slot by removing a blanking panel, line up a cassette with the corresponding slot on the

enclosure and insert the cassette into the slot. Then tighten the thumbscrews to secure it into place. To remove a

cassette, unscrew the thumbscrews to release it from the enclosure.

Installing the Cable Management Bracket:

The panel rails on the back of the N484-01U enclosure contain mounting notches that allow the cable management

bracket to be installed on the top or bottom of the rails. Choose the top or bottom notches, insert the bracket into the

notches, and slide the bracket inward to secure it into place.

Installing the Panel Shield Bracket:

The N484-01U contains a shield bracket that attaches to the

front of the enclosure. Mounting holes are located on the

right and left front panel rails for bracket attachment. To

attach the bracket, pull on the pull tabs found on each side

of the bracket to move the connected pins outward. Then

insert the bracket into the enclosure. Once the pins are

lined up with the mounting holes on the panel rail sides,

release the pull tabs to lock the bracket into place. The

bracket slides up and down to allow access to the enclosure

or to shield it from contact.

Installation

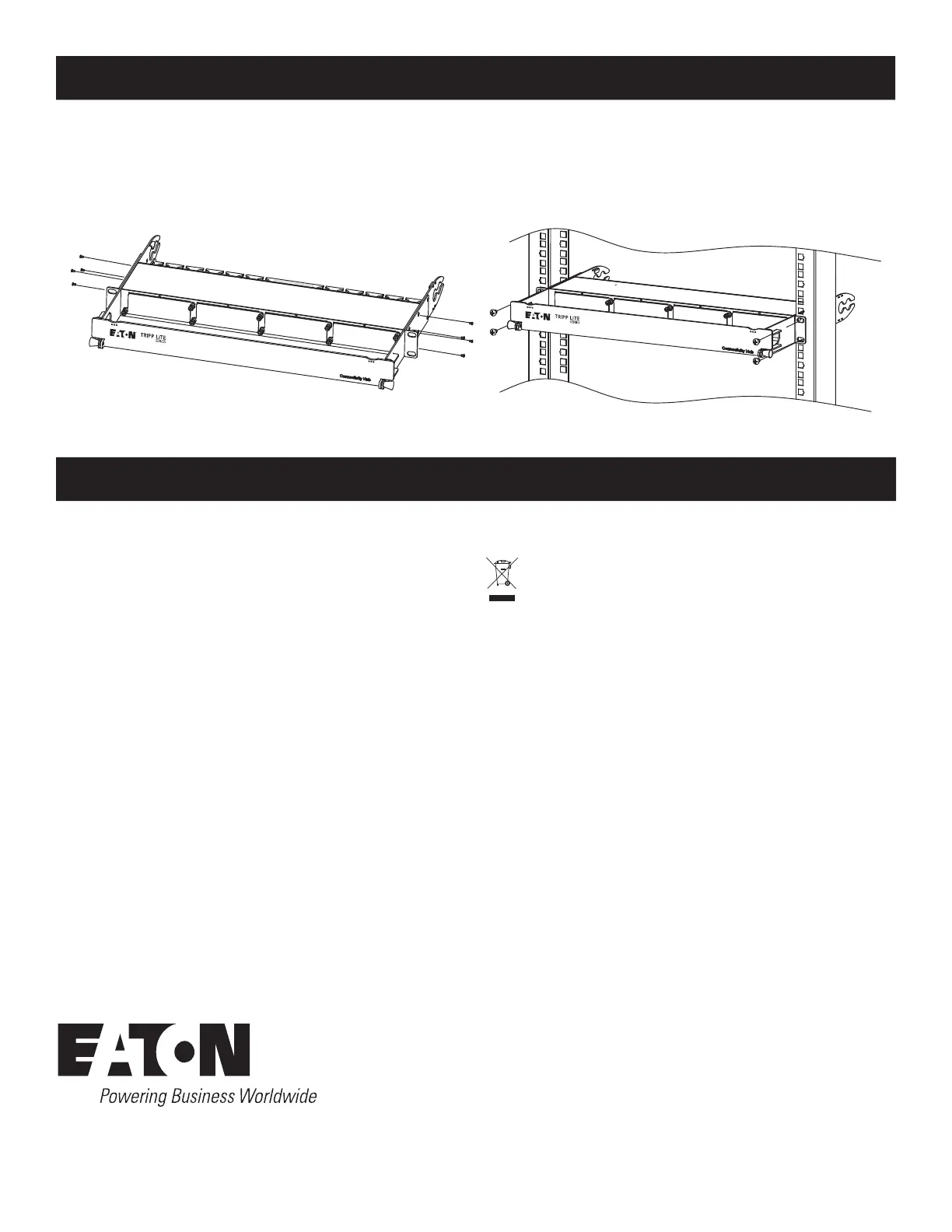

Mounting the Enclosure:

To mount the enclosure, you must first fasten the included mounting brackets to the sides of the enclosure with the

supplied screws. Once attached, secure the enclosure to the rack with appropriate user-supplied mounting hardware.

Note: The N484-00U’s magnets are designed for mounting onto the metal surface of a rack enclosure, cable manager or other similar structure. Ideal

placement should be away from direct contact with any active equipment (e.g., UPS, server, switch).

Limited Lifetime Warranty

Eaton warrants this product, if used in accordance with all applicable

instructions, to be free from original defects in material and workmanship

for life. If the product should prove defective in material or workmanship

within that period, we will, subject to the foregoing terms and limitations,

replace the product, in its sole discretion, as your exclusive remedy for

our breach of the limited warranty. Visit Tripplite.Eaton.com/support/

product-returns before sending any equipment back for repair.

THIS LIMITED WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO

DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT.

Eaton MAKES NO WARRANTIES OTHER THAN THE LIMITED WARRANTY

EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED

BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL

WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE, ARE HEREBY DISCLAIMED; AND THIS WARRANTY EXPRESSLY

EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some

states do not allow limitations or exclusion of implied warranties, and

some states do not allow the exclusion or limitation of incidental or

consequential damages, so the above limitations or exclusions may not

apply to you. This limited warranty gives you specic legal rights, and you

may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use

whether this device is suitable, adequate, or safe for the use intended.

Because individual applications are subject to great variation, we make no

representation or warranty as to the suitability or tness of these devices

for any specic application.

WEEE Compliance Information for Customers and Recyclers

(European Union)

Under the Waste Electrical and Electronic Equipment (WEEE)

Directive and implementing regulations, when customers buy new

electrical and electronic equipment from Eaton, they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like

basis (this varies depending on the country)

• Send the new equipment back for recycling when this ultimately

becomes waste

Use of this equipment in life support applications where failure of this

equipment can reasonably be expected to cause the failure of the life

support equipment or to signicantly aect its safety or eectiveness is

not recommended.

Eaton has a policy of continuous improvement. Specications are subject

to change without notice. Photos and illustrations may dier slightly from

actual products.

Eaton

1000 Eaton Boulevard

Cleveland, OH 44122

United States

Eaton.com

Publication No. 23-08-374 / 93-341E_RevF

September 2023

Eaton is a registered trademark.

All trademarks are property

of their respective owners.

Installation

Warranty

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	Ikke kategorisert
Modell:	N484-2M24-6M12
Vekt:	260 g
Bredde:	88.9 mm
Dybde:	119.4 mm
Høyde:	30.5 mm
Tilkobling:	MTP
Opprinnelsesland:	China
Pakkevekt:	400 g
Sertifisering:	REACH
Materiale:	Stål
Nettverksstandard:	IEEE 802.3ae
Maksimal dataoverføringshastighet:	120000 Mbit/s
Produkter per pall:	1 stykker
Antall porter:	6
Produktfarge:	Sort
Pakkedybde:	39.9 mm
Pakkehøyde:	150.1 mm
Pakkebredde:	195.1 mm
Driftstemperatur (T-T):	-20 - 50 °C
Bærekraftsertifikater:	RoHS
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332187199
Masterkassens (ytterkassens) bruttovekt:	4200 g
Masterkassens (ytterkassens) lengde:	160 mm
Produkter per masterkasse (ytterkasse):	10 stykker
Masterkassens (ytterkassens) bredde:	395 mm
Masterkassens (ytterkassens) høyde:	225 mm
