Side 1/20
1
Owner’s Manual
Spine-and-Leaf Singlemode
MPO/MTP Panels, 1U
Models: N48LSS-16X16, N48LSS-32X32
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR
®
surge protector in our monthly drawing!
tripplite.com/warranty
Español 5 • Français 9 • Русский 13 • Deutsch 17
2
The N48LSS-16X16 and N48LSS-32X32 1U network panels are designed for spine-and-leaf architecture, which replaces
a standard MPO/MTP-to-LC cross-connect with MPO/MTP ports and helps eliminate significant rack clutter. Spine ports in
the front of the panel mate with a spine switch, and leaf ports in the rear mate with a leaf switch. Main components of the
panels are shown below:
Step 1: Extend the front and back side brackets, and secure the side screws.
Main Components
Installation
Spine Ports
Leaf Ports
Door
Front Wire
Manager
Back Wire
Manager
3
Installation

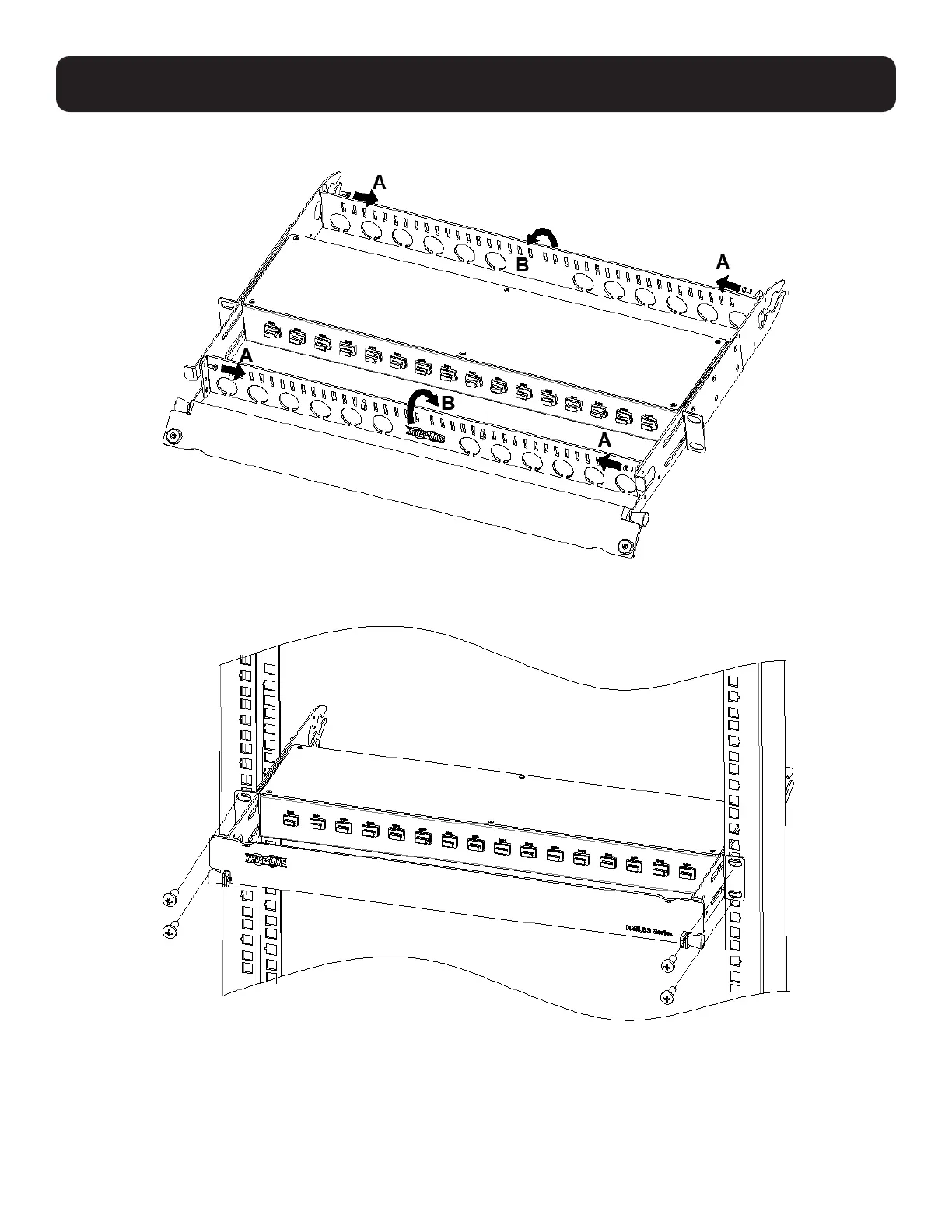

Step 2: Remove screws, rotate the front and back wire manager, and then tighten the screws.
Step 3: Mount the panel into an EIA-standard 19-inch rack, and secure the screws.

Produkspesifikasjoner

Merke: Tripp Lite
Kategori: netverkskort/adapter
Modell: N48LSS-32X32
Vekt: 3447 g
Bredde: 446 mm
Dybde: 375 mm
Høyde: 44 mm
Antall porter: 64
Fiberoptisk kontakt: MTP/MPO
Produktfarge: Aluminium, Black
Driftstemperatur (T-T): -20 - 60 °C
Oppbevaringstemperaturomåde (Celsius): -20 - 60 °C
Lagringsrelativ fuktighet: 5 - 85
Bærekraftsertifikater: CE, RoHS, REACH
Montering: Rackmontering
Rack-kapasitet: 1U
Ethernet-grensesnittype: 40 Gigabit Ethernet, 400 Gigabit Ethernet, 100 Gigabit Ethernet
Relativ luftfuktighet under drift (H-H): 5 - 85
Bærekraftsamsvar: Ja
Multi-mode fiber (MMF) støttes: Ja
