Side 1/8

Owner’s Manual

SNMP/Web Management Accessory Card

Model: WEBCARDLX

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Read this manual carefully before installation. A separate downloadable

User’s Guide can be found by going to www.tripplite.com/support and typing

WEBCARDLX in the search field. Refer to the User's Guide for additional

information about configuration and operation.

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an ISOBAR6ULTRA

surge protector—a $100 value!

www.tripplite.com/warranty

Este manual esta disponible en español en la página de Tripp Lite: www.tripplite.com

Ce manuel est disponible en français sur le site Web de Tripp Lite : www.tripplite.com

Русскоязычная версия настоящего руководства представлена на веб-сайте

компании Tripp Lite по адресу: www.tripplite.com

16-04-234-93358E-EN.indd 1 4/21/2016 3:32:12 PM

Table of Contents

Ethernet Port: RJ45 jack connects the WEBCARDLX to the network using a

standard Ethernet patch cable. The Link LED

and Status LED

indicate the

operating conditions, as shown in the table on page 3.

Micro-USB Port: Use this port to directly connect with a computer running a

terminal emulation program. A cable (part number 73156A) is included with the

WEBCARDLX. If you need to order a replacement cable, contact Tripp Lite

Customer Support at 773.869.1234.

Type-A USB Port: Use this port to connect a Tripp Lite ENVIROSENSE 2 module

(E2MT, E2MTDO, E2MTDI, E2MTHDI) for a variety of environmental monitoring and

control options. See www.tripplite.com for more information about these modules.

Note: Do not connect a keyboard or mouse to this port.

Overview ....................................................................................................... 2

Features ........................................................................................................2

Installation ....................................................................................................4

1 - Preparation .............................................................................................4

2 - Dynamic IP Address Assignment ................................................................5

3 - Static IP Address Assignment/Terminal Menu Configuration Settings .............6

4 - Test and Configure ...................................................................................7

Technical Support ..........................................................................................7

Warranty and Product Registration .................................................................8

Features

Overview

The WEBCARDLX allows users to operate any compatible Tripp Lite UPS System or

network-enabled PDU as a managed device on the network, accessible via Web

browser, Network Management Station or telnet/SSH. This manual refers to installing

the card in a UPS system, but the same instructions apply to installing the card in a

compatible PDU.

16-04-234-93358E-EN.indd 2 4/21/2016 3:32:13 PM

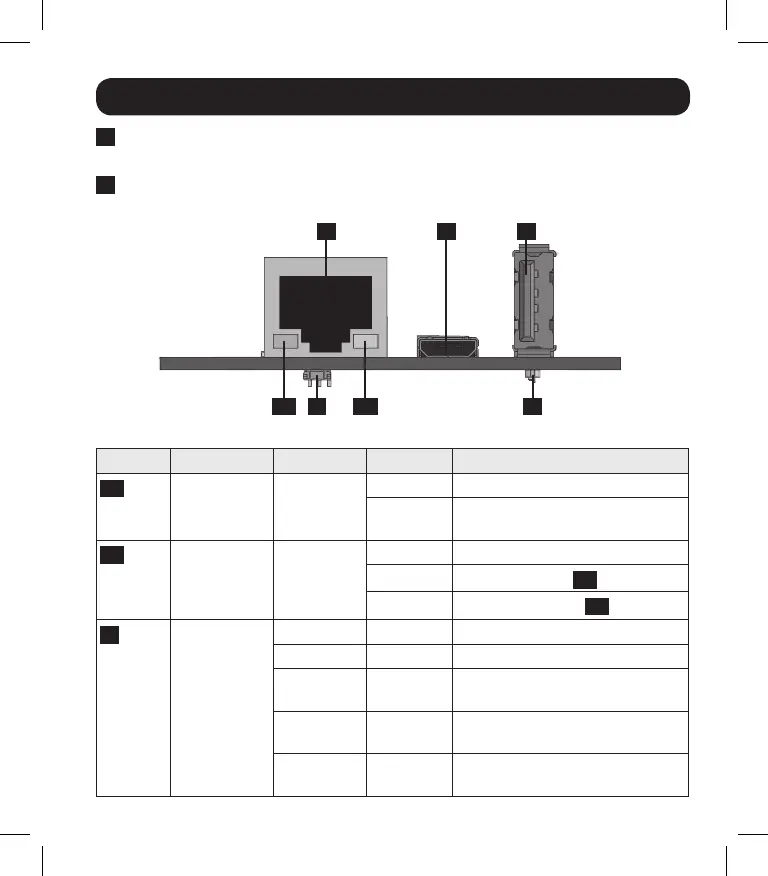

Features

CBA

EA2DA1

WEBCARDLX Legend

Identiﬁer LED Function LED Color Status Description

Ethernet

Link/Activity

Indicator

Green Flashing There is network activity on the port

Off There is no network activity on the

port

Ethernet

Network

Speed

Indicator

Yellow On steady 100 Mbps network speed

Off

10 Mbps speed if

is ﬂashing

Off

No network activity if

is also off

WEBCARDLX

Status

Green On steady Normal operation

Green Single ﬂash Power up indicator

Green/

Orange

Off No power or card is initializing

Green/

Orange

Alternating

(~1/sec.)

Software update in progress

Green/

Orange

Alternating

(~2/sec.)

Restoring factory default

conﬁguration

Reset Button: Accessible through a small hole on the faceplate under the RJ45

network port (between the link and status LEDs).

Status LED: Shows WEBCARDLX status. See the table below for a description of

LED behavior.

16-04-234-93358E-EN.indd 3 4/21/2016 3:32:13 PM

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	netverkskort/adapter
Modell:	WEBCARDLX
Produkttype:	Nettverksadministrasjonskort
Vekt:	50 g
Bredde:	132.1 mm
Dybde:	59.9 mm
Opprinnelsesland:	Taiwan
Pakkevekt:	390 g
Kablingsteknologi:	10/100BaseT(X)
Pakkedybde:	175.3 mm
Pakkehøyde:	57.9 mm
Pakkebredde:	160 mm
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Bærekraftsertifikater:	RoHS
Ethernet LAN dataoverføringshastigheter:	10, 100 Mbit/s
Ethernet-grensesnittype:	Raskt Ethernet
Ledelsesprotokoller/håndteringsprotokoller:	IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2c, SNMPv3, Telnet, SSH, FTP, DHCP
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332186772
Masterkassens (ytterkassens) bruttovekt:	1450 g
Masterkassens (ytterkassens) lengde:	177.8 mm
Produkter per masterkasse (ytterkasse):	5 stykker
Masterkassens (ytterkassens) bredde:	172.7 mm
Masterkassens (ytterkassens) høyde:	304.8 mm
