Side 1/24

Hardened 10/100 Copper to

Fiber Media Converter, RJ45/SC

Model: N784-H01-SCMM

Hardened 10/100 Copper to

Fiber Media Converter, RJ45/ST

Model: N784-H01-STMM

Hardened 10/100 Copper to

Fiber Media Converter, RJ45/SC

Model: N784-H01-SCSM

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Quick Start Guide

WARRANTY REGISTRATION

automatically entered to win an ISOBAR

surge protector in our monthly drawing!

tripplite.com/warranty

Español 9 • Français 17

21-06-213 93-3F70.indb 121-06-213 93-3F70.indb 1 6/7/2022 3:32:50 PM6/7/2022 3:32:50 PM

• Extendsa10/100MbpsEthernetconnectionoverSCmultimodeber

cable up to 2 kilometers (N784-H01-SCMM)

• Extendsa10/100MbpsEthernetconnectionoverSTmultimodeber

cable up to 2 kilometers (N784-H01-STMM)

• Extendsa10/100MbpsEthernetconnectionoverSCsinglemodeber

cable up to 30 kilometers (N785-H01-SCSM)

• Hardened housing withstands high operating temperatures

• Provides ESD, RFI and surge protection

• LEDsindicateEthernetconnectionandberlinkstatus

• DIP switches control Local Loop Back testing (LLB), Remote Loop

Back testing (RLB), Link Fault Signaling (LFS) and Reserve functions

• Link Fault Signaling (LFS) LED indicates when a cable has been

severed or another cause for disruption has occurred

• Local Loop Back (LLB) tests the copper network connection

• RemoteLoopBack(RLB)teststhebernetworkconnection

• Auto MDI/MDI-X functionality removes the need for crossover cabling

• N784-H01-SCMM or N784-H01-STMM or N784-H01-SCSM

Media Converter

• External Power Supply with NEMA 1-15P Plug

(Input: 100-240VAC, 50/60 Hz, 0.5A; Output: 12VDC, 1.5A)

• DIN Rail Kit

• Mounting Hardware

• L-Shaped Bracket

• Rubber Foot

• SC Connector Cap (N784-H01-SCMM and N784-H01-SCSM)

• ST Connector Cap (N784-H01-STMM)

• Quick Start Guide

Product Features

Package Contents

21-06-213 93-3F70.indb 221-06-213 93-3F70.indb 2 6/7/2022 3:32:50 PM6/7/2022 3:32:50 PM

• N001-Series Cat5e Snagless Patch Cables

• N201-Series Cat6 Snagless Patch Cables

• N302-Series Duplex Multimode 62.5/125 Fiber Patch Cables (ST/ST)

• N306-Series Duplex Multimode 62.5/125 Fiber Patch Cables (SC/SC)

• N356-Series Duplex Singlemode 9/125 Fiber Patch Cables (SC/SC)

• N785-CH12 12-Port Chassis for N784/N785 Media Converters

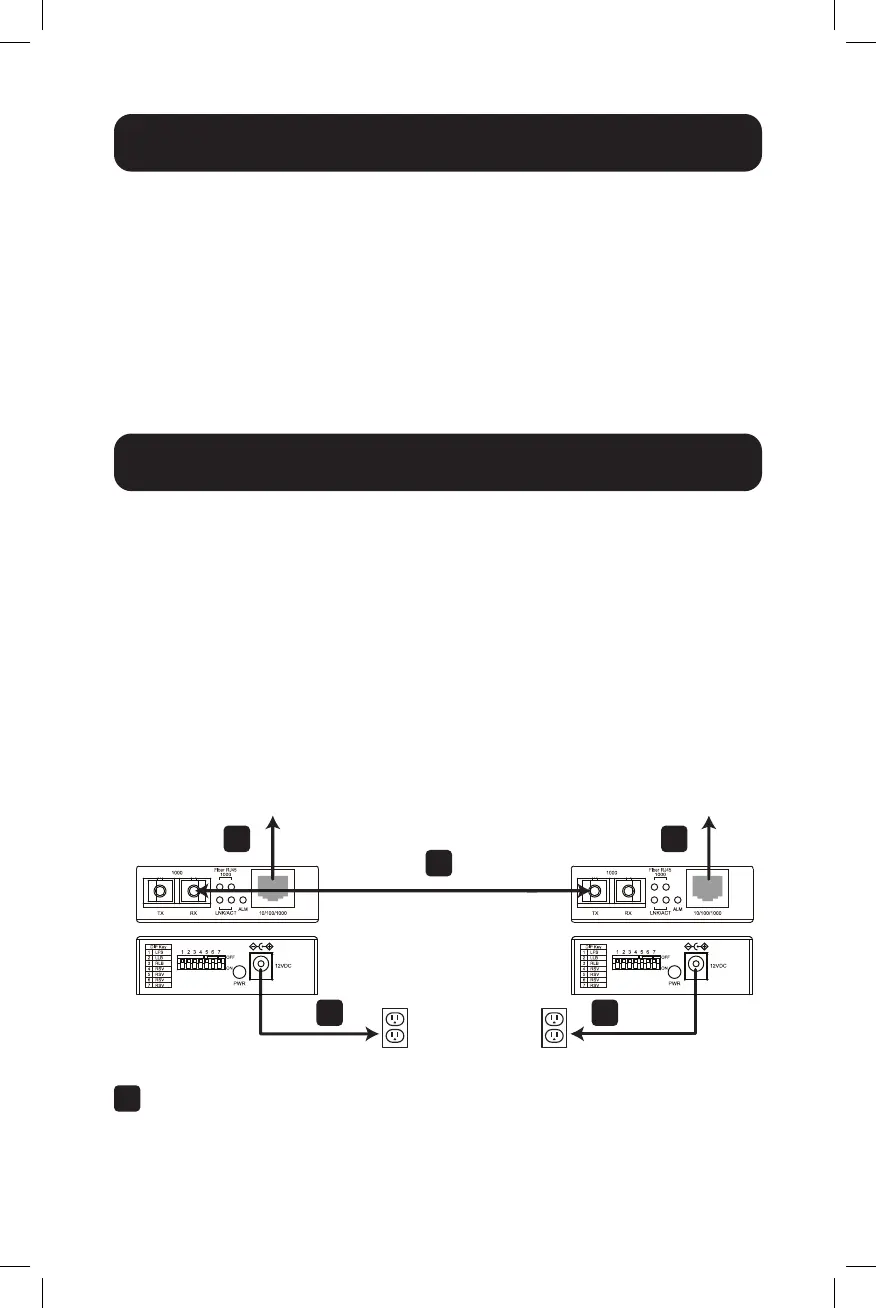

Notes:

• The following installation instructions refer to an installation in which two media

converters are used. A single media converter can be used for a copper-to-

ber installation.

• The following installation instructions refer to the N784-H01-SCMM. Connections

are the same for all models, with only the specs being dierent. See the

Specications section in this manual for details on your media converter.

• To avoid damage due to Electrostatic Discharge (ESD), it is recommended you

handle the product while wearing an ESD wrist grounding strap or by touching

a conductive surface (such as metal) to discharge any potential ESD prior to

handling the product.

Connect the RJ45 port on the media converter to your network with a

user-supplied Cat5e/6 cable.

Optional Accessories

Installation

Network

Power Source Power Source

Network Device

4 4

21-06-213 93-3F70.indb 321-06-213 93-3F70.indb 3 6/7/2022 3:32:51 PM6/7/2022 3:32:51 PM

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	lyd / video konverterer
Modell:	N784-H01-SCSM
Vekt:	240 g
Bredde:	73.8 mm
Dybde:	109.2 mm
Høyde:	23.4 mm
LED-indikatorer:	Ja
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Opprinnelsesland:	Taiwan
Pakkevekt:	600 g
Sertifisering:	CE, FCC, RoHS
Inngangsspenning:	100 - 240 V
Nettverksstandard:	IEEE 802.3, IEEE 802.3u
Bølgelengde:	1310 nm
Utgangsstrøm:	12 V
Maksimal dataoverføringshastighet:	100 Mbit/s
Auto MDI/MDI-X:	Ja
Auto-forhandling:	Ja
AC-inngangsfrekvens:	50 - 60 Hz
DIN-skinnemontering:	Ja
Fiberoptisk kontakt:	SC
Produktfarge:	Sort
Pakkedybde:	182.9 mm
Pakkehøyde:	62 mm
Pakkebredde:	232.9 mm
Pakketype:	Boks
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	-10 - 60 °C
Oppbevaringstemperaturomåde (Celsius):	-40 - 80 °C
Lagringsrelativ fuktighet:	5 - 95
Kroppsmateriale:	Metall
Ekstern strømadapter:	Ja
DC-inngangskontakt:	Ja
Bølgelengdemultipleksing (WDM):	Ja
Ethernet LAN dataoverføringshastigheter:	10, 100 Mbit/s
Ethernet-grensesnittype:	Raskt Ethernet
Relativ luftfuktighet under drift (H-H):	5 - 95
Intern:	Nei
AC-adapter bunt:	Ja
Guide for hurtiginstallering:	Ja
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332267037
Masterkassens (ytterkassens) bruttovekt:	12000 g
Masterkassens (ytterkassens) lengde:	500.1 mm
Produkter per masterkasse (ytterkasse):	20 stykker
Masterkassens (ytterkassens) bredde:	389.9 mm
Masterkassens (ytterkassens) høyde:	365 mm
Fibre Channel-porter:	1
Innput-strøm:	0.5 A
Maksimal overføring avstand:	30000 m
Kabeltyper som støttes:	Cat5, Cat5e, Cat6, Cat6a, Fiber
Fibermodusstruktur:	Enkeltmodus
Omformer-inngangsgrensesnitt:	10Base-T, 100Base-TX
Omformer-utgangsgrensesnitt:	100Base-FX
