Side 1/24

Hardened Gigabit Copper to Fiber

Media Converter, Multimode, RJ45/SC

Model: N785-H01-SCMM

Hardened Gigabit Copper to Fiber

Media Converter, Singlemode, RJ45/SC

Model: N785-H01-SCSM

Hardened Gigabit Copper to Fiber

Media Converter, RJ45/SFP

Model: N785-H01-SFP

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Quick Start Guide

WARRANTY REGISTRATION

automatically entered to win an ISOBAR

surge protector in our monthly drawing!

tripplite.com/warranty

Español 9 • Français 17

• ExtendsaGigabitEthernetconnectionoverSCmultimodebercable

up to 500 meters (N785-H01-SCMM)

• ExtendsaGigabitEthernetconnectionoverSTsinglemodebercable

up to 10 kilometers (N785-H01-SCSM)

• Extends a Gigabit Ethernet connection to an open SFP port

(N785-H01-SFP)

• Hardened housing withstands high operating temperatures

• Provides ESD, RFI and surge protection

• LEDsindicateEthernetconnectionandberlinkstatus

• DIP switches control Local Loop Back testing (LLB), Remote Loop

Back testing (RLB), Link Fault Signaling (LFS) and Reserve functions

• Link Fault Signaling (LFS) LED indicates when a cable has been

severed or another cause for disruption has occurred

• Local Loop Back (LLB) tests the copper network connection

• RemoteLoopBack(RLB)teststhebernetworkconnection

• Auto MDI/MDI-X functionality removes the need for crossover cabling

• N785-H01-SCMM or N785-H01-SCSM or N785-H01-SFP Media

Converter

• External Power Supply with NEMA 1-15P Plug

(Input: 100-240VAC, 50/60 Hz, 0.5A; Output: 12VDC, 1.5A)

• DIN Rail Kit

• Mounting Hardware

• Rubber Foot

• L-Shaped Bracket

• SC Connector Cap

• Quick Start Guide

Product Features

Package Contents

• N001-Series Cat5e Snagless Patch Cables

• N201-Series Cat6 Snagless Patch Cables

• N306-Series Duplex Multimode 62.5/125 Fiber Patch Cables (SC/SC)

• N356-Series Duplex Singlemode 9/125 Fiber Patch Cables (SC/SC)

• N286-Series Transceivers

• N785-CH12 12-Port Chassis for N784/N785 Media Converters

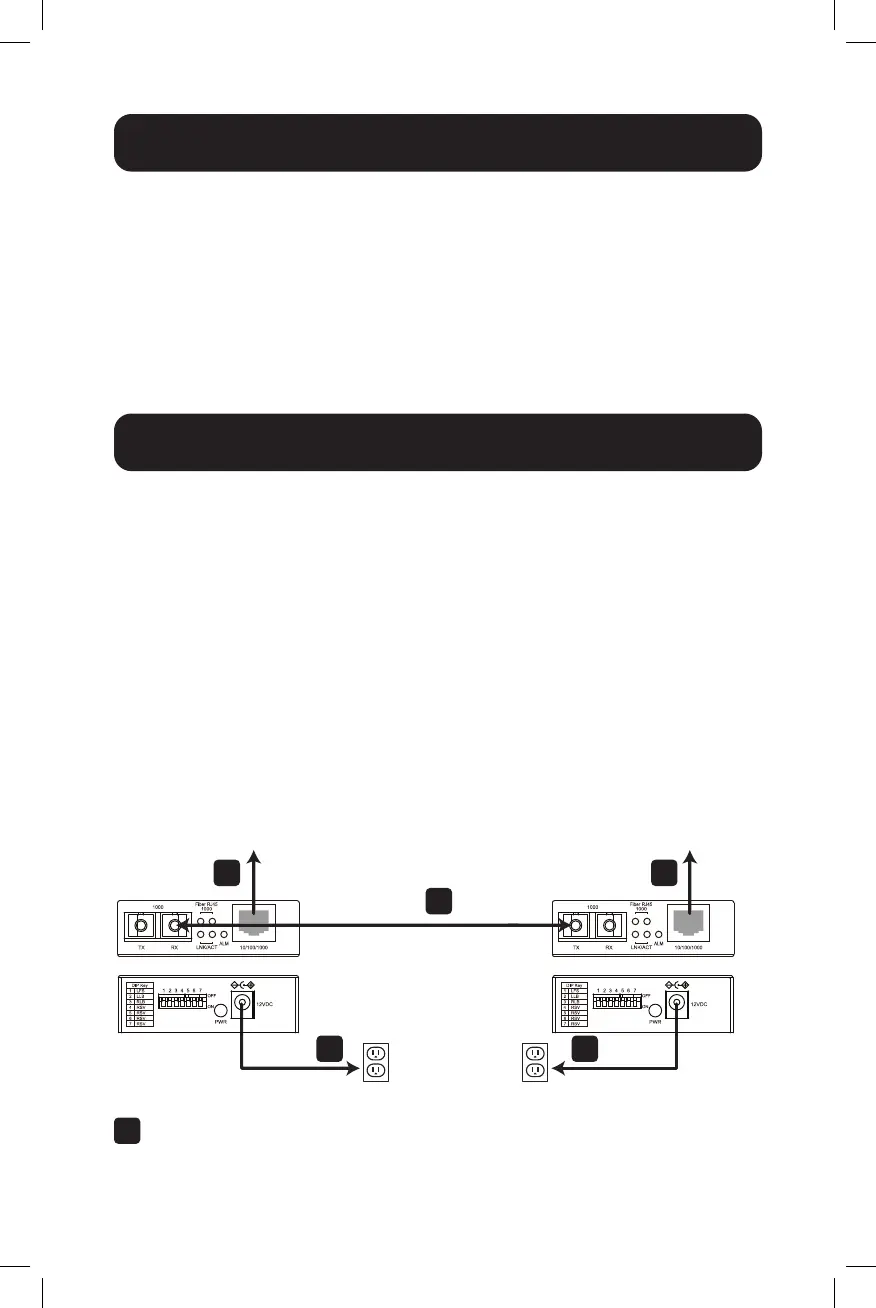

N785-H01-SCMM and N785-H01-SCSM

Notes:

• The following installation instructions refer to an installation in which two media

converters are used. A single media converter can be used for a copper-to-

ber installation.

• The following installation instructions refer to the N785-H01-SCMM.

Connections are the same for the N785-H01-SCSM, with only the specs being

dierent. See the Specications section in this manual for details on your

media converter.

• To avoid damage due to Electrostatic Discharge (ESD), it is recommended you

handle the product while wearing an ESD wrist grounding strap or by touching

a conductive surface (such as metal) to discharge any potential ESD prior to

handling the product.

Network

Power Source Power Source

Network Device

Network

Power Source Power Source

Network Device

Connect the RJ45 port on the media converter to your network with a

user-supplied Cat5e/6 cable.

Optional Accessories

Installation

Network

Power Source Power Source

Network Device

4 4

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	lyd / video konverterer
Modell:	N785-H01-SCMM
Vekt:	240 g
Bredde:	73.8 mm
Dybde:	109.2 mm
Høyde:	23.4 mm
LED-indikatorer:	Ja
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Opprinnelsesland:	Taiwan
Pakkevekt:	600 g
Sertifisering:	CE, FCC, RoHS
Inngangsspenning:	100 - 240 V
Nettverksstandard:	IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Bølgelengde:	850 nm
Utgangsstrøm:	12 V
Maksimal dataoverføringshastighet:	1000 Mbit/s
Auto MDI/MDI-X:	Ja
Auto-forhandling:	Ja
AC-inngangsfrekvens:	50 - 60 Hz
DIN-skinnemontering:	Ja
Fiberoptisk kontakt:	SC
Produktfarge:	Sort
Pakkedybde:	182.9 mm
Pakkehøyde:	62 mm
Pakkebredde:	232.9 mm
Pakketype:	Boks
Strømforbruk (vanlig bruk):	1.8 W
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	-10 - 60 °C
Oppbevaringstemperaturomåde (Celsius):	-40 - 85 °C
Lagringsrelativ fuktighet:	5 - 95
Kroppsmateriale:	Metall
Ekstern strømadapter:	Ja
DC-inngangskontakt:	Ja
Bølgelengdemultipleksing (WDM):	Ja
Ethernet LAN dataoverføringshastigheter:	10,100,1000 Mbit/s
Ethernet-grensesnittype:	Fast Ethernet, Gigabit Ethernet
Relativ luftfuktighet under drift (H-H):	5 - 95
Intern:	Nei
AC-adapter bunt:	Ja
Guide for hurtiginstallering:	Ja
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332267044
Masterkassens (ytterkassens) bruttovekt:	12000 g
Masterkassens (ytterkassens) lengde:	500.1 mm
Produkter per masterkasse (ytterkasse):	20 stykker
Masterkassens (ytterkassens) bredde:	389.9 mm
Masterkassens (ytterkassens) høyde:	365 mm
Fibre Channel-porter:	1
Innput-strøm:	0.5 A
Maksimal overføring avstand:	500 m
Kabeltyper som støttes:	Cat5, Cat5e, Cat6
Fibermodusstruktur:	Multi-modus
