Tripp Lite NPOE-EXT-2X1G30 Bruksanvisning

Tripp Lite strømlinjeadapter NPOE-EXT-2X1G30

Les nedenfor 📖 manual på norsk for Tripp Lite NPOE-EXT-2X1G30 (56 sider) i kategorien strømlinjeadapter. Denne guiden var nyttig for 2 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

Side 1/56

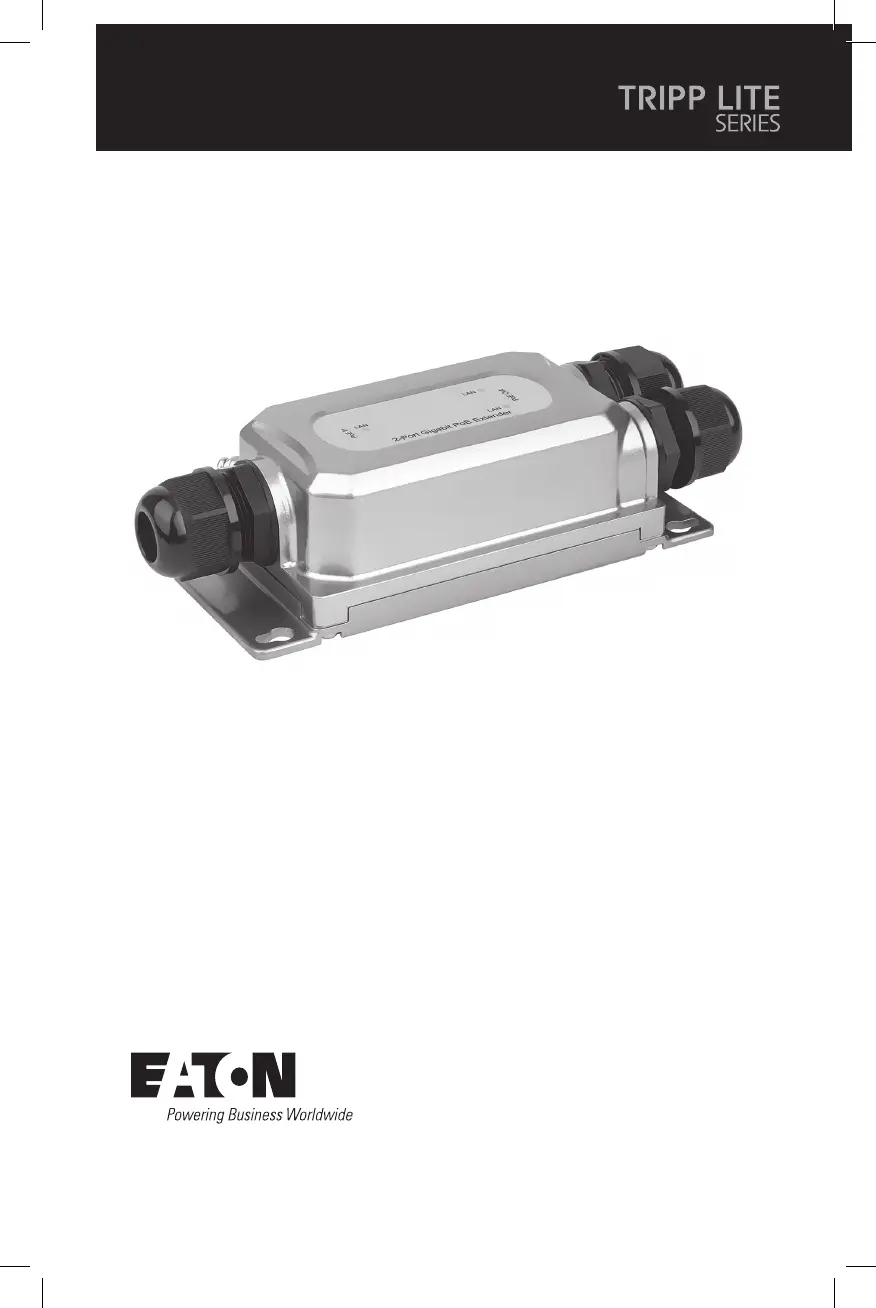

Quick Start Guide

Español 12

Français 23

Deutsch 34

Italiano 45

Purchased product

may differ from image.

Model:

NPOE-EXT-2X1G30

2-Port Gigabit PoE Extender/Repeater

Waterproof, Hardened and Tamper-Proof

Package Includes

Product Features

• NPOE-EXT-2X1G30 2-Port Gigabit PoE Extender

• Wrench

• (x3) Waterproof Connectors

• Quick Start Guide

• Supports Power over Ethernet so no external power supply is needed

• Supports true 10/100/1000 Mbps data transmission and PoE power

supply distance up to 330 ft. (100 m)

• Includes one RJ45 95W PD input

• Two output ports have Power Sourcing Equipment (PSE) function, with

each port supporting up to 30W

• Industrial-quality housing handles harsh environmental conditions with

high stability and reliability

• IP67 waterproof rating

• IK10 impact protection rating against tampering and vandalism

• Complies with IEEE 802.3, 802.3u, 802.3ab, 802.3at, 802.3bt and 802.3x

standards

• Unitsupportsplug-and-playoperationwithnoadditionalconguration

needed

Hardware Description

Left Panel

The left panel includes the input port (PoE In) and grounding column with

standard network Cat5e cable (line diameter 5.5 mm).

Front Panel

The front panel includes the PSE output port, input port and LED indicator.

Right Panel

The right panel includes the output port (PoE Out), to be used with a

standard network Cat5e cable.

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	strømlinjeadapter
Modell:	NPOE-EXT-2X1G30
Vekt:	420 g
Bredde:	150.5 mm
Dybde:	73 mm
Høyde:	43.8 mm
Bruksanvisning:	Ja
Opprinnelsesland:	China
Pakkevekt:	420 g
Sertifisering:	RoHS, REACH, CE, FCC, WEEE
Nettverksstandard:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Produktfarge:	Grå
Pakkedybde:	185.9 mm
Pakkehøyde:	84.1 mm
Pakkebredde:	240 mm
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	3
Driftstemperatur (T-T):	-20 - 60 °C
Oppbevaringstemperaturomåde (Celsius):	-40 - 80 °C
Lagringsrelativ fuktighet:	5 - 90
Bærekraftsertifikater:	RoHS
RJ-45-inngangsporter:	1
Kan monteres på vegg:	Ja
Internasjonal beskyttelses (IP)-kode:	IP67
Ethernet LAN dataoverføringshastigheter:	10,100,1000 Mbit/s
Ethernet-grensesnittype:	Fast Ethernet, Gigabit Ethernet
Relativ luftfuktighet under drift (H-H):	10 - 90
Strøm over Ethernet (PoE):	Ja
Power over Ethernet (PoE) effekt per port:	30 W
Guide for hurtiginstallering:	Ja
Masterkassens (ytterkassens) bruttovekt:	6700 g
Masterkassens (ytterkassens) lengde:	389.9 mm
Masterkassens (ytterkassens) bredde:	450.1 mm
Masterkassens (ytterkassens) høyde:	263.9 mm
Strømforsyning via Ethernet/Power over Ethernet (PoE):	- V
Kabeltyper som støttes:	Cat5e, Cat6, Cat6a
RJ-45-utgangsporter:	2
