Owner’s Manual

Purchased product

may differ from image.

Model:

P130-06N-AUDIO

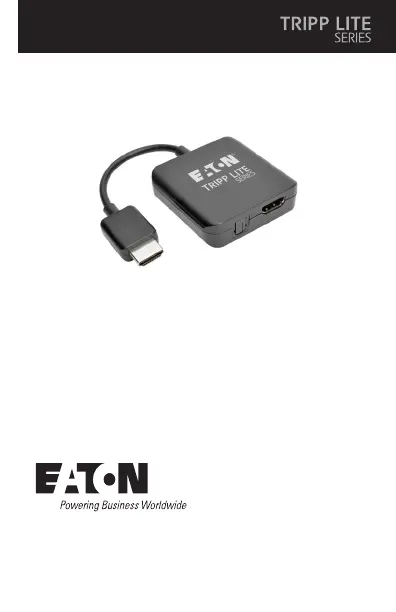

4K HDMI Audio De-Embedder/

Extractor

Español 8

Français 14

Deutsch 20

Italiano 26

• Extracts audio from an HDMI signal for use on a

separate audio system

• Low-proledesignwithbuilt-inHDMIcable

• 3.5 mm stereo port supports 2-channel audio

• Toslink port supports 5.1-channel surround

sound

• Supports uncompressed (LPCM) and compressed

(DTSDigitalandDolbyDigital)audioformats

• TransmitsUltraHighDenition(UHD)video

resolutions up to 3840 x 2160 @ 30Hz

• Supportsupto24-bitTrueColor(8bitsper

channel)at4Kresolutionsandupto36-bitDeep

Color(12bitsperchannel)at1080p

• Supports300MHz/3Gbpsbandwidthper

channel(9Gbpsforallchannels)

• Supports optional 3D formats up to 300 MHz

• Bus-poweredviaUSBMicro-Bport

• HDCP 1.4 compliant

• P130-06N-AUDIO

• USBMicro-BCable–3ft.

• Owner’s Manual

Product Features

Package Contents

• A102-SeriesToslinkDigitalAudioCables

• P312-Series3.5mmAnalogAudioCables

• P568-SeriesHigh-SpeedHDMICables

• UR050-SeriesUniversalReversibleUSB2.0Hi-

SpeedCable

Note: Make sure all devices being connected are powered o

prior to installation.

1. Connectthebuilt-inHDMIcabletotheHDMI

source.

2. UsetheincludedUSBMicro-Bcabletoconnect

the Micro-B port to the USB port on the HDMI

source or USB charger.

3. Connect an HDMI monitor to the HDMI output

portusingahigh-speedHDMIcable,suchas

P568-Seriescables.

4. Usinganappropriatecableandtheunit’s3.5

mmstereoorToslinkport,connecttoasetof

speakers,audioreceiverorothercompatible

audio system.

Note: Connection to the 3.5 mm port will provide 2-channel

stereo audio, while connection to the Toslink port will

provide up to 5.1-channel surround sound.

5. Turnonthepowertotheconnecteddevices.

Optional Accessories

Installation

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	kabler for datamaskiner og annet
Modell:	P130-06N-AUDIO
Strømkilde:	USB
Maksimal oppløsning:	3840 x 2160 piksler
Opprinnelsesland:	China
Pakkevekt:	60 g
HDCP:	Ja
Fargedybde:	36 bit
Båndbredde:	300 MHz
Tilkobling 1:	HDMI
Tilkobling 2:	RCA + TOSLINK
Kabellengde:	0.15 m
Produktfarge:	Sort
Pakkedybde:	100.1 mm
Pakkehøyde:	23.1 mm
Pakkebredde:	140 mm
Støttede grafikkoppløsninger:	3840 x 2160
Støttede videofunksjoner:	1080p
Bærekraftsertifikater:	RoHS
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332200928
Masterkassens (ytterkassens) bruttovekt:	880 g
Masterkassens (ytterkassens) lengde:	160 mm
Produkter per masterkasse (ytterkasse):	10 stykker
Masterkassens (ytterkassens) bredde:	249.9 mm
Masterkassens (ytterkassens) høyde:	119.9 mm
Connector 1 kjønn:	Hankjønn
Connector 2 kjønn:	Hankjønn/hunkjønn
Lyd kobling:	Ja
Lyd kobling type:	3.5 mm (1/8")
