Side 1/4

HDMI over Dual Cat5

Extender Wallplate Kit

Model: P167-000

1111 W. 35th Street, Chicago, IL 60609 USA

www.tripplite.com/support

Note: Follow these instructions and operating procedures to ensure correct performance and to

• Local Transmitter and Remote Receiver Wallplates

• 110 Punchdown Tool

• (x4) Wallplate screws

• Owner’s Manual

Package Contents

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an ISOBAR6ULTRA

surge protector—a $100 value!

www.tripplite.com/warranty

Owner’s Manual

17-12-286-93-2787.indd 1 1/26/2018 1:31:07 PM

Installation and Operation

Refer to the installation diagram on page 3 as you perform these steps.

Note:

1. Test to make sure the entire installation works properly before pulling cables through

ceilings/walls.

2. To achieve maximum distance and performance, 24Awg solid wire Cat5e/6 cable

must be used. The use of stranded wire Cat5e/6 cable, or cable with a gauge size

higher than 24Awg will result in shorter extension distance. All

Tripp Lite N202-Series Cat6 cables are made with 24Awg, solid wire cabling.

3. Make sure the power to all devices you are connecting to is turned off prior to

installation.

4. The Green LED will illuminate to indicate that power is being received from the

source and monitor. When functioning properly, only the Green LED will be lit.

If the Red LED is illuminated, it means that the remote receiver is not receiving a

functional signal from the source.

Product Features

• Extend a 1080p (24Hz), or a 1080i (60Hz), signal up to 150 ft. using

Cat6 cabling, or up to 100 ft. using Cat5 cabling

• Fully automatic equalization up to 40dB—no system control required

• No external power required

• HDCP compatible

Optional Accessories

• N046-000 110 Punchdown Tool

• N048-000 Cable Stripping Tool

• N202-Series Cat6 24Awg, solid wire patch cables

• N222-01K-GY Gray 1,000-ft. Cat6 solid wire bulk cable

• P568-Series High Speed HDMI cables

17-12-286-93-2787.indd 2 1/26/2018 1:31:08 PM

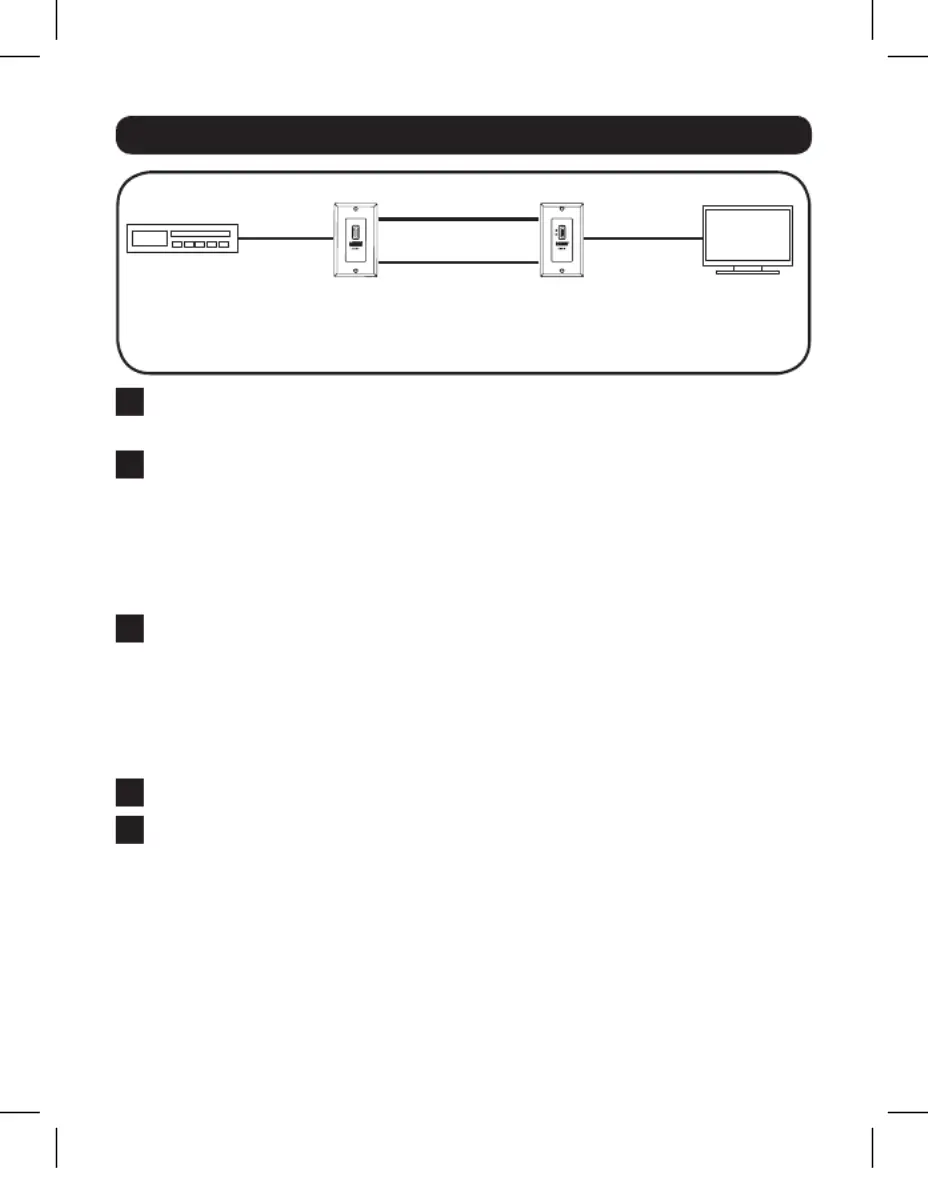

P167-000 Installation Diagram

TMDS

UP TO 150 ft. (Cat6)

UP TO 100 ft. (Cat5)

LOCAL

TRANSMITTER

BLU-RAY

1080p (24 Hz)

1080i (60Hz)

REMOTE

RECEIVER

DDC

DISPLAY

Connect the HDMI source to the HDMI input on the local

transmitter unit.

Connect the 110 punchdown connector on the local transmitter TMDS

to the 110 punchdown connector on the remote receiver using TMDS

Cat5e/6 cable.

Note: See the installation diagrams for maximum extension distance. The

included 110 punchdown tool is provided for your convenience. For best results,

use a professional punchdown tool, such as the Tripp Lite N046-000.

Connect the 110 punchdown connector on the local transmitter DDC

to the 110 punchdown connector on the remote receiver using DDC

Cat5e/6 cable.

Note: See the installation diagrams for maximum extension distance.The included

110 punchdown tool is provided for your convenience. For best results, use a

professional punchdown tool, such as the Tripp Lite N046-000.

Connect the HDMI output on the remote receiver to the HDMI monitor.

Turn on the power to the HDMI source.

Installation and Operation

17-12-286-93-2787.indd 3 1/26/2018 1:31:08 PM

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	Ikke kategorisert
Modell:	P167-000
Opprinnelsesland:	Taiwan
Pakkevekt:	250 g
Produktfarge:	Hvit
Pakkedybde:	142.2 mm
Pakkehøyde:	43.2 mm
Pakkebredde:	200.7 mm
Harmonisert system (HS)-kode:	85366990
Sokkeltype:	HDMI
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332143737
Masterkassens (ytterkassens) bruttovekt:	5500 g
Masterkassens (ytterkassens) lengde:	226.1 mm
Produkter per masterkasse (ytterkasse):	20 stykker
Masterkassens (ytterkassens) bredde:	467.4 mm
Masterkassens (ytterkassens) høyde:	309.9 mm
