Zero U Vertical PDU

Mounting Bracket Kit in

SmartRack™ Conﬁgurations

(Model: PDUSIDEBRKT)

1111 W. 35th Street, Chicago, IL 60609 USA

www.tripplite.com/support

• Method 1: Mounting Buttons Snap into Button Holes in Toolless Mounting Rails (Toolless Mounting Option)

• Method 2: Direct Attachment to Mounting Rails with Screws (Hardware Option)

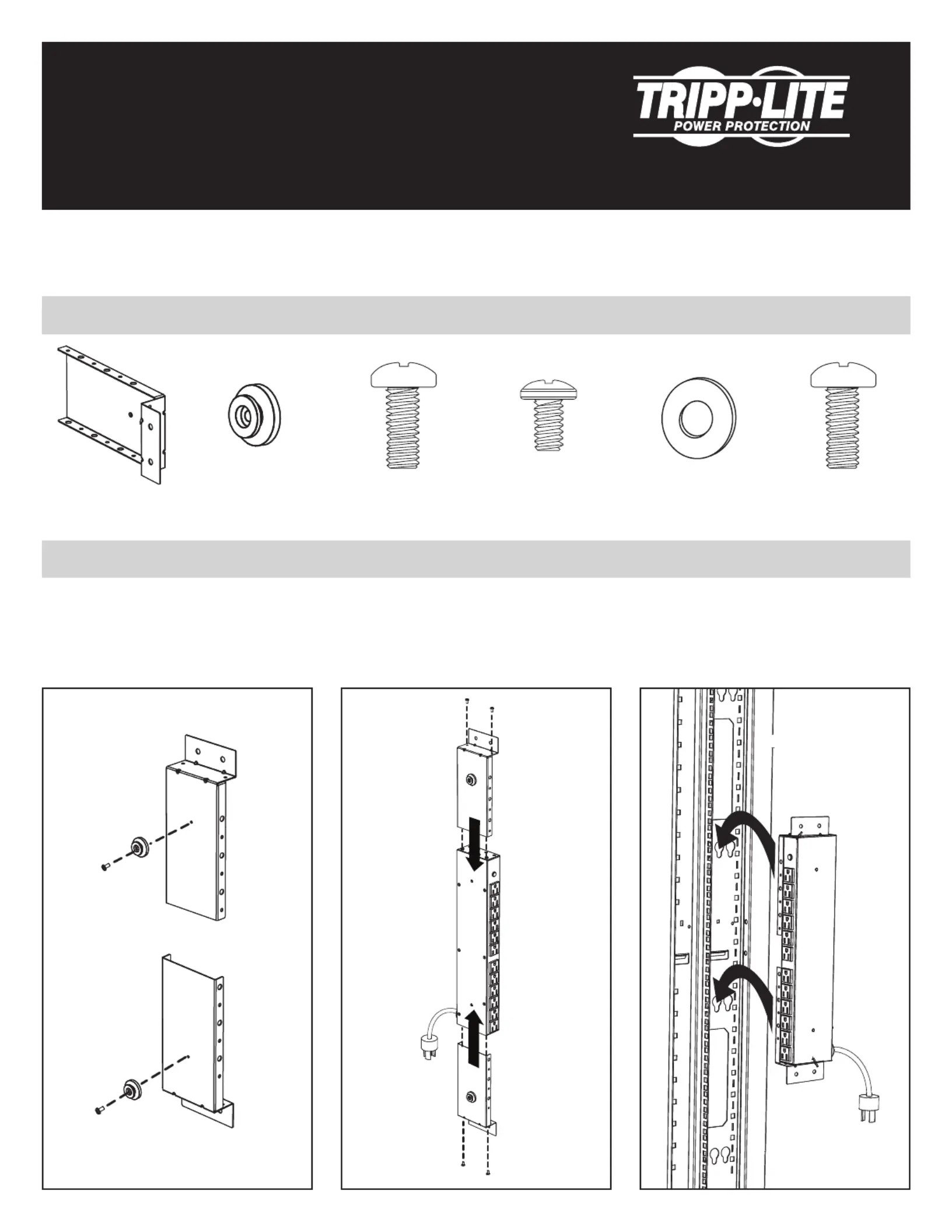

Method 1

Step 1. Attach the two mounting buttons

to the outside of the brackets

using the included 4 mm screws.

Step 2. Attach the two brackets to the

PDU using the four included #6-32

screws.

Step 3. To mount the PDU, simply insert

the mounting buttons into the

mounting rails inside the rack

enclosure. Snap down into place

until the PDU is secure in the rack.

Parts List

Bracket

(x2)

Mounting Button

(x2)

4 mm Screws

(x2)

#6-32 Screws

(x4)

M6 Washers

(x4)

6 mm Screws

(x4)

Step 1. Step 2. Step 3.

201006016 93-2926

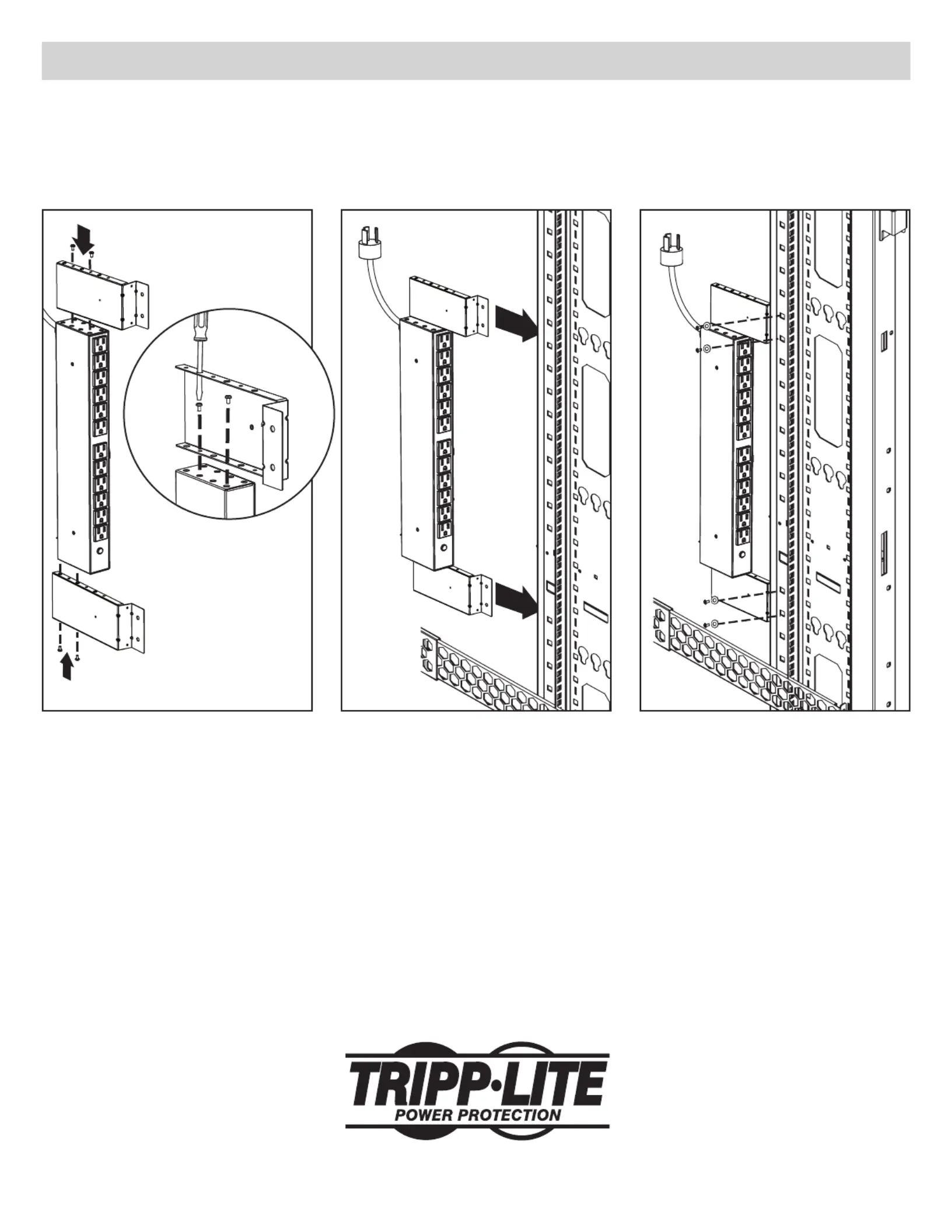

Method 2

Note: PDUSIDEBRKT must be installed

before equipment is installed in

the rack.

Step 1. Attach the two mounting brackets

to both ends of the PDU using the

four included #6-32 screws.

Step 2. Slide the brackets’ ﬂanges behind

the outer portion of the mounting

rail as seen in the diagram.

Step 3. Attach the brackets to the rack’s

mounting rails using the four

included 6 mm screws and M6

washers.

Step 1. Step 2. Step 3.

Note: Smaller and larger

screwdriver clearance

holes will alternate on each

edge of the bracket and are

transposed on the bracket’s

other edge. Insert the

screwdriver into the larger

clearance holes on one

edge to attach the screws

into the smaller holes on

the bracket’s other edge.

1111 W. 35th Street, Chicago, IL 60609 USA

www.tripplite.com/support

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	Ikke kategorisert
Modell:	PDUSIDEBRKT
Vekt:	280 g
Bredde:	94 mm
Dybde:	225.3 mm
Høyde:	36.8 mm
Opprinnelsesland:	China
Pakkevekt:	450 g
Kompatibilitet:	PDU1215, PDU1220, PDU1220T, PDU1230, PDU12IEC, PDU2430, PDUMH15, PDUMH20, PDUNV, RS-1215, RS-1215-20, RS-1215-20T, RS-0615R, RS-0615F, IBAR12, ISOBAR12ULTRA, IBAR12-20ULTRA, DRS-1215
Produktfarge:	Sort
Pakkedybde:	230.1 mm
Pakkehøyde:	54.1 mm
Pakkebredde:	96 mm
Harmonisert system (HS)-kode:	8302.50.0000
Rack-kapasitet:	1U
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332157932
Masterkassens (ytterkassens) bruttovekt:	14510 g
Masterkassens (ytterkassens) lengde:	478 mm
Produkter per masterkasse (ytterkasse):	30 stykker
Masterkassens (ytterkassens) bredde:	281.9 mm
Masterkassens (ytterkassens) høyde:	300 mm
