Installation Instructions

Replacement Battery Cartridge (R.B.C.)

for SUTX UPS Systems

Español 6 • Français 11 • Русский 16

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

PROTECT YOUR INVESTMENT!

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.tripplite.com/warranty

IMPORTANT SAFETY INSTRUCTIONS.

SAVE THESE INSTRUCTIONS.

WARNING!

• Do not dispose of batteries in a ﬁre; they may explode.

• Do not open or mutilate the battery. Chemicals released are harmful to the skin or eyes and may be toxic. Follow ﬁrst-

aid procedures for chemical burns in the event of exposure. Use appropriate protective clothing when handling a leaking

battery.

• A battery can present a risk of high current in the event of a short circuit. High discharge can lead to severe burns and/

or the risk of ﬁre. Observe the following precautions when working around high-capacity storage batteries: 1) remove

watches, rings or other metal objects that might come in contact with battery terminals; 2) use tools with insulated

handles; 3) do not lay tools or metal parts on top of the battery or near the terminals.

Battery Replacement

Important! Conﬁrm the unit has been properly shut down from the LCD panel on the front of the unit before

performing the battery replacement procedure.

Unscrew and remove the manual bypass protection plate (the UPS will automatically go to static bypass).

Turn the manual bypass switch from NORMAL position to BYPASS position—the load is now powered through the manual

bypass.

Turn OFF the input breaker and wait 5 minutes for the DC bus discharge.

Access the front panel by unscrewing the two screws located on the front door and open the door.

Turn OFF the Bypass breaker.

On the front panel, pull back the ﬂap covering the internal battery fuse holders. Next, pull the fuse holders down to

disconnect from the fuse block (for more information, refer to the Owner’s Manual.)

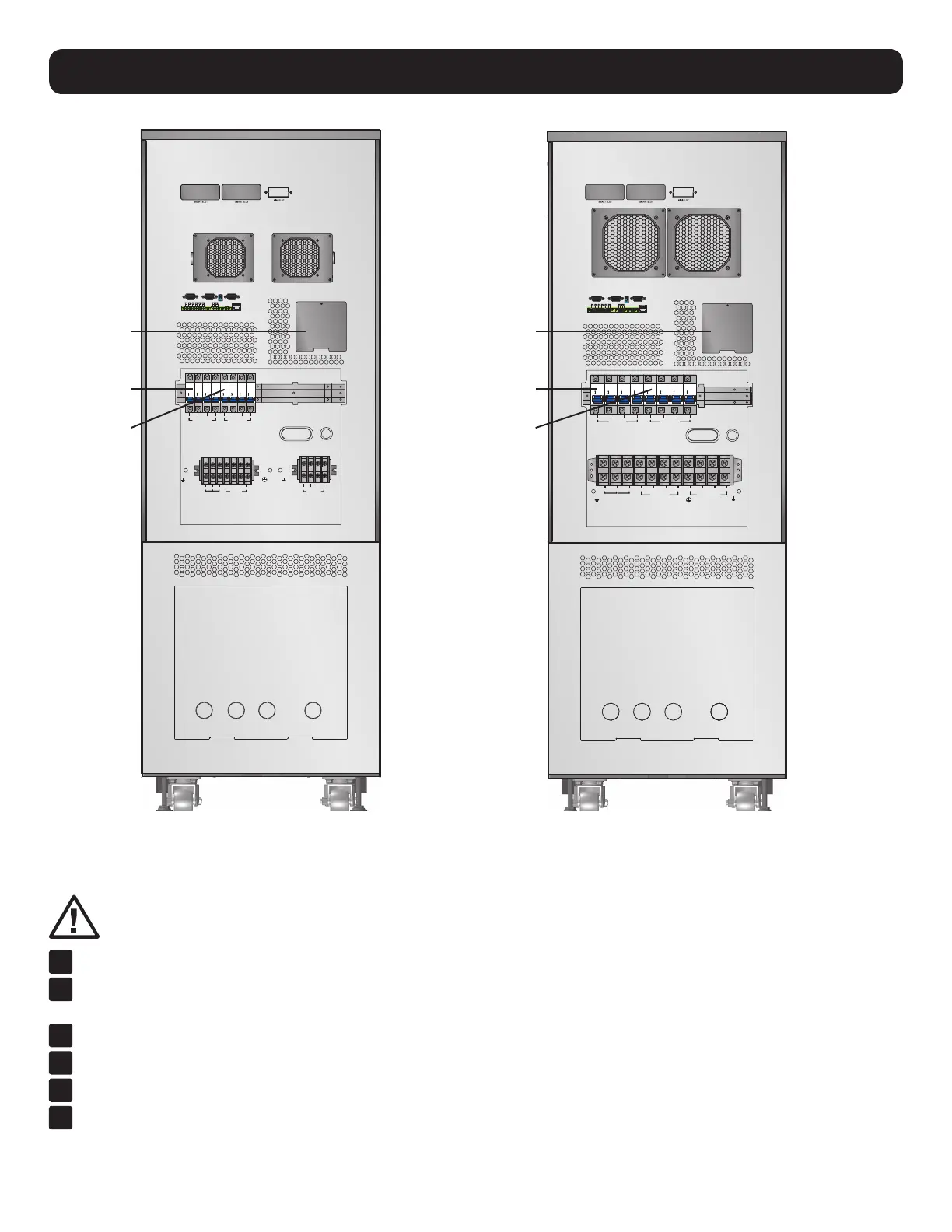

SUTX20K Rear Panel SUTX40K Rear Panel

1 2

P1 P2 P3

P5 P6

P1 P2

PARALLEL

SWITCH

PARALLEL

REPO

CHARGER

DETECTION

INPUT

DRY CONTACT

OUTPUT

DRY CONTACT

MANUAL BYPASS SWITCH

RS-232

WARNING:

OPENING THIS COVER PLATE WILL

CAUSE INVERTER SHUTDOWN.ONLY

AUTHORIZED SERVICE PERSONNEL

CAN OPEN AND OPERATE IT.

BYPA SS BR EAKER

INPUT BREAKER

UPS OUTPUT

240V DC 240V DC

AC INPUT

BATT ERY INP UT

R S T N R S T N

OFF

WARNING:

OPENING THIS COVER PLATE WILL

CAUSE INVERTER SHUTDOWN.ONLY

AUTHORIZED SERVICE PERSONNEL

CAN OPEN AND OPERATE IT.

1 2

WARNING:

OPENING THIS COVER PLATE WILL

CAUSE INVERTER SHUTDOWN.ONLY

AUTHORIZED SERVICE PERSONNEL

CAN OPEN AND OPERATE IT.

MANUAL BYPASS SWITCH

P2 P3

P5 P6

P1 P2

PARALLEL

SWITCH

PARALLEL

REPO

CHARGER

DETECTION

INPUT

DRY CONTACT

OUTPUT

DRY CONTACT

RS-232

OFF

240V DC 240V DC

AC INP UT

S T N

UPS

OUTP UT

R S T N

INPU T BREA KER

S T N

BYPA SS BR EAKER

R S T

BATTER Y INP UT

Input

Breaker

Manual

Bypass

Protection

Plate and

Switch

Manual

Bypass

Protection

Plate and

Switch

Input

Breaker

Bypass

Breaker

Bypass

Breaker

Battery Replacement

The battery compartment is located near the bottom of the unit. Remove the hex nuts securing the battery brackets, then

remove the brackets.

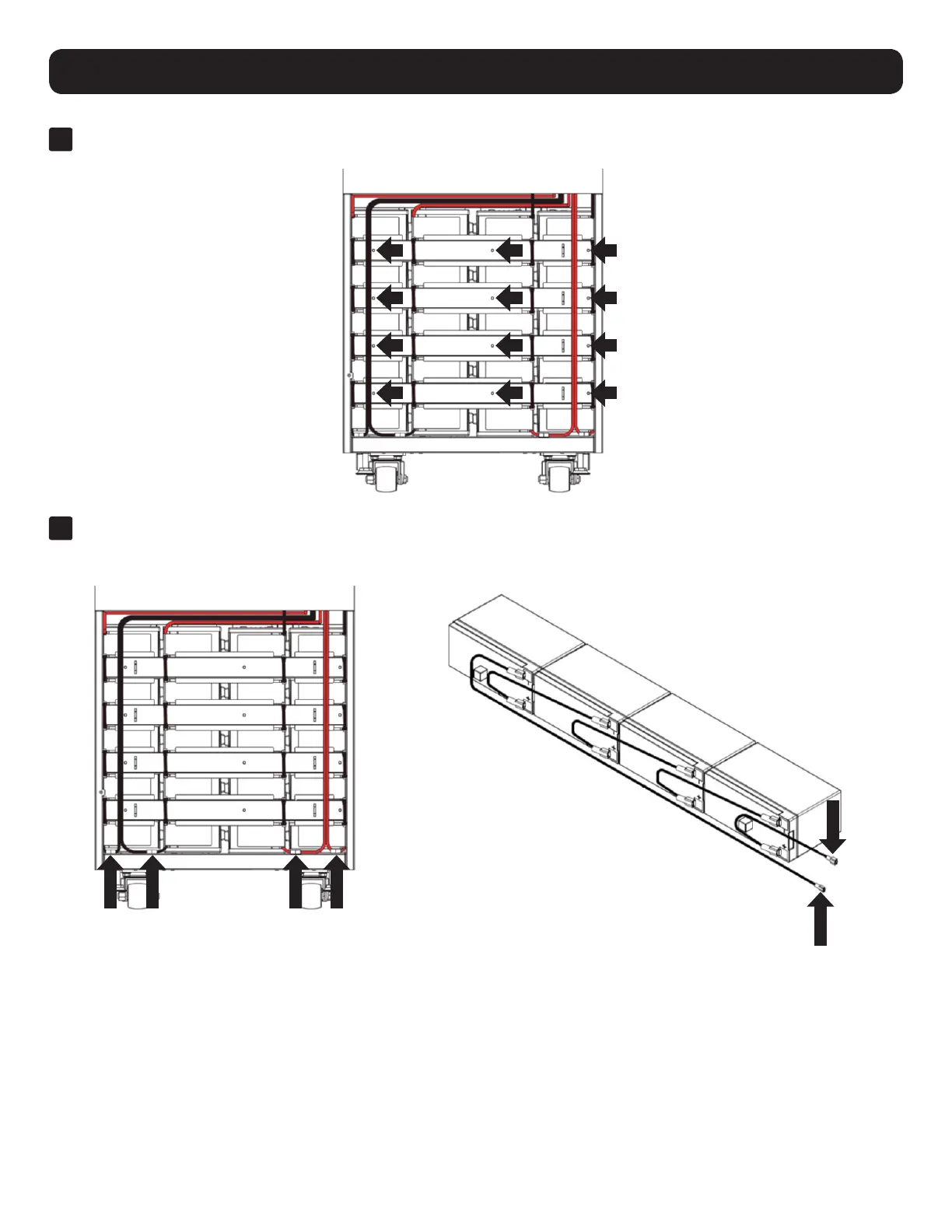

(Figure 1-1: Disconnecting Battery Cables) (Figure 1-2: Battery Group Connectors)

Disconnect the main battery cables on the right ( - - ) and left (+ +) as shown in the Figure 1-1. Then disconnect the

cables connecting the battery cartridges as shown in Figure 1-2. A complete diagram of all connections between battery

cartridges is shown in Figure 1-3.

++ – –
