SmartRack

Enclosure

with Zone 4 Seismic Rating

Model: SR42UBZ4

(Series Number: AGAC7761)

Owner’s Manual

Important Safety Instructions 2

Overview 2

Feature Identification 3

Enclosure Installation 4

Preparation 4

Unpacking 4

Placement 5

Ground Connection 5

Enclosure Configuration 6

Adding or Removing Front and Rear Doors 6

Reversing Front Door 6

Adding or Removing Roof Panel 8

Adding or Removing Side Panels 8

Adjusting Mounting Rails and Cable Management Rails 9

Combining (Baying) Enclosures 10

Equipment Installation 11

Installing or Removing Cage Nuts 11

Specifications 12

Storage and Service 12

Warranty and Product Registration 12

Español 13

Français 25

Русский

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

PROTECT YOUR INVESTMENT!

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.tripplite.com/warranty

Important Safety Instructions

SAVE THESE INSTRUCTIONS

All sections of this manual contain instructions and warnings that should be followed during the installation and use of the SmartRack Enclosures

described in this manual. Read all instructions and warnings thoroughly before attempting to move, install or use the SmartRack Enclosures

described in this manual. Failure to comply will create a risk of personal injury and property damage and may invalidate the warranty.

• Keep the enclosure in a controlled indoor environment, away from moisture, temperature extremes, flammable liquids and gasses, conductive

contaminants, dust and direct sunlight.

• Leave adequate space at the front and rear of the enclosure for proper ventilation. Do not block, cover or insert objects into the external ventilation

openings of the enclosure.

• The enclosure is extremely heavy. Use caution when handling the enclosure. Do not attempt to unpack, move or install it unassisted. Use a

mechanical device such as a forklift or pallet jack to move the enclosure in the shipping container.

• Do not place any object on the enclosure, especially containers of liquid, and do not attempt to stack the enclosures.

• Inspect the shipping container and the enclosure for shipping damage. Do not use the enclosure if it is damaged.

• Leave the enclosure in the shipping container until it has been moved as close to the final installation location as possible.

• Install the enclosure in a structurally sound area with a level floor that is able to bear the weight of the enclosure, all equipment that will be installed

in the enclosure and any other enclosures and/or equipment that will be installed nearby.

• Install the cabinet securely to the building structure, using the shipping brackets as illustrated in the Enclosure Installation section of this

manual.

• Do not push the enclosure from the side panels to move it. Pushing from the side panels will cause a tipping hazard.

• Use caution when cutting packing materials. The enclosure could be scratched, causing damage not covered by the warranty.

• Save all packing materials for later use. Repacking and shipping the enclosure without the original packing materials may cause product damage

that will void the warranty.

• Do not re-ship the enclosure with additional equipment unless the enclosure was shipping with a special shock pallet (“SP1” models only). The

combined weight of the enclosure and the installed equipment must not exceed the load capacity of the pallet. Tripp Lite is not responsible for any

damage that occurs during re-shipment.

• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support

equipment or to significantly affect its safety or effectiveness is not recommended.

Overview

SmartRack Enclosures accommodate all standard 19-inch rackmount equipment, regardless of vendor, and ship fully assembled for quick and easy

deployment. They feature adaptable heavy-duty cabinets with variable mounting depths, making them ideal for servers. The cabinets include quick

release doors and side panels for convenient maintenance. Integrated baying hardware enables cost-effective, orderly and efficient expansion. Front

and rear doors and side panels are lockable.

The SR42UBZ4 is designed for use in earthquake zones. The enclosure features a welded construction, providing more security for use in unstable

environments. Reinforcing Zone 4 Seismic Brackets offer enhanced stability and protection with a Zone 4 seismic rating.

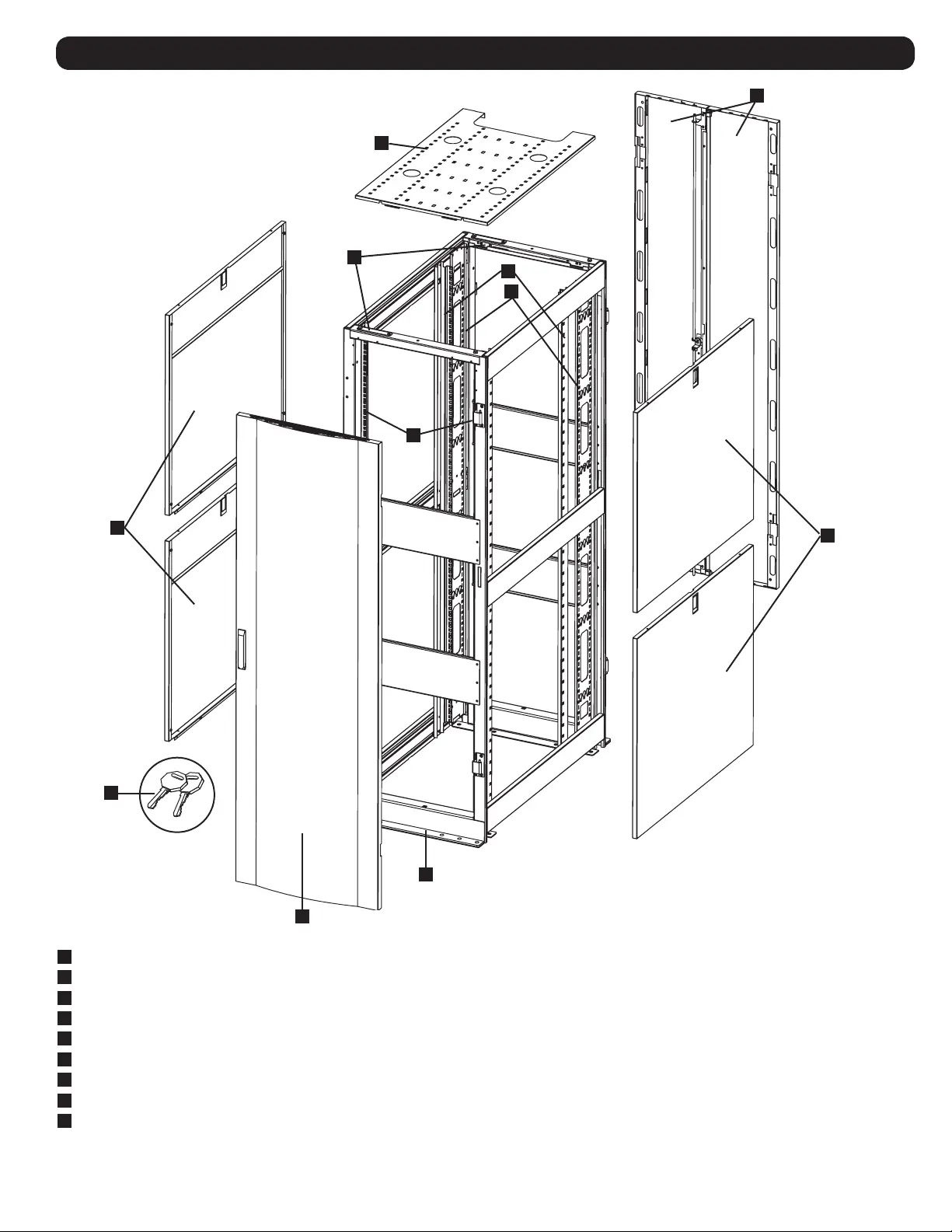

Feature Identification

Roof Panel

Locking Split Rear Doors

Locking Side Panels

Cable Management Rails

Zone 4 Seismic Brackets

Mounting Rails (Provide horizontal and vertical mounting points for equipment.)

Keys (One for the doors and one for the side panels.)

Locking Reversible Front Door

Baying Brackets

Not Shown: Mounting hardware, documentation and other shipping materials.
