Assembly Instructions
SmartRack® 6U Low-Prole
Switch-Depth Knock-Down
Wall-Mount Rack Enclosure Cabinet
Model: SRW6UKD
1111 West 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2015 Tripp Lite. All rights reserved.
PROTECT YOUR INVESTMENT!
Register your product for quicker service and ultimate peace of mind.
You could also win an ISOBAR6ULTRA surge protector—a $100 value!
www.tripplite.com/warranty
Español……7 • Français……13 • ……19
15-09-353-933500.indb 1 12/1/2015 11:10:54 AM
2
Parts List
M6 Screws M6 Cage Nuts M6 Cup Washers Keys
Top/Bottom Panels Side Panels Front Door Vertical Mounting Rails
12-24 Screws M6 Cage Nuts M6 Cup Washers
E F G H
A B C D
I J K
x1x2x2
x4 x4 x2
x12 x12 x12
x24
x2
Required Tools (User Supplied):
Phillips-Head Screwdriver
WARNING: The rack enclosure is extremely heavy. Do not attempt to unpack, move, assemble or install the
enclosure without assistance. Until it has been properly assembled and stabilized, the enclosure is prone to
tipping and could cause property damage and/or personal injury. Use extreme caution when assembling
the enclosure. Do not attempt to install equipment without rst stabilizing the enclosure.
Assembly Hardware
Equipment Mounting Hardware
15-09-353-933500.indb 2 12/1/2015 11:10:59 AM
3

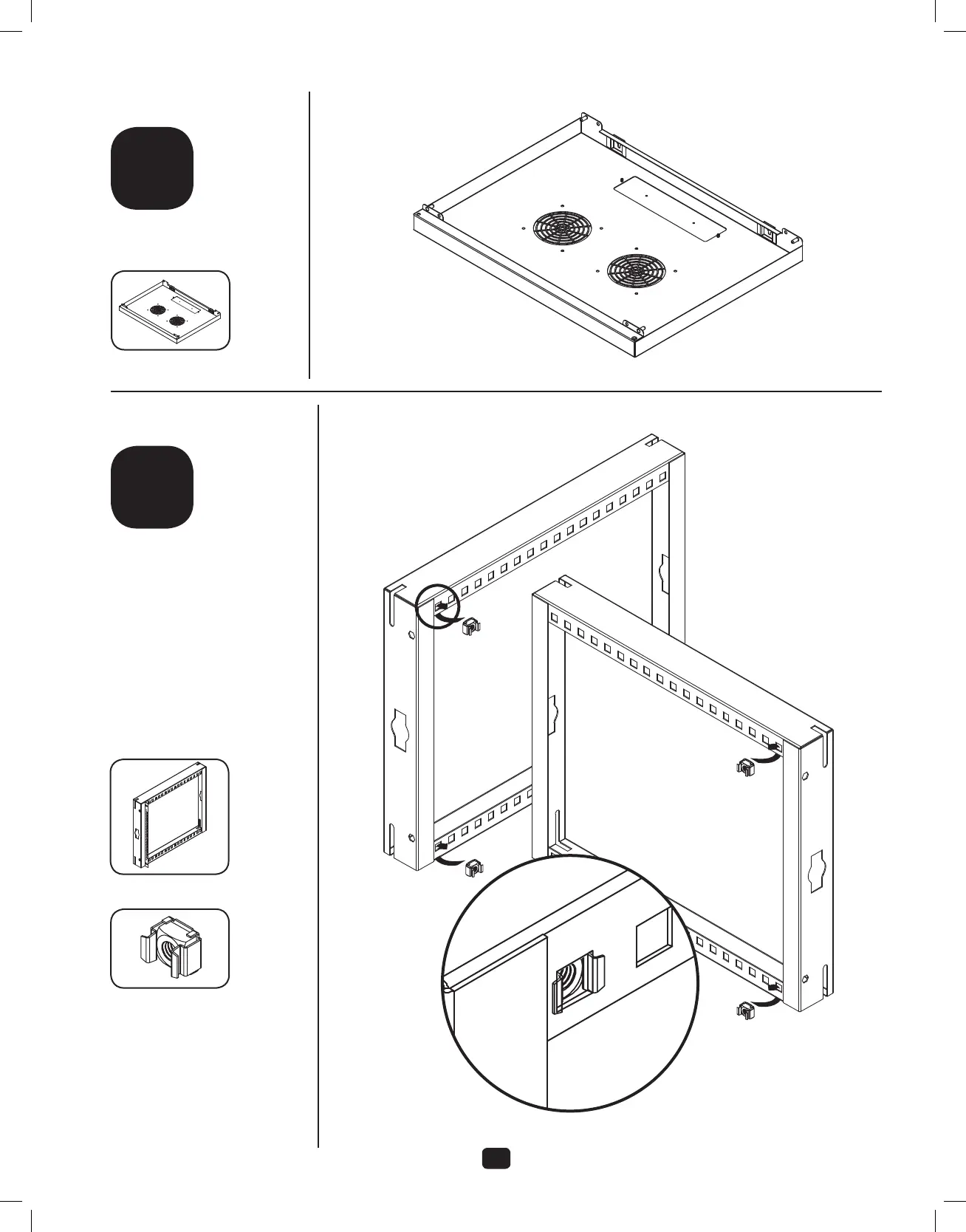

1
step
A
F
Place Bottom Panel A on the
oor or a stable work surface.
1
4
2
step
Before attaching Vertical
Mounting Rails D to Side
Panels B, you must decide how
deep to install the rail using
the square holes along the
preinstalled horizontal rails at
the top and bottom of the Side
Panels. Place an M6 Cage Nut F
through the square hole at the
top and bottom from behind
the rail. Make sure all Cage
Nuts are aligned.
B
2
15-09-353-933500.indb 3 12/1/2015 11:11:01 AM
