Side 1/16
Installation Guide
Wire Basket Cable Trays
Models:
SRWB6210X2STR
(AC006B)
SRWB6410X2STR
(AC8B7F)
SRWB12210X2STR
(AC006C)
(AC8B7D)
SRWB18410X2STR
(AC8B7E)
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
Important Safety Instructions
SAVE THESE INSTRUCTIONS
This manual contains instructions and warnings that should be followed during the installation and use of all
Tripp Lite Wire Mesh Cable Tray systems. Failure to heed these warnings may affect your warranty.
Installation should only be performed by a qualified installer and in accordance with all national and local electrical and
building codes.
Always wear eye protection when cutting basket tray wire sections.
Cut edges may be sharp. Exercise caution when handling trimmed basket tray during fabrication and installation.
Español 5 • Français 9 • Русский 13
2

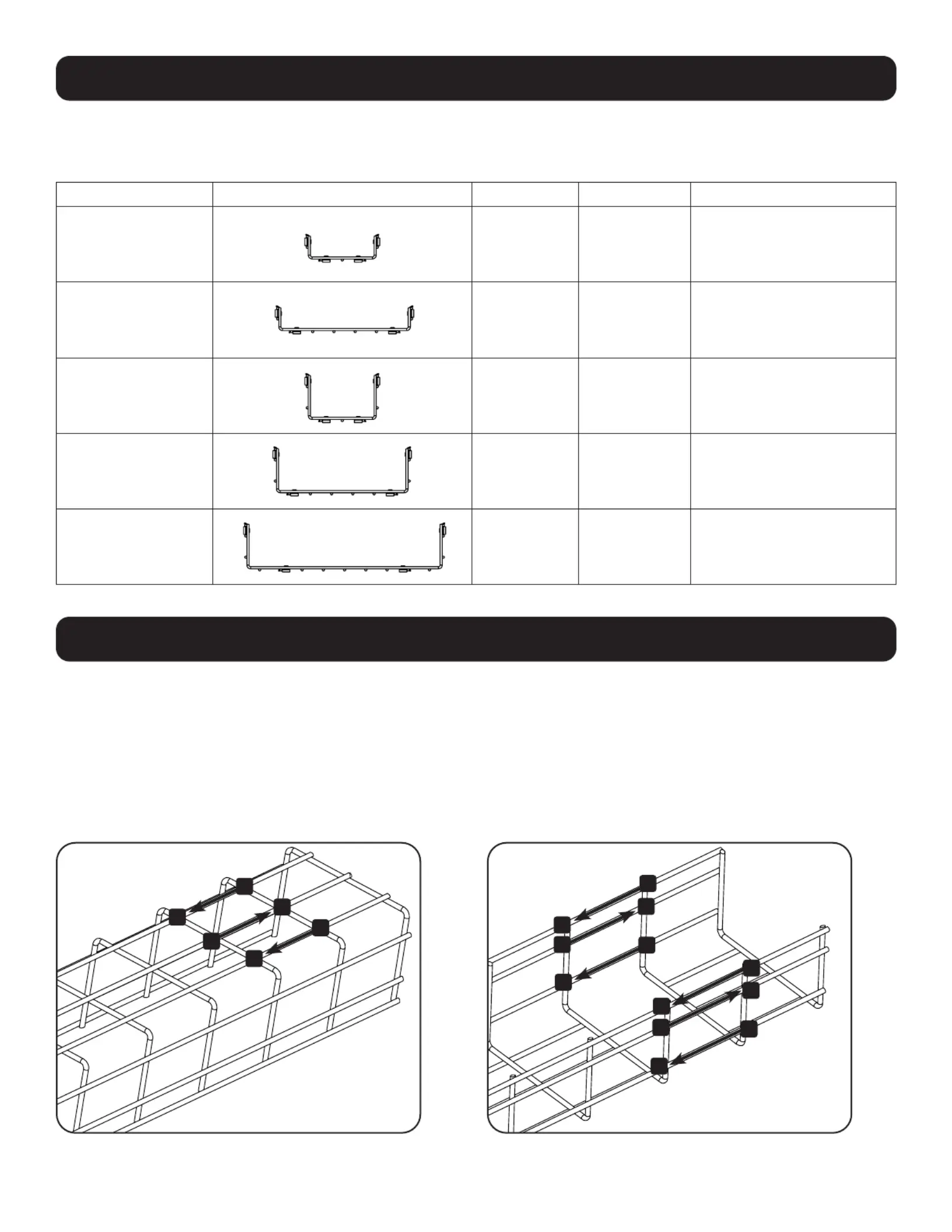

Preparation
Fabrication
Wire Tray Models and Dimensions
Before proceeding with fabrication, first confirm your wire tray model and dimensions.
Model Sectional View Height Width Depth
SRWB6210X2STR
2 in.
(50 mm)
6 in.
(150 mm)
2x 5 ft. (2x 500 mm)
10 ft. (3000 mm) Total
SRWB12210X2STR
2 in.
(50 mm)
12 in.
(300 mm)
2x 5 ft. (2x 500 mm)
10 ft. (3000 mm) Total
SRWB6410X2STR
4 in.
(100 mm)
6 in.
(150 mm)
2x 5 ft. (2x 500 mm)
10 ft. (3000 mm) Total
SRWB12410X2STR
4 in.
(100 mm)
12 in.
(300 mm)
2x 5 ft. (2x 500 mm)
10 ft. (3000 mm) Total
SRWB18410X2STR
4 in.
(100 mm)
18 in.
(450 mm)
2x 5 ft. (2x 500 mm)
10 ft. (3000 mm) Total
Cut the bottom wires first with the underside of the
tray facing up in the order as shown:
To cut the side wires, flip the wire tray over and cut in
the order shown, starting from the top:
Repeat as needed. For various wire cutting patterns and installation diagrams, refer to the documentation included with
the connectors and connector kits (sold separately).
How to Cut Wire Trays
Notes:
Always use side-action bolt cutters.
Angle all cuts away from the new end.
Cut each wire with one clean cut whenever possible.
Remove any sharp edges to eliminate possible damage to cables.
1
1
2
4
4
3
5
5
6
2
3
6
1
4
5
6
3
2
3

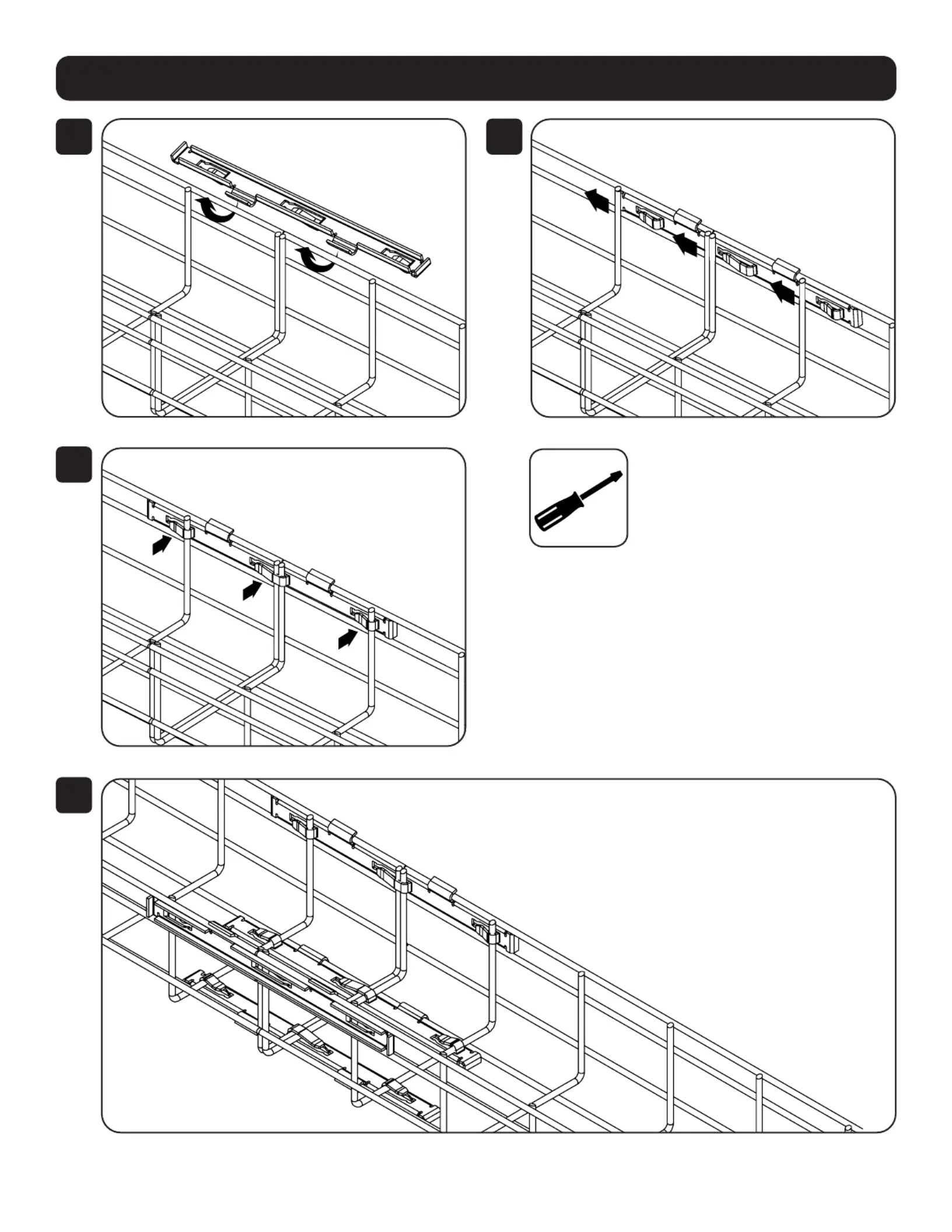

Assembly
21
3
4
