Owner’s Manual

12U Wall-Mounted

2-Post Open Frame Heavy-Duty Rack

Model: SRWO12UHD

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Introduction 2

Important Safety Instructions 2

Parts List 2

Installation/Wall-Mounting 3

Conguration 3

Equipment Installation 4

Storage & Service 4

Warranty & Warranty Registration 4

Español 5

Français 9

14-02-241-9332FD.indb 1 3/19/2014 4:58:18 PM

Introduction

Tripp Lite’s SRWO12UHD is the perfect 2-post open frame rack solution for applications where space is limited. Heavy-duty construction

and a wall-mount form factor keep equipment out of the way. The SRWO12UHD accommodates all standard 19-inch rackmount equipment

compatible with 2-post mounting.

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that must be followed during the installation and operation of the product described in this

manual. Failure to comply may invalidate the warranty and cause property damage or personal injury.

• Keep the rack in a controlled indoor environment, away from moisture, temperature extremes, ammable liquids and gasses, conductive

contaminants and dust.

• Leave adequate space at the front of the rack for proper ventilation.

• Inspect the shipping container and the rack for shipping damage. Do not use the rack if it is damaged.

• Leave the rack in the shipping container until it has been moved as close to the nal installation location as possible.

• Install the rack in a structurally sound area capable of handling the load, the weight of the rack, all equipment that will be installed in the

rack and any other equipment that will be installed nearby.

• Save all packing materials for later use. Repacking and shipping the enclosure without the original packing materials may cause product

damage that may affect the warranty.

• Do not attempt to install the rack unassisted.

• Do not attempt to install equipment without rst wall-mounting and stabilizing the rack.

• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the

life support equipment or to signicantly affect its safety or effectiveness is not recommended. Do not use this equipment in the presence

of a ammable anesthetic mixture with air, oxygen or nitrous oxide.

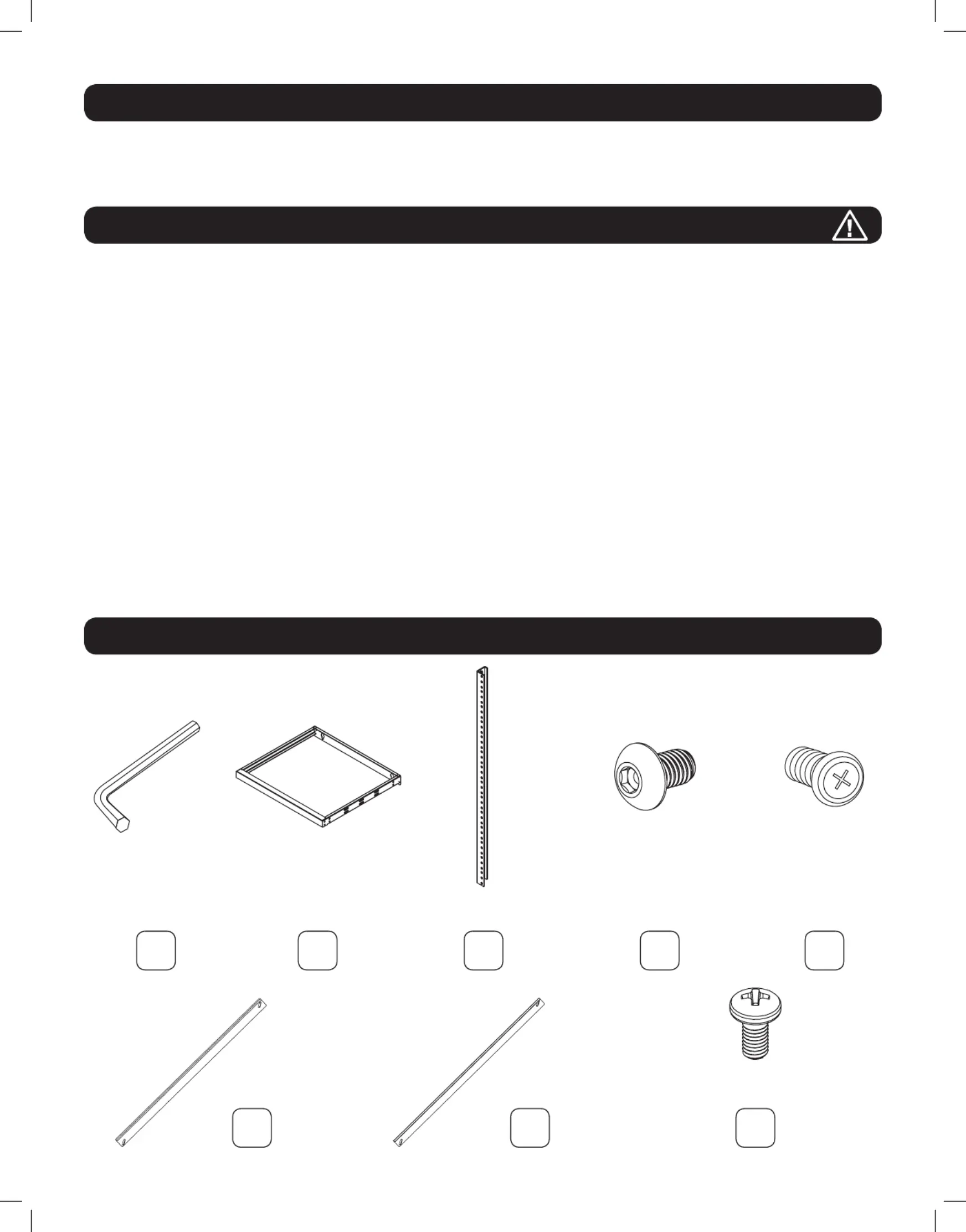

Parts List

3mm L-Shaped Hex Key Top or Bottom Panel

Frames

Long Vertical Mounting

Rails

Strengthening

Strap (Left)

M6 x 12mm

Phillips Screw

x2x1 x2 x8

x24

M5 Button Head

Cap Screws

#12-24 Equipment

Mounting Screws

Strengthening

Strap (Right)

14-02-241-9332FD.indb 2 3/19/2014 4:58:18 PM

Installation/Wall-Mounting

WARNING: Do not attempt to mount the rack to the wall with equipment mounted to the rack.

WARNING: The wall surface, the wall studs and all user-supplied mounting hardware must be able to support

the combined weight of the rack and all equipment that will be installed in the rack. The rack can support an

equipment load up to 150 lb maximum, evenly distributed.

Note: Recommended torque for tightening all M5 screws is 35 inch lbs or 3.9 Newton meters.

Conguration

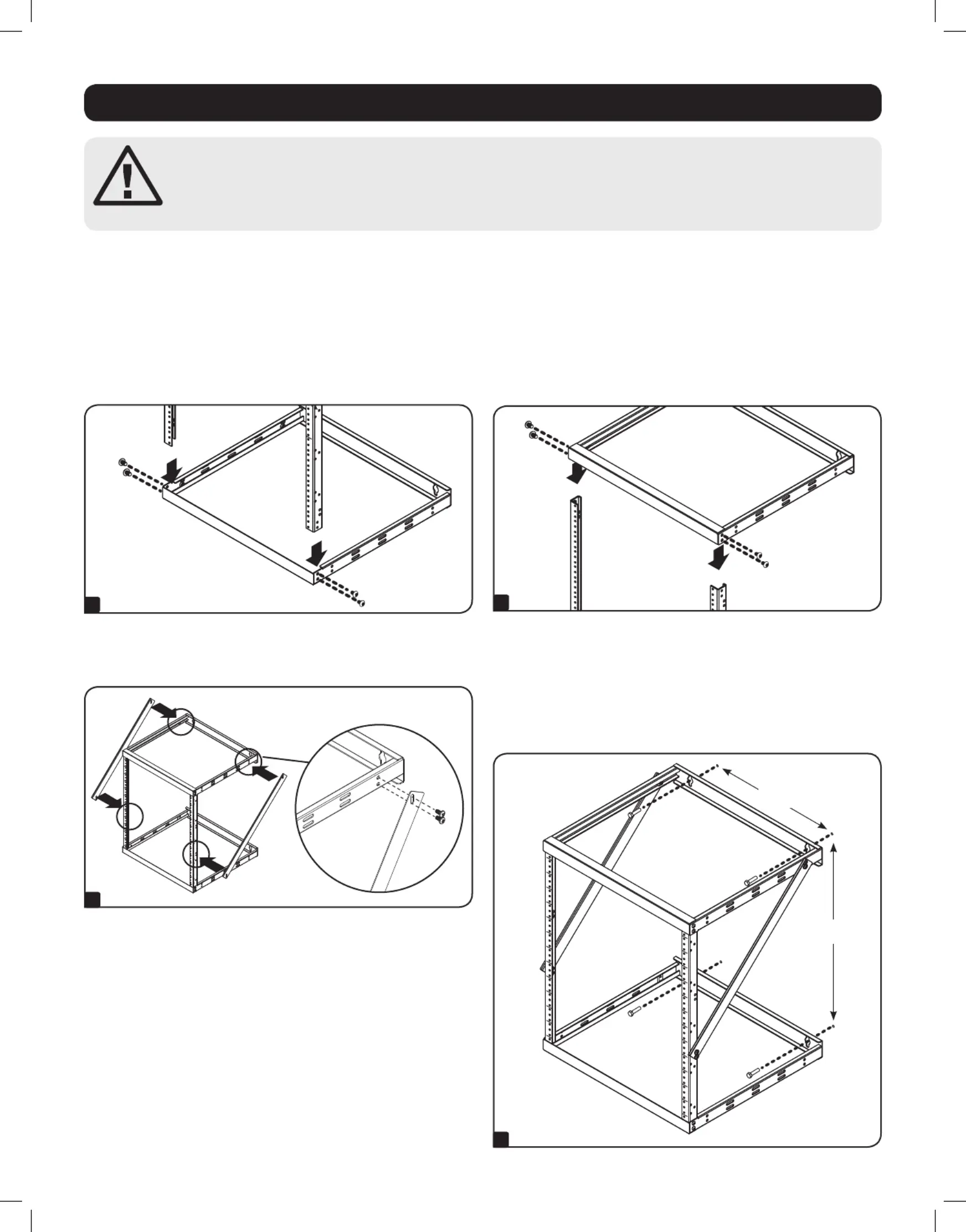

Step 1 Insert one end of the longer vertical mounting rails into the

corners of the bottom panel frame (both panel frames can

be used as a top or a bottom) opposite the mounting side

and secure them with 2 of the M5 button head cap screws

on each side.

Step 2 Insert the other end of the longer vertical mounting rails

into the corners of the top panel frame opposite the

mounting side and secure them with 2 of the M5 button

head cap screws on each side.

Step 3 Attach strengthening straps to frame using provided

M6 x12mm Phillips screws.

Step 4 Before mounting the rack, nd the studs in your wall/

mounting surface and make all measurements and/or

guide marks.

Step 5 Using user-supplied hardware, mount the top and bottom

panel frames to the wall. Both mounting frames can

accommodate 5/16” lag bolts.

16”

(406.4 mm)

22.79”

(578.86 mm)

Left

Right

14-02-241-9332FD.indb 3 3/19/2014 4:58:20 PM
