Introduction
Owner’s Manual
12U Wall-Mounted 2-Post
Swing Out Open Frame Rack
Model: SRWO12US
Introduction 1
Important Safety Instructions 2
Parts List 2
Installation/Wall-Mounting 2
Equipment Installation 4
Storage & Service 4
Español 5
Français 9
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2017 Tripp Lite. All rights reserved.
Tripp Lite’s SRWO12US is the perfect 2-post open frame rack solution for applications where space is limited. Space-saving architecture
allows total access to mounted equipment, while a tight, swing-out arc design reduces the amount of loose cable required to gain such
access. The SRWO12US accommodates all standard 19-inch rackmount equipment compatible with 2-post mounting.
17-11-211 93-2993.indb 1 11/29/2017 10:16:40 AM
2
Installation/Wall-Mounting

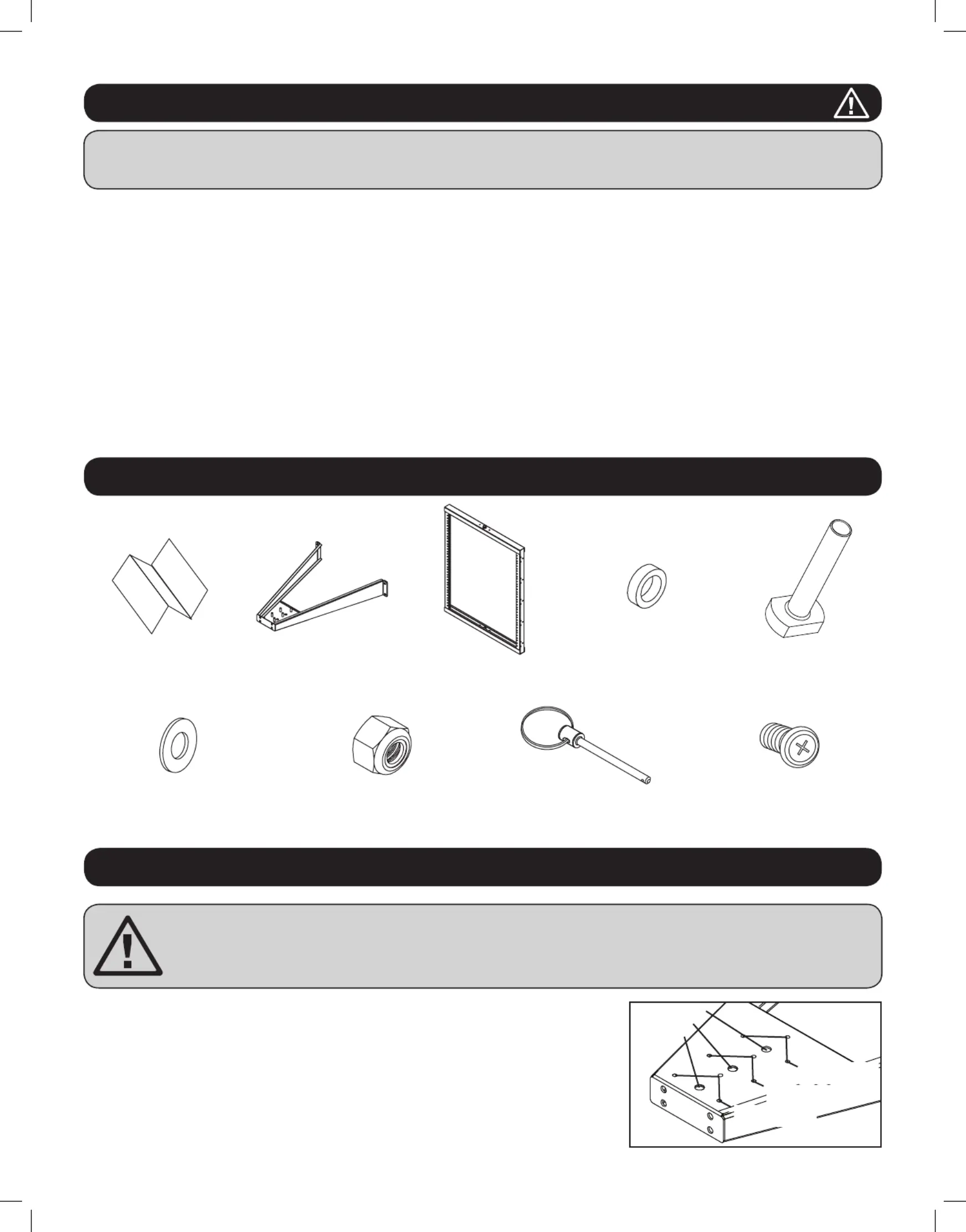

Parts List
SAVE THESE INSTRUCTIONS
This Manual contains instructions and warnings that must be followed during the installation and operation of the product described in this
manual. Failure to comply may invalidate the warranty and cause property damage or personal injury.
Keep the rack in a controlled indoor environment, away from moisture, temperature extremes, flammable liquids and gasses, conductive
contaminants and dust.
Leave adequate space at the front of the rack for proper ventilation.
Inspect the shipping container and the rack for shipping damage. Do not use the rack if it is damaged.
Leave the rack in the shipping container until it has been moved as close to the final installation location as possible.
Install the rack in a structurally sound area capable of handling the load, the weight of the rack, all equipment that will be installed in the rack
and any other equipment that will be installed nearby.
Save all packing materials for later use. Repacking and shipping the enclosure without the original packing materials may cause product damage
that may affect the warranty.
Do not attempt to install the rack unassisted.
Do not attempt to install equipment without first wall mounting and stabilizing the rack.
Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life
support equipment or to significantly affect its safety or effectiveness is not recommended.
Mounting Template (1) Wall-Mount “A” Frame (2) Equipment Mounting
Frame (1)
Pivot Bearing (2) T bolt (2)
Washers (4) M10 Locknut (2) Lock Pins (2) #12-24 Equipment Mounting
Screws (24)
WARNING: Do not attempt to mount the rack to the wall with equipment mounted to the rack.
WARNING: The wall surface, the wall studs and all user-supplied mounting hardware must be able to support
the combined weight of the rack and all equipment that will be installed in the rack. The rack can support an
equipment load up to 150 lb. maximum.
It should be noted before mounting that both top and bottom “A” Frames have 3 mounting
holes and 3 sets of locking pin holes to accommodate 3 different mounting depth positions.
Choose a position according to your configuration.
Important Safety Instructions
Position 2
Position 3
Position 1
Position 1
Locking Pin Holes
Position 2
Locking Pin Holes
Position 3
Locking Pin Holes
17-11-211 93-2993.indb 2 11/29/2017 10:16:43 AM
3
that is provided.
Step
2
Using user-supplied hardware, mount the top and bottom
Wall-Mount “A” Frames to the wall as shown in the
diagram. Both mounting frames can accommodate 5/16”
lag bolts.
Step
3
Attach the Equipment Mounting Frame to the bottom “A
Frame first, using the T bolt, washer, pivot bearing and
locknut as shown in the diagram.
Step
1
Before mounting the rack, find the studs in your wall/
mounting surface and make all measurements, and or
guide marks in accordance with the mounting template
Step
4
Attach the Equipment Mounting Frame to the top “A
Frame, using the other T bolt, washer, pivot bearing and
locknut as shown in the diagram. To allow for variation
in the installed gap between the “A” Frames, additional
washers have been included that can be used in
conjunction with the pivot bearing to provide additional
spacing.
Note: The Equipment Mounting Frame should be tightened
to the 2 “A” Frames enough to provide a stable attachment
while also allowing for an easy swinging arc. This may take
a few adjustments that are recommended to be made
before trying to install equipment.
Step
5
Insert the two locking pins to stabilize the rack. You do
not want the rack to swing at all while installing
equipment.
Step
6
A locking pin can also be inserted to lock the Equipment
Mounting Frame in the “Open” swing out position for cable
installation or equipment maintenance (see diagram).
Installation/Wall-Mounting continued
2.2”
(56.2 mm)
2.2”
(56.2 mm)
2
4
3
LOCKNUT
LOCKNUT
WASHER
WASHER
T bolt
T bolt
PIVOT
BEARING
PIVOT
BEARING
(Optional)
16”
(406.4 mm)
25.8125”
(656 mm)
(hole to hole)
5
6
17-11-211 93-2993.indb 3 11/29/2017 10:16:46 AM
