Assembly Instructions
SmartRack® 4-Post
Heavy-Duty Open Frame Racks
Models: SR4POST48HD, SR4POST50HD, SR4POST52HD, SR4POST58HD
1111 West 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2014 Tripp Lite. All trademarks are the sole property of their respective owners.
PROTECT YOUR INVESTMENT!
Register your product for quicker service and ultimate peace of mind.
You could also win an ISOBAR6ULTRA surge protector—a $50 value!
2
Parts List
Front Upright Rear Upright Top Flange Base Flange Horizontal Beam PDU Bracket
M10 Acorn Nut M10 Flat Washer M6x12 Phillips
Head Screw
M6x16mm Hex
Head Screw
M6 Hex Nut M6 Flat Washer Caster
A B C D E F
G H I
J K L M
x2x2 x4
x16 x16 x4 x16 x16 x32 x4
x2x2 x2
Required tools (User Supplied):
Phillips Head Screwdriver
16 mm Open End Wrench
WARNING: The rack enclosure is extremely heavy. Do not attempt to unpack, move, assemble or install the
enclosure without assistance. Until it has been properly assembled and stabilized, the enclosure is prone to
tipping and could cause property damage and/or personal injury. Use extreme caution when assembling
the enclosure. Do not attempt to install equipment without first stabilizing the enclosure.
SRCASTER Kit (Optional, Sold Separately)
3
1
2
step
step
A B
E
C
G
H

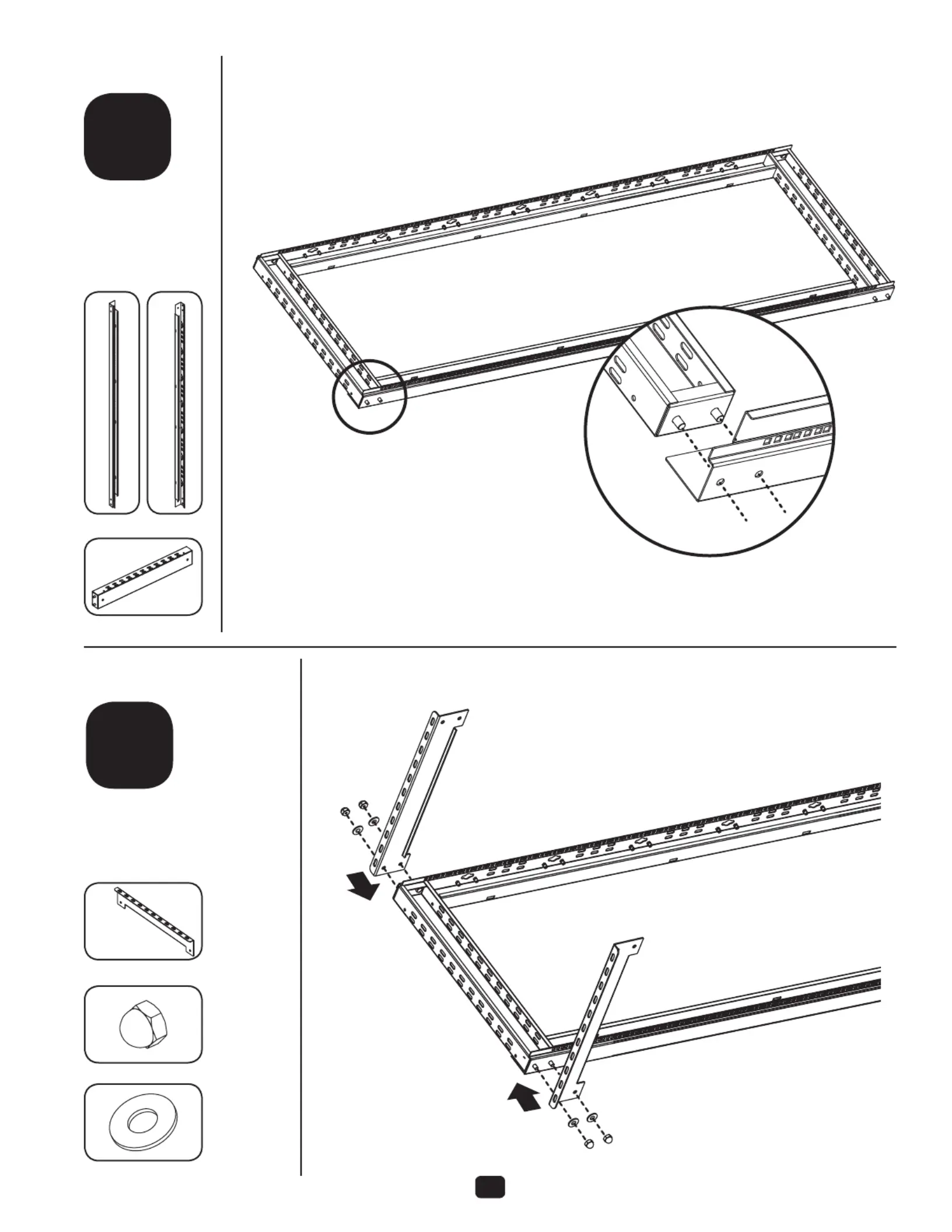

Lay out parts
on the floor or a
stable work surface
and assemble as
shown.
Attach the washers and acorn
nuts, but leave them loose.
This will allow the unit to flex
later in the assembly process.
1 1
2
2
4
4
