Owner’s Manual

SmartRack

Accessories

Model: SRCOOL7KDUCT

PROTECT YOUR INVESTMENT!

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Table of Contents

Introduction ....................................................... 2

Parts List ........................................................... 2

Installation ........................................................ 3

Warranty and Product Registration ..................... 6

Español............................................................... 7

Français ............................................................ 12

Introduction

Parts List

Tripp Lite’s SRCOOL7KDUCT is a venting system that is compatible with the SRCOOL7KRM Rack-Mounted

Air Conditioning Unit. The SRCOOL7KDUCT attaches directly to the SRCOOL7KRM unit to dissipate heat

generated from the air conditioning unit and direct the hot air through a vent upwards into your facility’s

return air duct or other standard ventilation system. The SRCOOL7KDUCT helps your rack equipment stay

cool and perform at its peak while reducing your facility’s cooling and energy costs.

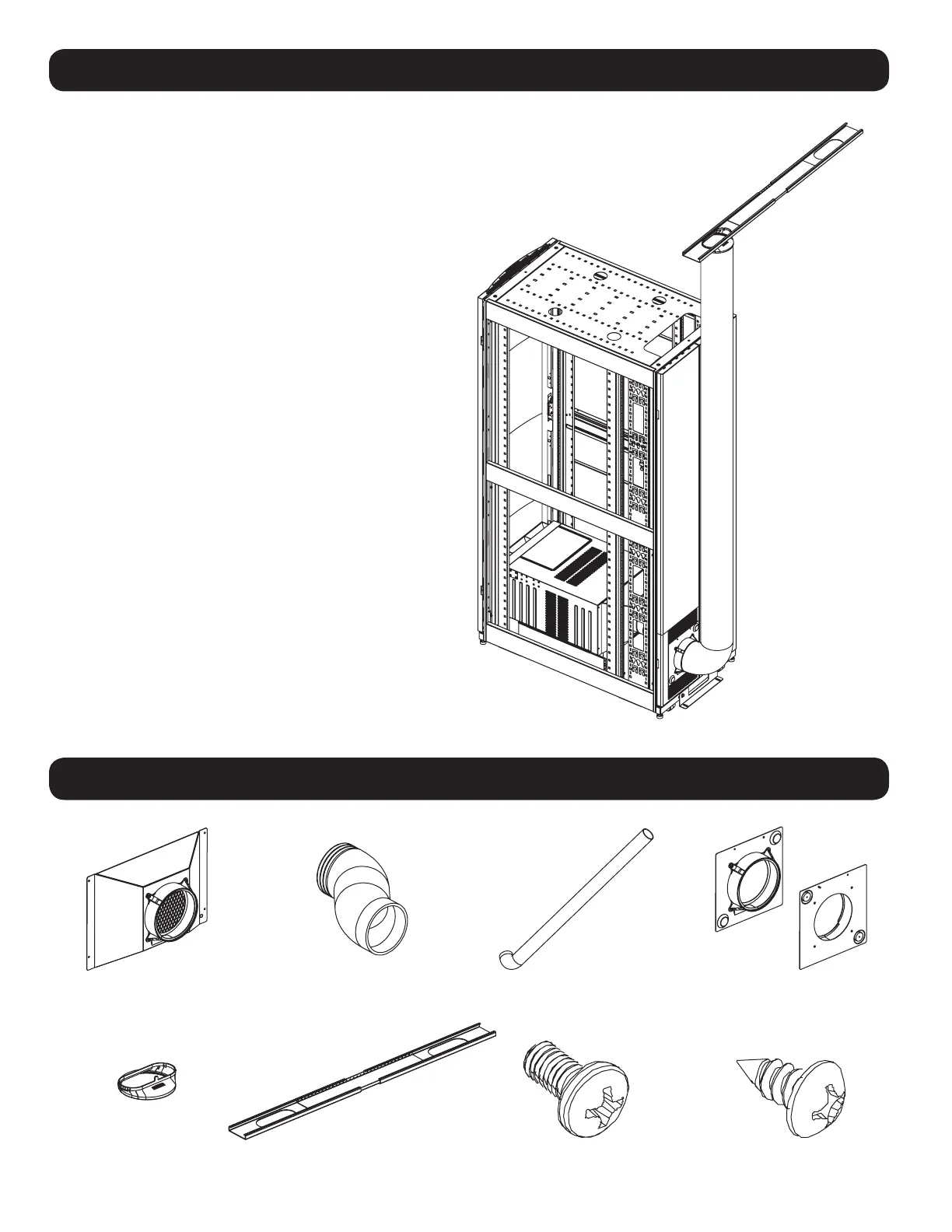

Manifold Assembly (x1) Short Exhaust Tube (x1) Long Exhaust Tube (x1) Tube Adapter (x2)

Internal magnets attach

to rack enclosure.

Ceiling Adapter (x1) Ceiling Tile Insert (x1) M4 x 12 mm Screws (x4) Self-Tapping Screws (x4)

Installation

Before proceeding to install the SRCOOL7KDUCT, ﬁrst make sure the air conditioning unit is correctly installed per the

instructions shown in the SRCOOL7KRM Owner’s Manual.

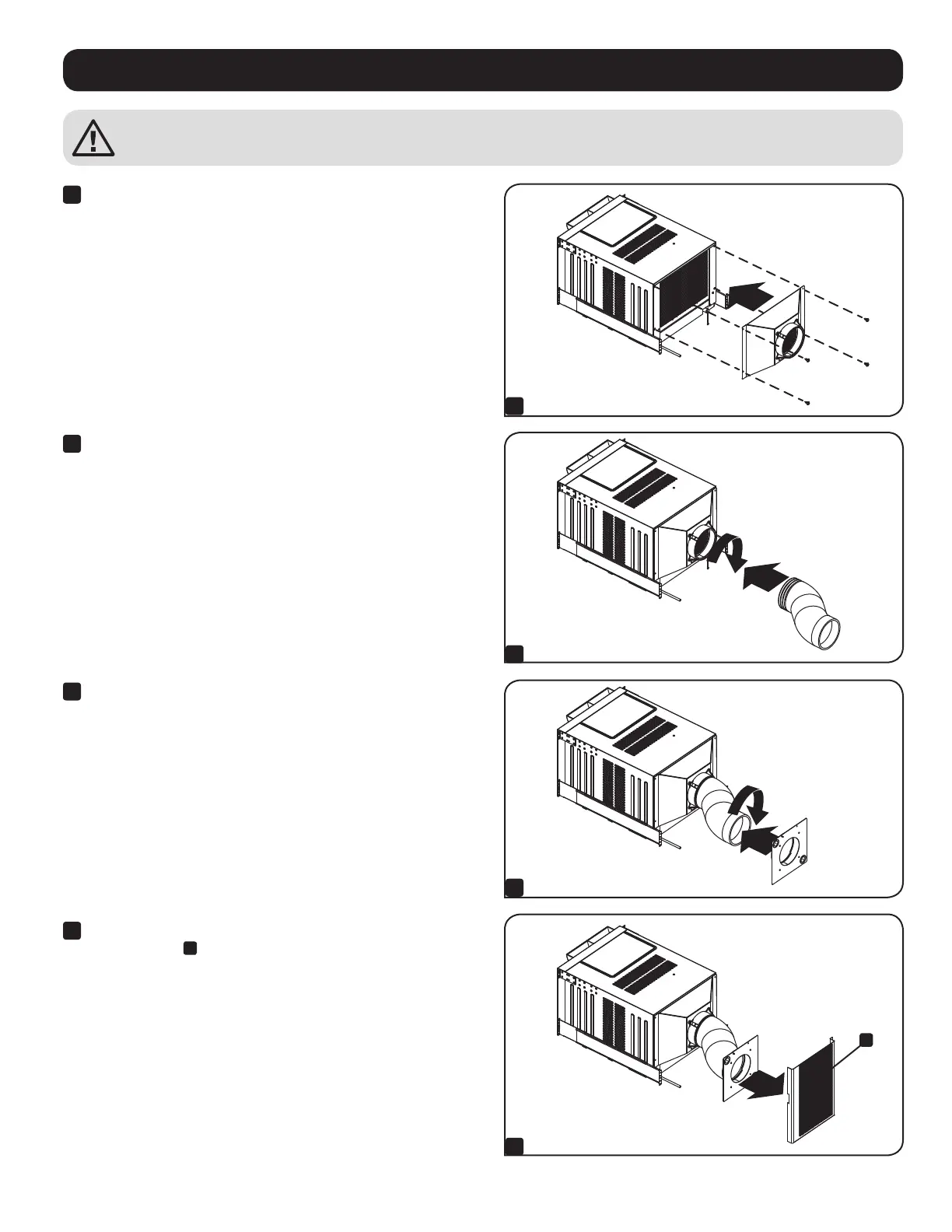

Fasten the Manifold Assembly to rear of SRCOOL7KRM using the

four (4) included M4 screws.

Attach the Short Flexible Tube to the Manifold Assembly by

turning the tube’s threaded end into the manifold’s adapter.

Attach the Short Flexible Tube to the Tube Adapter by turning the

adapter onto the tube’s threaded side.

Attach the Tube Adapter to the inside of the perforated rack

enclosure door

Note: The Tube Adapter uses internal magnets to attach to the rack

enclosure.
