Installation Guide
Low-Temperature Kit for
SRCOOLDXRW In-Row
Cooling Units
Model: SRCOOLDXRWLTKIT
1111 W. 35th Street, Chicago, IL 60609 USA tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
WARRANTY REGISTRATION
Register your product today and be
®
surge protector in our monthly drawing!
tripplite.com/warranty
Español 6 Français 11
When the outdoor ambient temperature is lower than the minimum design temperature of the air-conditioning unit, a low-
temperature kit must be installed to ensure normal start-up and operation of the air-conditioning unit.
The low-temperature kit is an integral box, with 4 copper pipes on the outside of the unit to connect the indoor unit and the
outdoor unit.
2
1
Install the low-temperature kit base to the support or on the ground.
1
Connect the connector labeled Indoor Unit Gas Line to the indoor units gas pipe connector.
2
Connect the connector labeled Outdoor Unit Gas Line to the outdoor units gas pipe connector.
3
Connect the connector labeled Indoor Unit Liquid Line to indoor units liquid pipe connector.
4
Connect the connector labeled Outdoor Unit Liquid Line to the outdoor units liquid pipe connector.
SRCOOLDXRW12 (Top Access) SRCOOLDXRW12 (Bottom Access)

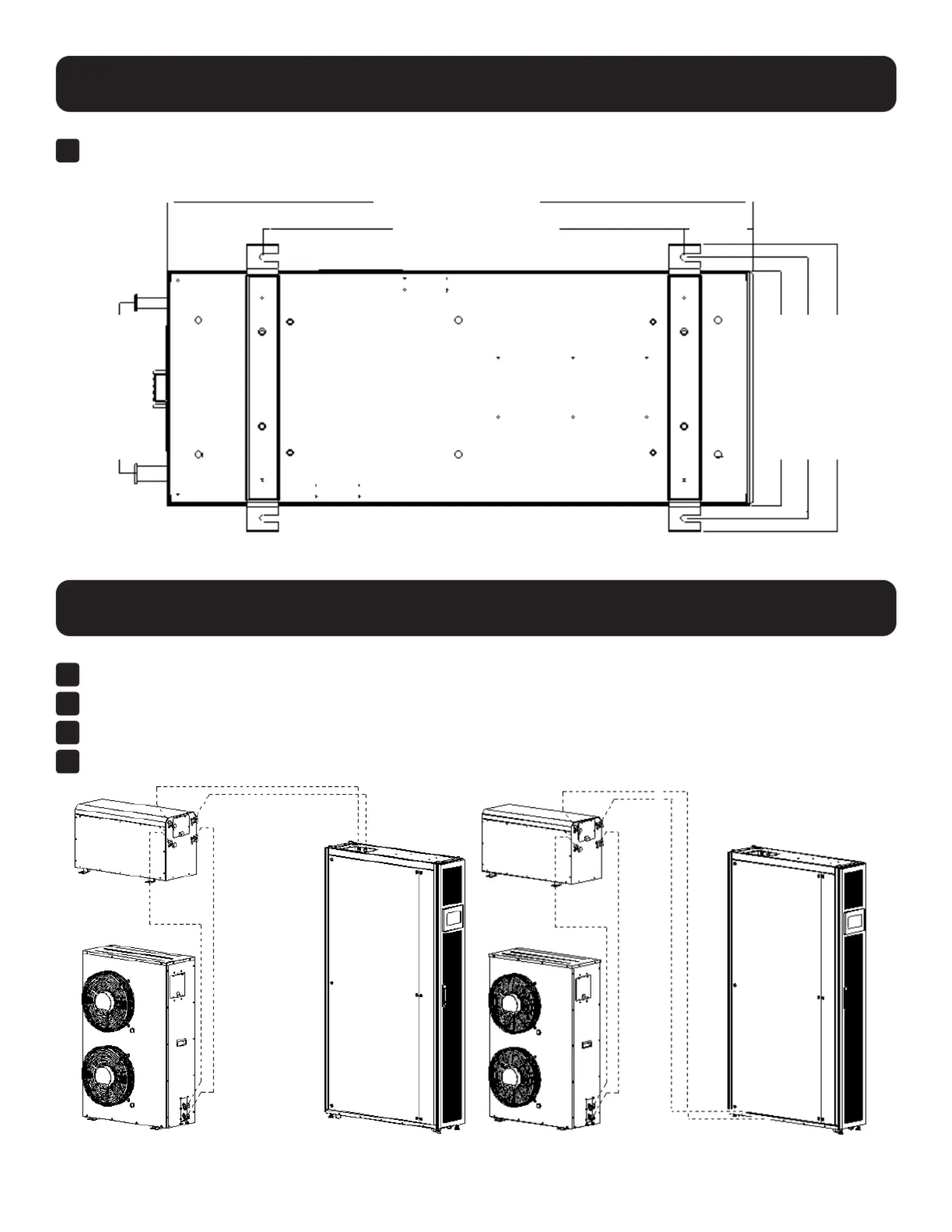

1. Install the Kit
2. Connect Pipe
34.21 in. (869 mm)
24.61 in. (625 mm)
4.02 in.
(102 mm)
9.96 in. (253 mm)
13.70 in. (348 mm)
15.24 in. (387 mm)
16.81 in. (427 mm)
3

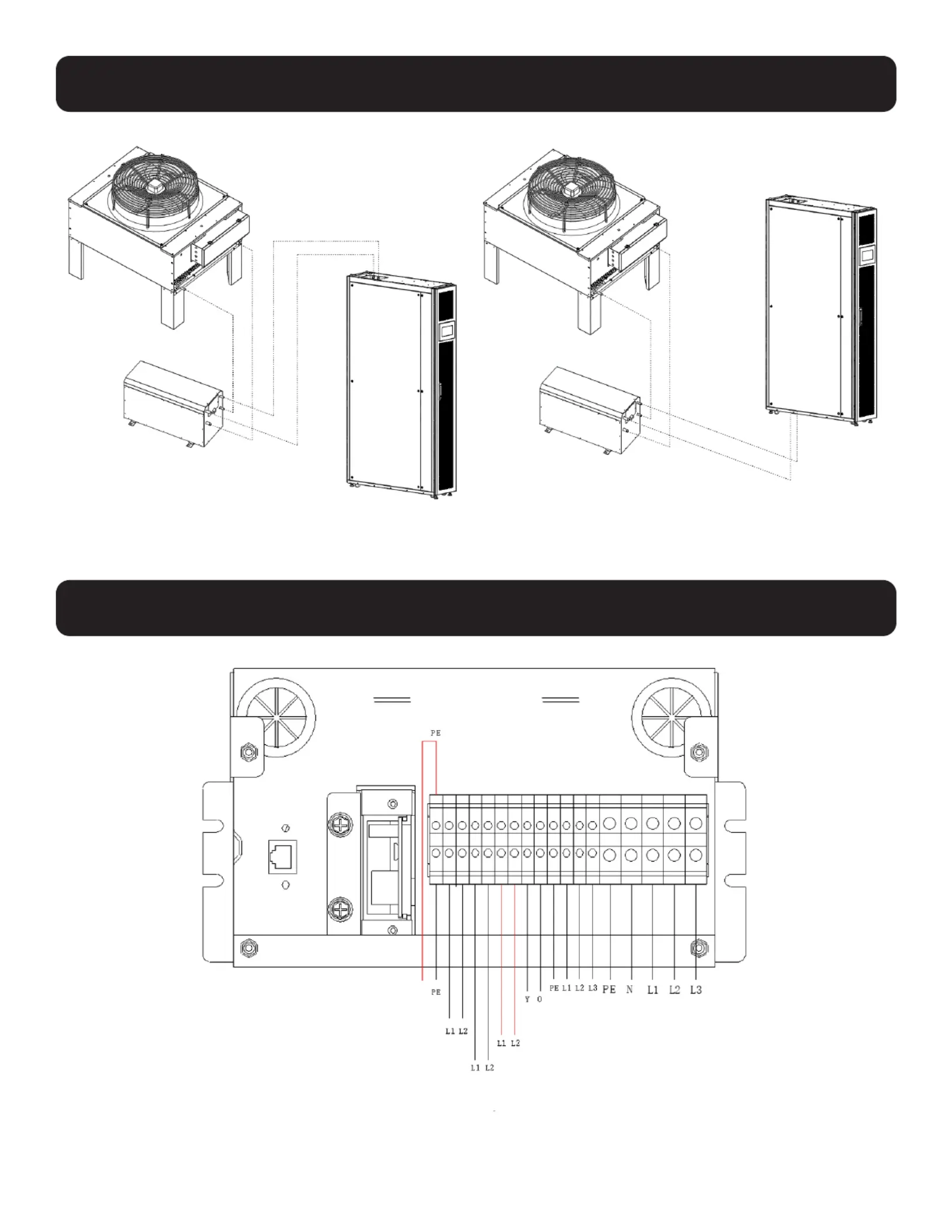

3. Solenoid Valve Coil Wiring
2. Connect Pipe
Connect to SRCOOLDXRW25
Heater
Power for
Low Temp
Solenoid
Power for
Low Temp
Solenoid
Power for
Extension
Pipe
Condenser
Signal
Condenser
Power
Main Power
SRCOOLDXRW25 (Top Access) SRCOOLDXRW25 (Bottom Access)

Produkspesifikasjoner

Merke: Tripp Lite
Kategori: Ikke kategorisert
Modell: SRCOOLDXRWLTKIT
Innebygd skjerm: Nei
Vekt: 31750 g
Bredde: 348 mm
Dybde: 868.7 mm
Høyde: 398.8 mm
Opprinnelsesland: China
Pakkevekt: 49900 g
Inngangseffekt: - W
Pakkedybde: 1081.5 mm
Pakkehøyde: 666.8 mm
Pakkebredde: 460.8 mm
Harmonisert system (HS)-kode: 8415.90.8085
Kroppsmateriale: Stål
Guide for hurtiginstallering: Ja
Dekselfarge: Grå
Nedkjølingskapasitet i watt (maks.): - W
Produkter per masterkasse (ytterkasse): 1 stykker
