Side 1/16

Owner’s Manual

USB Type-C to HDMI over

Cat6 w/ PoC –

1080p/150 ft. (45 m)

Model: U444-CAT-H

USB Type-C and USB-C are trademarks of USB Implementers Forum

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an

ISOBAR6ULTRA surge protector—

a $100 value!

www.tripplite.com/warranty

Español 5 • Français 9 • Русский 13

19-01-469-933939.indb 1 2/12/2019 10:47:04 AM

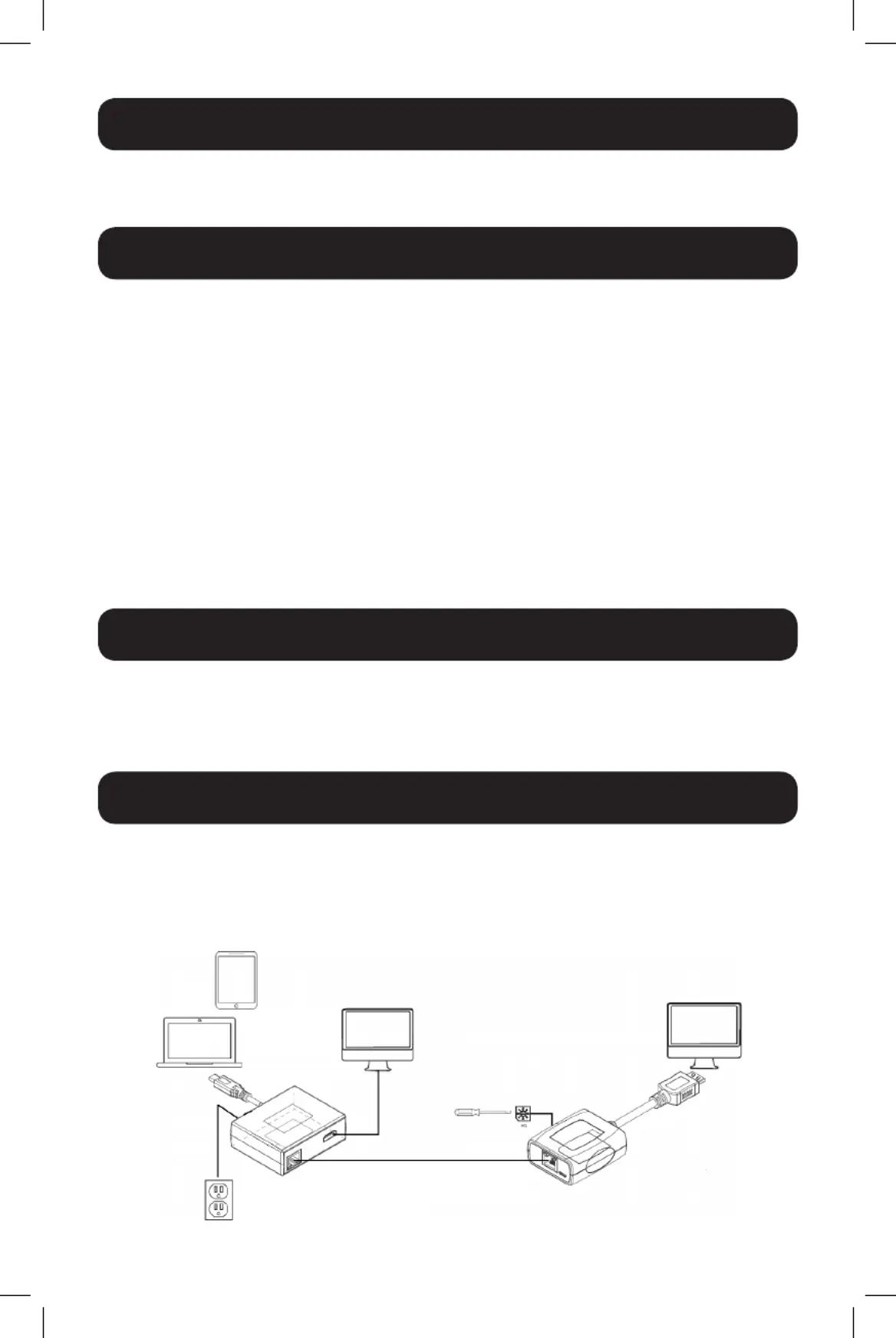

Package Includes

Installation

Product Features

Optional Accessories

• U444-CAT-H • Screwdriver • Owner’s Manual

Notes:

• Test entire installation prior to pulling cables through walls/ceilings.

• To achieve maximum distance and performance, use 24 AWG solid-wire Cat6 cable

(such as Tripp Lite N202-Series cable).

• Extend a 1080p video signal over Cat6 up to 150 ft. (45 m) away from your

source

• Built-in equalization (EQ) control allows users to adjust between 8 levels of

video quality

• Power-over-Cable (PoC) technology provides power to the receiver unit

• Local HDMI output on the transmitter enables you to observe the image being

displayed 150 ft. (45 m) away

• Conveniently charge your USB Type-C device with the built-in USB-C port

• HDMI and HDCP 1.4 compliant

• Plug-and-play operation with no software or drivers required

• Tripp Lite N202-Series Solid-Wire Cat6 Patch Cables

• Tripp Lite P568-Series High-Speed HDMI Cables

Up to 150 ft. (45 m) at 1080p (60 Hz)

Local Monitor

(Optional)

Charge your USB Type-C

device (Optional

19-01-469-933939.indb 2 2/12/2019 10:47:04 AM

Installation

1. Connect the receiver unit to your HDMI display.

Note: If the green LED does not illuminate after installation is completed, additional

power is required. Connect a user-supplied USB Micro-B cable to the available USB

Micro-B port on the receiver unit.

2. Using a Cat6 patch cable (such as Tripp Lite N202-Series cable, not

included), connect the RJ45 port on the transmitter unit to the RJ45 port on

the receiver unit.

3. Connect the transmitter unit to your USB Type-C source (ex. laptop or

tablet). Both the green LED (indicating power is being supplied) and orange

LED (signal transmission is occurring) on both the transmitter unit and

receiver unit should illuminate at this time.

4. (Optional) Using an HDMI cable (such as Tripp Lite P568-Series cable, not

included), connect a local HDMI monitor to the available local HDMI port on

the transmitter unit.

5. (Optional) Prevent your USB Type-C device from unintentional shutdowns

or battery drain by connecting the source’s included power adapter to the

available USB-C port on the transmitter unit.

6. If necessary, adjust the video quality on your extended monitor using the EQ

control located on the receiver unit.

Note: An improper equalization setting can cause the monitor to not display an

image. Try each equalization setting until an acceptable image is displayed.

Troubleshooting

Speciﬁcations

1. An image is not displayed on my remote monitor.

Adjust the equalization settings on the receiver unit until an acceptable

image displays, or add power by connecting a user-supplied USB Micro-B

cable to the available USB Micro-B port on the receiver unit.

Transmitter Unit Ports USB Type-C (M), USB Type-C (F), HDMI (F), RJ45 (F)

Receiver Unit Ports HDMI (M), RJ45 (F), USB Micro-B (F)

Max Resolution 1920 x 1080 @ 60 Hz (1080p)

Audio Support PCM 7.1, DTS & Dolby 5.1

Transmission Distance 150 ft. (45 m)

HDMI Signal HDMI 1.4, HDCP 1.4

Operating Temperature 32° to 104°F (0° to 40°C)

Storage Temperature 5° to 122°F (-15° to 50°C)

Relative Humidity 0% to 85% RH, Non-Condensing

19-01-469-933939.indb 3 2/12/2019 10:47:04 AM

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	kabler for datamaskiner og annet
Modell:	U444-CAT-H
LED-indikatorer:	Ja
USB-kontakttype:	Micro-USB B, USB Type-C
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Maksimal oppløsning:	1920 x 1080 piksler
Opprinnelsesland:	Taiwan
Pakkevekt:	220 g
Sertifisering:	FCC, CE, REACH
HDCP:	Ja
Maksimal oppdateringshastighet:	60 Hz
Materiale:	Akrylonitril-butadien-styren (ABS)
HDMI-versjon:	1.4
HDMI inn:	1
HDCP-versjon:	1.4
Antall HDMI-utganger:	1
Produktfarge:	Sort
Antall USB-porter:	3
Pakkedybde:	142.2 mm
Pakkehøyde:	43.9 mm
Pakkebredde:	199.9 mm
Pakketype:	Boks
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-15 - 50 °C
Lagringsrelativ fuktighet:	0 - 85
Bærekraftsertifikater:	RoHS
Modell/Type:	AV-sender og -mottaker
RJ-45-inngangsporter:	2
Ethernet/bredbåndsforbindelse:	Ja
Relativ luftfuktighet under drift (H-H):	0 - 85
Lyd-utgang kanaler:	7.1 kanaler
Plugg inn og spill:	Ja
Største båndbredde for port:	5 Gbit/s
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332238808
Masterkassens (ytterkassens) bruttovekt:	2450 g
Masterkassens (ytterkassens) lengde:	213.1 mm
Produkter per masterkasse (ytterkasse):	10 stykker
Masterkassens (ytterkassens) bredde:	455.9 mm
Masterkassens (ytterkassens) høyde:	152.9 mm
Maksimal overføring avstand:	45.7 m
Kabeltyper som støttes:	Cat6, Cat6a
