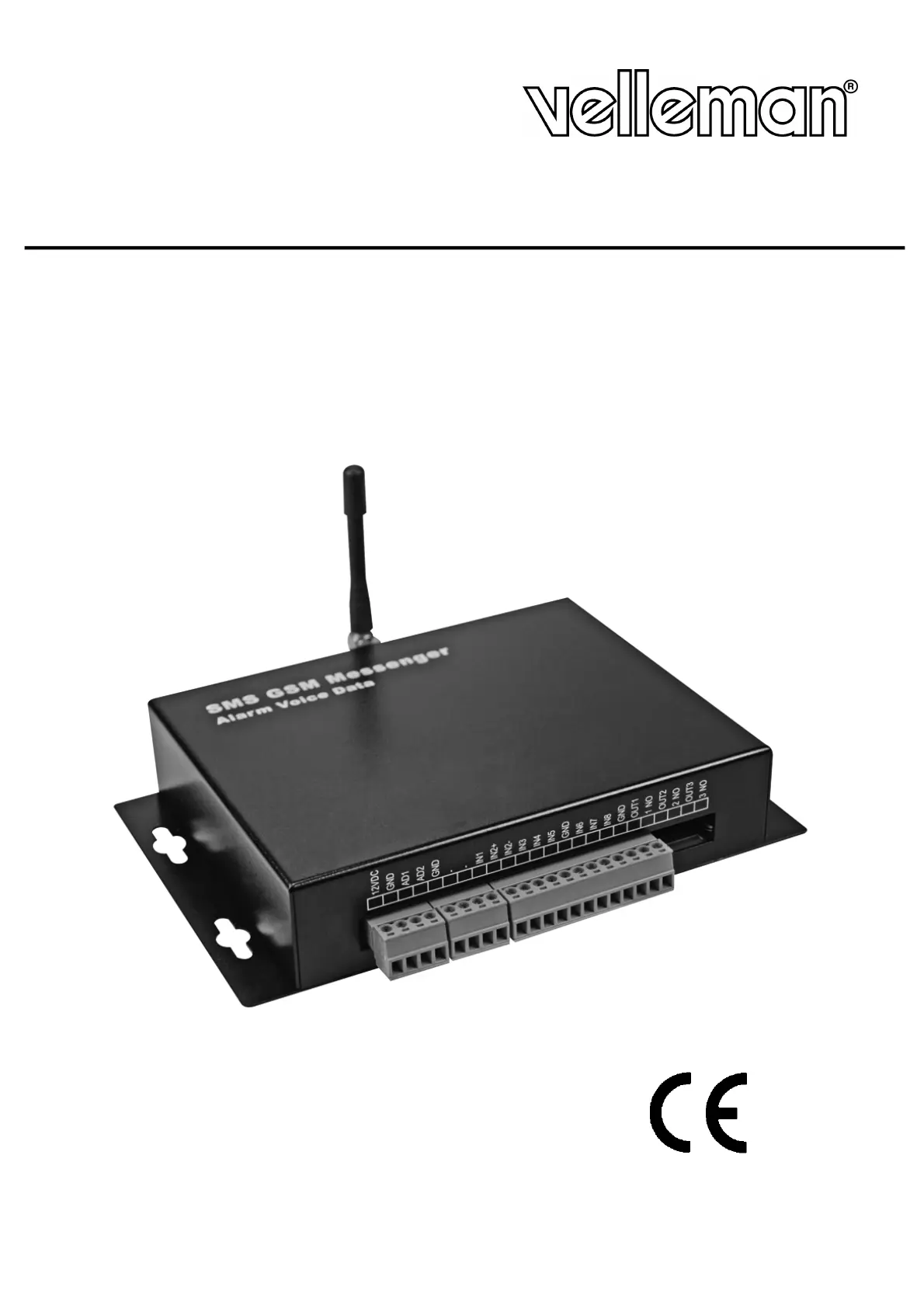

Side 1/63

CU2200

WIRELESS SMS ALARM MESSENGER

DRAADLOZE SMS-ALARMMELDER

SYSTÈME DE MESSAGERIE D'ALARME SMS SANS FIL

SISTEMA DE ALARMA INALÁMBRICO POR MENSAJES SMS

DRAHTLOSER SMS-ALARM

USER MANUAL

GEBRUIKERSHANDLEIDING

NOTICE D’EMPLOI

MANUAL DEL USUARIO

BEDIENUNGSANLEITUNG

CU2200_v5 VELLEMAN 2

CU2200 – WIRELESS SMS ALARM MESSENGER

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm

the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a

specialized company for recycling. This device should be returned to your distributor or to a local recycling

service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for buying a VELLEMAN product! The CU2200 is equipped with a very reliable Siemens 16 bit MCU and can

be used for numerous applications (except for medical and aerospace applications) such as industrial equipment or

area monitoring, data capturing, home or car security… Please read the manual thoroughly before bringing this device

into service. If the device was damaged in transit, don't install or use it and contact your dealer.

2. Description

POW: 7~12VDC power input

GND: ground

AD1/AD2: N/A

IN1, IN3, IN4, IN5, IN6, IN7, IN8, GND: 12VDC alarm input, 7~15mA, common ground opto-coupled

IN2+, IN2-: 7~12VDC input

OUT1: relay output, max. 1A, 24VDC, 1A, 120VAC, NC/NO (selected by jumper on board)

3. Connection

Relay output jumper

1 2 3

▪ ▪ ▪

1-2 short NC

2-3 short NO (default)

Produkspesifikasjoner

Merke:	Velleman
Kategori:	sikkerhetstilgang-kontrollsystem
Modell:	CU2200
Vekt:	480 g
Strømforbruk:	500 mA
Antall kanaler:	8 kanaler
Dimensjoner (B x D x H):	135 x 105 x 30 mm
Innebygd sirene:	Nei
Strømforbruk (vanlig bruk):	2 W
Driftstemperatur (T-T):	-20 - 50 °C
Høyttalertelefon:	Nei
Arbeidsfrekvens:	925-960/880-912/1805-1880/1710-1785 MHz
Auto-oppringing:	Ja
DV-in krav:	7-12V / 2A
Strøm ved standbymodus:	50 mA
