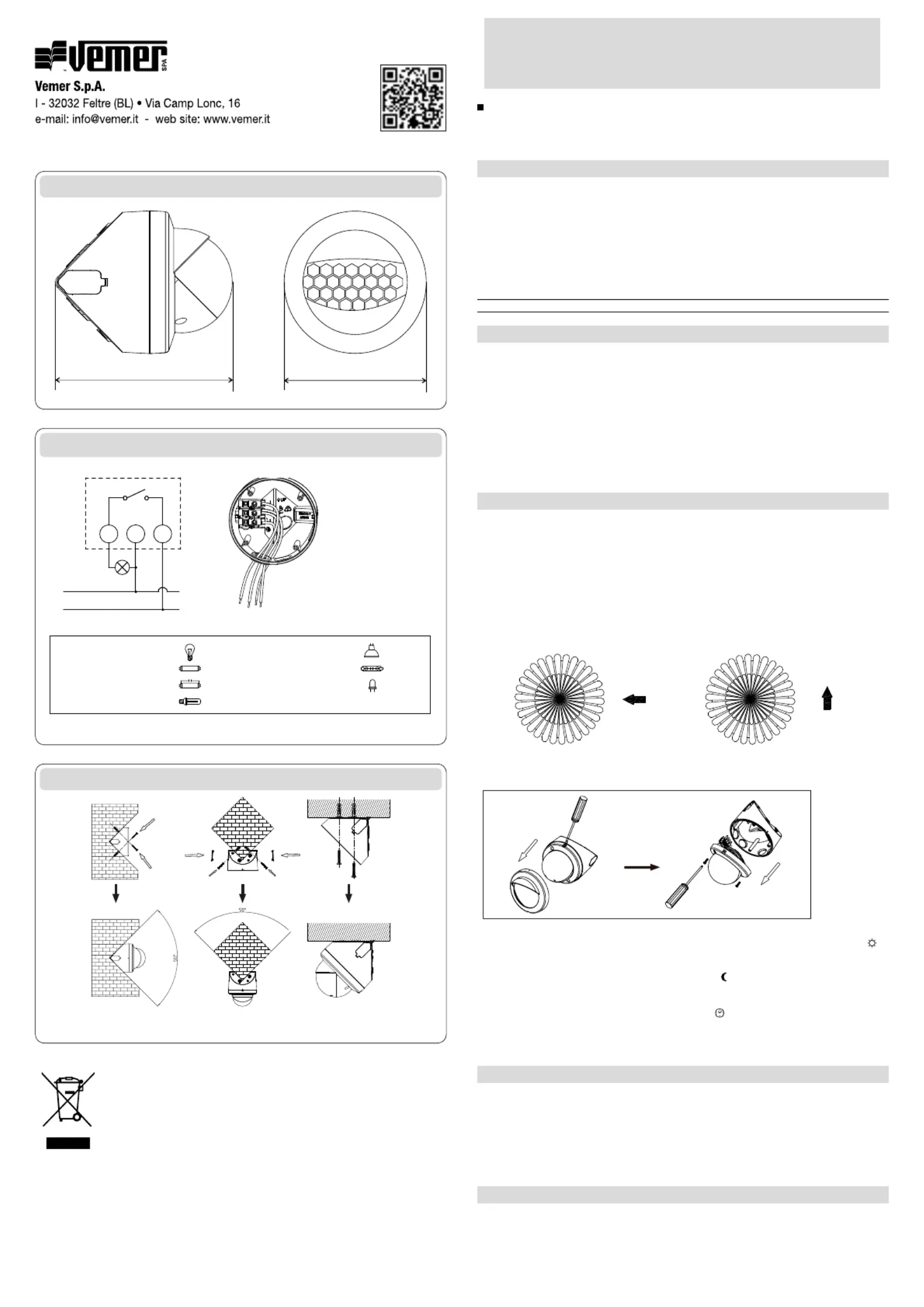

User manual
Angular movement detectors
Read all instructions carefully
Sensor CORNER proximity switch is an electronic device containing micro-disconnection (μ)
according to EN 60669-2-1. The output circuit is activated when a heat source moves in front
of the device and is deactivated when no movement is intercepted, after a settable period of
elepsed time.
SAFETY WARNINGS
During installation and operation of the device, comply with the following instructions:
1) The device must be installed by a skilled person, in strict compliance with the
connection diagrams
2) Do not power on or connect the device if any part of it is damaged
3) In the building where the device is to be installed, there must be a switch and a
device for protection from overloads
4) Before touching the connector terminals make sure that the wires to be connected
are not live.
Code Model Description
VE767400 Sensor CORNER Movement detector with angular-mounting
TECHNICAL CHARACTERISTICS
• Power supply: 230 V AC 50 Hz
• Relay with breaking capacity of 10 A / 250 V AC (on resistive load)
• Maximum cables section: 2 x 1.5 mm
2
• Range of brightness: 2-2000 lux
• Intervention time: from 3 seconds to 30 minutes (approximate)
• Angle of detection: 200°
• Range of detection: − frontal 12 m at 20 °C
− lateral 8 m at 20 °C
• Operating temperature: -20 °C ÷ +40 °C
• Protection degree: IP55
• Insulation: class II
INSTALLATION
• The device must be installed far from inductive loads (motors, transformers, telephone
antennas, transformer plants, industrial machinery, etc.) as especially strong magnetic
elds may alter operation. The device must also be protected from sunlight. It must not
be placed near lights, near devices that are subject to temperature changes (heating, air
conditioning). It must be located far from highly reective surfaces.
We recommend installing the device at a height of 2-3 metres.
The direction of movement of the heat source must be transversal to lens of the device,
because detection occurs by means of intersection of bands. Therefore, if source moves
parallel to the bands, detection will occur at a lesser distance.
GREATER SENSITIVITY
direction of
movement
direction of
movement
LESS SENSITIVITY
The ambient temperature also affects the sensitivity of the device. The higher the
temperature, the poorer sensitivity will be.
• The head can rotate of about 45°. To adjust the eld of detection:
− turn the intervention time selector to the minimum and the brightness selector to (
);
− check coverage by moving inside the eld of detection.
• To adjust the brightness, turn the selector towards (
); when the ambient brightness is as
desired for operation, start turning the selector the other way, until illumination occurs.
• To adjust the intervention time, turn the selector (
) to the desired position. You can
choose from a minimum of 3 seconds to a maximum of 30 minutes. This time is reset
each time there is an interception by the detector.
OPERATION
• At start and after each restoring of the power supply after a blackout, the sensor activates
the load connected for 30 seconds, regardless of the brightness level and the actual
presence of movement in the eld of detection.
• During normal operation, when the level of brightness drops below the set level, the
device sets up for detection, and signals this condition via ashing of the internal LED.
REFERENCE STANDARDS
Conformity to the EU directives:
2014/35/EU (LDV), 2014/30/EU (EMCD)
is declared with reference to harmonized standard: EN 60669-2-1
Incandescent 1000 W
Non-compensated fluorescent 500 W
Compensated fluorescent 250 W
Low voltage halogen 200 W
Halogen (230V) 1000 W
LED 150 W
Low consumption lamp (CFL) 500 VA
Dimensions
96
120
Wall-mounting
Note: screws and plugs provided
Connection diagrams
L' N L
L
N
µ
Note:
cable grommet
provided
Mod. Sensor CORNER
ISCOM059-2106
information to users pursuant to art. 14 of the directive
2012/19 / EU of the european parliament and of the council
of 4 july 2012 on waste electrical and electronic equipment (WEEE)
If the crossed-out bin symbol appears on the equipment or packaging,
this means the product must not be included with other general
waste at the end of its working life.
The user must take the worn product to a sorted waste center,
or return it to the retailer when purchasing a new one.
Products for disposal can be consigned free of charge (without any new purchase obligation)
to retailers with a sales area of at least 400 m
2
, if they measure less than 25 cm.
An efficient sorted waste collection for the environmentally friendly disposal of the used device,
or its subsequent recycling, helps avoid the potential negative effects on the environment
and people’s health, and encourages the re-use and/or
recycling of the construction materials.
