TABLE OF CONTENTS Rev. 5/28/2025 AHA MANUAL
TABLE OF CONTENTS Copyright 2020 Vestil Manufacturing Co. Page 1 of 24
AHA-SERIES ALUMINUM ADJUSTABLE-HEIGHT GANTRY CRANES
Receiving Instructions
After delivery, remove the packaging from the product. Inspect the product closely to determine whether it
sustained damage during transport. If damage is discovered, record a complete description of it on the bill of lading. If
the product is undamaged, discard the packaging.
NOTE: The end-user is solely responsible for confirming that product design, use, and maintenance comply with laws,
regulations, codes, and mandatory standards applied where the product is used.
Technical Service & Replacement Parts
For answers to questions not addressed in these instructions and to order replacement parts, labels, and accessories,
call our Technical Service and Parts Department at (260) 665-7586. The department can also be contacted online at
http://www.vestilmfg.com/parts_info.htm.
Electronic copies of Instruction Manuals
Additional copies of this instruction manual may be downloaded from https://www.vestil.com/page-manuals.php.
Vestil Manufacturing Company
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
Website: www.vestil.com e-Mail: HUinfo@vestil.comU
Table of Contents
Page
Table of Figures
Page
Specifications………...……………...
2, 3
FIG. 1 Exploded view: AHA-2-8-8, 2-8-10, & 2-8-12 ………………….
5
Signal Words……….…………...........
4
FIG. 2 Exploded View AHA-2-10-8, 2-10-10, & 2-10-12………………
6
Safety Instructions……..…………….
4
FIG. 3 Exploded View AHA-2-12-8, 2-12-10, & 2-12-12………………
7
Assembling the Crane..…………....
17, 18, 19, 20
FIG. 4 Exploded View AHA-2-15-8, 2-15-10, & 2-15-12…..……........
8
Using the Crane...............................
21
FIG. 5 Exploded View AHA-4-8-8, AHA-4-8-10, & AHA-4-8-12……..
9
Record of Satisfactory Condition..
21 - 22
FIG. 6 Exploded View AHA-4-10-8, AHA-4-10-10, & AHA-4-10-12...
10
National Standards…………………
22
FIG. 7 Exploded View AHA-4-12-8, AHA-4-12-10, & AHA-4-12-12…
11
Inspections & Maintenance………
22 - 23
FIG. 8 Exploded View AHA-4-15-8, AHA-4-15-10, & AHA-4-15-12…
12
Labeling Diagram…………………...
23
FIG. 9 Exploded View AHA-6-8-8, AHA-6-8-10, & AHA-6-8-12….….
13
Limited Warranty………………….…
24
FIG. 10 Exploded View AHA-6-10-8, AHA-6-10-10, & AHA-6-10-12.
14
FIG. 11 Exploded View AHA-6-12-8, AHA-6-12-10, & AHA-6-12-12.
15
FIG. 12 Exploded View AHA-6-15-8, AHA-6-15-10, & AHA-6-15-12.
16
TABLE OF CONTENTS Rev. 5/28/2025 AHA MANUAL
TABLE OF CONTENTS Copyright 2020 Vestil Manufacturing Co. Page 2 of 24

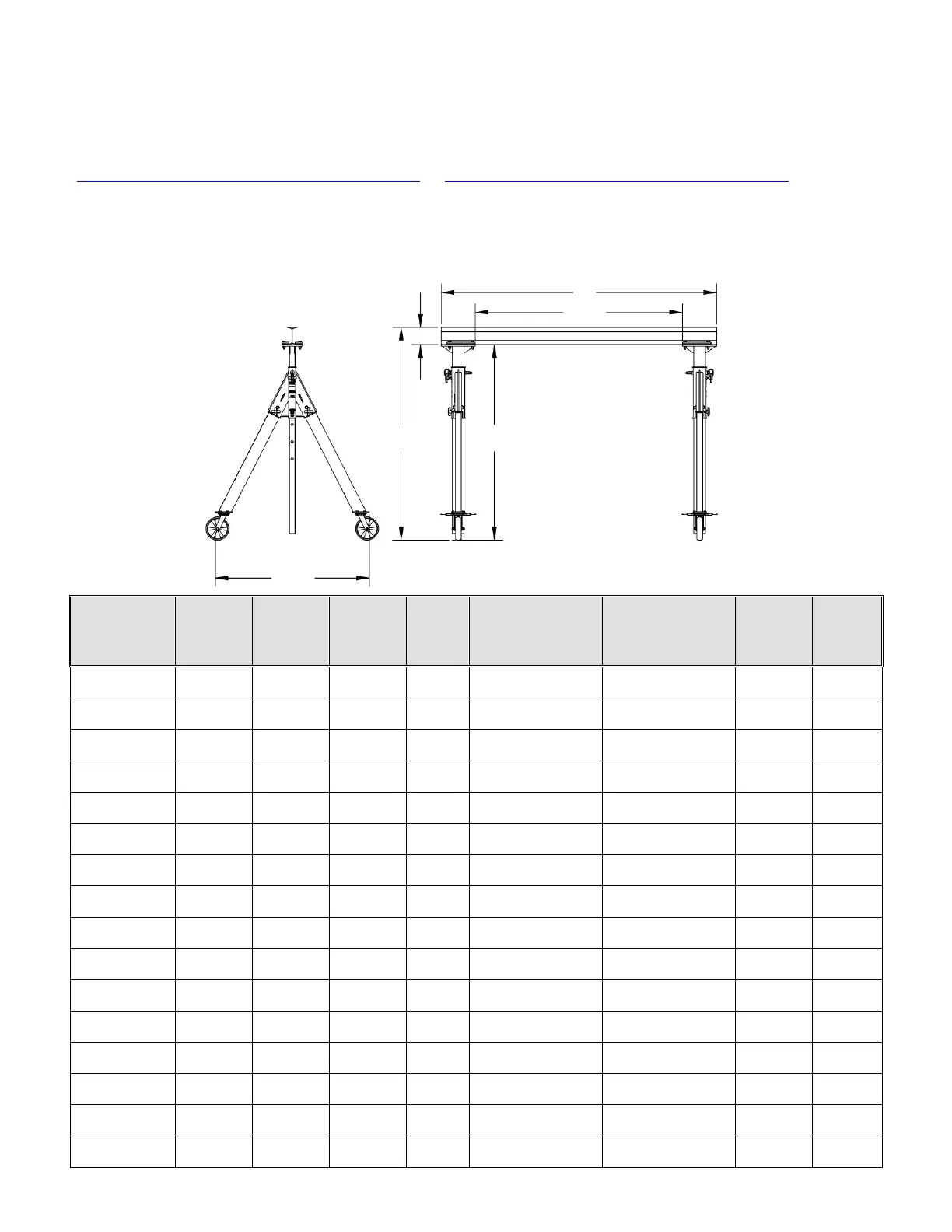

SPECIFICATIONS
Dimensions, net weight, and capacity information for each AHA-series crane are provided in the tables
on pages 2, 3, and 4. However, product design changes might alter specifications, particularly dimensions
and net weight, for 1 or more model. Specifications documents for AHA-series cranes are provided on
Vestil’s website. To access the appropriate specifications document, navigate to the relevant webpage:
https://www.vestil.com/product.php?FID=522 or https://www.vestil.com/product.php?FID=523. Click the
“Product Specifications Table” drop-down menu bar partway down the page. Scroll down to the entry for
the model you purchased and click the button in the column titled “PDF’s” that looks like a pencil inside a
box. A PDF file will open. This file is the specifications document. Print a copy of the document and keep it
with your copy of this manual. The following is an exemplar specifications document. NOTE: 1 or more
model listed in the following tables might be discontinued between revisions of this manual.
Model
A:
Overall
width
B:
Overall
Beam
Length
C:
Usable
beam
length
D:
Beam
height
E:
Overall height
F:
Usable height
range
Capacity
Net
Weight
AHA-2-8-8
53
3
/
4
in.
136.5 cm
96 in.
243.8 cm
72
1
/
4
in.
183.5 cm
6 in.
15.2 cm
(74-104) in.
(188-264.2) cm
(68 – 98) in.
(30.9 – 44.5) cm
2,000 lb.
909 kg
276 lb.
125.5 kg
AHA-2-8-10
53
3
/
4
in.
136.5 cm
96 in.
243.8 cm
72
1
/
4
in.
183.5 cm
6 in.
15.2 cm
(98-128) in.
(249 - 325) cm
(92 – 122) in.
(233.7 – 309.9) cm
2,000 lb.
909 kg
277 lb.
125.9 kg
AHA-2-8-12
53
3
/
4
in.
136.5 cm
96 in.
243.8 cm
72
1
/
4
in.
183.5 cm
6 in.
15.2 cm
(120 – 150) in.
(304.8 – 381) cm
(114 – 144) in.
(289.6 – 365.8) cm
2,000 lb.
909 kg
287 lb.
130.5 kg
AHA-2-10-8
53
3
/
4
in.
136.5 cm
120 in.
304.8 cm
96
1
/
4
in.
244.5 cm
6 in.
15.2 cm
(74 – 104) in.
(188 – 264.2) cm
(68 – 98) in.
(172.7 – 248.9)cm
2,000 lb.
909 kg
272 lb.
123.6 kg
AHA-2-10-10
53
3
/
4
in.
136.5 cm
120 in.
304.8 cm
96
1
/
4
in.
244.5 cm
6 in.
15.2 cm
(98 – 128) in.
(248.9 – 325.1) cm
(92 – 122) in.
(233.7 – 309.9) cm
2,000 lb.
909 kg
293 lb.
133.2 kg
AHA-2-10-12
53
3
/
4
in.
136.5 cm
120 in.
304.8 cm
96
1
/
4
in.
244.5 cm
6 in.
15.2 cm
(120 – 150) in.
(304.8 – 381) cm
(114 – 144) in.
(289.6 – 365.8) cm
2,000 lb.
909 kg
305 lb.
138.6 kg
AHA-2-12-8
53
13
/
16
in.
136.7 cm
144 in.
365.8 cm
120
1
/
4
in.
305.4 cm
8 in.
20.3 cm
(76 – 106) in.
(193 – 268.2) cm
(68 – 98) in.
(172.7 – 248.9) cm
2,000 lb.
909 kg
307 lb.
139.5 kg
AHA-2-12-10
53
13
/
16
in.
136.7 cm
144 in.
365.8 cm
120
1
/
4
in.
305.4 cm
8 in.
20.3 cm
(100 – 130) in.
(254 – 330.2) cm
(92 – 122) in.
(233.7 – 309.9) cm
2,000 lb.
909 kg
315 lb.
143.2 kg
AHA-2-12-12
53
13
/
16
in.
136.7 cm
144 in.
365.8 cm
120
1
/
4
in.
305.4 cm
8 in.
20.3 cm
(122 – 152) in.
(309.9 – 386.1) cm
(114 – 144) in.
(289.6 – 365.8) cm
2,000 lb.
909 kg
327 lb.
148.6 kg
AHA-2-15-8
53
13
/
16
in.
136.7 cm
180 in.
457.2 cm
156
1
/
4
in.
396.9 cm
8 in.
20.3 cm
(76 – 106) in.
(193 – 269.2) cm
(68 – 98) in.
(172.7 – 248.9) cm
2,000 lb.
909 kg
360 lb.
163.6 kg
AHA-2-15-10
53
13
/
16
in.
136.7 cm
180 in.
457.2 cm
156
1
/
4
in.
396.9 cm
8 in.
20.3 cm
(100 – 130) in.
(254 – 330.2) cm
(92 – 122) in.
(233.7 – 309.9) cm
2,000 lb.
909 kg
405 lb.
184.1 kg
AHA-2-15-12
53
13
/
16
in.
136.7 cm
180 in.
457.2 cm
156
1
/
4
in.
396.9 cm
8 in.
20.3 cm
(122 – 152) in.
(309.9 – 386.1) cm
(114 – 144) in.
(289.6 – 365.8) cm
2,000 lb.
909 kg
412 lb.
187.3 kg
AHA-4-8-8
53
15
/
16
in.
137 cm
96 in.
243.8 cm
72
1
/
4
in.
183.5 cm
8 in.
20.3 cm
(76
1
/
8
– 106
1
/
8
) in.
(193.5 – 269.7) cm
(68
1
/
8
– 98
1
/
8
) in.
(173.2 – 249.4) cm
4,000 lb.
1,818 kg
353 lb.
160.5 kg
AHA-4-8-10
53
15
/
16
in.
137 cm
96 in.
243.8 cm
72
1
/
4
in.
183.5 cm
8 in.
20.3 cm
(100
1
/
8
– 130
1
/
8
) in.
(254.3 – 330.5) cm
(92
1
/
8
– 122
1
/
8
) in.
(234 – 310.2) cm
4,000 lb.
1,818 kg
346 lb.
157.3 kg
AHA-4-8-12
53
15
/
16
in.
137 cm
96 in.
243.8 cm
72
1
/
4
in.
183.5 cm
8 in.
20.3 cm
(122
1
/
8
– 152
1
/
8
) in.
(310.2 – 386.4) cm
(114
1
/
8
– 144
1
/
8
) in.
(289.9– 366.1) cm
4,000 lb.
1,818 kg
372 lb.
169.1 kg
AHA-4-10-8
53
15
/
16
in.
137 cm
120 in.
304.8 cm
96
1
/
4
in.
244.5 cm
8 in.
20.3 cm
(76
1
/
8
– 106
1
/
8
) in.
(193.5 – 269.7) cm
(68
1
/
8
– 98
1
/
8
) in.
(173.2 – 249.4) cm
4,000 lb.
1,818 kg
339 lb.
135.5 kg
