Table of Contents Rev. 11/1/2021 TJIB MANUAL
Table of Contents Copyright 2021 Vestil Manufacturing Corp. Page 1 of 12
TJIB-SERIES THREE POST JIB CRANES
Receiving Instructions
After delivery, remove the packaging from the product. Inspect the product closely to determine
whether it sustained damage during transport. If damage is discovered, record a complete description of it
on the bill of lading. If the product is undamaged, discard the packaging.
NOTE:
The end-user is solely responsible for confirming that product design, use, and maintenance comply
with laws, regulations, codes, and mandatory standards applied where the product is used.
Technical Service & Replacement Parts
For answers to questions not addressed in these instructions and to order replacement parts, labels, and
accessories, call our Technical Service and Parts Department at (260) 665-7586. The Department can also
be contacted online at https://www.vestil.com/page-parts-request.php
.
Electronic Copies of Instruction Manuals
Additional copies of this instruction manual may be downloaded from
https://www.vestil.com/page-
manuals.php
TABLE OF CONTENTS
PAGE
Specifications…………...……………………………………….……………………………………………….…….….
2
Signal Words……….………………................................................................................................................
3
Safety Instructions…..…………………………………………………………………………….……...…………….…
3
Exploded View: TJIB-3 & TJIB-6.……………………………………………………………………………………….
4
Exploded View: TJIB-10…………..………………………………………………………………..…………………….
5
Exploded View: TJIB-20…………………………………………………………………………………………………
6
Assembly Instructions……………………………………………………………………………..……………………...
7 - 8
National Standards……………………………………………………………………………………………………….
8
Using the Crane……………………………………………………………………………………………………………
9
Loading the Crane.………………………………………………………………………………………………….……
9
Record of Satisfactory Condition………………………………………………………………………………………
9
Inspections & Maintenance..……………………………………………………………………………………………
10
Labeling Diagram…………………………………………………………………………………………………………
11
Limited Warranty………………………………………………………………………………………………………...…
12
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
Web: www.vestilmfg.com e-mail: info@vestil.com
Table of Contents Rev. 11/1/2021 TJIB MANUAL
Table of Contents Copyright 2021 Vestil Manufacturing Corp. Page 2 of 12
SPECIFICATIONS
Specifications for all TJIB-series cranes, including dimensions, net weight, and capacity information, are
subject to change from time to time. To acquire the most up-to-date specifications for your unit,
download the appropriate specifications document from Vestil’s website as soon as you receive your
crane. To access the specifications document, navigate to this webpage:
https://www.vestil.com/product.php?FID=528
. Click the “Product Specifications Table” drop-down menu
bar partway down the page. Scroll down to the entry for the model you purchased and click the button
in the column titled “PDF’s” that looks like a pencil inside a box. A PDF file will open. This file is the

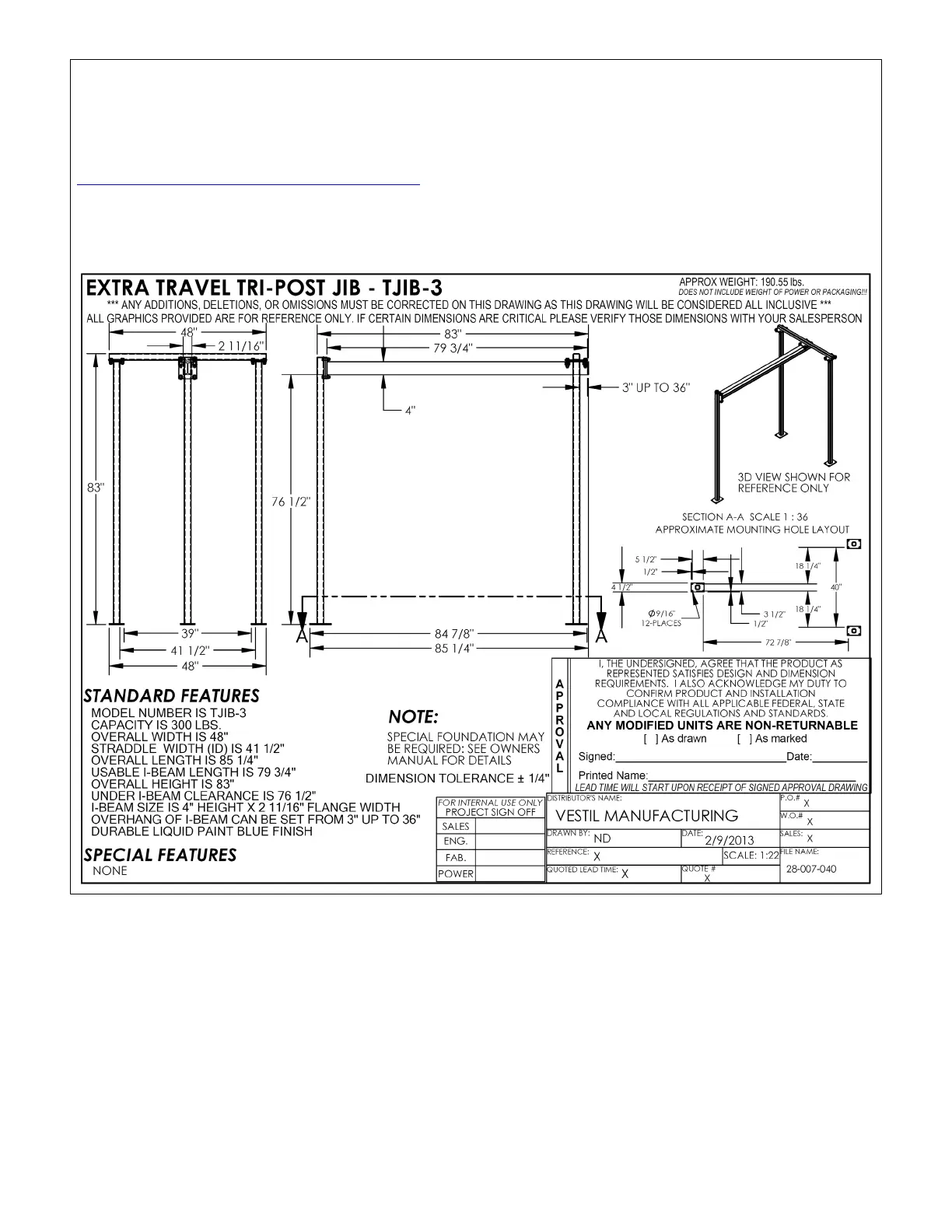

specifications document. Print a copy of the document and keep it with your copy of this manual. The
following is an exemplar specifications document for model TJIB-3
E
