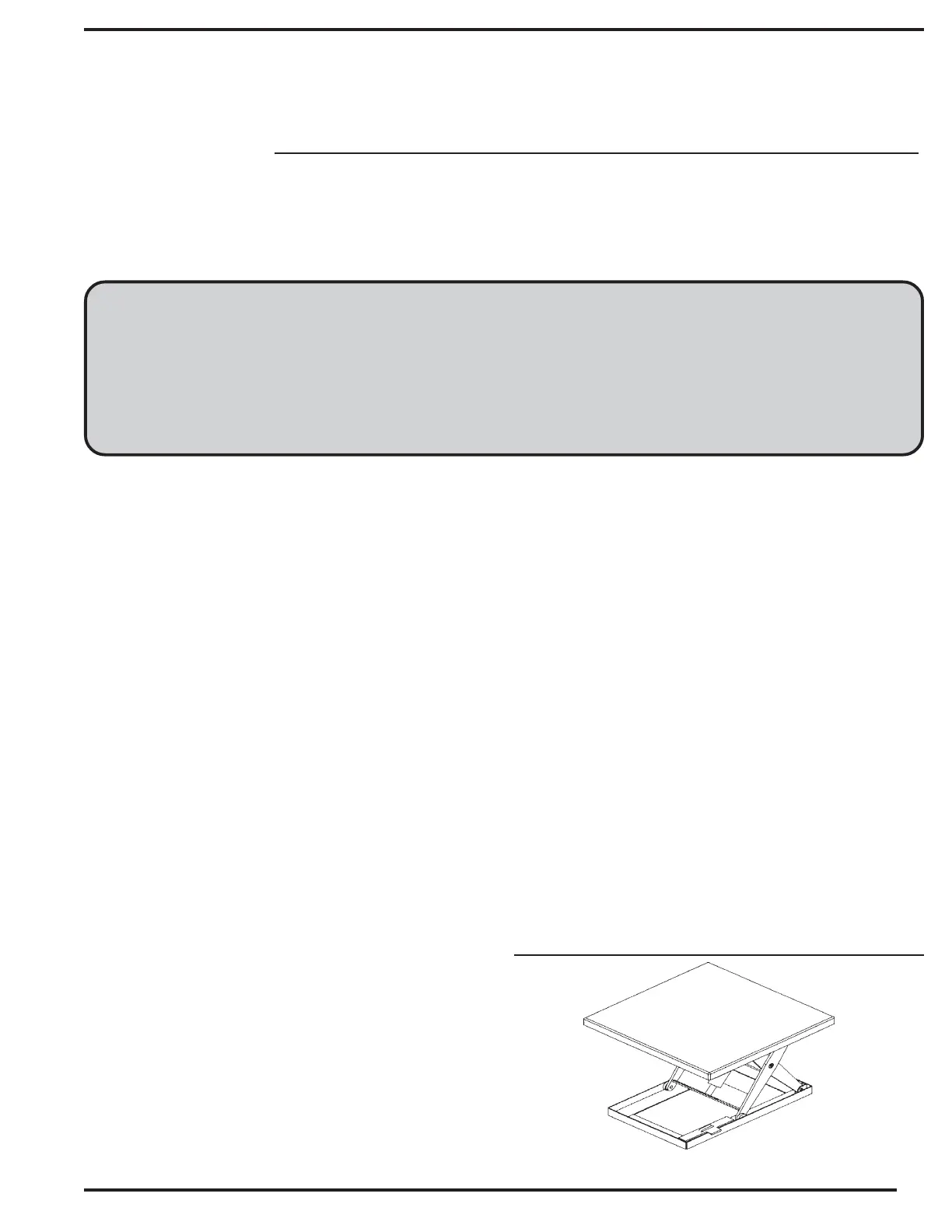

Side 1/12
1
VESTIL MANUFACTURING CORP.
2999 North Wayne St., Angola, IN 46703
Ph: 260-665-9521 Fax: 260-665-1339
SAFETY GUIDELINES:
Material handling is dangerous. To reduce the
likelihood of injury to person or property:
•Read this manual in its entirety before installing,
using and maintaining this table for the first time!
•The capacity of your table is based on a uniformly
distributed, centered load. DO NOT exceed the
capacity because permanent damage and/or personnel
injury could result. Contact the factory for side-loading
and end-loading capacities.
•DO NOT lower the unit onto the maintenance prop(s)
while the table is loaded.
•DO NOT go under the platform unless the
maintenance prop is in position.
•ONLY use AW-32 hydraulic oil (or equivalent), or
Dexron II transmission fluid in the tables reservoir. Do
not use brake fluids or jack oils.
•Check the settings and conditions of all safety
switches and stickers frequently.
•Never operate the table if it (or any component) is
in need of repair. Tag the unit "Out-of-service" and
notify maintenance personnel if, during operation, any
unusual noises, movements, or noticeable damage to
the understructure of controls, or if the table fails to
respond normally to control commands.
OPERATION
The table is equipped with a "dead man"
style push
button controler. This type of operation,
also called "push-to- run", allows the operator to
move the deck of the table as much or as little as
necessary.
The air motor of the power unit requires a
minimum air supply of 70 CFM at 70 PSI.
AHLT-SERIES
AIR HYDRAULIC SCISSOR TABLES
OWNER'S MANUAL
Revised 11-13
A company dedicated to solving ergonomic
and material handling problems since 1955.
AIR HYDRAULIC SCISSOR TABLE MODEL AHLT
Website: www.vestil.com
Ergonomic Solutions
Contents
Safety Precautions .......................................... 1
Operation .................................................. 1 & 4
Installation Instructions.................................... 2
Pneumatic/Hydaulic Circuit Diagrams.............. 3
Loading Instructions ........................................ 4
Pneumatic/Hydraulic Diagram ......................... 5
Exploded Parts Drawing ............................... 6
Parts List....................................................... 7
Troubleshooting Guide ........................... 8 & 9
Inspections & Maintenance ........................ 10
Label placement diagram............................ 11
Limited Warranty ......................................... 12
RECEIVING INSTRUCTIONS:
After delivery, IMMEDIATELY remove the packaging
from the product in a manner that preserves the
packaging and maintains the orientation of the product
in the packaging; then inspect the product closely to
determine whether it sustained damage during
transport. If damage is discovered during the inspection,
immediately record a complete description of the
damage on the bill of lading. If the product is
undamaged, discard the packaging.
NOTES:
1) Compliance with laws, regulations, codes, and non-
voluntary standards enforced in the location where the
product is used is exclusively the responsibility of the
owner/end-user.
2) VESTIL is not liable for any injury or property damage
that occurs as a consequence of failing to apply either:
a) the instructions in this manual; or b) information
provided on labels affixed to the product. Neither is
Vestil responsible for any consequential damages
sustained as a result of failing to exercise sound
judgment while assembling, installing, using or
maintaining this product
2
INSTALLATION INSTRUCTIONS
Review this Owner's Manual in its entirety before beginning the installation.
The following tools are required to install the table:
- A fork truck or hoisting means.
- Lag bolts, masonry drill, ma
sonry bit, wrench for lag bolt, grout, and steel shims.
1) Read each label applied to the table (see "Label placement diagram" on p. 11). Confirm that every
label shown in the diagram is present.
2) Move the table to the desired installation location. Support the base of the table while moving it.
3) Be sure maintenance prop is in place before getting under platform.
4) If mounting the power unit externally, blow out the connecting hydraulic line with compressed air.
5) Install the lift table on a level, even surface.
a) Anchor the table to the floor with appropriately-matched anchor bolts.
b) Measure the diameter of the bolt holes in the base of the frame, and install bolts that are at
least 4in. long to anchor the table to the floor.
c) Shim the table to level it. Grout under the base of the table to provide additional resistance
to warping and bending forces applied to the base between shims. Grout around the entire
perimeter of the base frame.
6) Connect main air supply to the control pedestal. If no control pedestal is supplied, see schematic
for air inlet. NOTE: Use only clean, dry air. Use of a filter/regulator is recommended.
7) Operate the table through a few RAISE-LOWER cycles (fully raise the deck and then lower
it completely according to the instructions on p. 3); then check the oil level. Add oil if necessary
[see Oil specifications on p. 10 (under "Yearly") of this manual].
INSTALLATION PROCEDURE
