Side 1/8
Rev. 6/12/2017 CANT, MANUAL
Copyright 2017 Vestil Manufacturing Corp. Page 1 of 8
CANT-Series Cantilever Carts
Instruction Manual
Receiving instructions:
After delivery, remove the packaging from the product. Inspect the product closely to determine whether
it sustained damage during transport. If damage is discovered, record a complete description of it on the
bill of lading. If the product is undamaged, discard the packaging.
NOTE:
The end-user is solely responsible for confirming that product design, installation, use, and maintenance
comply with laws, regulations, codes, and mandatory standards applied where the product is used.
Table of Contents
Specifications…………………………….………………………………………………………………………………………… 2
CANT-3048 Exploded Parts View and Bill of Materials…...…………………………………………………………………… 2
CANT-3060 Exploded Parts View and Bill of Materials………………………………………………………………………... 3
CANT-3648 Exploded Parts View and Bill of Materials………………………………………………………………………... 3
Signal words…………………………………………………………………………………………………………………………4
Hazards of improper use………………………………………………………………..………………………………………… 4
Assembling the cart……………………………………………………………………………………………………………..5 - 6
Using the rack………………………………………………………………………………………………………………………. 6
Inspections………………………………………………………………………………………………………………………….. 6
Labeling diagram………………………………………………………..…………………………………………………………. 7
Limited Warranty………..………………………………………………………………………………………………………….. 8
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 Toll Free (800) 348-0868
Fax: (260) 665-1339
www.vestilmfg.com e-mail:
HUinfo@vestil.comU
Rev. 6/12/2017 CANT, MANUAL
Copyright 2017 Vestil Manufacturing Corp. Page 2 of 8

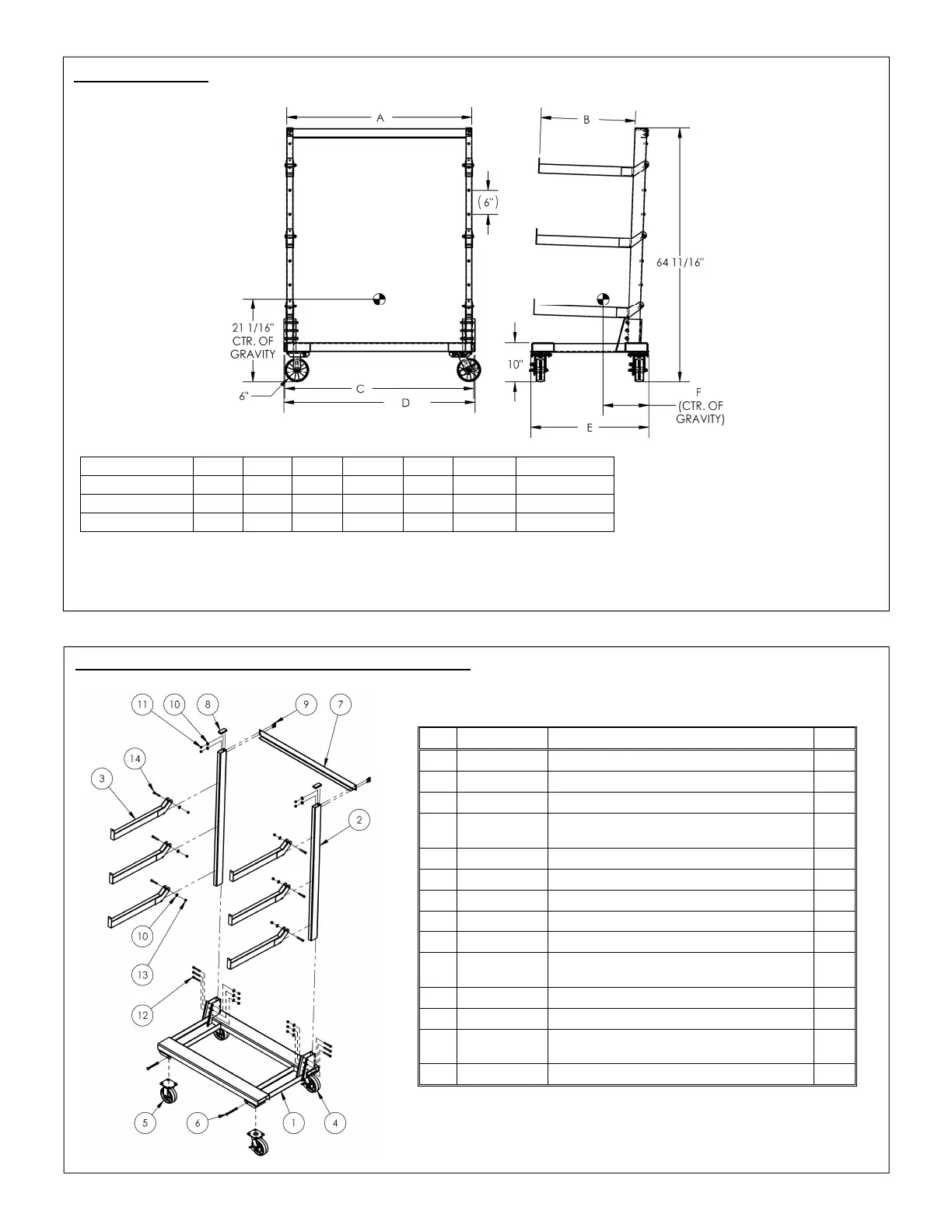

Specifications:
Dimensions, capacity, and net weight appear in the diagrams and tables below.
CANT-3048 Exploded Parts Diagram and Bill of Materials
Item
Part no. Description Qty.
1 16-514-241
Weldment, base 1
2 16-514-244
Weldment, upright post 2
3 16-514-245
Weldment, 24” arm 6
4 16-132-261
Caster, 6”x2” swivel with brake, glass
filled Nylon
2
5 16-132-263
Caster, 6”x2”, rigid, glass filled Nylon 2
6 99-612-001
Pin, caster receiver, bolt and nut 4
7 16-014-511
Frame, cross support 1
8 21-024-021
Cap, rectangular glide 2
9 11105 Hex bolt, gr. A, zinc plated,
3
/
8
”-16x1” 4
10 33008
Flat washer, low carbon, USS, zinc
plated,
3
/
8
”
16
11 36106 Hex nut, gr. A, zinc plated,
3
/
8
”-16 4
12 11115 Bolt, HHCS, #2 zinc plated,
3
/
8
”-16x3” 6
13 37024
Nylon insert lock nut, gr. 2, zinc finish,
3
/
8
”-16
12
14 11113 Hex bolt, gr. A, plain finish,
3
/
8
”-16x2
1
/
2
”
6
Model A B
C D E F Net weight
CANT-3048 47” 24” 48” 48
9
/
16
”
30” 11
9
/
16
” 177 lb.
CANT-3060 59” 24” 60” 60
9
/
16
”
30” 11
3
/
4
” 191 lb.
CANT-3648 47” 30” 48” 48
9
/
16
”
36” 14” 190 lb.
Arm height adjustability: 6” increments (spacing between bearing pins is 6”)
Arm inclination: 7° above horizontal when bolted through upper holes
2° above horizontal when bolted through lower holes
Overall capacity: 2,000 lb.
Capacity per arm: 400 lb.
