Table of Contents Rev. 10/27/2021 CJIB MANUAL
Table of Contents Copyright 2021 Vestil Manufacturing Corp. Page 1 of 11
CJIB-series Steel Mini-Cantilever Cranes
Receiving Instructions
After delivery, remove the packaging from the product. Inspect the product closely to determine
whether it sustained damage during transport. If damage is discovered, record a complete description of it
on the bill of lading. If the product is undamaged, discard the packaging.
NOTE:
The end-user is solely responsible for confirming that product design, use, and maintenance comply
with laws, regulations, codes, and mandatory standards applied where the product is used.
Technical Service & Replacement Parts
For answers to questions not addressed in these instructions and to order replacement parts, labels, and
accessories, call our Technical Service and Parts Department at (260) 665-7586. The Department can also
be contacted online at https://www.vestil.com/page-parts-request.php
.
Electronic Copies of Instruction Manuals
Additional copies of this instruction manual may be downloaded from
https://www.vestil.com/page-
manuals.php
TABLE OF CONTENTS
PAGE
Specifications…………...……………………………………….……………………………………………….…….….
2
Signal Words……….………………................................................................................................................
3
Safety Instructions…..…………………………………………………………………………….……...…………….…
3
Exploded View: CJIB-3 & CJIB-6……………………………………………………………………………………….
4
Exploded View: CJIB-10 & CJIB-20………………………………………………………………..…………………..
5
Assembly Instructions……………………………………………………………………………..……………………...
6 - 7
Using the Crane……………………………………………………………………………………………………………
8
Loading the Crane.………………………………………………………………………………………………….……
8
Record of Satisfactory Condition………………………………………………………………………………………
8
National Standards……………………………………………………………………………………………………….
9
Inspections & Maintenance..……………………………………………………………………………………………
9
Labeling Diagram…………………………………………………………………………………………………………
10
Limited Warranty………………………………………………………………………………………………………...…
11
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
Web: www.vestilmfg.com e-mail: info@vestil.com
Table of Contents Rev. 10/27/2021 CJIB MANUAL
Table of Contents Copyright 2021 Vestil Manufacturing Corp. Page 2 of 11
SPECIFICATIONS
Specifications for all CJIB-series cranes, including dimensions, net weight, and capacity information,
are subject to change from time to time. To acquire the most up-to-date specifications for your unit,
download the appropriate specifications document from Vestil’s website as soon as you receive your
crane. To access the specifications document, navigate to this webpage:
https://www.vestil.com/product.php?FID=527
. Click the “Product Specifications Table” drop-down menu
bar partway down the page. Scroll down to the entry for the model you purchased and click the button
in the column titled “PDF’s” that looks like a pencil inside a box. A PDF file will open. This file is the

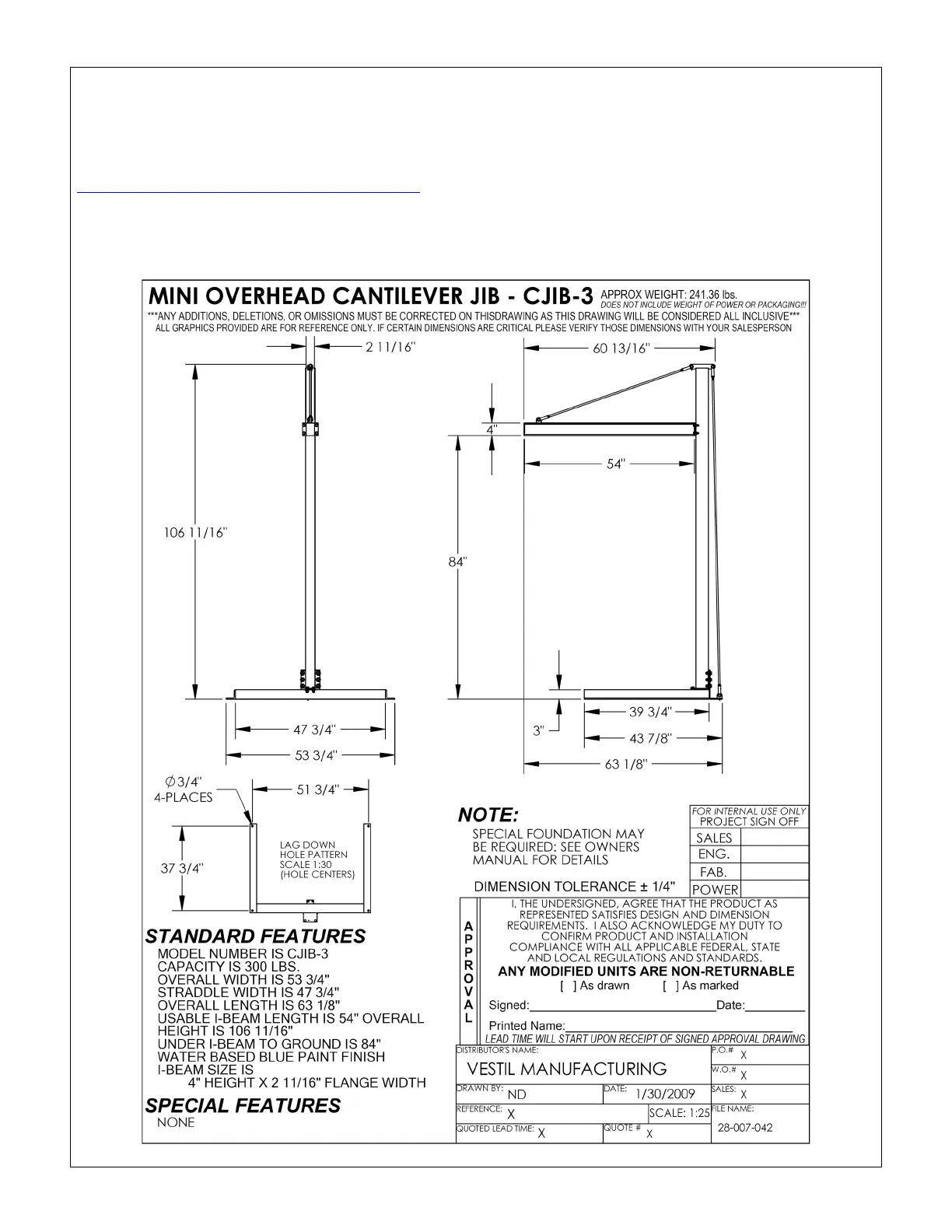

specifications document. Print a copy of the document and keep it with your copy of this manual. The
following is an exemplar specifications document for model CJIB-3
E
