Side 1/5

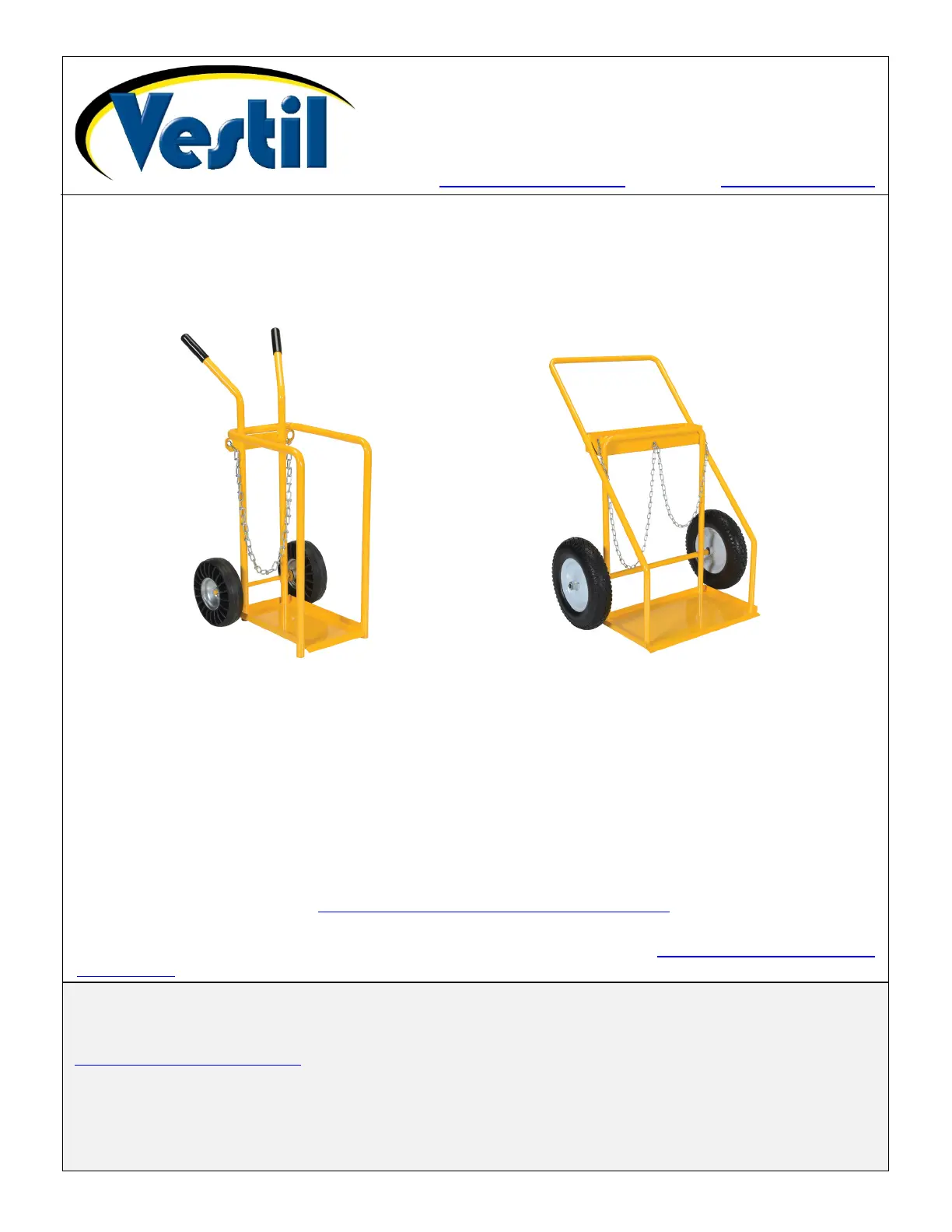

Rev. 4/20/2021 CYHT-1, CYHT-2, MANUAL
Copyright 2021 Vestil Manufacturing Corp. Page 1 of 5
CYHT-1 & CYHT-2
Receiving Instructions
After delivery, remove the packaging from the product. Inspect the product closely to determine
whether it sustained damage during transport. If damage is discovered, record a complete description of
it on the bill of lading. If the product is undamaged, discard the packaging.
NOTE: The end-user is solely responsible for confirming that product design, use, and maintenance
comply with laws, regulations, codes, and mandatory standards applied where the product is used.
Technical Service & Replacement Parts
For answers to questions not addressed in these instructions and to order replacement parts, labels,
and accessories, call our Technical Service and Parts Department at (260) 665-7586. The Department
can also be contacted online at https://www.vestil.com/page-parts-request.php
.
Electronic Copies of Instruction Manuals
Additional copies of this instruction manual may be downloaded from
https://www.vestil.com/page-
manuals.php.
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
Web: www.vestilmfg.com e-mail: info@vestil.com
Table of Contents
Page
Signal Words……………………………………………….……………………………………………....
2
Safety Instructions.……………………………………………………..………………………….…………
2
Loading Cylinders on the Cart………………………..…………………………………………………..
2
Exploded Views and Bills of Materials………..…………………………………………………………….
3
Record of Satisfactory Condition……………………………………………………………………………
4
Inspections & Maintenance……………………………………………………………………………….....
4
Labeling Diagram.…………...………………………………………..……………....................................
4
Limited Warranty…………………………………………….………………………………………………..
5

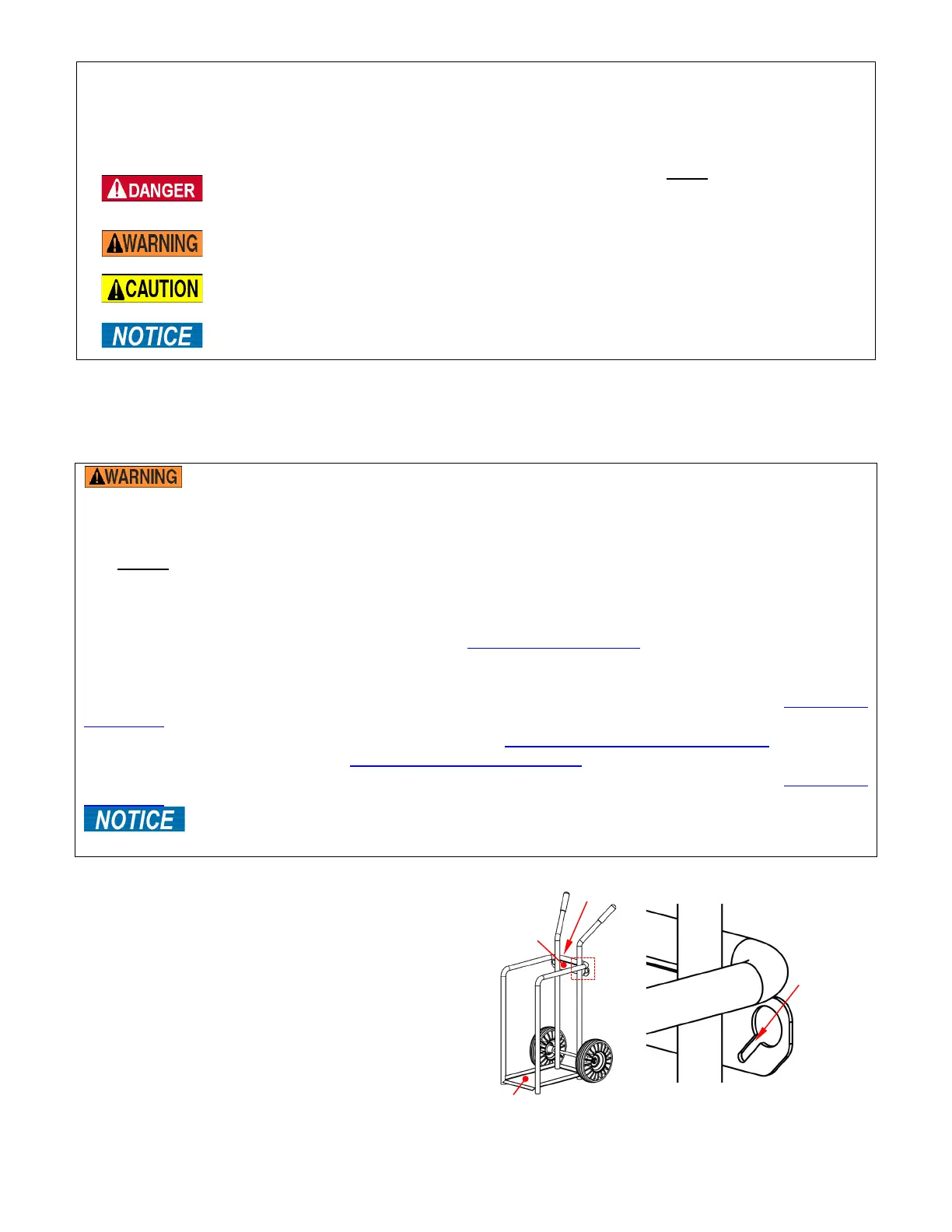

Rev. 4/20/2021 CYHT-1, CYHT-2, MANUAL
Copyright 2021 Vestil Manufacturing Corp. Page 2 of 5
SIGNAL WORDS
This manual uses SIGNAL WORDS to indicate the likelihood that a particular action will cause
personal injuries or
property damage. Signal words also specify the level of seriousness of injury if
the product is misused in the ways
described. The following signal words are used in this manual.
Identifies a hazardous situation which, if not avoided, WILL result in DEATH
or SERIOUS INJURY. Use of this signal word is limited to the most extreme
situations.
Identifies a hazardous situation which, if not avoided, COULD result in
DEATH or SERIOUS INJURY.
Indicates a hazardous situation which, if not avoided, COULD result in MINOR
or MODERATE injury.
Identifies practices likely to result in product/property damage, such as operation
that might damage the product.
SAFETY INSTRUCTIONS
Vestil strives to identify all foreseeable hazards associated with the use of its products. Material
handling is dangerous and no manual can address every conceivable risk. Ultimately, the most
effective way to prevent injury is to apply sound judgment whenever using this device.
Improper or careless use of this product could result in death or serious personal injuries.
Read and understand the entire manual before assembling, installing, using or servicing the product.
Read the manual to refresh your understanding of proper use and maintenance procedures.
DO NOT attempt to resolve any problem(s) with the product unless you are both authorized to do so
and certain that it will be safe to use afterwards.
DO use this product in accordance with the instructions in this manual and consistent with handling
cylinders of compressed gasses
DO NOT modify the product in any way UNLESS you first obtain written approval from Vestil.
Unapproved modifications automatically void the LIMITED WARRANTY on p. 5 and might make the
product unsafe to use.
DO NOT exceed the capacity: a) CYHT-1 = 150 pounds (68.1kg); b) CYHT-2 = 250 pounds
(113.6kg). Capacity information is provided in product labeling. See Label 1153 in the LABELING
DIAGRAM on p. 4.
Inspect the product according to the instructions in INSPECTIONS & MAINTENANCE on p. 4. DO
NOT use the product unless it is in SATISFACTORY CONDITION on p. 4.
DO NOT use this device UNLESS all product labels are readable and undamaged. See LABELING
DIAGRAM.
Proper use, maintenance, and storage are essential for this product to function properly.
o Keep the product clean & dry. Lubricate pivot points.
LOADING CYLINDERS ON THE CART
Load the cylinder cart by placing 1 cylinder
(CYHT-1) or 2 cylinders (CYHT-2) on the base
plate. Move the cylinder(s) against the rear frame
element. Wrap the chain around the cylinder(s).
Feed the ends of the chain through the holes in
the side of the chain plate (CYHT-1) or tool tray
(CYHT-2). Pull the chain taut; then press the
chain links nearest the holes into the chain slots
to lock the chain in place.
Press
link into
slot
Chain
plate
Base plate
Rear frame
element
Rev. 4/20/2021 CYHT-1, CYHT-2, MANUAL
Copyright 2021 Vestil Manufacturing Corp. Page 3 of 5

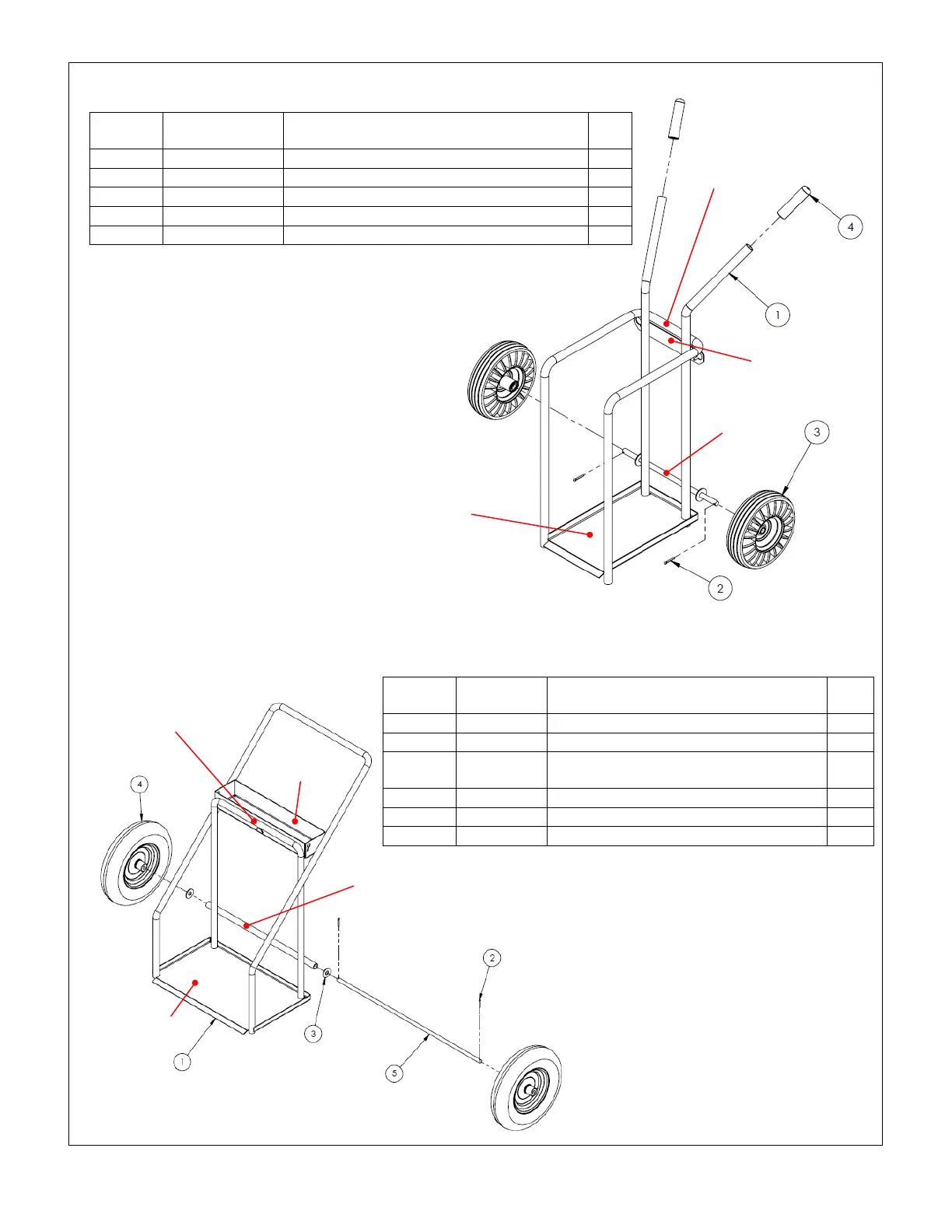

EXPLODED VIEW AND BILL OF MATERIALS CYHT-1 (16-006-318)
EXPLODED VIEW AND BILL OF MATERIALS CYHT-2 (16-006-319)
ITEM
NO.
PART NO. DESCRIPTION QTY.
1
16-514-199
FRAME WELDMENT
1
2
65125
COTTER PIN Z PLATED, 3/16” X 1 ½”
2
3
16-132-265
10” SHOCK ABSORBING WHEEL
2
4
13-025-037
BLACK HANDLE, 1” ID
2
5
16-145-020
CHAIN #2/0 TWIN LOOP, 45”LG
1
*16-145-020 NOT SHOWN
ITEM
NO.
PART NO. DESCRIPTION QTY.
1
16-514-200
FRAME WELDMENT
1
2
65125
COTTER PIN Z PLATED, 3/16” X 1 ½”
2
3
33016
FLAT WASHER, LOW CARBON, USS,
ZINC PLATED, 5/8”
2
4
16-132-246
16” X 4” FOAM FILLED WHEEL
2
5
16-112-044
AXLE, PIN
1
*6
16-145-021
CHAIN #2/0 TWIN LOOP, 90” LG
1
*16-145-021 NOT SHOWN
Rear frame
element
Rear frame
element
Base plate
Base plate
Tool
tray
Chain plate
Axle pin channel
Axle pin
channel
