FL-4000 and FL-4000-N Front Loader Buckets
Receiving Instructions
After delivery, remove the packaging from the product. Inspect the product closely to determine
whether it sustained damage during transport. If damage is discovered, record a complete description of
it on the bill of lading. If the product is undamaged, discard the packaging.
NOTE: The end-user is solely responsible for confirming that product design, use, and maintenance
comply with laws, regulations, codes, and mandatory standards applied where the product is used.
Technical Service & Replacement Parts
For answers to questions not addressed in these instructions and to order replacement parts, labels,
and accessories, call our Technical Service and Parts Department at (260) 665-7586. The Department
can also be contacted online at https://www.vestil.com/page-parts-request.php
.
Electronic Copies of Instruction Manuals
Additional copies of this instruction manual may be downloaded from
https://www.vestil.com/page-
manuals.php.
Table of Contents
FL-4000 Specifications, Exploded View, Bill of Materials...…………………………………………………...…. 2
FL-4000-N Specifications, Exploded View, Bill of Materials……..………………………………………………. 3
Signal Words………………………………………………………………………………………………………….. 4
Safety Instructions……………………………………………………………………………………………………. 4
National Standards…………………………………………………………………………………………………… 5
Using the Loader……………………………………………………………………………………………………… 5
Record of Satisfactory Condition……………………………………………………………………………………. 6
Inspections and Maintenance……………………………………………………………………………………….. 6
Labeling Diagram…………………………………………………………………………………………………….. 7
Limited Warranty……………………………………………………………………………………………………… 8
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
Website: www.vestilmfg.com e-mail: info@vestil.com
Table of Contents Rev. 8/21/2020 FL-4000 MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Corp. Page 2 of 8
FL-4000 SPECIFICATIONS (37-007-020)
Item Part no. Description Qty.
1 37-514-020 WELDMENT, FRAME, BASE 1
2 37-545-020 WELDMENT, CHUTE 1
3 09-145-018 CHAIN, 5/16" x 56" LG 1
4 29-048-061 BUMPER, RUBBER 1
5 37-146-005 SPRING,TORSION,HOPPER RELEASE 1
6 37-537-021
WELDMENT, LOCK, RELEASE LEVER
ASSEMBLY
1
7 11061
HHCS #2 Z PLATED, Ø 5/16 - 18 x 2"
LG
2
8 37021
NYLON INSERT LOCK NUT, GRADE 2,
ZINC FINISH, 5/16"-18
2
9 65127 COTTER PIN Z PLATED, 3/16 x 2 3
10 99-145-053 5/16" QUICK LINK 1
11 33006
FLAT WASHER,ZINC PLATED,USS,
Ø5/16"
2
12 37-112-045 PIN, HINGE AXLE 2
13 99-145-084 LAP LINK, 5/16" X 1 1/2" 1
Fork tube
Pin
receiver

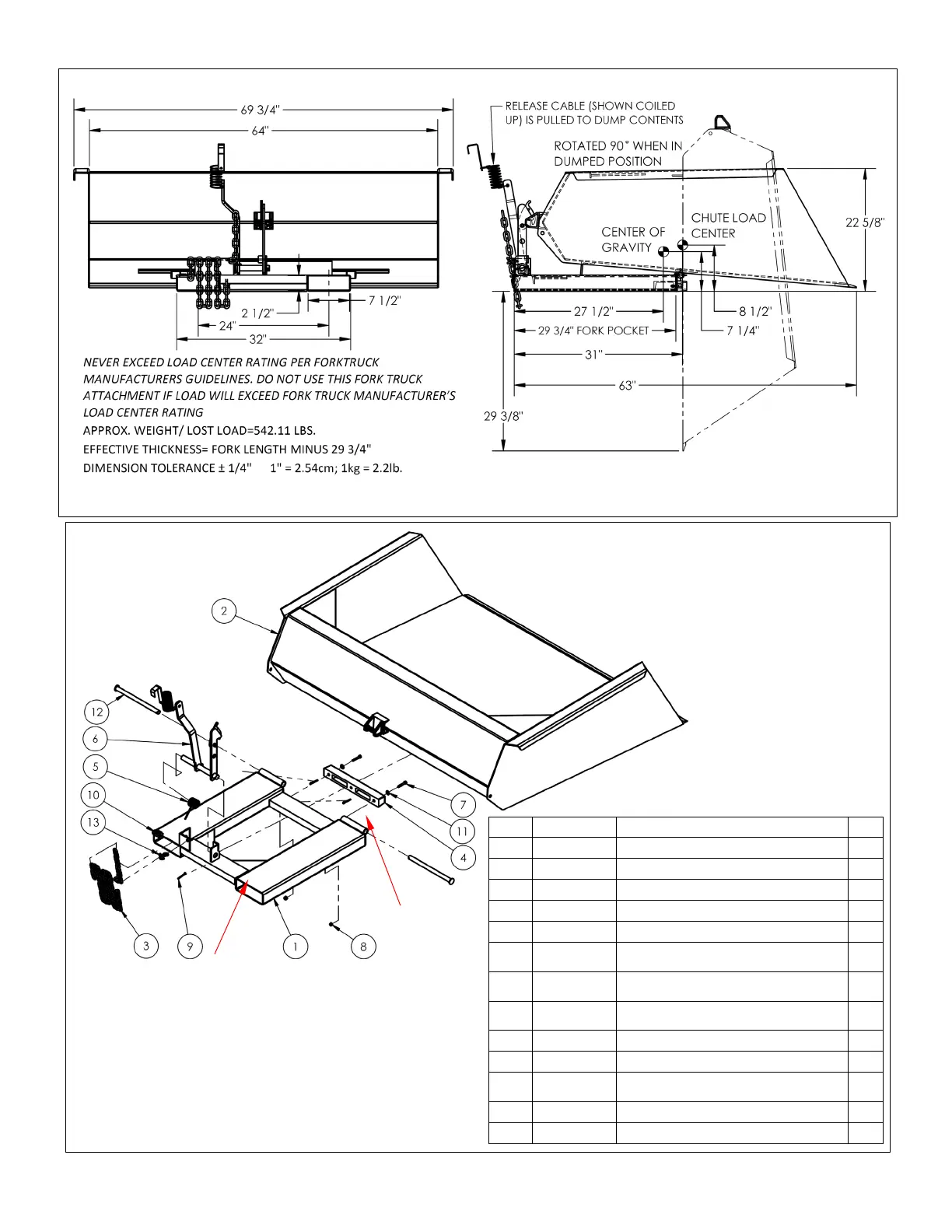

FL-4000 Exploded View and Bill of Materials
(37-006-020)
WEIGHT CAPACITY = 4,000 LB. (1,818.2KG) OVERALL DIMENSIONS = 69
3
/
4
” (W) X 63” (L) X 22
5
/
8
” (H)
VOLUME CAPACITY = 1
1
/
3
YD
3
(~1M
3
) FORK TUBES = 7
1
/
2
”(W) X 2
1
/
2
”(H) ON 24” CENTERS AND ARE 29
3
/
4
” LONG
