Table of Contents 2/2/21 FM, MANUAL.DOCX

Vestil Manufacturing Corp.

A company dedicated to solving loading dock and material handling

problems since 1955.

2999 North Wayne Street, P.O. Box 507, Angola, IN 46703

Telephone: (260) 665-7586 -or- Toll Free: (800) 348-0868

Fax: (260) 665-1339

http://www.vestil.com/ email: info@vestil.com

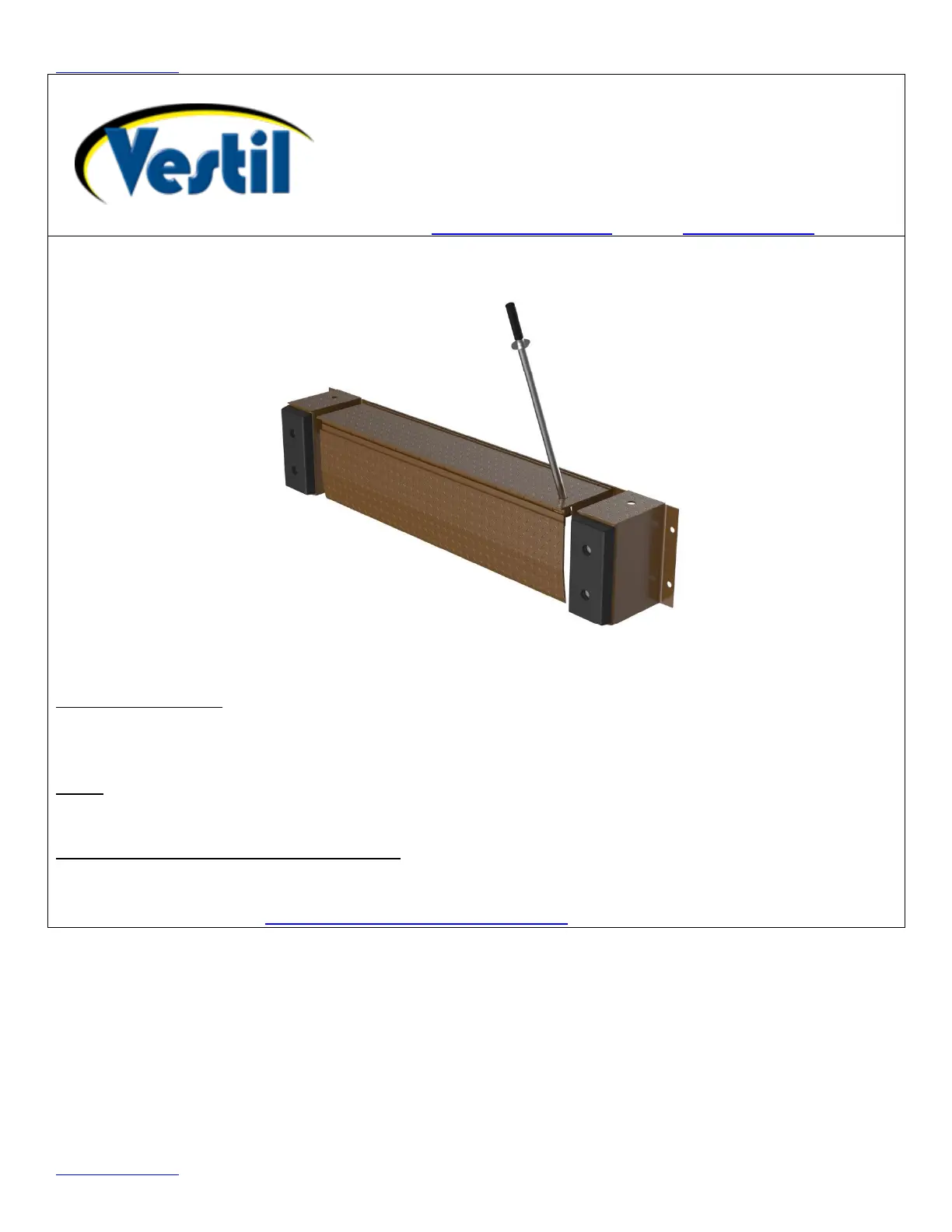

Mechanical Edge-O-Dock Levelers

FM-0648, FM-2066, FM-2072, FM-2078, FM-2566, FM-2572, FM-3066, FM-3072

Model FM-2066

Receiving instructions:

After delivery, remove the packaging from the product. Inspect the product to determine whether it

sustained damage during transport. If damage is discovered, record a complete description of it on the bill of

lading and file a claim with the carrier immediately! If the product is undamaged, discard the packaging.

NOTE:

The end user is solely responsible for confirming that product design, use, and maintenance comply with

laws, regulations, codes, and mandatory standards applied where the product is used.

Replacement Parts and Technical Assistance:

If you have questions that are not addressed in these instructions, or to order replacement parts, labels,

and accessories, call (260) 665-7586 and ask for the Service and Parts Department. You can also reach

Service and Parts online at http://www.vestilmfg.com/parts_info.htm.

Table of Contents 2/2/21 FM, MANUAL.DOCX

Table of Contents

Signal words … … … … … … … … … … … … 2

Hazards … … … … … … … … … … … … 2

Model number and capacity … … … … … … … … … … 3

Major components and orientation … … … … … … … … … 4

Exploded parts diagram and Bill of Material … … … … … … … … 4

Installation instructions … … … … … … … … … … 5

Record of satisfactory condition … … … … … … … … … 15

Operation instructions … … … … … … … … … … … 15

Inspection and maintenance … … … … … … … … … … 17

Adjusting spring tension … … … … … … … … … … 17

Replacement parts … … … … … … … … … … … 18

Labeling diagram … … … … … … … … … … … 19

Limited warranty … … … … … … … … … … … 20

SIGNAL WORDS

This manual uses SIGNAL WORDS to direct the reader’s attention to important safety-related messages.

These messages describe uses of the product that could result in personal injury or property damage. Each

signal word corresponds to a specific hazard level. The following are definitions of signal words that might

appear in this manual.

Identifies a hazardous situation which, if not avoided, WILL result in DEATH or SERIOUS

INJURY. Use of this signal word is limited to the most extreme situations.

Identifies a hazardous situation which, if not avoided, COULD result in DEATH or SERIOUS

INJURY.

Indicates a hazardous situation which, if not avoided, COULD result in MINOR or

MODERATE injury.

Identifies practices likely to result in product/property damage, such as operation that might

damage the product.

HAZARDS

Vestil Manufacturing strives to identify all foreseeable hazards associated with the use of its products.

However, material handling is dangerous and no manual can address every risk. Ultimately, the most effective

way to prevent injury is for persons who use this dock leveler to apply sound judgment whenever using this

device.

Improper or careless operation of this device might result in serious personal injuries.

 Read and understand this entire manual before installing, assembling, using or servicing this

dock leveler. Keep this manual in a location known to persons who use the dock leveler. Read the

manual whenever necessary to refresh your understanding of proper use, inspection, and maintenance

procedures.

 The Edge-O-Dock Leveler presents falling, pinch point, and impact hazards to the user and bystanders.

ALWAYS follow these instructions to avoid injury.

 DO weld the dock leveler securely to the dock face before use. DO anchor the dock leveler to the dock

if necessary. See the Installation Instructions starting on page 5.

 DO NOT install the dock leveler in a dock that is not flat and level. It is acceptable for the driveway

surface below the dock to be inclined towards or away from the dock edge.

 DO inspect the dock leveler for damage or defects prior to use every day. DO NOT use a dock leveler

that is damaged or is not working properly.

Table of Contents 2/2/21 FM, MANUAL.DOCX

 DO NOT use a dock leveler that has not been welded continuously across its top edge to the dock face.

DO NOT use a dock leveler if any welds are cracked.

 DO NOT use a dock leveler that rocks or shifts when a load is placed on it. Remove it from service until

it can be repaired.

 DO wear appropriate PPE. At a minimum, use footwear compliant with ASTM F2413 (formerly ANSI

Z41-1999) and eye guards compliant with ANSI Z87.1-2010.

 DO NOT use the dock leveler if you tire quickly or easily, or if you have experienced fainting spells. DO

NOT use the dock leveler if you are under the influence of alcohol, medication, or other substances that

affect your balance or coordination. Only use the dock leveler if you are in good physical health.

 DO NOT use a handle other than the factory-supplied handle to extend the dock leveler.

 DO maintain a firm footing when operating the dock leveler.

 DO NOT attempt to extend the dock leveler if no trailer is present in the dock, as the operator can lose

his balance.

 DO NOT extend the dock leveler while people in the truck bay are within reach of the unit.

 DO NOT store items on the dock leveler. DO NOT attempt to use the dock leveler if objects are on top

of it. ALWAYS check the dock leveler for foreign objects before use. Only use this item as intended.

 DO NOT exceed the load limit for the dock leveler. The load limit is printed on the nameplate label,

found on the right-hand side of the deck weldment.

 DO NOT force the lip plate to extend using your hands or other mechanical means. Remove it from

service until it can be repaired.

 DO inspect the dock leveler as described in Inspections & Maintenance on page 17. DO NOT use the

dock leveler unless it is in normal condition. ONLY use manufacturer-approved replacement parts if

repairs are necessary.

 DO NOT use this product UNLESS every label shown in the labeling diagram on page 19 is in place,

undamaged, and easily readable.

 DO NOT modify the dock leveler in any way without express, written approval from Vestil

Manufacturing. Unapproved modifications automatically void the Limited Warranty on page 20 and can

make the product unsafe to use.

MODEL NUMBER AND CAPACITIES

The model number, serial number and capacities are printed on the nameplate label, located on the left

side panel of the deck weldment (left and right correspond to those of the trailer). Include the model and serial

numbers in any correspondence with your dealer or the factory.

The load capacity rating as printed on the nameplate of your unit designates its net capacity. This capacity

must never be exceeded, as permanent damage or personal injury may result.
