Side 1/14
Table of Contents Rev. 9/26/2023 H-Hoppers MANUAL
Table of Contents Copyright 2023 Vestil Manufacturing Company Page 1 of 14
H-SERIES HOPPERS
Receiving Instructions
After delivery, remove the packaging from the product. Inspect the product closely to
determine whether it sustained damage during transport. If damage is discovered, record a
complete description of it on the bill of lading. If the product is undamaged, discard the
packaging.
NOTE: The end-user is solely responsible for confirming that product design, use, and maintenance
comply with laws, regulations, codes, and mandatory standards applied where the product is
used.
Technical Service & Replacement Parts
For answers to questions not addressed in these instructions and to order replacement parts,
labels, and accessories, call our Technical Service and Parts Department at (260) 665-7586. The
department can also be contacted online at https://www.vestil.com/page-parts-request.php.
Electronic Copies of Instruction Manuals
Additional copies of this manual may be downloaded from https://www.vestil.com/page-
manuals.php.
Table of Contents
Page
Table of Figures
Page
Specifications……………….…... 2
2
Replacement Release Handle with Cable Kit………….
2
Signal Words….………..……….…..
3
Exploded view & bill of materials: H-25 series hoppers..
4
Safety Instructions….…....………...
3
Exploded view & bill of materials: H-33 series hoppers..
5
National Standards…………......…
11
Exploded view & bill of materials: H-50 series hoppers..
6
Loading the Chute…..….….……..
11
Exploded view & bill of materials: H-75 series hoppers..
7
Using the Hopper…………...……..
11
Exploded view & bill of materials: H-100 series hoppers
8
Stacking Hoppers……...……….....
12
Exploded view & bill of materials: H-150 series hoppers
9
Record of Satisfactory Condition
12
Exploded view & bill of materials: H-200-HD………….....
10
Inspections & Maintenance…….. =
12
Labeling Diagram……………….
13
Limited Warranty…………………..
14
Vestil Manufacturing Company
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
www.vestil.com info@vestil.com
Table of Contents Rev. 9/26/2023 H-Hoppers MANUAL
Table of Contents Copyright 2023 Vestil Manufacturing Company Page 2 of 14
NOTE: If your model is not included on the webpage or you cannot access the document, contact the
Technical Service Dept. Contact information is provided on the front page of this manual.

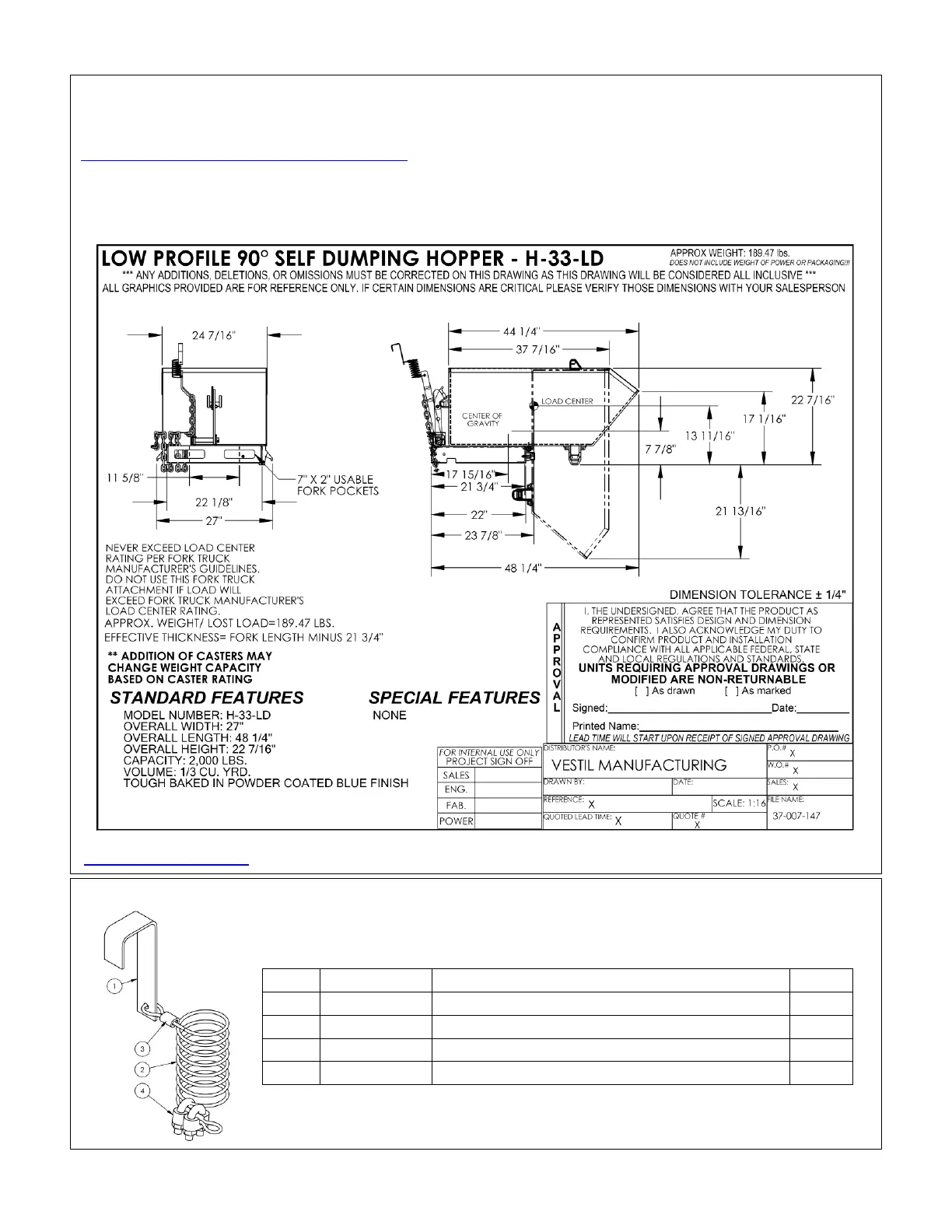

REPLACEMENT RELEASE HANDLE WITH CABLE KIT (37-154-044)
SPECIFICATIONS
Documents that provide specifications for H-series hoppers are available online to anyone who visits Vestil’s
website. Specifications include dimensions, net weight, and capacity information. Navigate to
https://www.vestil.com/product.php?FID=445. Scroll to the Product Specifications Table portion of the page.
Find the entry for the hopper you purchased and click the button in the “PDF” column that looks like a pencil
inside a blue-bordered box. A PDF file will open. This file is the specifications document. Print a copy of the
document and keep it with your copy of this manual.
The following is an exemplar specifications document for model H-33-LD.
Item
Part no.
Description
Qty.
1
37-025-002
HANDLE, CHUTE RELEASE
1
2
37-145-001
SPECIALTY HARDWARE CABLE
1
3
43383
SWAGE SLEEVE Ø1/8" X 5/8" LONG
1
4
43403
1/4" WIRE CLAMP
2
Table of Contents Rev. 9/26/2023 H-Hoppers MANUAL
Table of Contents Copyright 2023 Vestil Manufacturing Company Page 3 of 14
SIGNAL WORDS
SIGNAL WORDS in this manual draw the reader’s attention to important safety-related messages.
SAFETY INSTRUCTIONS
Vestil strives to identify foreseeable hazards associated with its products. However, material handling is
dangerous and no manual can address every conceivable risk. The most effective way to prevent injury is to
apply sound judgment whenever using this device. Acquire a copy of the latest version of ANSI B56.1 (“B56.1”
or the “Standard”). The Standard is freely downloadable on www.ITSDF.org. Apply all portions of Part II “For
the User” that concern the use of attachments and removable attachments. The following recommendations
are intended to complement the provisions of B56.1.
WARNING
Risk of serious personal injuries or death! Always apply the following safety instructions.
Before this product may be used, U.S. Occupational Safety and Health Administration rule 1910.178(a)(4)
and (a)(5) require that the owner/user: 1) Obtain written approval from the manufacturer(s) of all forklifts [or
from a professional engineer] that will be used with the hopper; 2) Change capacity, operation, &
maintenance instruction plates, tags, or decals accordingly; AND 3) Mark the forklift truck to identify the
beam and show the approximate weight of the truck and beam combination at maximum elevation with
load laterally centered. Requirements are published at
https://www.osha.gov/pls/oshaweb/owadisp.show_document?p_table=STANDARDS&p_id=9828
DO NOT use this hopper with rough terrain lift trucks or telehandlers (boom trucks). ONLY use this hopper
with high lift fork trucks utilizing a vertical mast and carriage. DO NOT mount the hopper on stackers or
manually propelled lift trucks.
DO NOT operate the truck carrying this hopper on unimproved surfaces. Only operate on concrete or
asphalt surfaces.
Read & understand this entire manual before using or servicing the hopper.
Inspect the hopper as directed in the INSPECTIONS & MAINTENANCE section on p. 12. DO NOT use it unless it
is in SATISFACTORY CONDITION. See RECORD OF SATISFACTORY CONDITION on p. 12.
DO NOT use the hopper if the carriage chain is damaged or missing. DO NOT elevate the hopper with a
fork truck until it is securely connected to the carriage of the truck with the carriage chain.
DO NOT fill the hopper beyond its maximum rated load. See SPECIFICATIONS tables on page 2.
NO ONE should travel under the hopper at any time while it is elevated.
NEVER wrap the release cable around your hand, fingers, or any other part of your body!
Hoppers with lifting lugs can be lifted with overhead hoists and cranes. DO NOT lift a hopper unless the
chute is securely latched to the frame.
DO NOT allow people to ride on or in the hopper.
DO NOT use the hopper if any label is unreadable or missing. Apply replacement labels before returning
the hopper to service. See LABELING DIAGRAM on p. 13.
ALWAYS apply proper lift truck operation techniques learned during your training program. Before raising
the hopper from the floor, tilt the (forklift) mast toward the cab of the truck to ensure that the hopper will not
slide off of the forks.
DO NOT modify the hopper without first obtaining written approval from Vestil! Unapproved modifications
might make the hopper unsafe to use and automatically void the LIMITED WARRANTY on p. 14.
DO NOT dump the hopper UNLESS everyone in the vicinity is a safe distance away from the dumping site.
DO NOT dump the hopper unless the forklift is on an even, level surface.
DO NOT exceed the load ratings or fill the hopper above the side walls. Injury to personnel or permanent
damage to the equipment could result from overloading.
NOTE: This self-dumping hopper helps to prevent non-compliance with US Federal OSHA rule 1910.178(m)(5).
Subpart 1910.178(m)(5)(iii) requires operators of powered trucks to fully lower the “load engaging means”
[forks], neutralize truck controls, and set brakes whenever they dismount a lift truck &remain within 25ft of it.
Operators can remain at the controls of their trucks throughout the dumping process while using this hopper.
DANGER
Identifies a hazardous situation which, if not avoided, WILL result in DEATH or
SERIOUS INJURY. Use of this signal word is limited to the most extreme situations.
WARNING
Identifies a hazardous situation which, if not avoided, COULD result in DEATH or
SERIOUS INJURY.
CAUTION
Indicates a hazardous situation which, if not avoided, COULD result in MINOR or
MODERATE injury.
NOTICE
Identifies practices likely to result in product/property damage, such as operation
that might damage the product.
!
!
!
