Table of Contents Rev. 0519 HDP MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 1 of 7
HDP-Series Pallet Lifters
Instruction Manual
Receiving instructions
After delivery, remove the packaging from the product. Inspect the product closely to determine
whether it sustained damage during transport. If damage is discovered, record a complete
description of it on the bill of lading. If the product is undamaged, discard the packaging.
Replacement Parts and Technical Service
For answers to questions not addressed in these instructions and to order replacement parts,
labels, and accessories, call our Technical Service and Parts Department at (260) 665-7586. The
department can also be contacted online at http://www.vestilmfg.com/parts_info.htm
.
NOTE: The end-user is solely responsible for confirming that product design, use, and maintenance
comply with laws, regulations, codes, and mandatory standards applied where the product is used.
Table of Contents
Specifications…………………………………………..……………………………………………………….2 - 3
Signal Words……………………………………………………...………………………..………….………….. 3
Hazards……………………………………………………………………………..………………....…………... 4
Features……………………………………………………………………………………………………………. 4
Using the Lifter………………………………………..……….…………………………................................... 5
Record of Satisfactory Condition………………………………………………………………………………… 5
Inspections and Maintenance……………………………………………………………………..…………..5 - 6
Labeling Diagram………………………………………………………………………………………………….. 6
Limited Warranty…………...………………………….………………………………………………………….. 7
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
Web: www.vestilmfg.com e-mail: info@vestil.com
Table of Contents Rev. 0519 HDP MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 2 of 7
SPECIFICATIONS

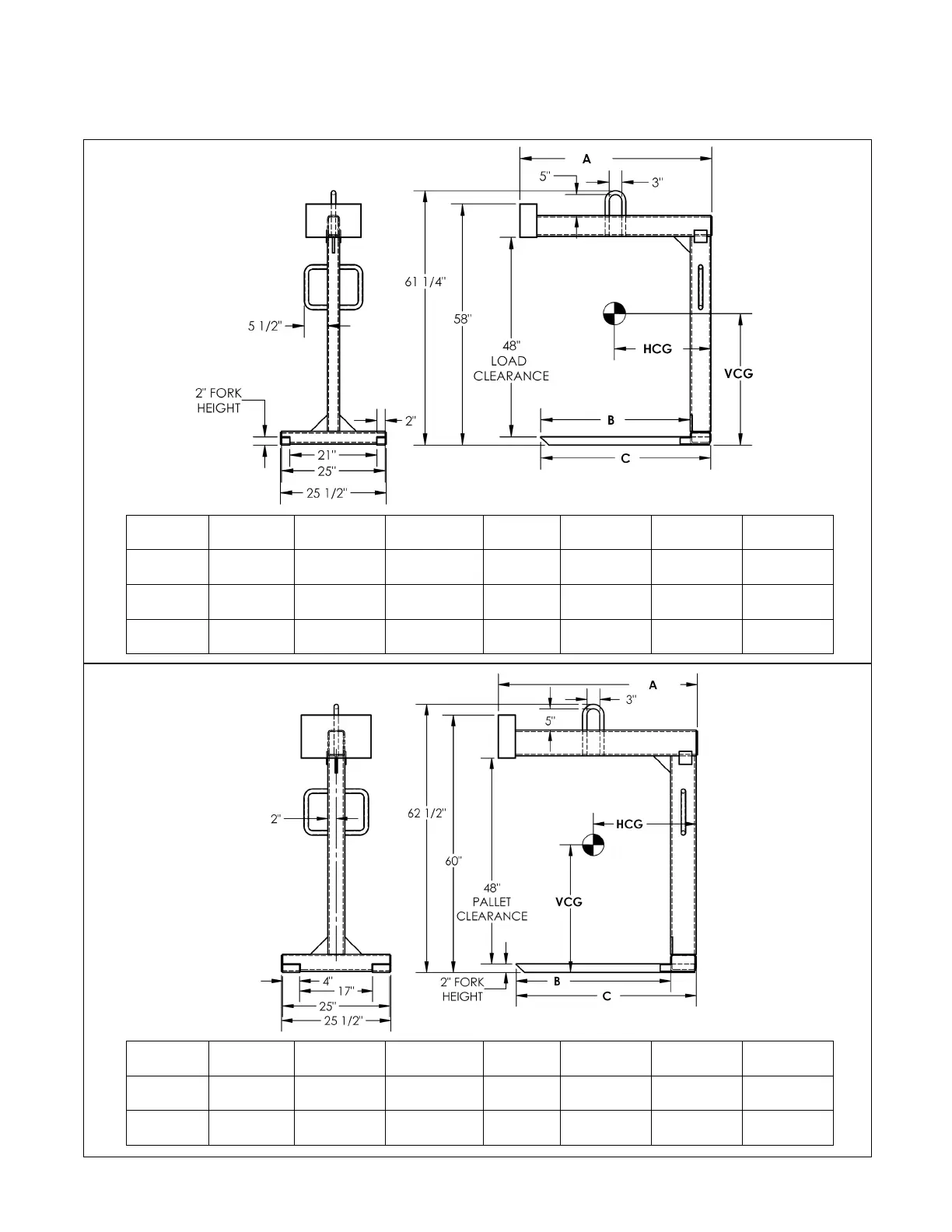

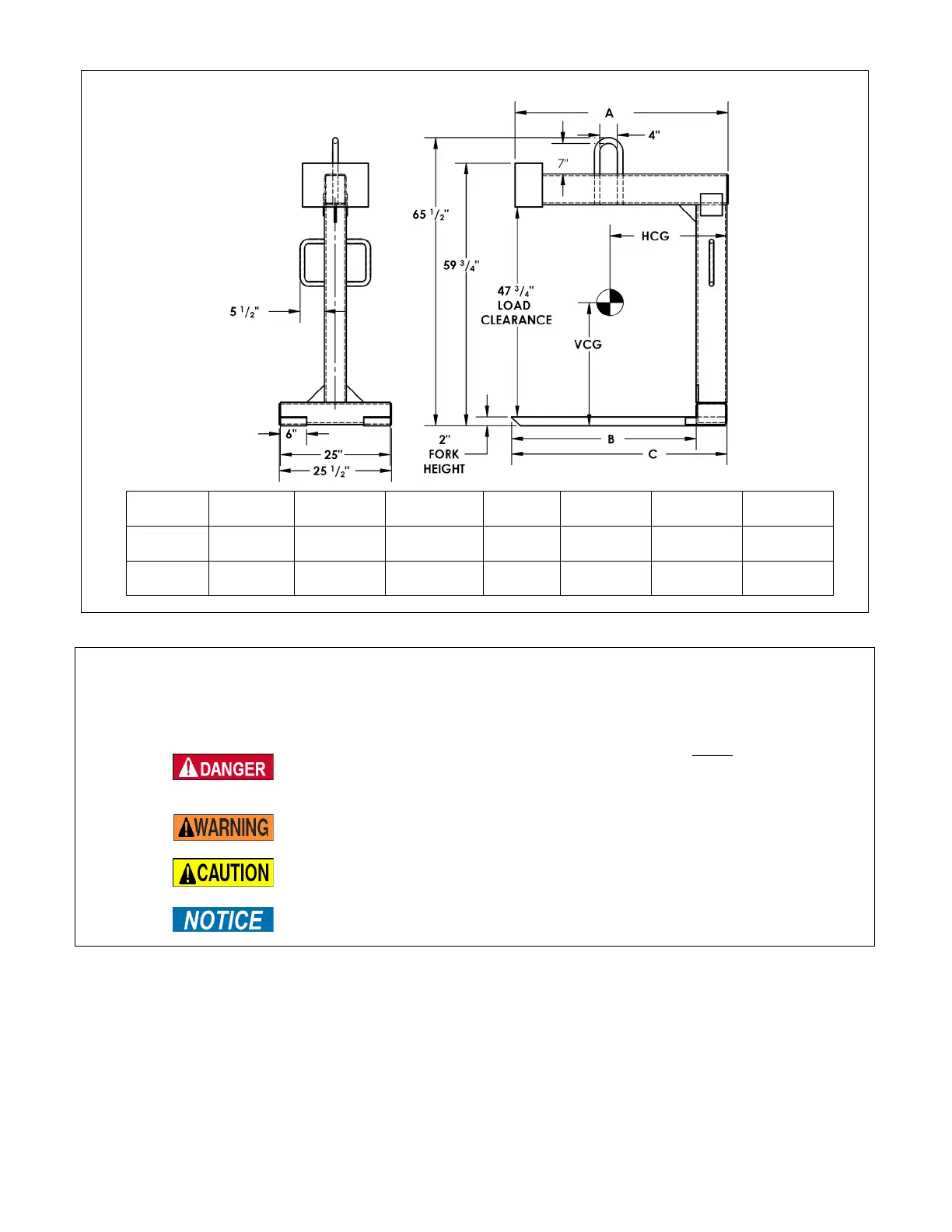

Dimensions, net weight, capacity (maximum rated load), and centers of gravity for each HDP model are
provided in the following diagrams and table.
Model
A B C HCG VCG Capacity Net Weight
HDP-2-36
46
1
/
4
117.5 cm
36”
91.5 cm
41”
104.2 cm
23
1
/
4
59.1 cm
31
5
/
8
80.3 cm
2,000 lb.
909.1 kg
384 lb.
174.5 kg
HDP-2-42
55
7
/
8
141.9 cm
42’
106.7 cm
47”
119.4 cm
27
3
/
4
70.5 cm
31
5
/
8
80.3 cm
2,000 lb.
909.1 kg
411 lb.
186.8 kg
HDP-2-48
59
1
/
4
150.5 cm
48”
121.9 cm
53”
134.6 cm
35
3
/
4
90.8 cm
31
5
/
8
80.3cm
2,000 lb.
909.1 kg
430 lb.
195.5 kg
HDP-4-36
46
7
/
16
118.0 cm
36”
91.5 cm
42”
106.7 cm
29
3
/
4
75.6 cm
24”
61.0 cm
4,000 lb.
1818.2 kg
588 lb.
267.3 kg
HDP-4-42
51
3
/
4
133.5 cm
42”
106.7 cm
48”
121.9 cm
26
3
/
4
67.9 cm
28
7
/
8
73.3 cm
4,000 lb.
1818.2 kg
625 lb.
284.1 kg
HDP-4-48
57
1
/
4
145.4 cm
48”
121.9 cm
54”
137.2 cm
29
5
/
8
75.2 cm
28
1
/
8
71.4 cm
4,000 lb.
1818.2 kg
663 lb.
301.4 kg
Table of Contents Rev. 0519 HDP MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 3 of 7
SPECIFICATIONS (CONTINUED)
HDP-6-42
48
1
/
2
123.2 cm
42”
106.7 cm
49”
124.5 cm
26
5
/
8
67.6 cm
28”
71.1 cm
6,000 lb.
2727.3 kg
776 lb.
352.7 kg
HDP-6-48
57
1
/
2
146.1 cm
48”
121.9 cm
55”
139.7 cm
30
1
/
2
77.5 cm
27
3
/
8
69.5 cm
6,000 lb.
2727.3 kg
916 lb.
416.4 kg
HDP-6-54
58
1
/
2
148.6 cm
54”
137.2 cm
61”
154.9 cm
32”
81.3 cm
26
3
/
8
67.0 cm
6,000 lb.
2727.3 kg
960 lb.
436.4 kg
SIGNAL WORDS
This manual classifies personal injury risks and situations that might cause property damage with
signal words. Signal words indicate the seriousness of injuries that might result if a particular act does,
or does not, occur.
Identifies a hazardous situation which, if not avoided, WILL result
in DEATH or SERIOUS INJURY. Use of this signal word is
limited to the most extreme situations.
Identifies a hazardous situation which, if not avoided, COULD
result in DEATH or SERIOUS INJURY.
Indicates a hazardous situation which, if not avoided, COULD
result in MINOR or MODERATE injury.
Identifies practices likely to result in product/property damage,
such as operation that might damage the product.
