Table of Contents Rev. 3/18/2022 HOP-LP, MANUAL
Table of Contents Copyright 2021 Vestil Manufacturing Co. Page 1 of 10
HOP-LP Portable Steel Dumping Hoppers
Receiving Instructions
After delivery, remove the packaging from the product. Inspect the product closely to determine
whether it sustained damage during transport. If damage is discovered, record a complete description of
it on the bill of lading. If the product is undamaged, discard the packaging.
NOTE: The end-user is solely responsible for confirming that product design, use, and maintenance comply
with laws, regulations, codes, and mandatory standards applied where the product is used.
Technical Service & Replacement Parts
For answers to questions not addressed in these instructions and to order replacement parts, labels,
and accessories, call our Technical Service and Parts Department at (260) 665-7586. The department can
also be contacted online at http://www.vestilmfg.com/parts_info.htm
.
Electronic Copies of Instruction Manuals
Additional copies of this manual may be downloaded from
https://www.vestil.com/page-
manuals.php.
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
www.vestilmfg.com info@vestil.com
Table of Contents
Page
Specifications…………………….…………………………………………………………….………...………….……
2
Signal Words………………………………………………………………………………………………...…….……
2
National Standards……………………………………………………………………………………………………..
3
Safety Instructions…………………………..……………………………………..……..…………………..………
3
Exploded View and Bill of Materials………..…………………………………………….………………………....
4
Using the Caster Brake…………………………………………………………………………………………………
5
Assembling the Hopper…………………………………………………………………………………………………
5 - 6
Loading & Using the Hopper……………………………………………………………………...…………………..
7 - 8
Record of Satisfactory Condition…………………………………………………………………………………….
8
Inspections & Maintenance…………………………………………………………………………………………..
8 - 9
Labeling Diagram ……………….…..
…………………………………………………………...............................
9
Limited Warranty………………………………………………………………………………………………..…..……
10
Table of Contents Rev. 3/18/2022 HOP-LP, MANUAL
Table of Contents Copyright 2021 Vestil Manufacturing Co. Page 2 of 10
SIGNAL WORDS
SIGNAL WORDS appear in this manual to draw the reader’s attention to important safety-
related messages. The following are signal words used in this manual and their definitions.

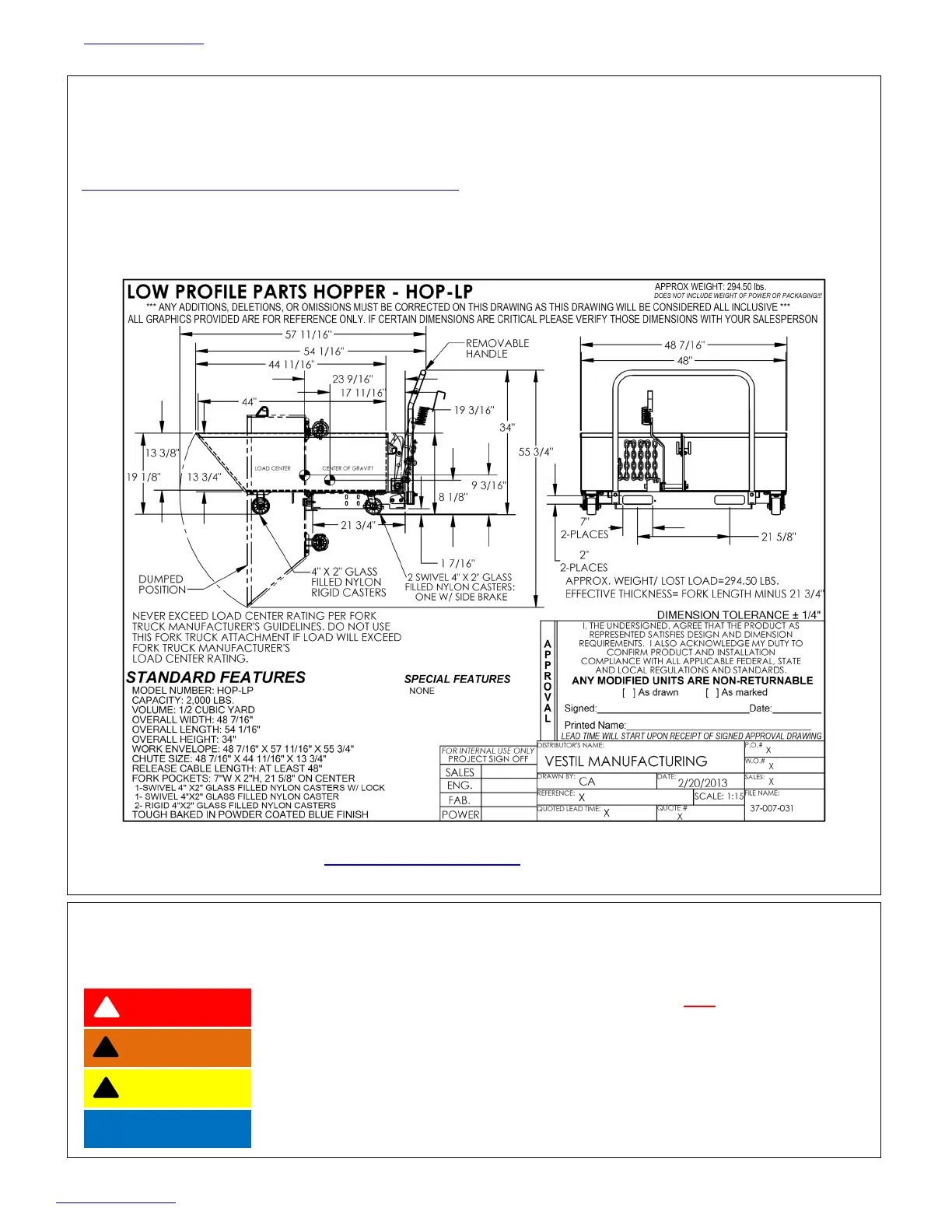

SPECIFICATIONS
Documents that provide specifications for HOP-LP-series hoppers are available online to
anyone who visits Vestil’s website. Specifications include dimensions, net weight, and capacity
information. To access the appropriate specifications document, navigate to
https://www.vestil.com/product.php?FID=451. Scroll to the Product Specifications Table
portion of the page. Find the entry for the hopper you purchased and click the button in the
“PDF” column that looks like a pencil inside a blue-bordered box. A PDF file will open. This file is
the specifications document. Print a copy of the document and keep it with your copy of this
manual. The following is an exemplar specifications document.
NOTE: If your model is either not included on the webpage or you cannot access and/or print
the document, contact the Technical Service Dept
. Contact information is provided on the
front page of this manual.
DANGER
Identifies a hazardous situation which, if not avoided, WILL result in DEATH or
SERIOUS INJURY. Use of this signal word is limited to the most extreme situations.
WARNING
Identifies a hazardous situation which, if not avoided, COULD result in DEATH or
SERIOUS INJURY.
CAUTION
Indicates a hazardous situation which, if not avoided, COULD result in MINOR or
MODERATE injury.
NOTICE
Identifies practices likely to result in product/property damage, such as
operation that might damage the product.
!
!
!
Table of Contents Rev. 3/18/2022 HOP-LP, MANUAL
Table of Contents Copyright 2021 Vestil Manufacturing Co. Page 3 of 10
NATIONAL STANDARDS
US OSHA Rule 1910.178 (29 CFR 1910.178; the “Rule”) classifies this device as a “front- end attachment”
whenever it is mounted on a lift truck. The Rule incorporates American National Standard ANSI/ITSDF B56.1
(the “Standard”). The Standard is published by the Industrial Truck Standards Development Foundation on
its website (www.itsdf.org) where it is freely downloadable at http://www.itsdf.org/cue/b56-standards.html
.
Acquire a copy of the Standard before putting this device into service. Apply all relevant parts of Part II: For
the User. If instructions provided in this manual apparently conflict with the Standard, then apply the
instructions in the Standard. Vestil requests that you immediately share any conflicts you discover with its
TECHNICAL SERVICE personnel. Contact information is provided on the cover page of this manual.
SAFETY INSTRUCTIONS
Vestil strives to identify foreseeable hazards associated with the use of its products, but no manual can
address every possible risk. Minimize the likelihood of injury by recognizing the hazards identified below and
by inspecting and maintaining the product as instructed in INSPECTIONS & MAINTNENANCE
on p. 8 -9. Apply
all portions of ANSI/ITSDF standard B56.1, Part II “For the User” that concern the use of attachments and
removable attachments. The following recommendations are intended to complement the provisions of
the Standard.
WARNING
Risks of serious personal injuries or death.
Read and understand the entire manual before assembling, using, inspecting, or servicing the hopper.
Before this product may be used, U.S. Occupational Safety and Health Administration rule 1910.178(a)(4)
and (a)(5) require that the owner/user: 1) Obtain written approval from a professional engineer or from the
manufacturer(s) of all forklifts that will use the hopper; 2) Change all forklift capacity, operation, and
maintenance instruction plates, tags, or decals accordingly; AND 3) Mark the forklift truck to identify the
hopper and show the approximate weight of the truck and hopper combination at maximum elevation
with load laterally centered. See https://www.osha.gov/laws-
regs/regulations/standardnumber/1910/1910.178
Inspect the hopper as directed in the INSPECTIONS & MAINTENANCE section on p. 8 - 9. DO NOT use it
unless it is in SATISFACTORY CONDITION. See RECORD OF SATISFACTORY CONDITION on p. 8.
DO NOT use the hopper if the carriage chain is damaged or missing.
DO NOT lift the hopper until it is securely connected to the carriage of the fork truck with the carriage
chain. ONLY use this hopper with a powered forklift truck. DO NOT mount the hopper on stackers or
manually propelled lift trucks.
DO NOT fill the hopper with a load weighing more than its 2,000 pounds (909.1kg) maximum rated load
(capacity). Capacity information is provided on your specifications document. Unit capacity also appears
on label 1153. See LABELING DIAGRAM, p. 9.
DO NOT travel under the hopper at any time while it is elevated.
NEVER wrap the release cable around your hand, fingers, or any other part of your body!
DO NOT allow people to ride on or in the hopper.
DO NOT use the hopper if any label is unreadable or missing. Apply replacement labels before returning
the hopper to service. See LABELING DIAGRAM on p. 9.
ALWAYS apply proper lift truck operation techniques learned during your training program. Before raising
the hopper from the floor, tilt the (forklift) mast toward the cab of the truck to ensure that the hopper will
not slide off of the forks.
DO NOT modify the hopper without first obtaining written approval from Vestil. Unapproved modifications
might make the hopper unsafe to use and automatically void the LIMITED WARRANTY on p. 10.
DO NOT dump the hopper UNLESS everyone in the vicinity is a safe distance away from the dumping site.
DO NOT dump the hopper if the forklift is on sloped terrain. Only dump the hopper while on even, level
surfaces.
DO NOT exceed the load ratings or fill the hopper above the side walls. Injury to personnel or permanent
damage to the equipment could result from overloading.
ALWAYS engage the caster brake when the hopper is stationary or not in use.
NOTE: US Federal OSHA rule 29 CFR 1910.178(m)(5)(iii), requires operators of powered trucks to fully
lower the “load engaging means” (forks), neutralize truck controls, and set brakes whenever they
dismount a lift truck and remain within 25ft of it. This self-dumping hopper allows lift truck operators
to remain at the controls of their trucks throughout the dumping process.
!
