Table of Contents Rev. 3/19/2021 HPC MANUAL
Table of Contents Copyright 2021 Vestil Manufacturing Page 1 of 9
HPC-SERIES VERTICAL PLATE CLAMPS
USE AND MAINTENANCE MANUAL
Receiving Instructions
After delivery, remove the packaging from the product. Inspect the product closely to determine
whether it sustained damage during transport. If damage is discovered, record a complete description
of it on the bill of lading. If the product is undamaged, discard the packaging.
NOTE: The end-user is solely responsible for confirming that product design, use, and maintenance
comply with laws, regulations, codes, and mandatory standards applied where the product is used.
Technical Service & Replacement Parts
For answers to questions not addressed in these instructions and to order replacement parts, labels,
and accessories, call our Technical Service and Parts Department at (260) 665-7586. The department
can also be contacted online at https://www.vestil.com/page-parts-request.php
.
Electronic copies of Instruction Manuals
Additional copies of this instruction manual may be downloaded from
https://www.vestil.com/page-
manuals.php.
Table of Contents
Page
Specifications…………………..………………………..……………………………………………...
2
Signal Words….…………………………………………………………………………..…………..…
2
Safety Instructions……………….…………………..………………..………………..…………..…..
3 - 4
National Standards……………………………………………………………………………………...
4
Minimum Uniform Sheet Weight & Uniform Capacity………………………………………..……...
4
Capacity Varies with Sling Angle…………..…………………………………………………………………
4
Operation Parameters…………………………………………………………………………………..
5
Using the Plate Clamp.…………………………………………………….………………...………
5, 6
Record of Satisfactory Condition………………………………………………………………………
7
Load Tests……………………………………………………………………………………………….
7
Inspections & Maintenance……………………………………………………………………….……
7, 8
Labeling Diagram……...……………………….……………………………………………..………...
8
Limited Warranty…...…………………………………………………………..…………..…………..
9
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
www.vestilmfg.com e-mail: info@vestil.com
Table of Contents Rev. 3/19/2021 HPC MANUAL
Table of Contents Copyright 2021 Vestil Manufacturing Page 2 of 9
SIGNAL WORDS
This manual uses SIGNAL WORDS to direct the reader’s attention to important safety-related messages.
These messages describe uses of the product that could result in personal injury or property damage. Each signal
word corresponds to a specific hazard level.
Identifies a hazardous situation which, if not avoided, WILL result in DEATH or SERIOUS
INJURY. Use of this signal word is limited to the most extreme situations.
Identifies a hazardous situation which, if not avoided, COULD result in DEATH or SERIOUS
INJURY.
Indicates a hazardous situation which, if not avoided, COULD result in MINOR or
MODERATE injury.
Identifies practices likely to result in product/property damage, such as operation that might
damage the product.
SPECIFICATIONS
Documents that provide specifications for HPC-series plate clamps are available online to anyone who visits
Vestil’s website. Specifications include dimensions, net weight, and capacity information. To access the appropriate
specifications document, navigate to this webpage: https://www.vestil.com/product.php?FID=562
.
Click the
“Specifications” tab. Scroll the page to the entry for the model ladder you purchased, and click the button in the
“PDF” column that looks like a pencil inside a blue-bordered box. A PDF file will open. This file is the specifications

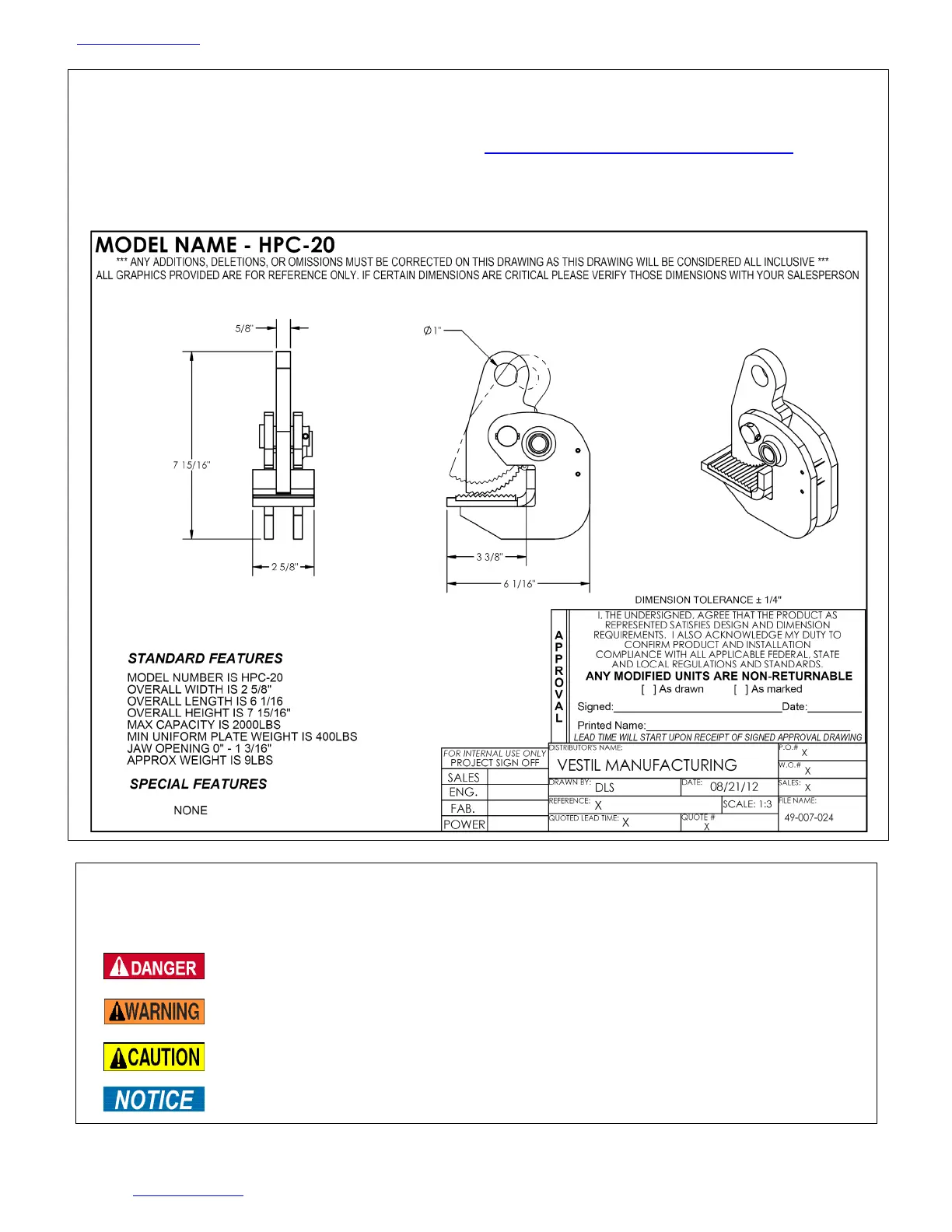

document. Print a copy of the document and keep it with your copy of this manual. The following is an exemplar
specifications document for model HPC-20.
Table of Contents Rev. 3/19/2021 HPC MANUAL
Table of Contents Copyright 2021 Vestil Manufacturing Page 3 of 9
SAFETY INSTRUCTIONS
Vestil strives to identify all foreseeable hazards associated with the use of its products. However, material
handling is dangerous and no manual can address every conceivable risk. Ultimately, the most effective way to
prevent injury is to apply sound judgment whenever using this device.
Electrocution Risk: Avoid contact with live electrical wires
WARNING
Improper or careless use of this product might result in death or serious personal injuries.
Read and understand the entire manual before using, inspecting, or servicing the plate clamp. DO NOT
use this device until you read and understand the entire instruction manual. Read the manual to refresh your
understanding of proper use and maintenance procedures. Review the instructions and safety messages included
in the manuals for your crane, trolley, hoist, and any other device used in conjunction with the clamp. Use this
device as instructed in this manual. You must also follow applicable provisions of ASME B30.20 “Below-the-Hook
Lifting Devices (BTH), and all laws, regulations, codes, etc. that apply to BTH devices where the clamp is used.
DO NOT open a clamp while lifting or moving a sheet of material. BEFORE opening a clamp be certain that
the sheet material is entirely supported by the ground or other surface, and is fully stabilized e.g. can’t fall over,
roll, slide, or move in an uncontrolled manner. If a second person is needed to immobilize the material, find
someone to help you. DO NOT open a clamp while using it to lift or move sheet material.
Inspect plate clamps as instructed in INSPECTIONS AND MAITENANCE on p. 7-8. Acquire a copy of the most
recent revision of ASME B30.20. Apply all applicable inspection procedures in ASME B30.20.
Maintain plate clamps according to the INSPECTIONS AND MAITENANCE instructions on p. 7-8 of the
manual. These procedures supplement the maintenance recommendations of ASME B30.20. If any
instruction in this manual conflicts with B30.20, then you should apply the provision in B30.20. DO NOT use this
lifter if it is damaged, malfunctioning, or missing parts.
ALWAYS attach the plate clamp to a safety hook to prevent accidental/unintended detachment. DO NOT
connect the clamp to a safety hook that does not function properly or that is damaged.
Clean and dry the sheet material before attaching plate clamps to it. In particular, clean the material where
clamps will be attached. Debris on the surfaces of the sheet material could impair the connections between
clamps and the material.
Make sure that the path of travel is clear of debris and obstacles BEFORE picking up the load. Make sure that
no person is in the travel path.
DO NOT lift and move a sheet of material unless it balances when suspended. Attach as many clamps as
necessary to balance the load while it is suspended. Load balancing is discussed in USING THE PLATE CLAMP
on p. 5-6. If a load cannot be balanced, do not use the lifter to elevate it. Select another lifting device.
Only lift the topmost sheet of a stack. Make sure that there are no items on the sheet before lifting it.
DO NOT attach the clamp to a side edge. ONLY attach the clamp to the top edge of a plate.
DO NOT lift more than 1 sheet at a time.
DO NOT lift a sheet from a vertical position. HPC’s are horizontal plate clamps. They must ONLY be used to
lift a plate as shown in Step 2 on p. 5.
DO NOT sit on or apply any load to the sheet material held by the clamp.
DO NOT exceed the capacity of the clamp. Never attempt to lift material that weighs more than the capacity of
the clamp. Clamp capacity is provided on the data tag which is fastened to the face of your clamp. See Data Tag
in LABELING DIAGRAM on p. 8.
DO NOT lift a load higher than necessary. See USING THE PLATE CLAMP on p. 5-6.
DO NOT raise the load over your feet or any other part of your body.
DO NOT lift people or carry material over people. DO NOT lift any apparatus supporting/carrying people such
as a work platform. The clamp must ONLY be used to lift single sheets of material.
DO NOT get in front of or behind a suspended load while moving it. Stand to one side of the load. Keep feet
out from underneath the load at all times. Make sure that clothing cannot become entangled in the load, the
rigging, or the clamps.
Keep an eye on the load at all times while it is suspended.
DO NOT leave suspended material unattended. Move the load to the unloading location, land the load, and
disengage the clamps before leaving it.
Referring to American National Standard ASME BTH-1, this clamp is BTH design category B (loads and
variations which are severe and not accurately defined), service class 1 (20,001 to 100,000 load cycles). DO NOT
!
DANGER
!
