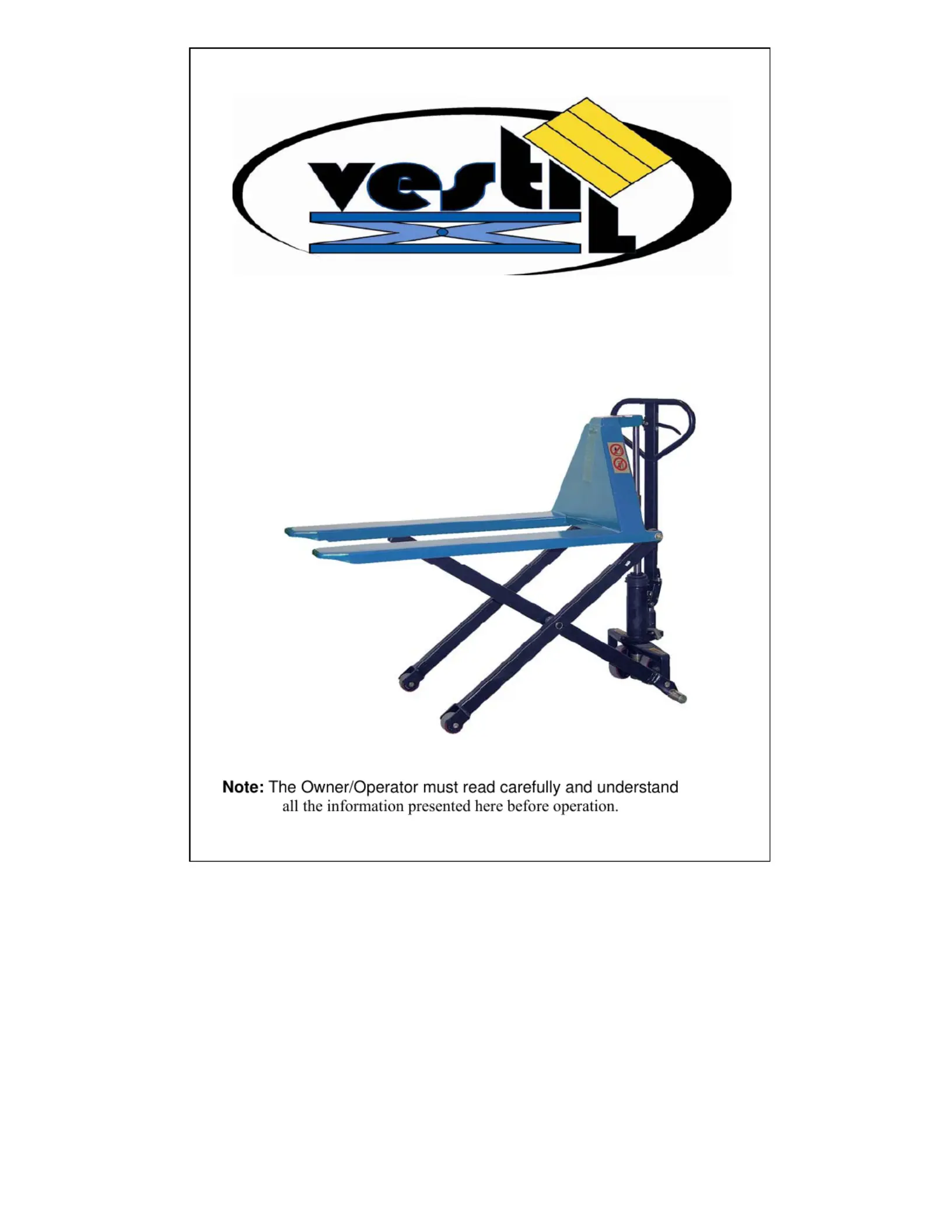

INSTRUCTION MANUAL
FOR HIGH LIFT HAND TRUCK (TOTE LIFTER)
MODELS COVERED: L-220-HD & L-270-HD
Rev. B: 05/15/2007
- 1 -
CONTENT
1. Specication…………………………………………. 2
2.
Safety Instructions ……………………..
2
3. Installation & Adjustment…………………………… 3
3.1 Screw (part No.158)………….……………… 3
3.2 Handle………………………………………… 3
4. Trouble Shooting Guide………………………….. 6
5. Exploded View & Part List………………………….. 7
5.1 Fork Exploded View ………………………… 7
5.2 Pump Assembly Exploded View……….... 9
L 270 HD (Manual High Lift Pallet Truck)
No. of strokes to raise the pallet truck to its maximum height (single speed): 65
No. of strokes to raise the pallet truck to its maximum height (two speed): 18
Down Time without load: 14 secs.
Stabilizer gets in contact with ground at the height of 20-1/2.
