TABLE OF CONTENTS 6/10/2021 LM-HP MANUAL
TABLE OF CONTENTS Vestil Manufacturing Page 1 of 6
LM-HP-Series Load Hook Fork Attachments
Receiving Instructions
After delivery, remove the packaging from the product. Inspect the product closely to
determine whether it sustained damage during transport. If damage is discovered, record a
complete description of it on the bill of lading. If the product is undamaged, discard the
packaging.
NOTE: The end-user is solely responsible for confirming that product design, use, and maintenance
comply with laws, regulations, codes, and mandatory standards applied where the product is
used.
Technical Service & Replacement Parts
For answers to questions not addressed in these instructions and to order replacement parts,
labels, and accessories, call our Technical Service and Parts Department at (260) 665-7586. The
Department can also be contacted online at https://www.vestil.com/page-parts-request.php
.
Electronic Copies of Instruction Manuals
Additional copies of this instruction manual may be downloaded from
https://www.vestil.com/page-manuals.php
.
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
Web: www.vestilmfg.com e-mail: info@vestil.com
Table of Contents
Page
Signal Words….……………………………………………………………..…………..……….……………
2
Safety Instructions………………….…………………………….……………………..……..…….……….
2
National Standards…………………………………………………………………………………………..
3
Parts Diagrams, Dimensions, and Bill of Materials………………...……..….……..…………………..
3
Installing & Using the Attachment...………..………………………………………….………………….
4
Record of Satisfactory Condition…………..….……………….……………………….……………......
4
Inspections & Maintenance………………………………………………………….…………….…….…
4 - 5
Labeling Diagram………………..……………………………………………………….……………..……
5
Limited Warranty…...…………………………………………………………………………..……..………
6
TABLE OF CONTENTS 6/10/2021 LM-HP MANUAL
TABLE OF CONTENTS Vestil Manufacturing Page 2 of 6
SIGNAL WORDS
This manual uses SIGNAL WORDS to indicate the likelihood that a particular action will cause
personal injuries or
property damage. Signal words also specify the level of seriousness of injury if
the product is misused in the ways
described. The following signal words are used in this manual.
Identifies a hazardous situation which, if not avoided, WILL result in DEATH or
SERIOUS INJURY. Use of this signal word is limited to the most extreme situations.
Identifies a hazardous situation which, if not avoided, COULD result in DEATH or
SERIOUS INJURY.
Indicates a hazardous situation which, if not avoided, COULD result in MINOR or
MODERATE injury.
Identifies practices likely to result in product/property damage, such as operation
that might damage the product.
SAFETY INSTRUCTIONS
Vestil strives to identify all foreseeable hazards associated with the use of its products. However,
material handling is dangerous and no manual can address every conceivable risk. The most
effective way to prevent injury is to apply sound judgment whenever using this device.
WARNING
Risk of death or serious personal injuries.
• DO NOT use, inspect, or service this lifting device until you read and understand the entire
instruction manual. Read the manual whenever necessary to refresh your understanding of its
contents. Also apply all relevant provisions of the most recent revision of ANSI/ITSDF B56.1 and all
laws, regulations, codes, etc. that apply to lift truck attachments where the device is used.
• DO NOT disconnect the load from the lifting hook until the load is entirely and stably supported
by the ground or other surface.
• Inspect the device as instructed in INSPECTIONS AND MAINTENANCE on p. 4-5. Acquire a copy of
the most recent revision of ANSI/ITSDF B56.1 (“B56.1”) and apply all inspection procedures applied
to lift truck attachments.
• Always make sure that the shackle pin (see Parts diagrams on p. 3) is secure before applying a
load to the load hook. Tighten the pin before each use.
• Properly maintain the device according to the INSPECTIONS & MAINTENANCE instructions. These
procedures supplement the maintenance recommendations of B56.1 (the “Standard”). If any
instruction in this manual conflicts with the Standard, then you should apply the provision in the
Standard. DO NOT use the device unless it is in SATISFACTORY CONDITION (p. 4).
• ALWAYS attach the safety strap to the carriage of your lift truck without slack. The lifter must not
be able to slide forward on the forks while in use.
• DO NOT service the device unless you are qualified to do so. Contact TECHNICAL SERVICE
(contact information on cover page) if you are uncertain whether the attachment should be used.
• Only lift loads attached to the lifting hook with this device. DO NOT use this lifter to pull/drag
loads. Rigging must be properly attached to the load and hook before lifting the load. Be certain
that the load is balanced to avoid load swing.
• DO NOT lift people.
• DO NOT leave an elevated load unattended. Land all loads before leaving them.
• DO NOT use this attachment to lift (or move) a load that is unstable when suspended.
• DO NOT attempt to lift a load that weighs more than the capacity of the lifter OR the lift truck,
whichever is smaller. The capacity of your lifter appears on tag 1054. The tag is attached to the
product as shown in the LABELING DIAGRAM on p. 5.
• DO NOT elevate any load more than a few inches above the ground except as necessary to
avoid contact with objects in or along the path of travel.
• DO NOT raise a load over people or allow anyone to stand or reach beneath a suspended load.
• DO NOT modify this product in any way without first obtaining written approval from Vestil.
Unapproved modifications automatically void the LIMITED WARRANTY on p. 6 and might make the
product unsafe to use.
!
TABLE OF CONTENTS 6/10/2021 LM-HP MANUAL
TABLE OF CONTENTS Vestil Manufacturing Page 3 of 6
NATIONAL STANDARDS
According to US Federal Occupational Safety and Health Administration (OSHA) Rule 1910.178
(29 CFR 1910.178; the “Rule”), this device is a lift truck front end attachment whenever it is mounted
on the forks of a lift truck. The Rule incorporates American National Standard ANSI/ITSDF B56.1 (the
“Standard”). The Standard is published by the Industrial Truck Standards Development Foundation
(ITSDF) on its website (www.itsdf.org
). The Standard is freely downloadable at
http://www.itsdf.org/cue/b56-standards.html. Before putting this device into service, acquire a
copy of the Standard. Apply all relevant parts of Part II: For the User. If instructions provided in this
manual conflict with the Standard, then the instructions in the Standard should be applied. Vestil
requests that you immediately inform it about inconsistencies by contacting its
TECHNICAL SERVICE
department. Contact information for TECHNICAL SERVICE appears on the cover page of this
manual.

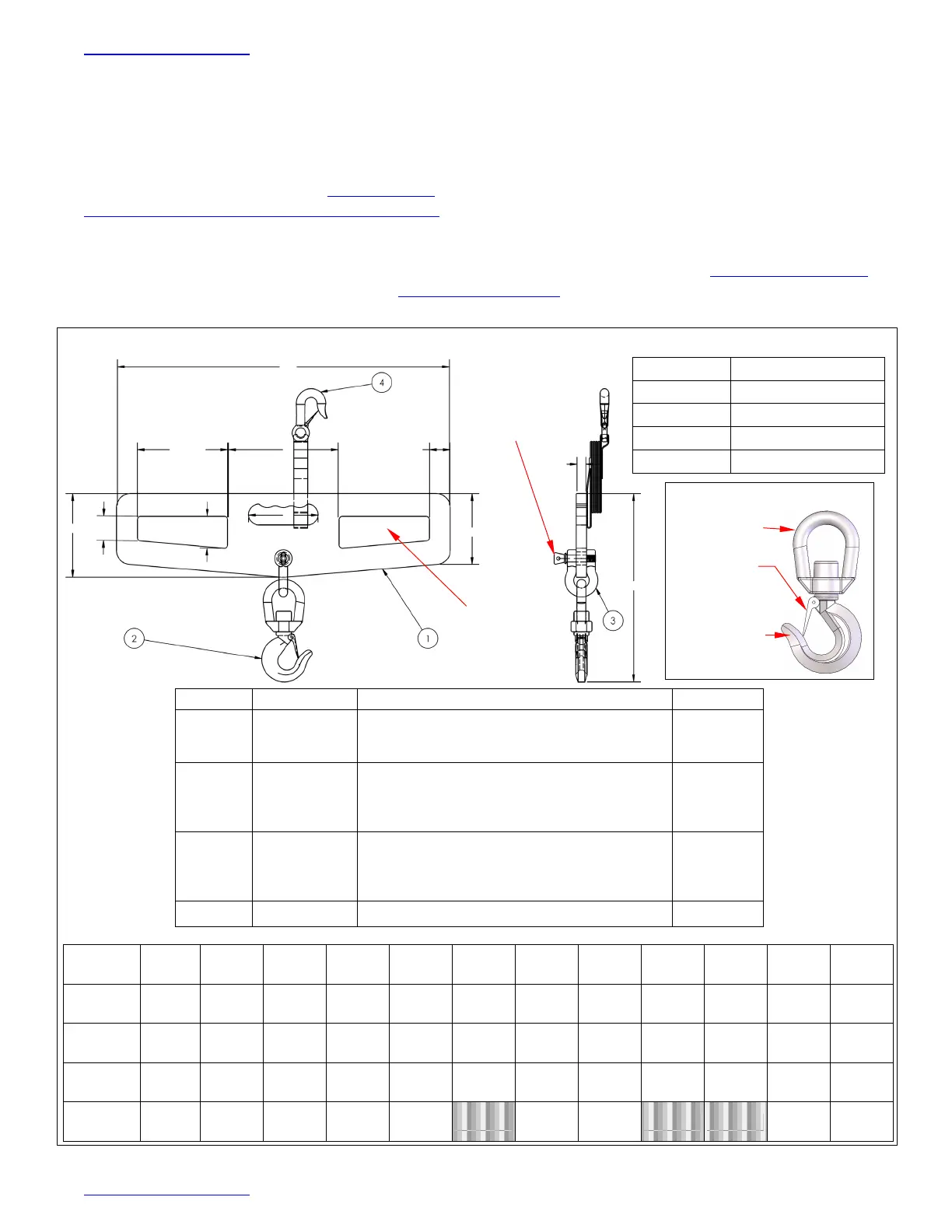

PARTS DIAGRAMS, DIMENSIONS, AND BILL OF MATERIALS
MODEL
Hook
type
A B C D E F G H J K L
LM-HP4-S Swivel
24in.
61cm
6
1
/
2
in.
16.5cm
8in.
20.3cm
1
1
/
2
in.
3.8cm
6 in.
15.2cm
1
3
/
4
in.
4.4cm
2
1
/
4
in.
5.7cm
5in.
12.7cm
5in.
12.7cm
3
/
4
in.
1.9cm
13
1
/
2
in.
34.3cm
LM-HP4-R Rigid
24in.
61cm
6
1
/
2
in.
16.5cm
8in.
20.3cm
1
1
/
2
in.
3.8cm
6 in.
15.2cm
1
3
/
4
in.
4.4cm
2
1
/
4
in.
5.7cm
5in.
12.7cm
5in.
12.7cm
3
/
4
in.
1.9cm
13
1
/
2
in.
34.3cm
LM-HP6-S Swivel
24in.
61cm
6
1
/
2
in.
16.5cm
8in.
20.3cm
1
1
/
2
in.
3.8cm
6 in.
15.2cm
1
3
/
4
in.
4.4cm
2
1
/
4
in.
5.7cm
5in.
12.7cm
5in.
12.7cm
3
/
4
in.
1.9cm
14
3
/
4
in.
37.5cm
LM-HP10-
SL
Swivel
25in.
63.5cm
7in.
17.8cm
8in.
20.3cm
1
1
/
2
in.
3.8cm
2in.
5.08cm
2
7
/
8
in.
7.3cm
1
1
/
4
in.
3.2cm
20
9
/
16
in.
52.2cm
Parts of Lifting hook
Item no.
Part no.
Description
Quantity
1
08-028-034
08-028-164
Hook plate
LM-HP4 & LM-HP6
LM-HP10
1
1
2
08-145-001
08-145-002
08-145-005
Lifting hook:
LM-HP4 [2-ton capacity (4,000 lb.)]
LM-HP6 [3-ton capacity (6,000 lb.)]
LM-HP10 [5-ton capacity (10,000lb.]
1
1
1
3
08-145-003
08-145-004
08-145-006
Shackle:
LM-HP4 [2-ton capacity (4,000 lb.)]
LM-HP6 [3-ton capacity (6,000 lb.)]
LM-HP10 [6.5 ton capacity (13,000lb.]
1
1
1
4 08-145-028 Safety strap with hook 1
E
F
G
H
A
B
C
D
K
L
Model Capacity
LM-HP4-S 4,000 lb. (1,818.2kg)
LM-HP4-R 4,000 lb. (1,818.2kg)
LM-HP6-S
6,000 lb. (2,727.3kg)
LM-HP10-SL
10,000 lb. (4,545kg)
Fork
receiver
Lifting
hook
J
Swivel
Spring
latch
Shackle
pin
