TABLE OF CONTENTS Rev. 4/28/2021 PLBS, MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Corp. Page 1 of 4
PLBS-SERIES WHEELED, STEEL PRY BARS
INSTRUCTION MANUAL
Receiving Instructions
After delivery, remove the packaging from the product. Inspect the product closely to determine whether it
sustained damage during transport. If damage is discovered, record a complete description of it on the bill of lading.
If the product is undamaged, discard the packaging.
NOTE: The end-user is solely responsible for confirming that product design, use, and maintenance comply with
laws, regulations, codes, and mandatory standards applied where the product is used.
Technical Service & Replacement Parts
For answers to questions not addressed in these instructions and to order replacement parts, labels, and
accessories, call our Technical Service and Parts Department at (260) 665-7586. The Department can also be
contacted online at https://www.vestil.com/page-parts-request.php
.
Electronic Copies of Instruction Manuals
Additional copies of this instruction manual may be downloaded from https://www.vestil.com/page-
manuals.php.
VESTIL MANUFACTURING CORP.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
www.vestilmfg.com e-mail: info@vestil.com
Table of Contents
Page
Signal Words….……………………………………………………………..…………………………………….………..
2
Safety Instructions……..……………………………………………………..…………………………..…….…………..
2
Product Specifications…………………………………..…………………………………………………………..………
2
Labeling Diagram………………..………………………………………………………………………………………..…
2
Exploded View & Bill of Materials……………….………………………………………………………..……………….
3
Using the Pry Bar.……………………………………………….……………………………………………….………....
3
Inspections…………………………………………………………………………………………………………………..
3
Maintenance…………………………………………………………………………………………………………………
3
Limited Warranty…...…………………………………………………………………………………………………….....
4
TABLE OF CONTENTS Rev. 4/28/2021 PLBS, MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Corp. Page 2 of 4
SIGNAL WORDS
This manual uses SIGNAL WORDS to indicate the likelihood that a particular action will cause personal
injuries or
property damage. Signal words also specify the level of seriousness of injury if the product is misused
in the ways
described. The following signal words are used in this manual.
Identifies a hazardous situation which, if not avoided, WILL result in DEATH or
SERIOUS INJURY. Use of this signal word is limited to the most extreme
situations.
Identifies a hazardous situation which, if not avoided, COULD result in DEATH or
SERIOUS INJURY.
Indicates a hazardous situation which, if not avoided, COULD result in MINOR or
MODERATE injury.
Identifies practices likely to result in product/property damage, such as operation that
might damage the product.
SAFETY INSTRUCTIONS
Vestil strives to identify the foreseeable hazards of using its products. However, material handling is inherently
dangerous and no manual can address every conceivable risk. Ultimately, the most effective way to avoid causing
injuries is for the operator to exercise sound judgment whenever this device is used.
Improper use could result in serious personal injuries.
• Failure to read and understand the entire manual before assembling, using or servicing the pry bar is a misuse of
the product. Read the manual to refresh your understanding of proper use and maintenance procedures.
• DO NOT exceed the capacity . See Label 287 on product and in LABELING DIAGRAM on p. 2.
• Only use the pry bar on improved surfaces (concrete or asphalt).
• DO NOT apply more than 150 lb. downward force on the end of the pry bar handle.
• DO NOT hang on, sit on, or bounce on the pry bar while attempting to tip or hold a load.
• ALWAYS carefully watch the load on the pry bar.
• Inspect the pry bar before each use as instructed in INSPECTIONS & MAINTENANCE on p. 3. DO NOT use the
device unless it is in satisfactory condition.
• DO NOT use the pry bar to transport loads. Only use the bar to lift an edge or a corner of a load.
• DO NOT lean over the pry bar while using it to lift a load.
• DO NOT use the pry bar if it is damaged.
• DO NOT modify the pry bar in any way. Modifications might make the product unsafe to use and automatically
void the LIMITED WARRANTY on p. 4.
PRODUCT SPECIFICATIONS
Model
Description Bar Length
Caster
Dimensions
Caster Type Capacity Net Weight
PLBS-5
Steel pry bar 5 ft. 5in. x 2in. Poly-on-steel
5,000 lb.
2272.7 kg
41 lb.
18.6 kg
PLBS-6
Steel pry bar 6 ft. 5in. x 2in. Poly-on-steel
5,000 lb.
2272.7 kg
43 lb.
19.5 kg
PLBS-7
Steel pry bar 7 ft. 5in. x 2in. Poly-on-steel
5,000 lb.
2272.7 kg
45 lb.
20.3 kg
Label 1153
(On back side of plate)
LABELING DIAGRAM
Label content and location are subject to change so your product
might not be labeled exactly as shown. Compare this diagram to the
RECORD
. If differences exist between the diagram and the
RECORD, contact TECHNICAL SERVICE.
Replace all labels that
are damaged, missing, or not easily readable (e.g. faded). To order
replacement labels, contact the technical service and parts
department online at http://www.vestilmfg.com/parts_info.htm.
Alternatively, you may request replacement parts and/or service by
calling (260) 665-
7586 and asking the operator to connect you to
the TECHNICAL SERVICE AND PARTS DEPARTMENT.
TABLE OF CONTENTS Rev. 4/28/2021 PLBS, MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Corp. Page 3 of 4

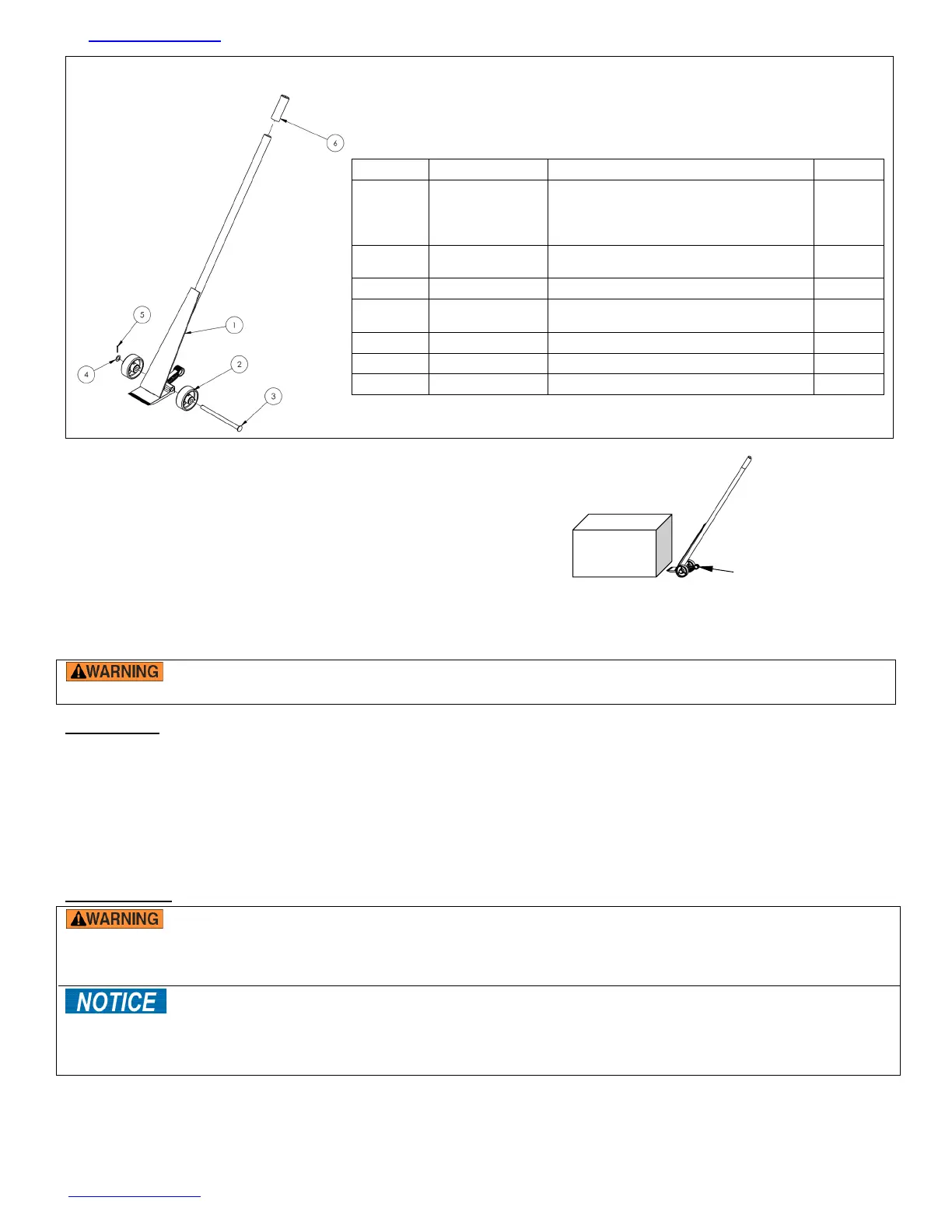

EXPLODED VIEW AND BILL OF MATERIALS
USING THE PRY BAR
To lift an object with the pry bar:
1. Slide the nose plate under the object. If necessary apply steady
pressure to the foot lever to push the plate under the object; then
2. Carefully pull down the end of the handle. Make sure that the
nose plate does not slip out from under the object.
INSPECTIONS & MAINTENANCE
Perform the inspections explained below and maintain the pry bar as described to ensure that the unit is in normal,
safe operating condition.
If a problem is discovered during an inspection, restore the unit to normal operating condition BEFORE
using it again.
Inspections:
Before each use (including first use) inspect:
1. Handle and nose plate: look for regions of significant wear, cracks, cracked welds, deformity, corrosion, & rust.
2. Wheels and mounting hardware: roll the pry bar to confirm that the wheels and bearings are in normal
condition. Examine the axle pin, machine bushing and cotter pin. The axle pin should be straight and
undamaged. The bushing should be undamaged and allow the wheel it contacts to turn smoothly without
contacting the cotter pin. The cotter pin should be undamaged and securely attached to the axle pin.
3. Product labels: all labels should be readable and located as shown in the “Label placement diagram” on p. 4. If
a label(s) is unreadable or missing, contact Vestil to order a replacement.
Maintenance:
DO NOT use the unit if repairs are incomplete! While servicing the pry bar, DO NOT modify it in any way.
A “modification” is a change that alters the product from original condition, like bending the structural members or
removing a part or several parts. Modifications might make the device unsafe to use and automatically void the limited
warranty.
Proper use, maintenance, and storage are essential for this product to function properly.
• Always use the pry bar as described in this instruction manual.
• ONLY install replacement parts supplied or approved by the manufacturer.
• ALWAYS store the pry bar in a dry location.
Step 1: Remove any dirt or other matter from all surfaces.
Step 2: Inspect the pry bar as suggested on p. 3. If deformity, corrosion, rusting, or excessive wear is discovered, DO
NOT use the product.
Step 3: Perform all necessary adjustments, replacements and/or repairs.
Step 4: Make a dated record of all repairs, adjustments and/or replacements.
Item no.
Part no.
Description
Quantity
1
33-514-004
33-514-005
33-514-006
Frame weldment
PLBS-5
PLBS-6
PLBS-7
1
1
1
2
16-132-020-001
5” x 2” poly on steel wheel, roller
bearing, for
3
/
4
“ axle
2
3
33-112-013
Axle pin
1
4
33424
Machine bushing, low carbon, plain
finish,
3
/
4
“ x 18ga.
4
5
65058
7
/
64
“ x 1
1
/
2
“ zinc-plated cotter pin
1
6
13-025-015
Handle grip
1
*
13-154-006
Replacement parts: complete wheel kit
Foot lever
