Table of Contents Rev. 4/3/2020 WP, MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 1 of 17
Work Platforms: Models WP & SP
Instruction Manual
MODEL: WP-3737-FD WP-SERIES SP-SERIES
CAPACITY: 600LB. (273KG) 1,000LB. (455KG) 1,000LB. (455KG)
Table of Contents Table of Figures
Specifications…………………………………... 2, 3, 4 Fig. 1: WP-series Exploded View & Bill of Materials.….... 7
Signal Words…..……………………................. 4 Fig. 2: SP-175 series Exploded View & Bill of Materials... 7
Safety Instructions……..…………................... 5 Fig. 3: Center of Gravity Diagram….……………………… 8
Record of Satisfactory Condition…………….. 6 Fig. 4: Mast Guard Hinge….……………..………………… 8
Inspections……………………………………… 6 Fig. 5A & 5B: Tine Lock Operation…..….……..…………. 9
Mounting the Platform on your Fork Truck..... 9 - 10 Fig. 6: Proper attachment of nylon safety strap……........ 10
Using the Platform……………………………... 10 - 11 Fig. 7: Caster Installation……………..…………………….. 13
WP-3737-FD Setup/Fold-Down………………. 11 - 12 Fig. 8: FTJB & WPJB mounting diagram.………………… 14
Caster Installation (Select WP Models Only).. 13 Fig. 9: E-Stop electrical system diagram…………………. 14
Emergency Stop Switch Installation………….. 14 Fig. 10: Mounting WPJB.…………………………………… 14
Labeling Diagrams (3737-FD; WP; SP)……... 12, 15, 16 Fig. 11: [WPJB] Fastener order.…………………………… 14
Limited Warranty…………………………….….
17
Receiving Instructions
After delivery, remove the packaging from the product. Inspect the product closely to determine whether
it sustained damage during transport. If damage is discovered, record a complete description of it on the bill
of lading. If the product is undamaged, discard the packaging.
NOTE: The end-user is solely responsible for confirming that product design, use, and maintenance comply
with laws, regulations, codes, and mandatory standards applied where the product is used.
Technical Service & Replacement Parts
For answers to questions not addressed in these instructions and to order replacement parts, labels, and
accessories, call our Technical Service and Parts Department at (260) 665-7586. The department can also
be contacted online at http://www.vestilmfg.com/parts_info.htm.
Electronic Copies of Instruction Manuals
Additional copies of this instruction manual may be downloaded from
https://www.vestil.com/page-
manuals.php.
KEEP THIS MANUAL IN A LOCATION KNOWN TO ALL PERSONS WHO USE THIS WORK PLATFORM.
ADDITIONAL COPIES OF THE MANUAL CAN BE DOWNLOADED FROM https://www.vestil.com/page-
manuals.php
. DO NOT USE THE PLATFORM UNLESS EVERY LABEL, SIGN, AND TAG SHOWN IN
APPLICABLE LABELING DIAGRAM (P. 12, 15, OR 16) IS IN PLACE, UNDAMAGED, & EASILY READABLE.
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 Toll Free (800) 348-0868
Fax: (260) 665-1339 www.vestilmfg.com e-mail: info@vestil.com
SP-175-84B
shown
Table of Contents Rev. 4/3/2020 WP, MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 2 of 17
SPECIFICATIONS

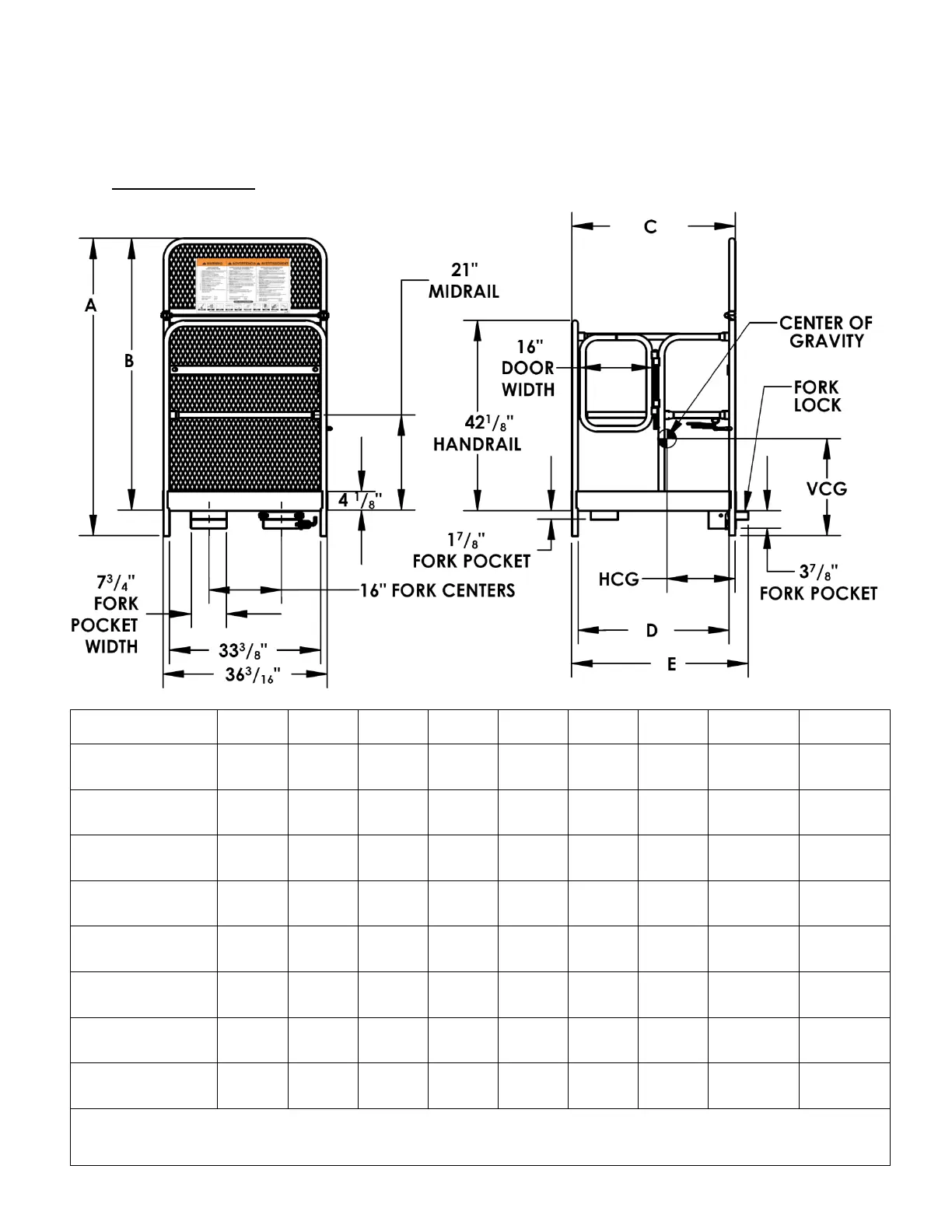

Dimensions, center of gravity, capacity, and net weight figures for each model appear in the following diagrams
and tables. Center of gravity values are broken into a horizontal component (HCG) and vertical component (VCG).
Models WP-36##
Model
A B C D E HCG VCG Capacity Net weight
WP-3636 65
5
/
8
” 60” 36
1
/
16
” 33
3
/
8
” 39” 15” 21
3
/
8
”
1,000 lb.
454.5 kg
174 lb.
(91 kg)
WP-3648 65
5
/
8
” 60” 48
1
/
16
” 45
3
/
8
” 51” 20
5
/
8
” 20
7
/
8
”
1,000 lb.
454.5 kg
195 lb.
(105 kg)
WP3636-84B 89
5
/
8
” 84” 36
1
/
16
” 33
3
/
8
” 39” 14
1
/
8
” 25
3
/
8
”
1,000 lb.
454.5 kg
182 lb.
(112 kg)
WP-3648-84B 89
5
/
8
” 84” 48
1
/
16
” 45
3
/
8
” 51” 19
1
/
2
” 24
3
/
8
”
1,000 lb.
454.5 kg
202 lb.
(118 kg)
WP-3636-DD 65
5
/
8
” 60” 36
1
/
16
” 33
3
/
8
” 39” 15
1
/
8
” 21
3
/
4
”
1,000 lb.
454.5 kg
184 lb.
(106 kg)
WP-3648-DD 65
5
/
8
” 60” 48
1
/
16
” 45
3
/
8
” 51” 20
3
/
8
” 21
1
/
8
”
1,000 lb.
454.5 kg
204 lb.
(112 kg)
WP3636-84B-DD 89
5
/
8
” 84” 36
1
/
16
” 33
3
/
8
” 39” 14
1
/
8
” 25
3
/
8
”
1,000 lb.
454.5 kg
191 lb.
(112 kg)
WP-3648-84B-DD 89
5
/
8
” 84” 48
1
/
16
” 45
3
/
8
” 51” 19
3
/
8
” 24
1
/
2
”
1,000 lb.
454.5 kg
212 lb.
(118 kg)
NOTE: To calculate the weight of a “fully loaded platform,” find the net weight of your model in the table
above. Add 1,000 pounds (455 kg) to that figure.
Table of Contents Rev. 4/3/2020 WP, MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 3 of 17
SPECIFICATIONS (continued)

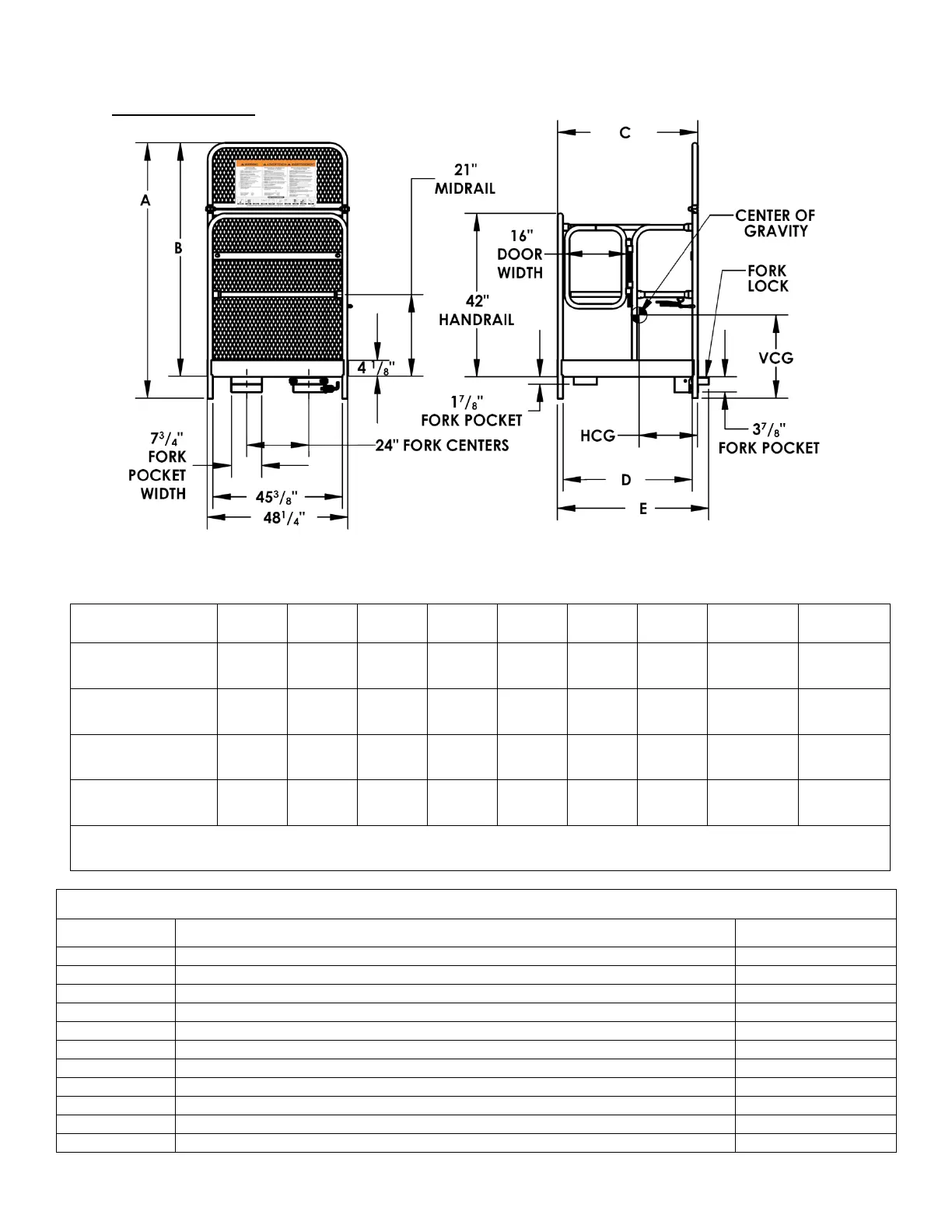

Models WP-4848
Model
A B C D E HCG VCG Capacity Net weight
WP-4848 65
5
/
8
” 60” 48
1
/
16
” 45
3
/
8
” 51” 20
5
/
8
” 20”
1,000 lb.
454.5 kg
237 lb.
(108 kg)
WP-4848-84B 89
5
/
8
” 84” 48
1
/
16
” 45
3
/
8
” 51” 19
1
/
2
” 23
1
/
2
”
1,000 lb.
454.5 kg
245 lb.
(112 kg)
WP-4848-DD 65
5
/
8
” 60” 48
1
/
16
” 45
3
/
8
” 51” 20
7
/
16
” 20
1
/
4
”
1,000 lb.
454.5 kg
246 lb.
(112 kg)
WP-4848-84B-DD 89
5
/
8
” 84” 48
1
/
16
” 45
3
/
8
” 51” 19
3
/
8
” 23
5
/
8
”
1,000 lb.
454.5 kg
254 lb.
(116 kg)
NOTE: TO CALCULATE THE WEIGHT OF A “FULLY LOADED PLATFORM,” FIND THE NET WEIGHT OF YOUR MODEL IN THE TABLE
ABOVE AND ADD
1,000 POUNDS (455 KG).
Work platform safety options
Model Description Weight
WP-CA
4” x 1
1
/
4
” polyurethane-on-polyurethane casters: 2 swivel & 2 rigid
20 lb. (9.1 kg)
WP-SB
Emergency stop button kit
7 lb. (3.2 kg)
WP-SB-FTJB
Emergency stop junction box – Fork truck
8 lb. (3.6 kg)
WP-SB-WPJB
Emergency stop junction box – Work platform
5 lb. (2.3 kg)
WP-TC
Fluorescent tube caddy
15 lb. (6.8 kg)
WP-P-TC
Fluorescent tube caddy (plastic)
WP-TT36
36” tool tray
13 lb. (5.9 kg)
WP-TT48
48” tool tray
22 lb. (10 kg)
WP-AFR
Automatically deploying ramp
222 lb. (100.9 kg)
WP-WS
Caution sign with necessary mounting hardware
3 lb. (1.4 kg)
WP-DL
Double chain door lock
2 lb. (0.9 kg)
NOTE: To calculate the weight of a “fully loaded platform,” find the net weight of your model in the table above, and
then add: 1) 1,000 pounds (455 kg) for all WP-series models except the fold-down WD-3737-FD; 2) 1,000 pounds (455
kg) for SP model platforms; or 3) 600 pounds (273 kg) for WP-3737-FD platforms.
