Side 1/11
Rev. 7/27/2017 WTJ-E, MANUAL
Copyright 2017 Vestil Manufacturing Corp. Page 1 of 11
WTJ-E Series Vehicle Mounted Jib Cranes
Instruction Manual
Receiving instructions:
After delivery, remove the packaging from the product. Inspect the product closely to determine whether it
sustained damage during transport. If damage is discovered, record a complete description of it on the bill of
lading. If the product is undamaged, discard the packaging.
NOTE:
The end-user is solely responsible for confirming that product design, installation, use, and maintenance
comply with laws, regulations, codes, and mandatory standards applied where the product is used.
Table of Contents
Specifications……….………………………………………………………………………………………………………….. 2
Exploded parts diagrams and bills of materials…………………………………………………………………………….. 3 - 4
Signal words……………………………………………………………………………………………………………………. 5
Hazards of improper use………………………………………………………………..…………………………………….. 5
Assembling the crane………………………………………………………………………………………………………….. 5 – 6
Storage configuration………………………………………………………………………………………………………….. 6
Installing the crane…………………………………………………………………………………………………………….. 7
Function tests…………………………………………………………………………………………………………………… 7
Using the crane…………………………………………………………………………………………………………………. 8
Boom angle adjustments………………………………………………………………………………………………………. 9
Boom length adjustments……………………………………………………………………………………………………… 9
Inspections………………………………………………………………………………………………………………………. 9
- 10
Troubleshooting Guide……………………………………………………………………………………….......................... 10
Labeling diagram………………………………………………………..……………………………………………………… 10
Limited warranty………………………………………………………………………………………………………………… 11
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
www.vestilmfg.com e-mail:
HUinfo@vestil.comU
WTJ-E-15-3-AC WTJ-E-15-3-DC
Rev. 7/27/2017 WTJ-E, MANUAL
Copyright 2017 Vestil Manufacturing Corp. Page 2 of 11

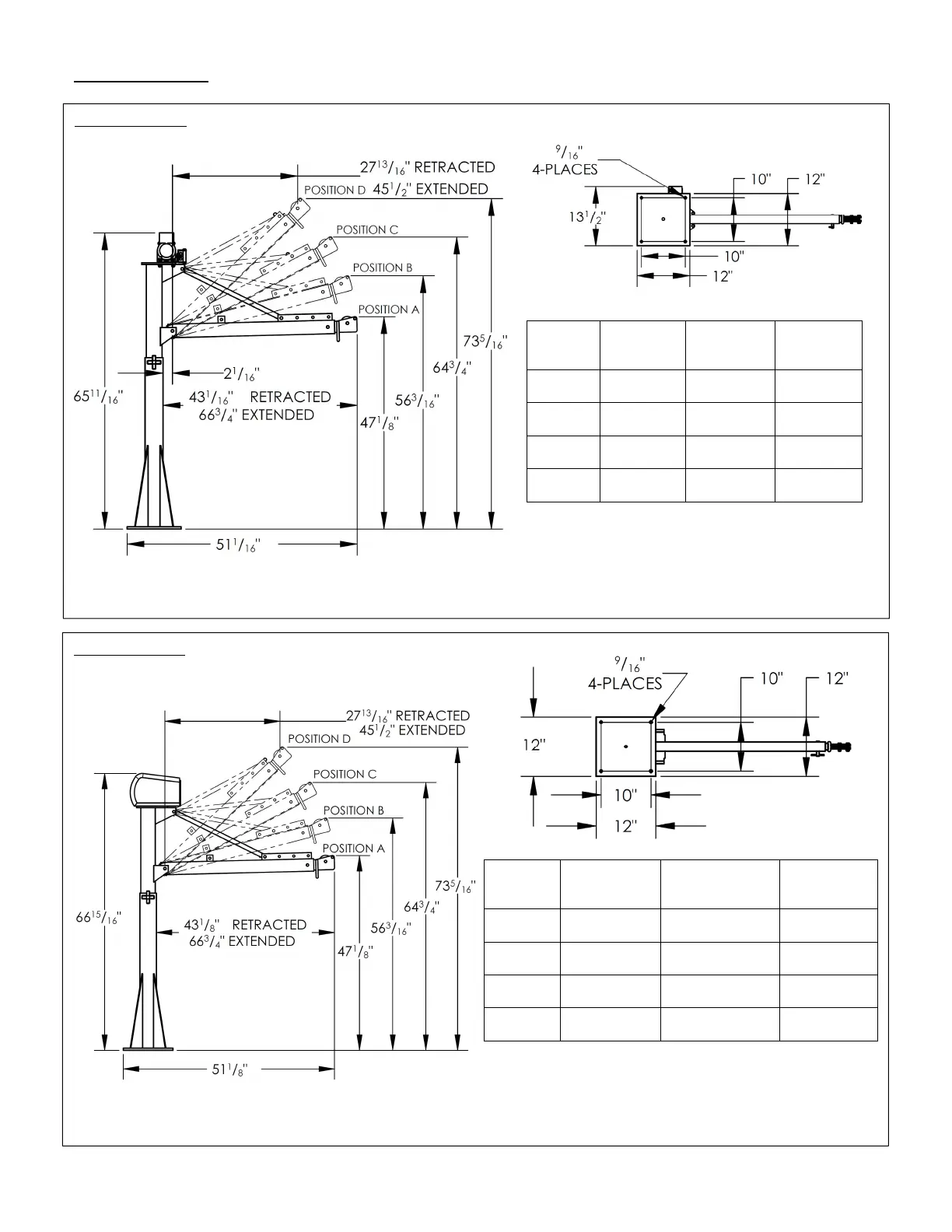

Specifications:
Crane dimensions, capacity, and net weight appear in the diagram and table below.
WTJ-E-15-3-DC
Boom
position
Boom
fully
retracted
Boom
extended
halfway
Boom
fully
extended
A
650 lb.
(295.5kg)
300 lb.
(136.4kg)
200 lb.
(90.9kg)
B
1100 lb.
(500.0kg)
650 lb.
(295.5kg)
550 lb.
(250.0kg)
C
1250 lb.
(568.2kg)
850 lb.
(386.4kg)
650 lb.
(295.5kg)
D
1500 lb.
(681.8kg)
1150 lb.
(522.7kg)
800 lb.
(363.6kg)
WTJ-E-15-3-AC
Capacity = 1,500 lb.
Net weight = 201 lb.
12V DC powered winch with handheld pendant
controller
3
/
16
” x 46’ long cable with hook
Capacity = 1,500 lb.
Net weight = 320.0 lb.
12V DC powered winch with handheld pendant controller
3
/
16
” x 46’ long cable with hook
Boom
position
Boom fully
retracted
Boom
extended
halfway
Boom fully
extended
A
650 lb.
(295.5kg)
300 lb.
(136.4kg)
200 lb.
(90.9kg)
B
1100 lb.
(500.0kg)
650 lb.
(295.5kg)
550 lb.
(250.0kg)
C
1250 lb.
(568.2kg)
850 lb.
(386.4kg)
650 lb.
(295.5kg)
D
1500 lb.
(681.8kg)
1150 lb.
(522.7kg)
800 lb.
(363.6kg)
