Rev. 7/27/2017 WTJ-E, MANUAL
Copyright 2017 Vestil Manufacturing Corp. Page 1 of 11
WTJ-E Series Vehicle Mounted Jib Cranes
Instruction Manual
Receiving instructions:
After delivery, remove the packaging from the product. Inspect the product closely to determine whether it
sustained damage during transport. If damage is discovered, record a complete description of it on the bill of
lading. If the product is undamaged, discard the packaging.
NOTE:
The end-user is solely responsible for confirming that product design, installation, use, and maintenance
comply with laws, regulations, codes, and mandatory standards applied where the product is used.
Table of Contents
Specifications……….………………………………………………………………………………………………………….. 2

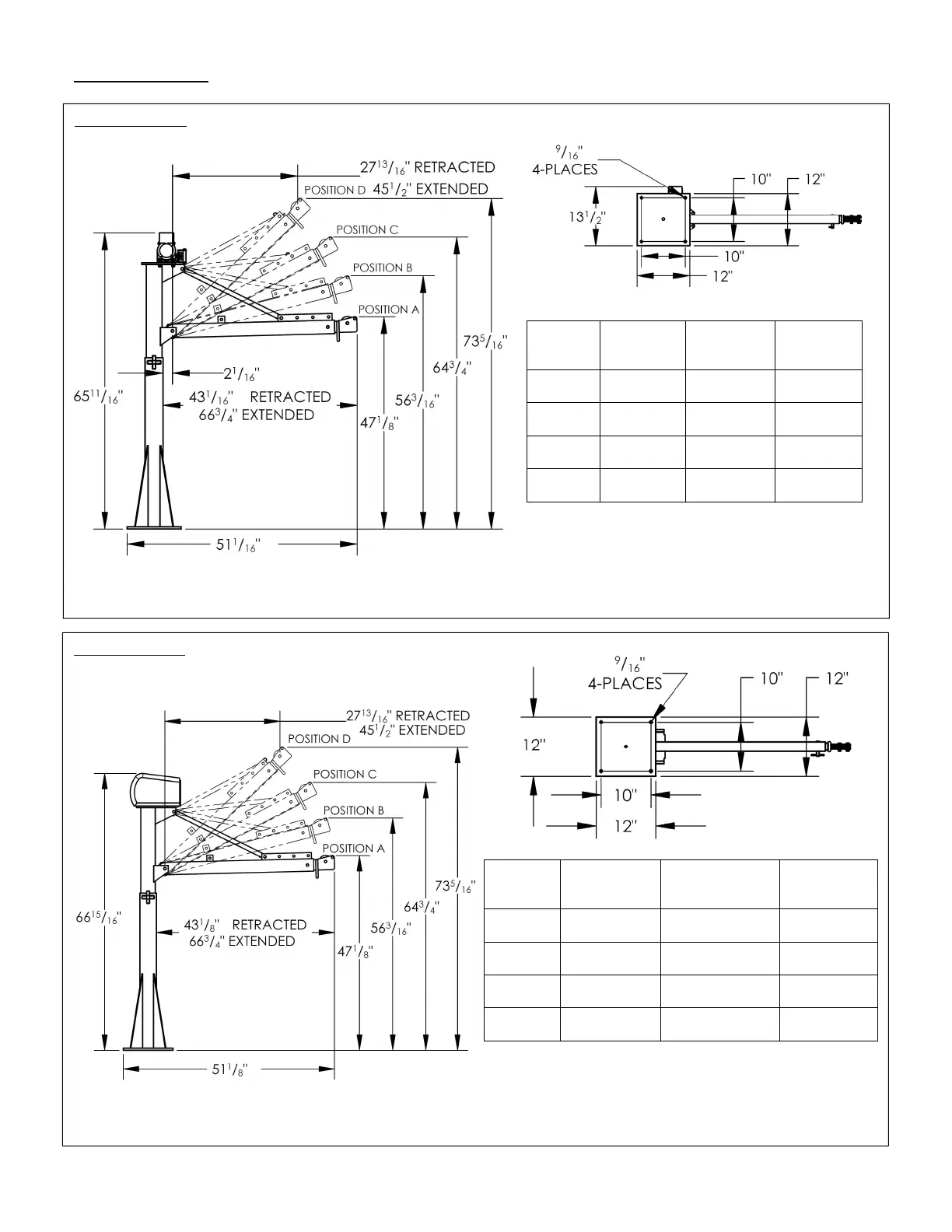

Exploded parts diagrams and bills of materials…………………………………………………………………………….. 3 - 4
Signal words……………………………………………………………………………………………………………………. 5
Hazards of improper use………………………………………………………………..…………………………………….. 5
Assembling the crane………………………………………………………………………………………………………….. 5 – 6
Storage configuration………………………………………………………………………………………………………….. 6
Installing the crane…………………………………………………………………………………………………………….. 7
Function tests…………………………………………………………………………………………………………………… 7
Using the crane…………………………………………………………………………………………………………………. 8
Boom angle adjustments………………………………………………………………………………………………………. 9
Boom length adjustments……………………………………………………………………………………………………… 9
Inspections………………………………………………………………………………………………………………………. 9
- 10
Troubleshooting Guide……………………………………………………………………………………….......................... 10
Labeling diagram………………………………………………………..……………………………………………………… 10
Limited warranty………………………………………………………………………………………………………………… 11
