PRODUCT MANUAL

Designed, Manufactured and Supported in the USA

COMMUNICATION & SECURITY SOLUTIONS

Cost Effective Speakers for

Indoor and Outdoor Use

Features

The 25AE, 30AE, 35AE,

and 40AE paging speak-

ers provide additional

economical paging cov-

erage to existing Viking

paging units (PA-2A,

PA-15, PA-30, PA-60,

HF-3W, M2W) or to any

system with an 8 ohm

output.

In outdoor, factory or

warehouse environments, 25AE paging

horns are the best method of producing

understandable sound. In these environ-

ments the directional design allows the in-

staller to focus the sound cone down aisles

and toward work areas.

In office and restaurant environments, it is

best to distribute sound more evenly. Ceil-

ing mounted 30AE, 35AE, or 40AE speak-

ers in close proximity offer the best

distribution and are cost effective. The

35AE speakers include a volume control.

25AE Paging Horn

• Adjustable base for easy mounting and

directional adjustment

• Compact design for discreet mounting

30AE/35AE Ceiling Speakers

• Metal white grill for flush mounting in

office ceilings

• Mounting hardware included

• Excellent frequency response

• The 35AE includes a volume control

40AE Ceiling Speakers

• Attractive with a modern look

• Flush mounts into a 9.5” to 10” diameter

hole

• Integral mounting system

• Excellent sound quality

• Add additional speakers and coverage

area to existing paging systems such as

Viking models:

- PA-2A (DOD# 485)

- PA-15 (DOD# 486)

- PA-30 (DOD# 489)

- PA-60 (DOD# 493)

- HF-3W (DOD# 470)

- M2W (DOD# 480)

• Add speakers to the DVA-2WA

• For greater intelligibility and louder paging

see Viking model 300AE Paging Horn

(DOD# 497)

See complete specifications on page 2.

25AE/30AE/

35AE/40AE

Paging Horn and

Ceiling Speakers

July 28, 2014

Applications

Specifications

www.vikingelectronics.com

Information: (715) 386-8861

VIKING

30AE 35AE 40AE 25AE

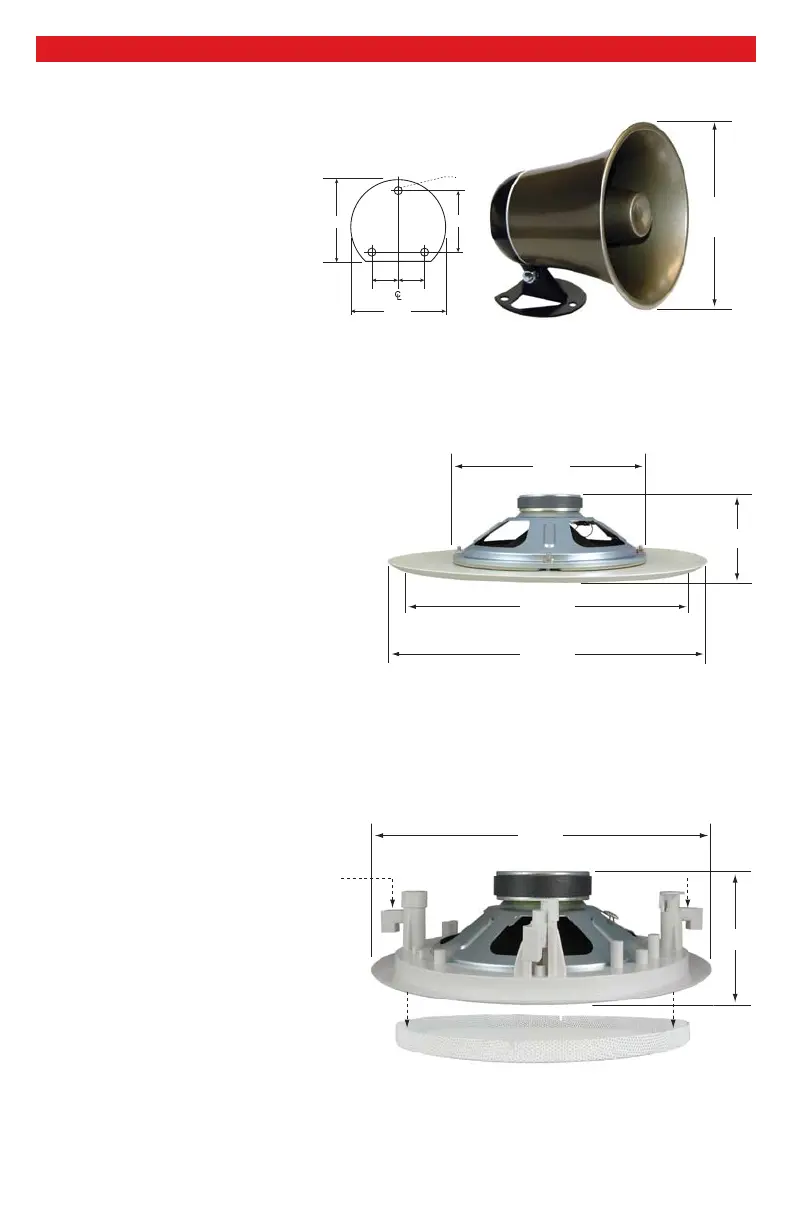

Specifications and Installation

Nominal Power: 12 Watts

Impedance: 8 Ohms

Dimensions: 127mm (5”) diameter

Shipping Weight: .68 kg (1.5 lbs)

Environmental: 5% to 95% non-

condensing humidity

Frequency Response: 600 Hz to

7000 Hz

Installation: The 25AE paging horn

is designed to be surface mounted

to any rigid surface. Designed to

meet IP53 ingress protection rating when mounted with horn pointing downward at least 45 degrees

from horizontal.

A. 25AE Paging Horn

5.0"

diameter

0.788” 0.788”

2.77”

1.87”

2.44”

Mounting Plate

Dimensions

(3) 0.244”

diameter

holes

Nominal Power: 6 Watts

Impedance: 8 Ohms

Connection: 6“ 16 awg Pigtail (35AE)

.25” Faston Terminal (30AE)

Dimensions: 324mm x 95mm (12.75”

x 3.75”)

Shipping Weight: 1.36 kg (3 lbs)

Environmental: 5% to 95% non-con-

densing humidity

Frequency Response: 85 Hz to

15,000 Hz

Installation: Mounting hardware for the 30AE and 35AE ceiling speakers is included for easy in-

stallation in drop ceilings or speaker enclosures. Flush mount into an 8.25” to 10.0” diameter hole.

B. 30AE/35AE Ceiling Speaker

12.75"

overall diameter

11.25"

between mounting holes

8.1"

speaker diameter

2.75"

Nominal Power: 15 Watts

Impedance: 8 Ohms

Dimensions: 270mm x

90mm (10.6” x 3.6”)

Shipping Weight: 1.36 kg

(3 lbs)

Environmental: 5% to 95%

non-condensing humidity

Frequency Response: 85

Hz to 15,000 Hz

B. 40AE Ceiling Speaker

10.6"

overall diameter

3.6"

Push

Installation: The 40AE has an integral

mounting system that requires only a

phillips screw driver to quickly flush mount

the speaker into a 9.5” to 10” diameter hole.

Before mounting the 40AE speaker, push the four mounting brackets to pop off the grill as shown in

the diagram.

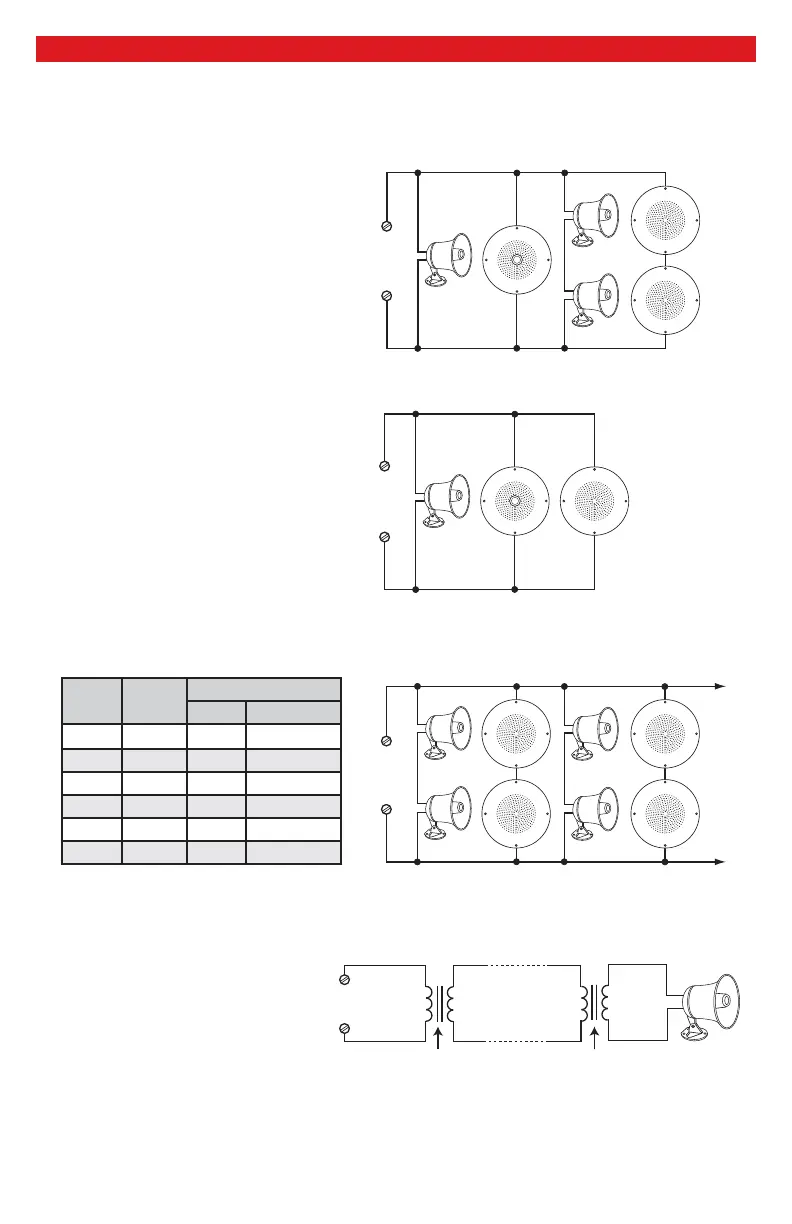

Wiring

A. Series / Parallel

Speaker A will have approximately twice

the volume of speaker B, as shown in the

wiring diagram to the right.

Note: The 25AE paging horn is approximately 5dB louder than the ceiling speakers.

Important: The 35AE ceiling speaker must be parallel wired.

Paging

Amp

B. Parallel

Similar speakers will have the same vol-

ume, as shown in the wiring diagram to

the right.

Paging

Amp

C. Series / Parallel

If connected as shown below right, see the table for speaker recommendations.

Paging

Amp

8 Ohm Speakers

Paging

Amp

Outputs

Speaker per Output

Parallel Series/Parallel

HF-3W 1 1 2

M2W 1 3 6

PA-2A 1 3 6

PA-15 1 15 30

PA-30 215 30

PA-60 4 15 30

D. Long Cable Runs

Very long runs may require step up

transformers, as shown in the

wiring diagram to the right. For

more information, see the Page

Power Chart, DOD# 895.

Parts Express part # 300-040 or equivalent

(contact Parts Express at: 800-338-0531)

8 Ohm

70V

8 Ohm

Paging

Output
