Viale Vicenza 14

36063 Marostica VI - Italy

www.vimar.com

01741 01 2411

01741

BY-ALARM PLUS

By-alarm Plus passive infrared detector for the protection of building exteriors, independent 12-metre curtain-effect detection on each side (left

and right), with anti-masking, PET immune, IP55, 2 NO and NC 28 VDC 0.1 A relay outputs per output, 9.5-18 VDC 34 mA 12 V power supply,

surface mounting, for outdoor use.

The device features an anti-masking function and four PIR, i.e. two on each side. They can be set independently from one another for total control of the left and right detection zones. The

detection range, sensitivity and alarm output can be configured completely independently for the left and right side. The detection distance can be set to 2.5 m, 3.5 m, 6 m, 8.5 m and 12

metres on each side. Sensitivity can be set to between low and extremely high, with the possibility of detecting only a temperature difference of 1 degree °C.

CHARACTERISTICS

• Power supply: 9.5-18 VDC

• Absorption: 34 mA a 12 VDC

• Detection mode: passive infrared

• Cover: 24 m and 4 zones on two independent sides:

- 12 m per side

- 2 zones on each side, 180° narrow

• Detection range from the wall (selectable):

- 0° near the wall

- 3° away from the wall

• Detection length limit: from 2.5 to 12 m (5 levels: 2.5-3.5-6-8.5-12)

• Alarm output (R): 28 VDC 0.1 A (max); [Individual: Right or General], [NO or NC] selectable

• Alarm output (L): 28 VDC 0.1 A (max); [Individual: Left or General], [NO or NC] selectable

• Fault output: NC 28 VDC 0.1 A (max)

• Tamper output: NC 28 VDC 0.1 A (max), open when the front cover or the fixing base are removed

• Detectable speed: from 0.3 to 2 m/s

• Sensitivity individually settable for each side:

- Normal, 2 °C (at 0.6 m/s)

- High, 1 °C at 0.6 m/s

• Initialisation time: approximately 60 s

• Alarm duration: 2 1 s±

• Operating temperature: - 30..+ 60 °C

• Ambient humidity: 95%

• Protection degree: IP55

LED SIGNALLING

Red side LED:

• permanently lit -> Alarm

• flashing -> Masking detection and initialisation phase

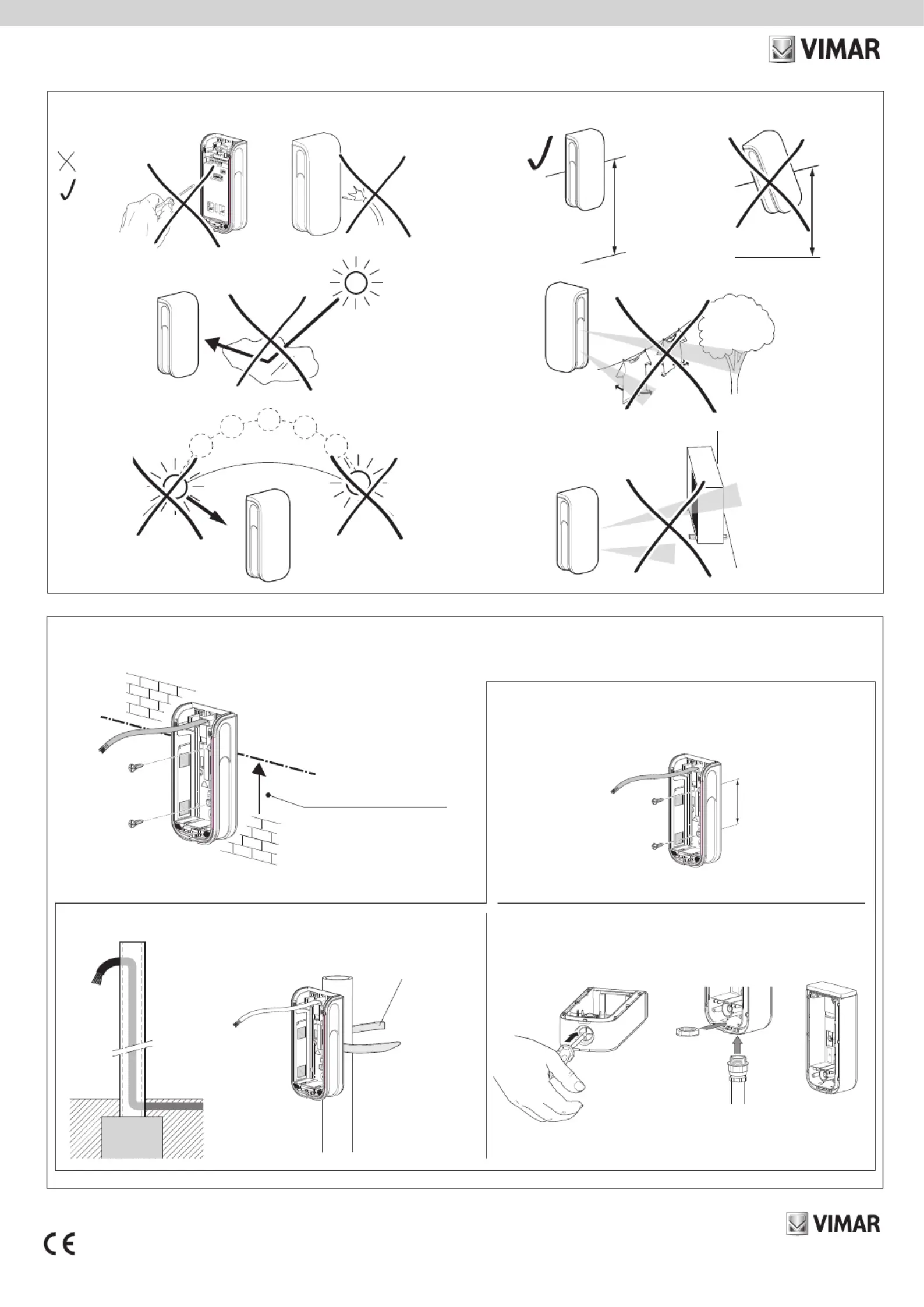

INSTALLATION RULES

• Installation must be carried out by qualified persons in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are

installed.

• Install the detector in a place where no cause for false alarms is present, such as:

- sunlight and reflections;

- heat sources;

- moving objects or objects which the wind may move.

• The ideal installation height is between 0.8 to 1.2 m with the base of the detector always parallel with the wall.

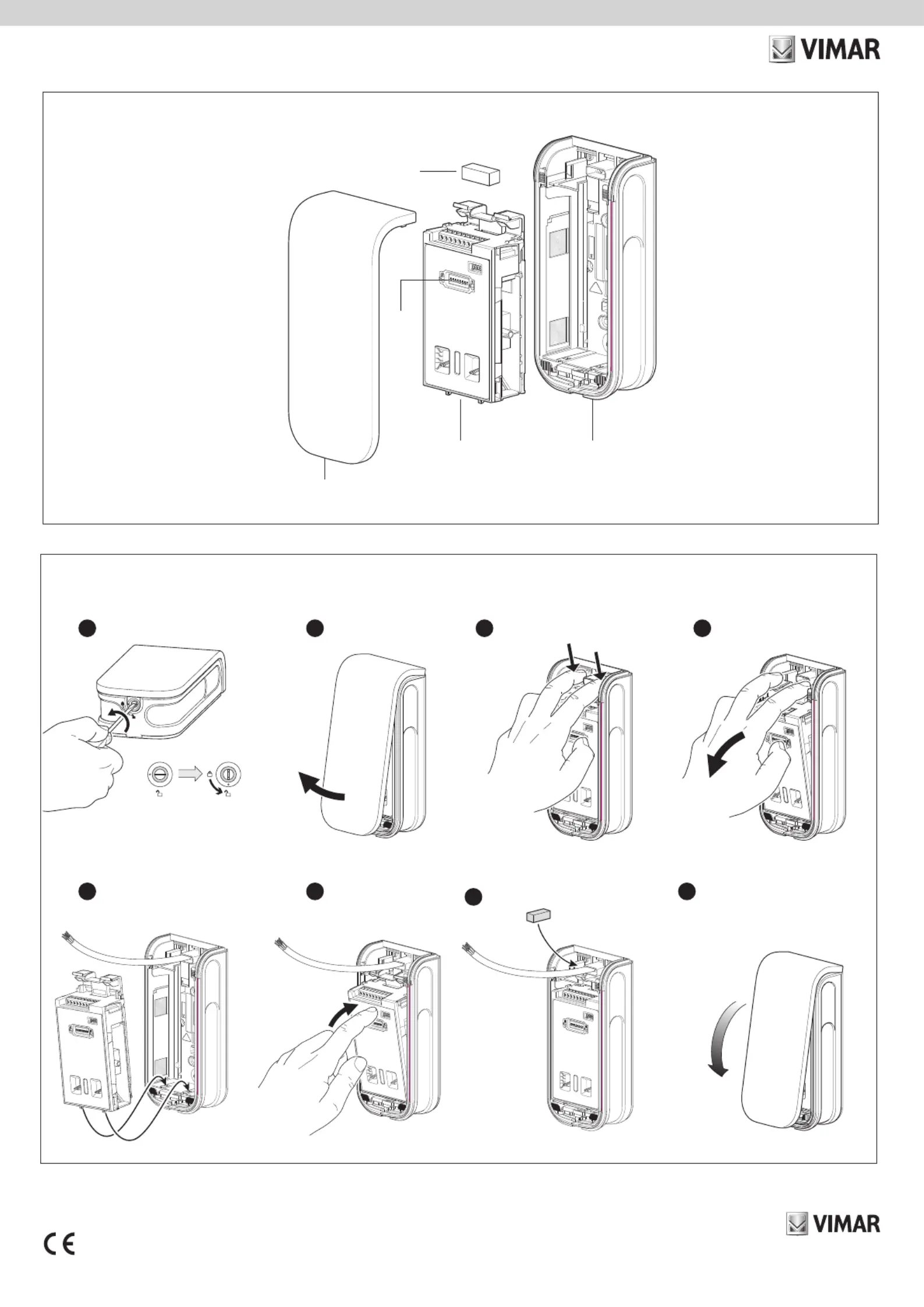

• The detector can be mounted using mounting frame art. 01741.S which increases its thickness in the event of specific installation requirements.

REACH (EU) Regulation no. 1907/2006 – Art.33. The product may contain traces of lead.

WEEE - User information

The crossed out bin symbol indicates that the product must be sent to separate collection facilities for recovery and recycling, in compliance with the national laws of EU Countries that implement the WEEE Directive. The objective is to prevent

any harmful effects on the environment and on human health by ensuring that products are disposed of correctly, avoiding illegal disposal sanctioned by law.

To dispose of the product correctly, please check local dispositions in your country.
