Viale Vicenza 14

36063 Marostica VI - Italy

www.vimar.com

01743 01 2411

01743

BY-ALARM PLUS

By-alarm Plus barrier kit consisting of TX/RX active infrared pair (AIR) with outdoor range of 60 metres, with 4 selectable channels to create a

column barrier comprising several stacked detectors, IP65, 1 NO/NC 28 VDC 0.2A relay output for alarm, 1 NC 28 VDC 0.2A relay output to prevent

false alarms due to adverse weather conditions (fog, rain, snow), 10.5-28 VDC power supply with 48 mA 12V surface, pole, column mounting, for

outdoor use.

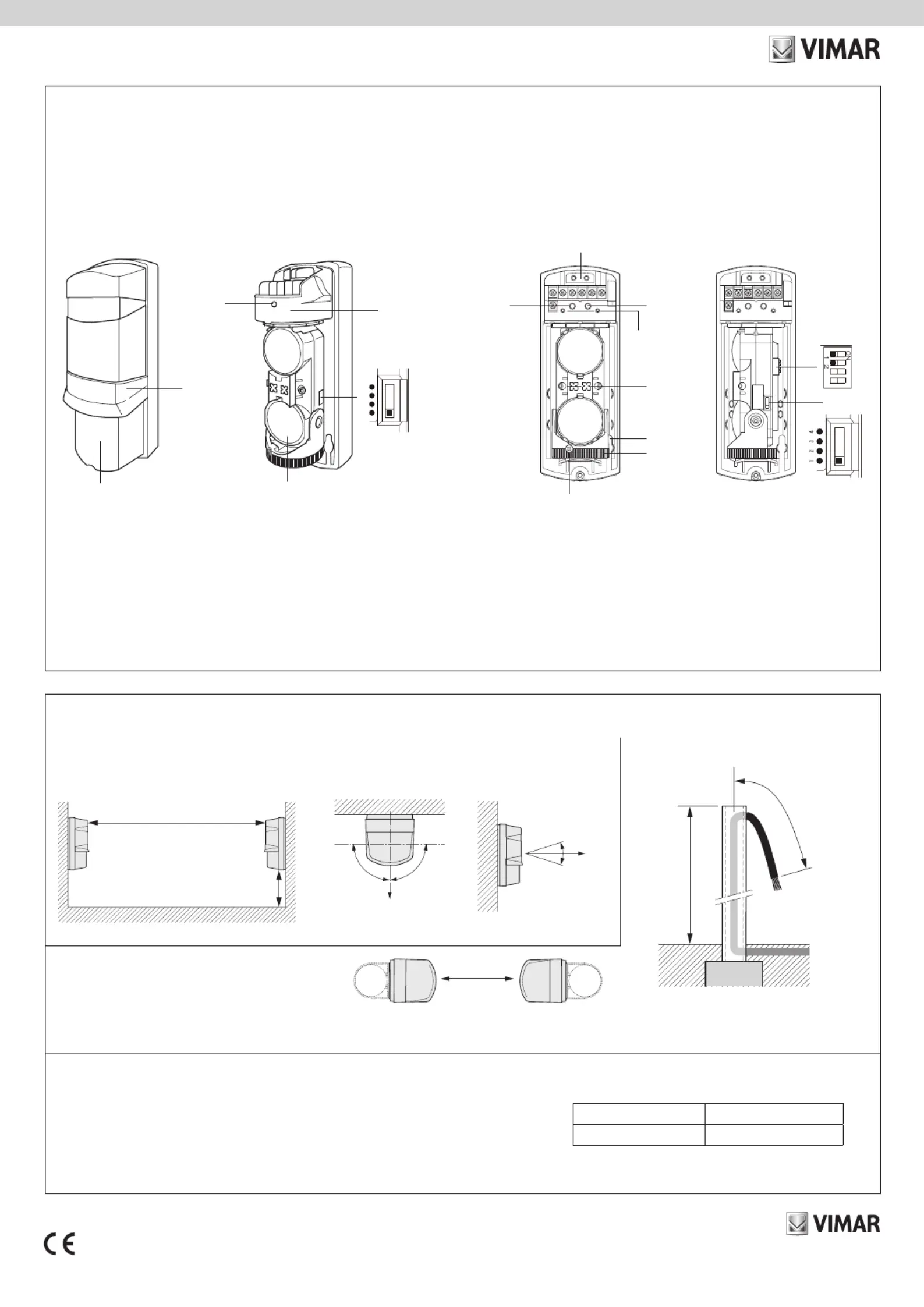

The barrier is equipped with a compact photoelectric detector with “high durability IP65” and “stable detection performance levels” which drastically reduce false and sealed enclosure

alarms caused by sudden changes in the outdoor environment and allow for a wide range of uses. The barriers come with a roof to prevent the formation of dew on the lower beams

and also allow easy maintenance thanks to the flat surface of the cover. The adjustment is made simply yet precisely with the horizontal alignment knob and the vertical adjust-

ment screw; the 4-level alarm LED indicates the alignment condition via 4 different processes to achieve easy and accurate alignment before the final adjustment. The barrier

is equipped with an A.G.C. circuit (automatic gain control) which constantly controls gradual variations in the signal caused by atmospheric conditions; it adjusts sensitivity to

maintain the signal level at optimum environmental conditions even with 99% obstruction of the beam caused by heavy rain, fog or snow. The beam interruption time (necessary

to release an alarm) can be adjusted and adapted to any situation such as protecting a wall or fence, for instance. The beam frequencies can be selected and are used to avoid

undesired interference which could occur when using multiple beams over long distances or barriers installed in a column. The false alarm due to adverse weather conditions

circuit allows a fault signal to be sent when the intensity of the beam is below the threshold level due to thick fog, mist, rain or other adverse conditions; the fault signal output

remains for the whole time the beam intensity remains below the threshold level.

CHARACTERISTICS

• Power supply: 10.5-28 VDC

• Absorption: 48 mA max (transmitter 10 mA, receiver 38 mA)

• Range: 60 m

• Max transmission/reception distance in an open field: 600 m

• Alignment angle of the internal optics: ±90° horizontal, ±5° vertical

• Detection mode: infrared beam interruption

• Selectable beam frequency: 4 channels

• Interruption time: selectable between 50, 100, 250 and 500 ms (4 positions)

• Alarm output: NO or NC 28 VDC 0.2 A max.

• Alarm period: 2 sec (±1) rated

• False alarm due to adverse weather conditions output: NC 28 VDC 0.2 A max.

• Tamper output: NC 28 VDC 0.1 A (max), open when the front cover is removed

• Operating temperature: from –35°C to +60°C (use heater 01743.H in the event of temperatures below –25 °C).

• Ambient humidity: 95%

• Protection degree: IP65

CHARACTERISTICS OF HEATER 01743.H

• Power supply: 24 VAC/DC

• Absorption: 420 mA max

• Thermostat: 60°C

• Operating temperature: from -35 °C to +60 °C

LED SIGNALLING

Transmitter

• on green -> Power on

Receiver

• on red -> Alarm

• flashing red or off -> Beam reception

Alarm memory: on red or flashing (for full details please refer to the section entitled “Alarm memory”)

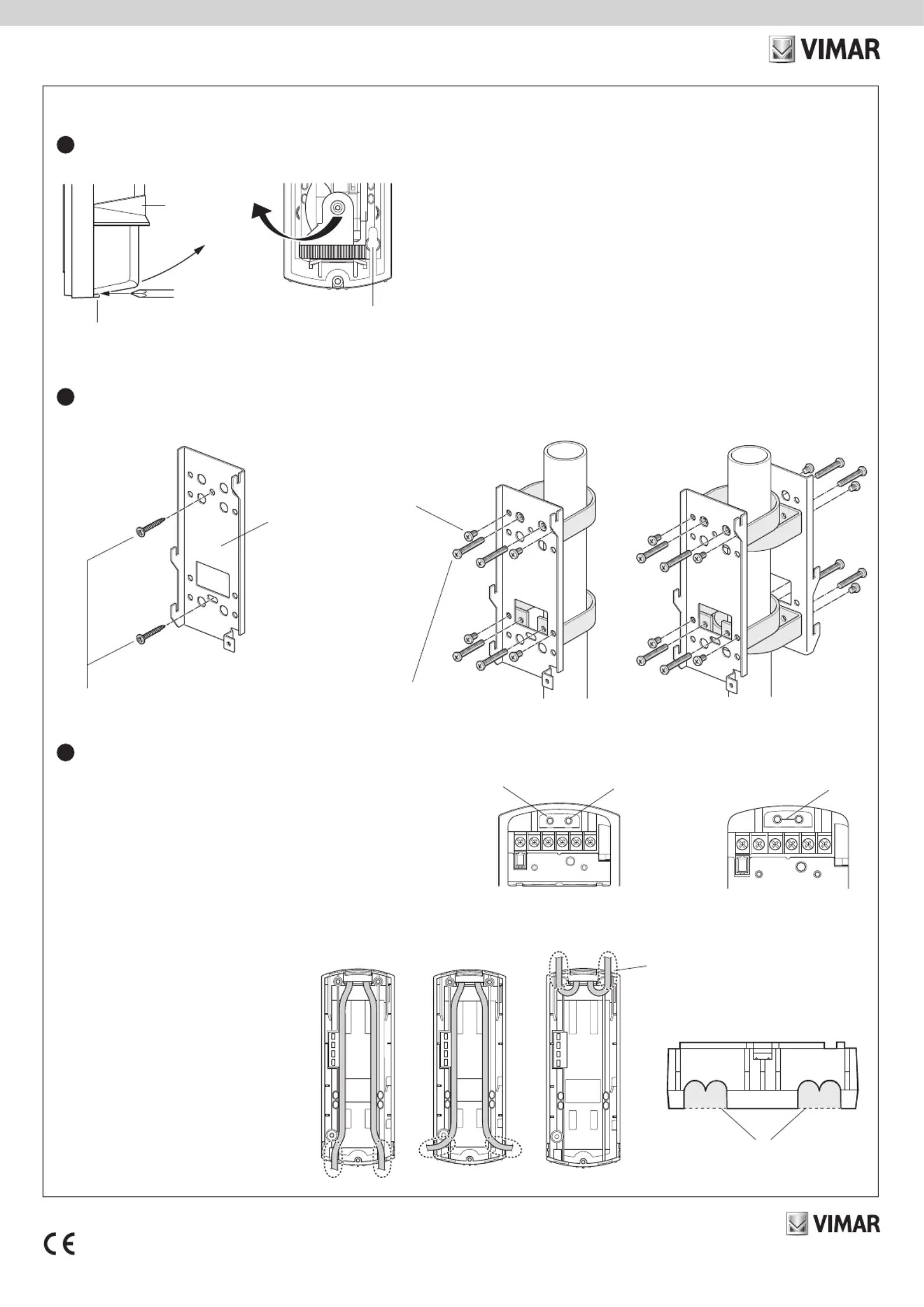

INSTALLATION RULES

• Installation must be carried out by qualified persons in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are

installed.

• Do not use the device for purposes other than to detect moving objects such as people or vehicles.

• Do not use the device to activate roller shutters, shutters, etc. which could damage property and/or harm people.

• Do not touch the base of the device or the power supply terminals with wet hands and do not touch the product when it has been rained on.

• Do not disassemble the product for repair reasons; this could cause a ﬁre or damage the device.

• Do not exceed the voltage or current values indicated in each terminal.

• Do not pour water onto the device; it could penetrate the inside and damage it.

• Clean and check the device is working properly on a regular basis.

REACH (EU) Regulation no. 1907/2006 – Art.33. The product may contain traces of lead.

WEEE - User information

The crossed out bin symbol indicates that the product must be sent to separate collection facilities for recovery and recycling, in compliance with the national laws of EU Countries that implement the WEEE Directive. The objective is to prevent

any harmful effects on the environment and on human health by ensuring that products are disposed of correctly, avoiding illegal disposal sanctioned by law.

To dispose of the product correctly, please check local dispositions in your country.
