01970
492.18012 0B 0409 VIMAR - Ma stica - Italyro
I > Imax
OV
ON
29 V
492.19702A0 0A 0804 VIMAR - Marostica - Italy
BUS
AUX
12-24
01970
POWER SUPPL UNITY
12-24V
3,5-2A
-5°C ÷ +45°C
BUS
AUX
29V
29V
BUS
AUX
I
I
By-me
BUS +
I
AUX
I
VI
800mA
29 V
AUX
29 V
BUS
12-24 V~
Power supply unit with decoupling coil.
At the most 2 power units can be installed on each line.
CHARACTERISTICS.
• Power: 12-24 V~ 20% or 12-24 V d.c. 20%± ±
• Consumption:
- 12 V~: 3,5 A 12 V d.c: 2,5 A
- 24 V~: 2 A
24
V d.c: 1,2 A
• BUS output voltage: 29 V d.c. (SELV) with decoupling coil
• AUX output voltage: 29 V d.c. (SELV)
• Total max output current: 800 mA
• 9 modules of 17,5 mm
INSTALLATION RULES.
• - Installation should be carried out by qualified personnel in complian
ce with the current regulations regarding the installation of electrical
equipment in the country where the products are installed.
• Ensure clearance around the appliance so there is sufficient ventilation.
• There must be no dripping or splashes of water on the appliance.
WARNING: To prevent injury, the appliance must be secured to the wall as
described in the installation instructions.
CONFORMITY TO STANDARDS.
EMC directive.
Standards EN 60065, EN 50090-2-2, EN 55025.
For MARINE use, this device has been submitted to the following tests:
IEC 60068-2-52 - Test Kb: Salt mist, cyclic (sodium, chloride solution),
IEC 60068-2-6 - Test Fc: Vibration (sinusoidal).
REACH (EU) Regulation no. 1907/2006 – Art.33. The product may contain
traces of lead.

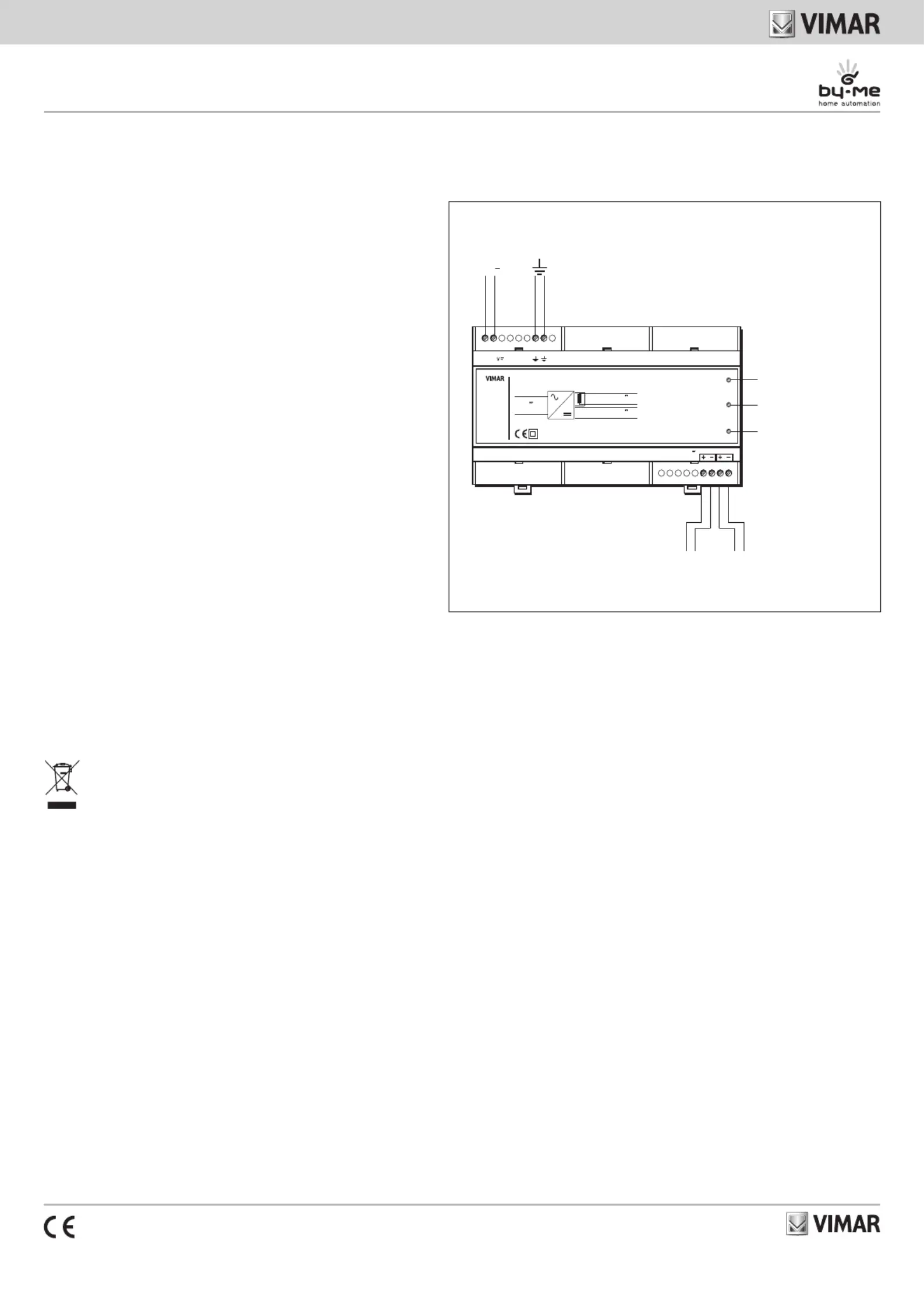

FRONT VIEW AND CONNECTIONS.
Overload
Output overvoltage
Mains voltage
Power supply unit with 29 V d.c. 800 mA output, supply voltage 12-24 V~ 50-60 Hz or 12-24 V d.c. , with decoupling coil, DIN rail
(60715 TH35) installation, occupies 9 modules.
WEEE - Information for users
If the crossed-out bin symbol appears on the equipment or packaging, this means
the product must not be included with other general waste at the end of its working
life. The user must take the worn product to a sorted waste center, or return it to the
retailer when purchasing a new one. Products for disposal can be consigned free
of charge (without any new purchase obligation) to retailers with a sales area of at
least 400 m
2
, if they measure less than 25 cm. An efficient sorted waste collection for
the environmentally friendly disposal of the used device, or its subsequent recycling,
helps avoid the potential negative effects on the environment and people’s health, and
encourages the re-use and/or recycling of the construction materials.
