46XVR.E04 - 46XVR.E08
1 - Introduction
1.1 - Summary
Series of multi-technology DVRs, allow to select the input technology for
each single channel, selectable between: AHD, CVBS, IP, TVI and CVI.
They are able to manage and record cameras up to 5Mpx in H.264 and
H.265 compression, available in 4 and 8 channel versions.
2 - Basic Operation Guide
2.1 - Startup & Shutdown
Please make sure all the connections are done properly before you
power on the unit. Proper startup and shutdown are crucial to expending
the life of your device.
2.1.1 - Startup
1- Connect the output display device to the VGA/HDMI interface of the
DVR.
2 - Connect with the mouse and power on. The device will boot and the
power LED would turn blue.

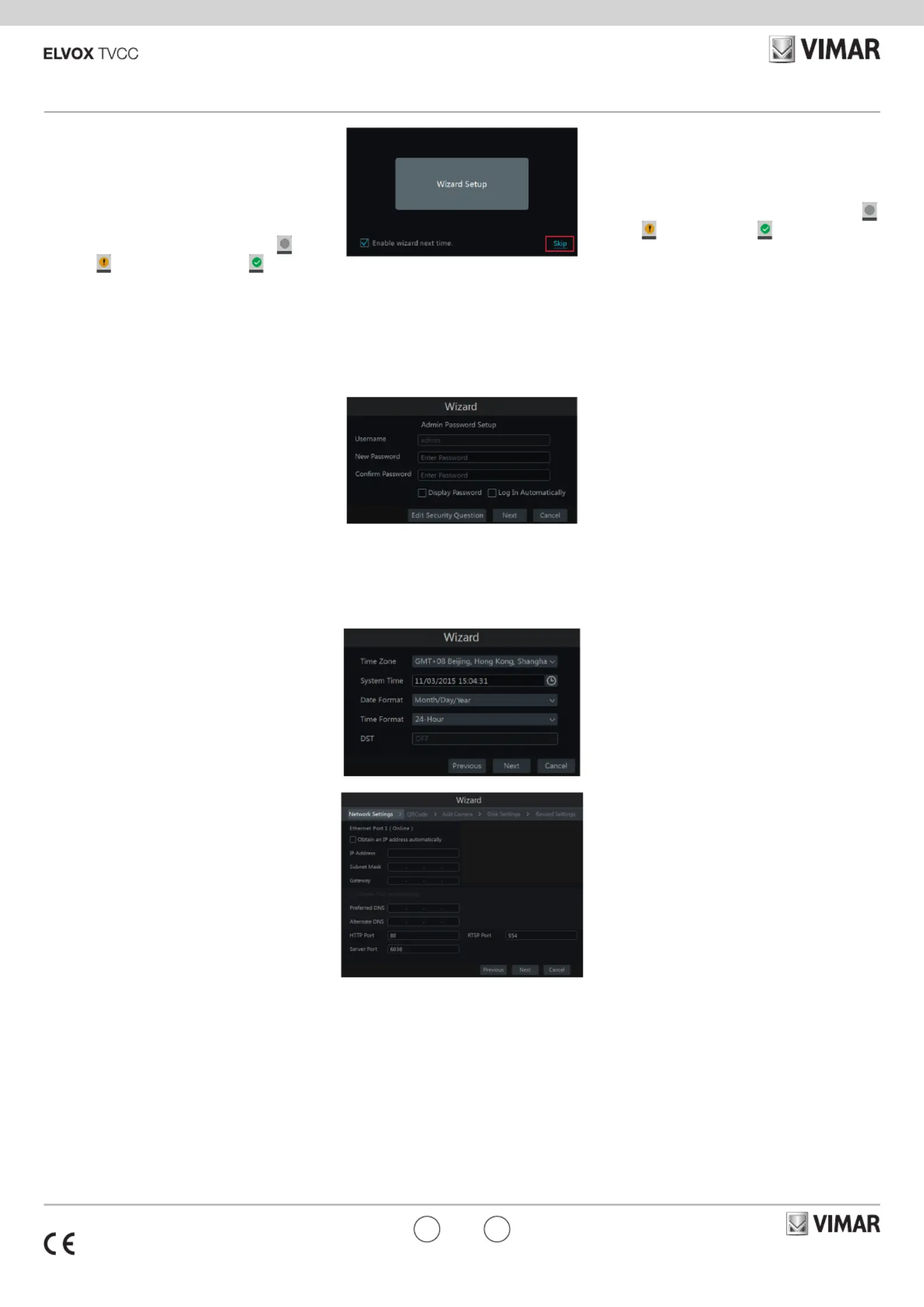

3 - A WIZARD window will pop up (you should select the display
language the rst time you use the DVR). Refer to 3.1 Startup Wizard
for details.
2.1.2 - Shutdown
1 - Click Start
Shutdown to pop up the Shutdown window. Select
“Shutdown” in the window. The unit will power o after a while by
clicking “OK” button.
2 - Disconnect the power.
1 - Introduzione
1.1 - Riepilogo
Gamma di DVR multi-tecnologia, permettono di selezionare la tecnologia
di ingresso per ogni singolo canale, selezionabile tra: AHD, CVBS, IP,
TVI e CVI. Sono in grado di gestire e registrare telecamere no a 5Mpx
in compressione H.264 e H.265, disponibili nelle versioni 4 e 8 canali.
2 - Guida all’utilizzo di base
2.1 - Avvio e spegnimento
Prima di collegare l’unità all’alimentazione, vericare che tutti i
collegamenti siano stati eseguiti correttamente. Un corretto avvio e
arresto è estremamente importante per la durata del dispositivo.
2.1.1 - Avvio
1 - Collegare il dispositivo di visualizzazione all’interfaccia VGA/HDMI
del DVR.
2 - Collegare il mouse e accendere. Il dispositivo si avvia e il LED di
alimentazione diventa blu.
3 - Comparirà una procedura guidata (selezionare la lingua la prima
volta che si utilizza il DVR). Per ulteriori dettagli, fare riferimento a 3.1
Procedura guidata per l’avvio.
2.1.2 - Spegnimento
1 - Fare clic su Start Shutdown (arresto) e comparirà la nestra di
arresto. Selezionare “Shutdown” (“Arresto”) all’interno della nestra.
Dopo un momento di attesa, l’unità si spegnerà facendo clic sul
pulsante “OK”.
2 - Scollegare l’alimentazione.
Speciche / Specications
Modello 46XVR.E04 46XVR.E08
Sistema
Sistem
Compressione / Compression Standard H.264 / H.265
CPU Cortex A9
Video
Ingressi / Input BNC x 4 BNC x 8
Telecamere IP / IP camera
2 in aggiunta alle 4 telecamere analogiche
2 in addition to the 4 analog cameras
4 in aggiunta alle 8 telecamere analogiche
4 in addition to the 8 analog cameras
Uscita Monitor / Monitor Output
HDMI x 1: 1920 x 1080 / 1280 x 1024 / 1024 x 768
VGA x 1:1920 x 1080 / 1280 x 1024 / 1024 x 768
BNC x 1 : MAIN o SPOT
Audio
Ingressi / Input RCA x 4 RCA x 8
Uscite / Output RCA x 1
Registrazione
Record
Risoluzione di registrazione / Record resolution
5MP Lite
10fps
4MP Lite/1080p
12fps
1080p Lite/720p/WD1
25fps
5MP Lite
10fps
4MP Lite/1080p
12fps
1080p Lite/720p/WD1
25fps
Risoluzione di registrazione telecamere IP /
Record resolution IP camera
5MP 25 fps
Bit rate 32 Kbps ~ 4 Mbps
Play Back
Riproduzione / Playback 4 CH 8 CH
Ricerca / Search Ora/ricerca per calendario/evento (sensore, movimento)
Allarmi
Alarm
Modalità / Mode Sensore, movimento, perdita video / Sensor, Motion, Video Loss
Ingressi / Input 4 CH 8 CH
Uscite / Output 1 CH 2 CH

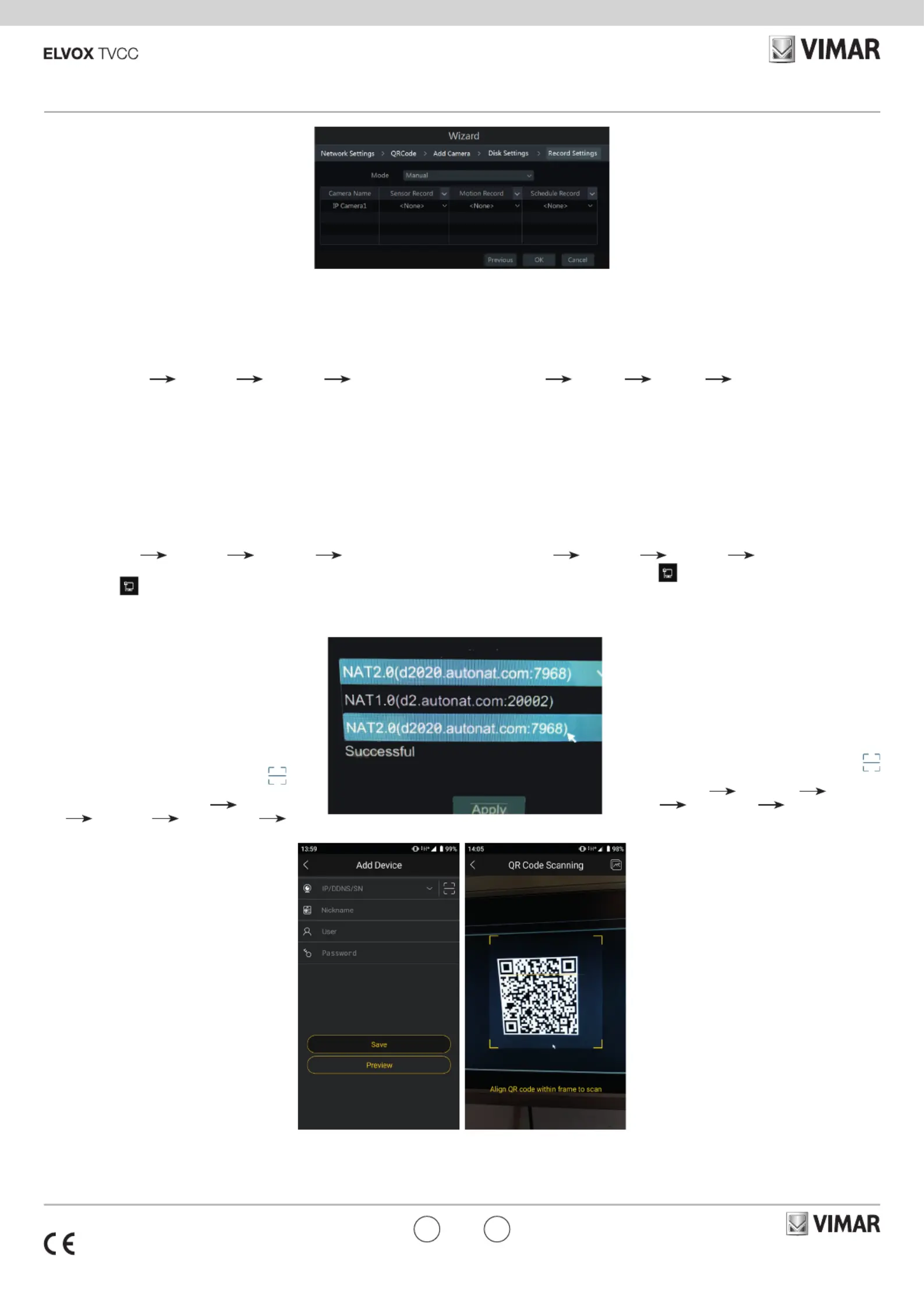

Rete
Network
Interfaccia / Interface RJ45 100M x 1
Protocollo / Protocol TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS
Memoria/Storage HDD SATA x 1 SATA x 1 , E-SATA x 1
Porte
Port
RS485 RS485 x 1
USB 2 USB 2.0
Altro
Others
Alim./ Consumo
Power Supply / Consumption
12Vdc < 15 W 12Vdc < 15 W
Dimensioni / Dimensions 300 x 248 x 52 mm (WxDxH)
Ambiente di esercizio / Work Environment - 10 °C ~ 50 °C, 10 % ~ 90 % umidità / humidity
