Side 1/42
Installer guide
Art. 6931

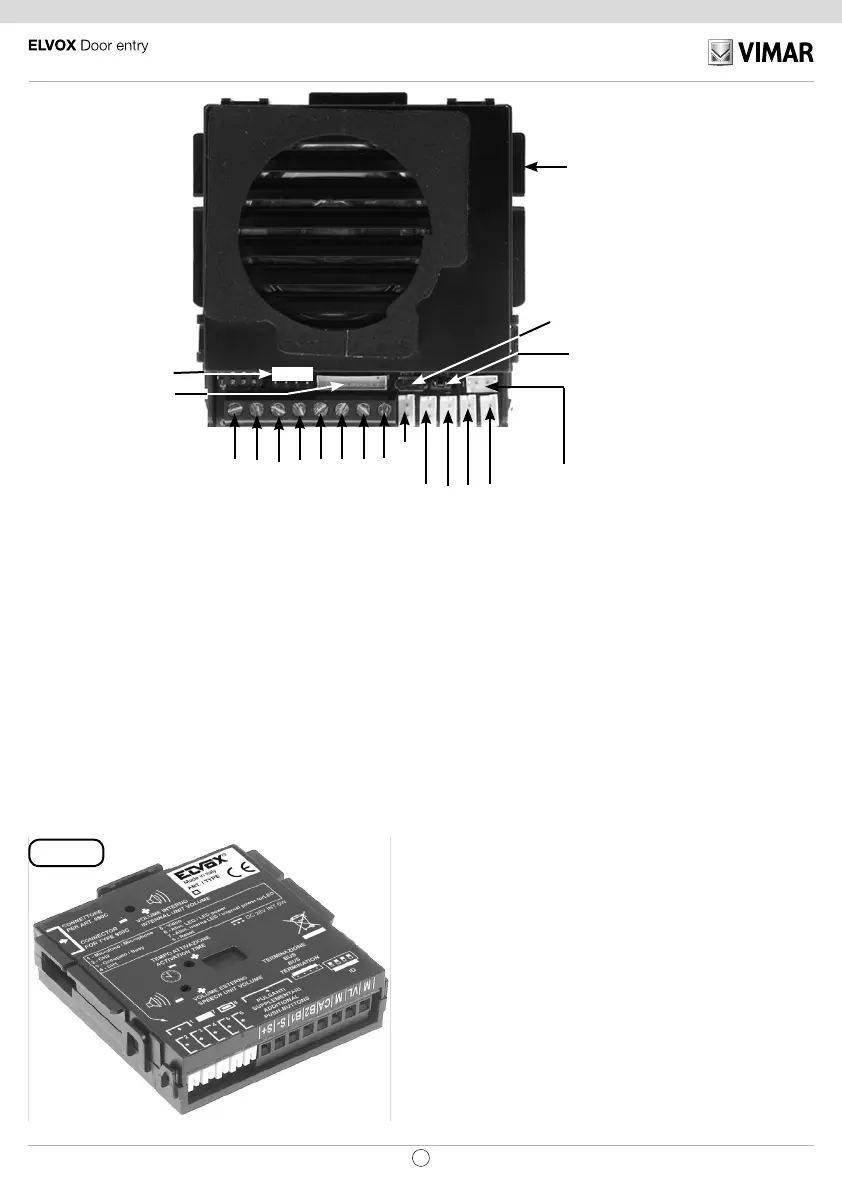

Audio entrance panel Due Fili unit
The expansion modules (type 12TS, 12TS/0, 693p, 8051, 8052, 8053,
8054) can be connected to speech unit type 6931 to increase the num-
ber of the call push-buttons according to the type of panel.
12TS Additional module with 4 call push-buttons to install in panels
series 1200.
12TS/0 Additional module for connecting 8 push-buttons, applicable
also to entrance panels not belonging to the Elvox series.
693P Addition module with reduced dimensions: 48x70x19 mm (W
x H x D), to be applied also to non ELVOX entrance panels.
8054 (8051, 8052, 8053) additional modules with 4, 1, 2, 3 call
push-buttons with plates, for entrance panels series 8000.
Cable for additional
push-button modules to
CN10
Cable for “Engaged – Please
wait” to C3.3
(Two coloured wires: one red
and one black)
Cable for two push-buttons
to C 3.4 - CH1
to C 3.2 - CH2
((Two coloured green wires)
Cable for name-tag lighting
a C3.6 - Name-tag led
(Two coloured wires: one
green and one black)
Microphone
C3.2 - C3.4
Bracket with xing
screws for speech unit
GENERAL INFORMATION
Article 6931 is a speech unit for DUE FILI PLUS
audio door entry systems. Article 6931 can manage up to 200 calls
and can be used as a Master speech unit, making it possible to create
audio door entry systems. In addition, it can co-exist with video panels
in a mixed DUE FILI PLUS system (interphone/monitor), by using con-
centrators art. 692C.
It can be installed in entrance panels series:
- 8000
- 8100
- Patavium
- 3300
- Mail boxes (2550/301 and 2550/302)
- 1200 (for more than 2 push-buttons it is necessary to couple one or
more additional plates with push-buttons type 125x).
Speech unit type 6931 is completely equivalent to type 6930. The
only difference is that, in case of connection of camera type 6570,
657C or interface for TVCC camera type 693T it enables a higher di-
stance between the speech unit and the camera (see wiring diagrams
N. SI559, SI560 for the maximum length of wiring).
Type 6931 can be coupled with B/W or colour cameras, or with conver-
ter module for external camera type CCTV.
Type 6570 B/W camera without speech unit
Type 657C Colour camera without speech unit
Type 693T Converter module for external B/W or colour camera
(type CCTV) in 4 DIN modules enclosure.
Series of en-
trance panels
With internal camera
type 6931 + type 6570
type 6931 + type 657C
With external camera
type 6931 + type 693T
8000 YES
by applying
type 8010 + 8020 (for
6570)
type 8010 + 8T20 (for
657C)
YES
8100 NO YES
PATAVIUM NO YES
3300 NO YES
2550/301-302 YES YES
1200 NO YES
2
EN
6931
AREA PER SERIGRAFIA
FONDO POSTO ESTERNO
CONNETTORE
PER ART. 950C
CONNECTOR
FOR TYPE 950C
VOLUME INTERNO
INTERNAL UNIT VOLUME
TEMPO ATTIVAZIONE
ACTIVATION TIME
VOLUME ESTERNO
SPEECH UNIT VOLUME
PULSANTI
SUPPLEMENTARI
ADDITIONAL
PUSH-BUTTONS
A B C
TERMINAZIONE
BUS
BUS
TERMINATION
1
7
ART. / TYPE
6931
ID
4 3 2 1
FON.693.10S
RL 00 - 6/2009
(il fondo non serigrafato è STA.546.003)
Il disegno è rappresentato in negativo, la versione
definitiva è bianco su fondo nero.
M VL M CA B2 B1 S- S+
Serigrafia per morsetti.
44 mm
1 - Microfono / Microphone
2 - CH2
3 - Occupato / Busy
4 - CH1
5 - Video
6 - Alim. LED / LED power
7 - Alim. interna LED / Internal power for LED
8 - Reset
2 3456
R
Made in Italy
DC 28V INT 6W
8
Fig. 1
C3.1 Microphone
Speech unit adjustments
External volume
Speech unit activation time
Internal volume
The settings are printed on the back of the speech unit (see Fig. 1)
M
VL
CN10
C B A
CN9
Connector
for
Art. 950C or
Art. 692I or
Art. 692I/U
M
CA
B2 B1 S-
S+
C3.5 Video
C3.2- CH2
C3.3 Wait/busy
C3.4 - CH1
C3.6 Internal LED power supply
RESET
Speech unit terminals
M VL GROUND
VL POWER SUPPLY OF LEDS FOR SUPPLEMENTARY MODULES
M GROUND
CA DOOR LOCK COMMAND (CONNECT TO “M”)
B2 2-WIRE BUS
B1 2-WIRE BUS
S- LOCK OUTPUT
S+ LOCK OUTPUT
The speech unit gives a current peak IT> 1A for 10 mS after which there follows a holding current I
M
= 200mA for the entire
duration of the lock command (see lock time).
LED supply
voltage for
additional
modules
C3.2- C3.4
3
EN
6931
