Side 1/4

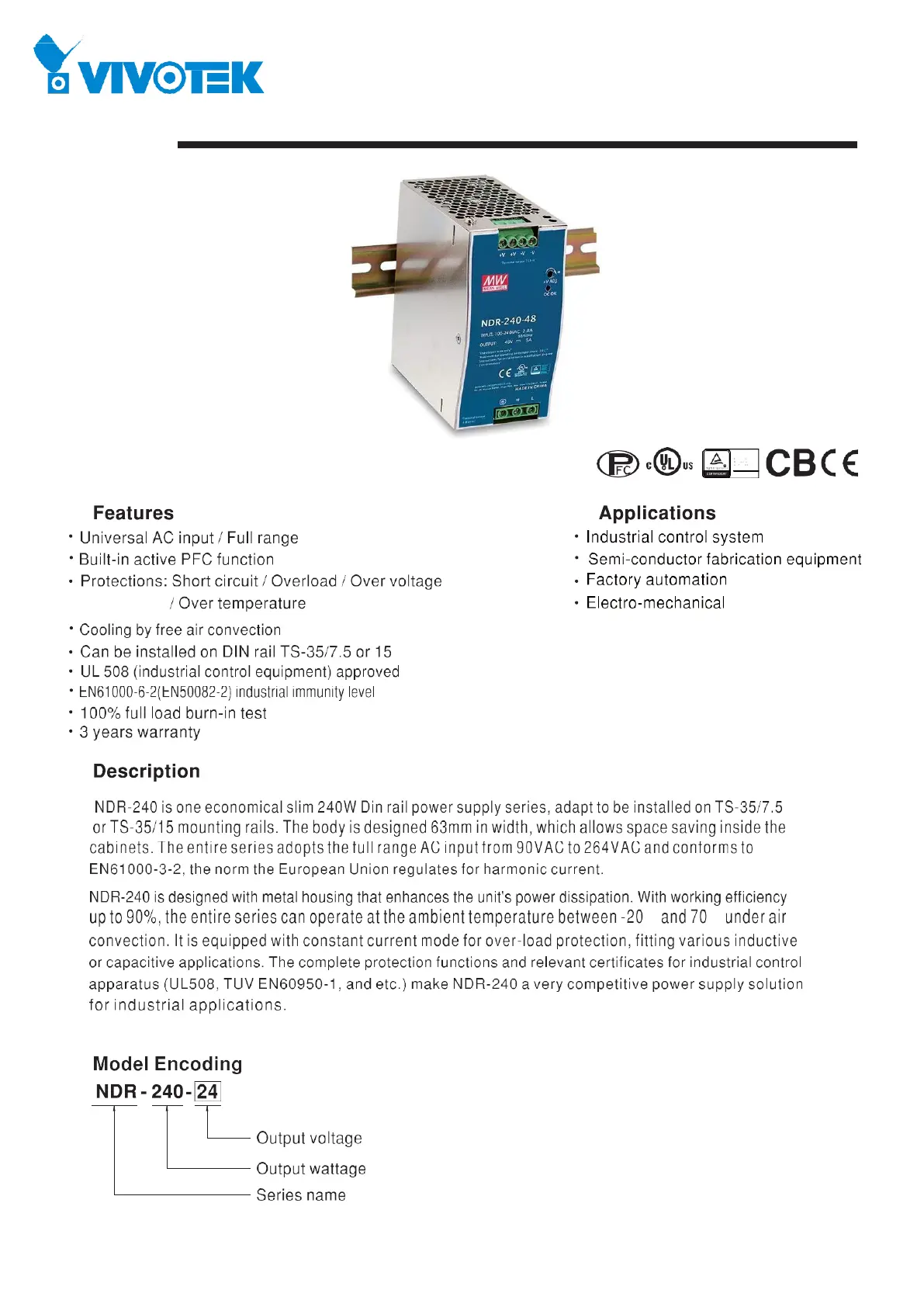

NDR-240 series
240W Single Output Industrial DIN RAIL
File Name:NDR-240-SPEC 2017-11
SPECIFICATION
MODEL
NDR-240-48
OUTPUT
DC VOLTAGE
48V
RATED CURRENT
5A
CURRENT RANGE
0 ~ 5A
RATED POWER
240W
RIPPLE & NOISE (max.) Note.2
150mVp-p
VOLTAGE ADJ. RANGE
48 ~ 55V
VOLTAGE TOLERANCE Note.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1500ms, 100ms/230VAC 3000ms, 100ms/115VAC at full load
HOLD UP TIME (Typ.)
28ms/230VAC 22ms/115VAC at full load
INPUT
VOLTAGE RANGE Note.4
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.98/115VAC, PF>0.95/230VAC at full load
EFFICIENCY (Typ.)
90%
AC CURRENT (Typ.)
2.5A/115VAC 1.3A/230VAC
INRUSH CURRENT (Typ.)
20A/115VAC 35A/230VAC
LEAKAGE CURRENT
<1mA / 240VAC
PROTECTION
OVERLOAD
105 ~ 130% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
56 ~ 65V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
WORKING TEMP.
-20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY &
EMC
(Note 4)
SAFETY STANDARDS
UL508, TUV EN60950-1 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A
OTHERS
MTBF
230.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
63*125.2*113.5mm (W*H*D)
PACKING
1Kg; 12pcs/13Kg/1.1CUFT
NOTE
℃
