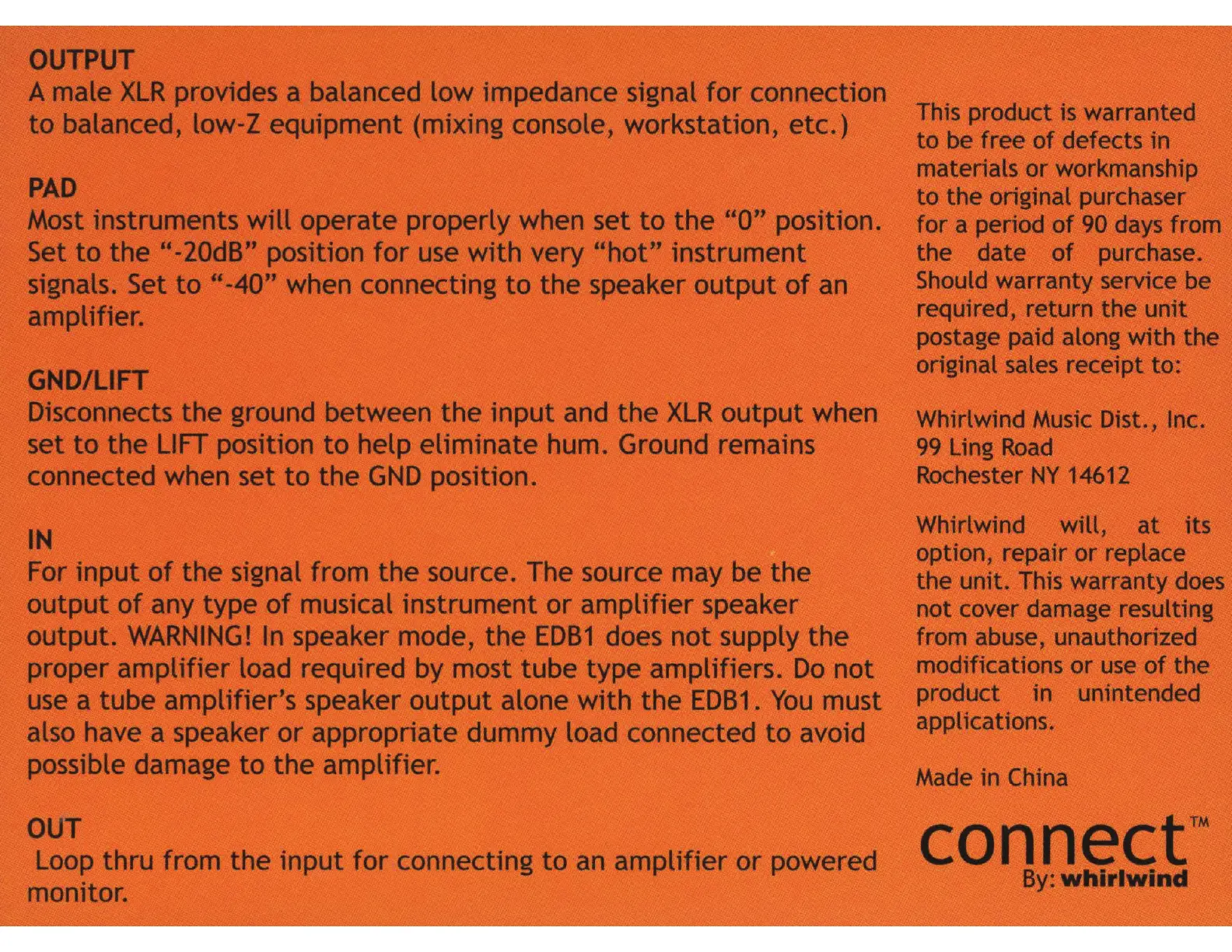

OUTPUT
A male
XLR
provides a balanced
low
impedance signal
for
connection
to
balanced, low-Z equipment (mixing console, workstation,
etc.)
PAD
Most instruments
will
operate properly when set
to
the
"0"
position.
Set
to
the "-20dB" position
for
use
with
very
"hot"
instrument
signals. Set
to
"-40"
when connecting
to
the speaker output
of
an
amplifier.
GND/LIFT
Disconnects the ground between the
input
and
the
XLR
output when
set
to
the
LIFT
position
to
help eliminate hum. Ground remains
connected when set
to
the
GND
position.
IN
For input
of
the
signal from
the
source. The source may be
the
output
of
any type
of
musical instrument
or
amplifier speaker
output.
WARNING!
In
speaker mode, the
EDB1
does not supply
the
proper amplifier load required by most tube type amplifiers.
Do
not
use
a tube amplifier's speaker output alone
with
the
EDB1.
You
must
also have a speaker
or
appropriate dummy load connected
to
avoid
possible damage
to
the
amplifier.
OUT
Loop thru from the
input
for
connecting
to
an
amplifier
or
powered
monitor.
This product is warranted
to
be free
of
defects
in
materials
or
workmanship
to
the
original purchaser
for
a period
of
90
days
from
the date
of
purchase.
Should warranty service be
required, return the
unit
postage paid along
with
the
original
sales
receipt
to
:
Whirlwind
Music
Dist., Inc.
99Ling
Road
Rochester
NY
14612
Whirlwind
will
,
at
its
option, repair
or
replace
the
un
i
t.
This warranty
does
not cover damage resulting
from abuse, unauthorized
modifications
or
use
of
the
product in unintended
applications.
Made
in
China
connect™
By:
whirlwind
