Side 1/3

Mi Wi Fi Router 3

Quick installation

Thank you for choosing Mi Router 3

Three steps to new Smart life

1. Power and net cabel setting

Connect the power adapter, then plug the external

power cord to the appropriate connector of the router.

* Connect one end of the cable to the ber / home

gateway / adsl modem

If you do not have the above devices, connect the

router to a home network cable.

2. ConnectiontoWinetwork

Use your smartphone or computer to search for

and connect devices to set up a Wi network

Xiaomi _ xxxx.

* If you connect the router to your computer using

a network cable, skip this step

* Xxxx - this is the last 4 MAC-address of the

router, which can be checked at the bottom of the

router

3. Open web browser or mobile APP

Scan the QR-code to download

the mobile app Mi Router. To

set a password, visit miwi.com

site, or enter the IP address of

the modem 192.168.31.1.

Smart Home

Manage Mi router using an installed application

MIUI «Mi Smart Home APP» of the system

WIFI acceleration in one click

Click on the «acceleration» and the

router will automatically select the

optimum channel to increase network

speed.

Lockscreen management in one click

Support MIUI system, lockscreen

control, interaction with other Smart

devices in home.

«SmartHomeАРР»installation

Find «Mi Smart Home APP» app at Mi

Store or scan the QR-code, and install

the app on your smartphone.

Introducing

4 outer antennas, wider signal

coverage

Using of powerful Franklin

antenna, supporting for cross-

function signal through walls

Two-channel AC network,

speed increased up to 3

Supporting of 802.11АС protocol,

network speed to 1167Mbps

Pairing with mobile app, more

new functions

Network security, rewall, WiFi

sharing, broadband acceleration

feature.

Smart operating system,

continuously updated and

completely safe

MI WIFI Smart Router Operating

System, continuous optimization

and upgrades provide permanent

security of the router.

XIAOMI-MI.COM

Connectors and buttons

power connector for connecting the AC

adapter to the router.

(Note: we recommend to use only original

Xiaomi adapters).

Reset for a factory settings restoring.

Inter WAN port for connecting

the router to external network

(To ber / home gateway / adsl modem).

LAN port for connecting devices to the

router.

(Connect the router to a power supply and wait

until the blue indicator lights. Press and hold the reset

button for 5 seconds until the indicator light changes

color to yellow. Reset is successfully completed when

the indicator will turn blue again.)

Indicator

Indicator color:

OFF: in o󰀨 position or in the absence of power;

Yellow: Update (LED ickering), the launch of the

system (steady light);

Blue: during normal operation (steady light);

Red: Safe mode (display icker), system failure

(steady light);

* If the router light up the red light, check the FAQ

(Frequently Asked Questions).

Warranty

Warranty conditions

In case of any problems with the operation of the

device is not caused by the human factor, you can

obtain warranty service:

<7 days

Within 7 days of purchase, in case of problems

with operation of the device, Xiaomi service center

determines the cause of a problem. After the

presentation of the receipt, you can choose a free

replacement product, return or repair.

<15 days

Within 15 days of purchase, in case of problems

with operation of the device, Xiaomi service center

determines the cause of a problem. After presentation

of the receipt, you are eligible for a free replacement

product of the same model.

<1 year

Within 1 year from date of purchase, in case of

problems with operation of the device, Xiaomi service

center determines the cause of a problem. After

presentation of the receipt, you are eligible for a free

repair of the goods.

Terms that are not included in the warranty service

The list of circumstances (including, but not limited to),

in which the compensation is not possible:

- No warranty card, receipt or the warranty has expired;

- Damage caused by force majeure: lightning, re or

ood, etc .;

- Damage caused by improper use of the device, its

maintenance or storage;

- Damage resulting from repair device by unauthorized

service centers;

- Inconsistency of this model, the device code with the

data in the warranty card;

- Discoloration or deterioration of the device due to its

use.

Name: Mi Router 3

Model: MIR3

Manufacturer: «Mi Technology, Beijing LLC»

Address: Beijing Economic and Technological

Development Zone, Haiwu str., 58

About the device

FAQ

Why, after a successful connection of outer

network cable and the completion of all the

settings to the network access, error occurs?

Make sure you have correctly connected the network

cable, and verify your username and password; We

recommend a visit to any web page via the mobile app

or web browser by using the smart error detection,

locate and solve a problem. It may take a few minutes.

Error 678: ISP server does not allow re-entry into

the system with the same account.

Remedy: once remove, and then reinsert the cable of

outer network, reset the ber / home gateway / adsl

modem, after 10 minutes, try to connect again.

Error 691: ISP server generates an error: login and

password or the account has expired.

Remedy: check your user name and password.

You can also enter your login and password on the

operator’s website to check the details of payment

XIAOMI-MI.COM

services.

IspossibledeterminateWinetworkname(SSID)

onlocallanguage?WhysometimesnameofWi

network is distorted?

Мі router supports Wi network name in local

languages, but for normal display, you need to connect

to the router by device (smartphone / pad / computer)

that also support local language SSID.

ІР-addressandwebapppassword?

ІР-address of Mi router website is miwi.com or

192.168.31.1. Password of utility is the same, as Wi

password, which was set during device initialization.

Why after switching of the router red light lights

up?

A ashing red LED indicates a system error or a

problem with the operation of the device, as well as

evidence of entering the safe mode. During safe mode,

all data stored on the router, are protected.

You can restore the normal operation of the device with

a network cable or computer software, or to contact a

technical service call to resolve the issue.

A steady red light indicates a malfunction of the system

start-up or a problem with the entrance into safe mode.

xiaomi-mi.com

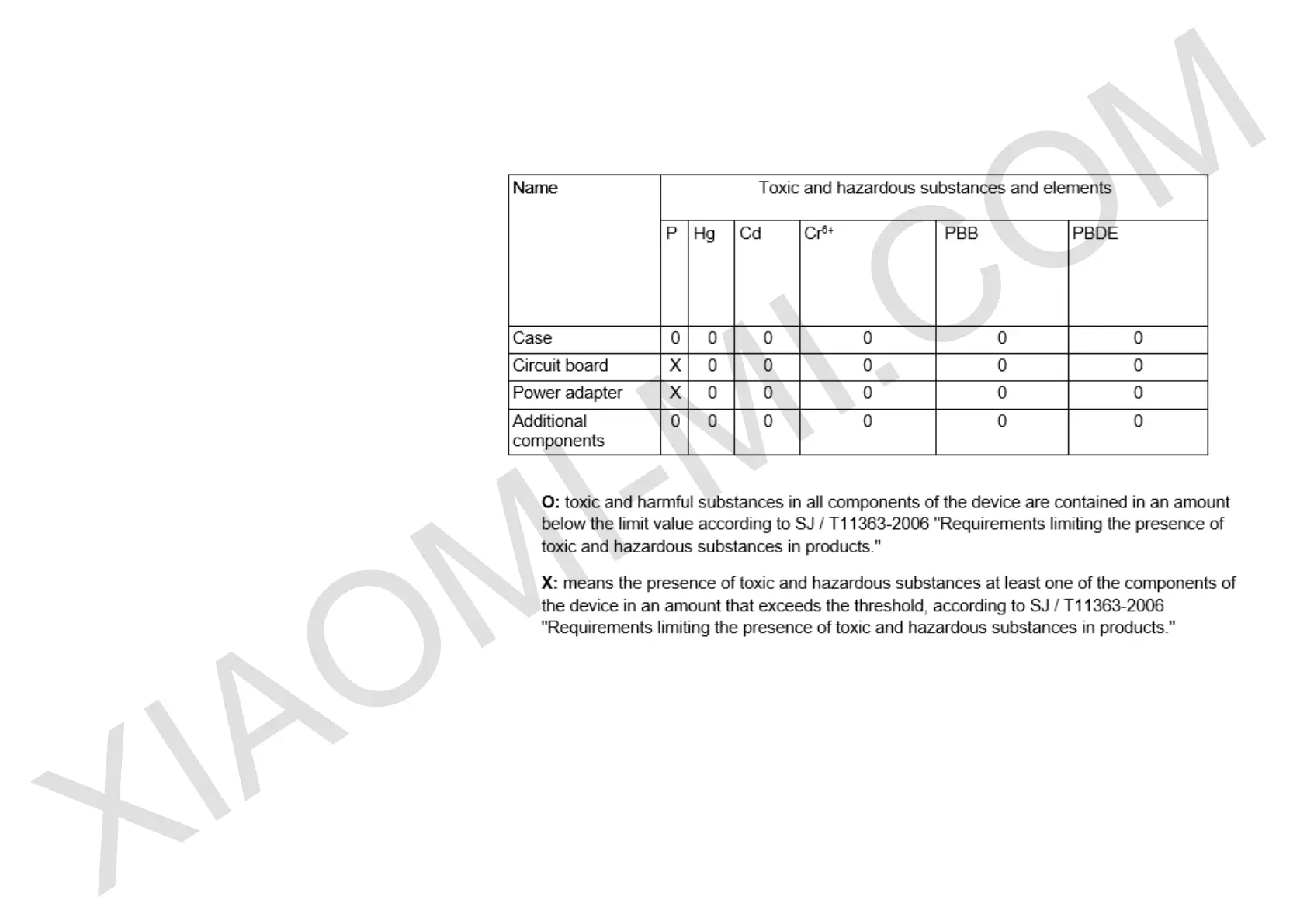

The presence of toxic and harmful substances

XIAOMI-MI.COM

Produkspesifikasjoner

Merke:	Xiaomi
Kategori:	Ruter
Modell:	Mi WiFi Router 3
Produkttype:	Frittstående router
Vekt:	220 g
Bredde:	195 mm
Dybde:	131 mm
Høyde:	177.3 mm
Bruksanvisning:	Ja
Wi-Fi-standarder:	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
USB-port:	Ja
Strømkildetype:	DC
Antall USB 2.0-porter:	1
SIM-kortspor:	Nei
Kablingsteknologi:	10/100Base-T(X)
Nettverksstandard:	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Programvarespråk støttes:	Forenklet kinesisk
3G:	Nei
4G:	Nei
Produktfarge:	Hvit
Beste Wi-Fi-standard:	Wi-Fi 5 (802.11ac)
Strømforbruk (vanlig bruk):	2 W
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	2
Driftstemperatur (T-T):	0 - 40 °C
Kroppsmateriale:	Akrylonitril-butadien-styren (ABS)
Innebygd prosessor:	Ja
DC-inngangskontakt:	Ja
Modulator:	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Ethernet LAN dataoverføringshastigheter:	10, 100 Mbit/s
Støttede Windows operativsystemer:	Ja
Sikkerhetsalgoritmer:	WPA-PSK, WPA2-PSK
Ethernet/bredbåndsforbindelse:	Ja
Relativ luftfuktighet under drift (H-H):	10 - 90
Prosessormodell:	MediaTek MT7620
AC-adapter bunt:	Ja
Wi-Fi-bånd:	Dobbelbånd (2.4 GHz / 5 GHz)
WLAN dataoverføringshastighet (første band):	300 Mbit/s
WLAN dataoverføringshastighet (andre band):	867 Mbit/s
Antenne forbedringsnivå (max):	6 dBi
Ethernet LAN-grensesnittype:	Raskt Ethernet
Antall antenner:	4
3G / 4G USB-modem kompatibilitet:	Nei
WLAN data overførings rate (max):	1167 Mbit/s
Mottakersensitivitet:	11Mbps:≤-90dBm, 54 Mbps:≤-72dBm, \nHT20 MCS7:≤-69dBm\nHT40 MCS7:≤-66dBm\nVHT20 MCS8:≤-65dBm\nVHT40 MCS9:≤-60dBm\nVHT80 MCS9:≤-58dBm
Antennedesign:	Utvendig
Minnekort-innstikk:	Nei
Antall RJ11-porter:	1
